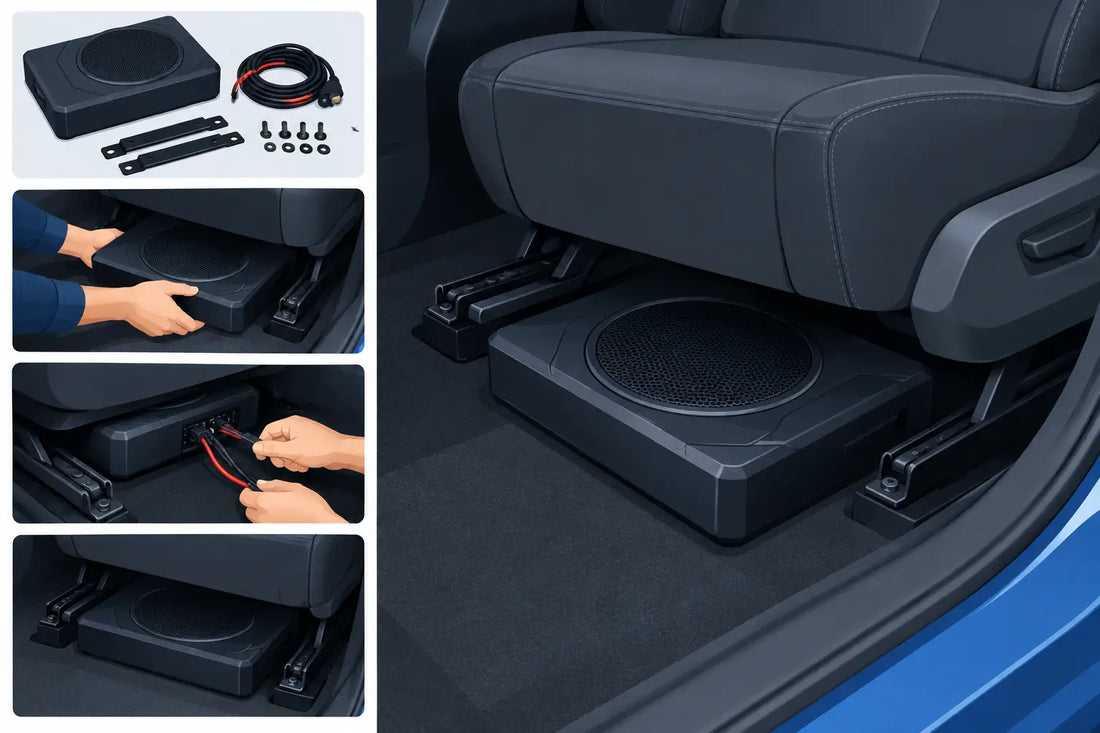

How to Install an Underseat Subwoofer Right
A compact powered subwoofer can make a factory system feel complete without filling the trunk with a box and amplifier. If you are searching for how to install underseat subwoofer gear, the real job is not simply sliding a slim enclosure below a seat. It is choosing a unit that truly fits, supplying it with safe power, getting a clean audio signal, and tuning it so the bass supports the music instead of taking it over.
Most underseat subwoofers combine a small woofer and amplifier in one low-profile enclosure. That makes them a smart option for daily drivers, trucks, and SUVs where cargo space matters. The trade-off is output. A quality underseat model adds punch, warmth, and low-end presence, but it will not move air like a full-size 12-inch subwoofer in a properly built enclosure. Set expectations correctly and this upgrade can be one of the best values in car audio.
Start With Fitment, Not the Subwoofer
Before ordering anything, measure the available space under the driver or passenger seat. Check length, width, and height, but do not stop there. Look for seat rails, wiring harnesses, floor vents, rear HVAC ducts, seat-mounted modules, and uneven carpet. Leave room around the subwoofer for wiring and ventilation.
The passenger seat is often the easier location because it may have fewer factory components, but every vehicle is different. Some late-model vehicles have airbag wiring, occupancy sensors, or amplifier modules under the seat. Do not relocate, unplug, pinch, or cover those components to make a subwoofer fit.
Also inspect the seat movement. Slide the seat through its full range and recline it before committing to a mounting position. A sub that clears the seat when it is centered but gets crushed when a taller driver moves it back is not installed correctly.
Choose the Right Type of Underseat Subwoofer
For most installations, a powered underseat subwoofer is the simplest route. It has the amplifier built in, so you only need power, ground, signal, remote turn-on, and a secure mounting plan. A passive slim subwoofer requires a separate amplifier and more space, more wiring, and more setup time.
Look for high-level speaker inputs if you plan to retain a factory radio. These inputs let the subwoofer receive signal from factory speaker wires. Some models include auto turn-on circuitry that senses audio signal, while others need a traditional remote turn-on wire. Features such as a wired bass level controller, adjustable low-pass crossover, phase control, and a compact fuse holder make day-to-day use and setup easier.
Tools and Parts You Will Need
A clean installation depends on having the right parts before panels come apart. At minimum, plan on having:
- A powered underseat subwoofer with mounting hardware
- An appropriately sized amplifier wiring kit with an inline fuse holder
- Wire strippers, crimpers, terminals, electrical tape, and zip ties
- A panel removal tool, drill with the correct bit, and basic hand tools
- A multimeter or test light for verifying power, ground, and remote connections
Disconnect Power and Plan the Wire Routes
Disconnect the negative battery terminal before running power wire or tapping into vehicle wiring. This reduces the chance of a short circuit and prevents accidental damage while you work around electrical components.
Plan the power-wire route from the battery to the cabin before drilling anything. Many vehicles have a factory firewall pass-through or grommet that can be used. If you must make a new opening, use a proper rubber grommet to protect the wire from metal edges. A power wire rubbing against bare sheet metal can eventually short out, which is exactly what the fuse is there to protect against.
Mount the inline fuse holder within about 18 inches of the battery. Keep the fuse out until all wiring is complete. Route the wire through the engine bay neatly, away from exhaust parts, steering components, moving belts, and extreme heat.
Inside the vehicle, tuck wiring beneath trim panels without forcing clips or pinching the insulation. On many vehicles, installers route power down one side of the vehicle and RCA or signal wiring down the other side to reduce the chance of noise. With high-level inputs, this is less critical than with low-level RCA cables, but clean routing is still good practice.
Make a Solid Power and Ground Connection
Run the positive power wire to the subwoofer location, keeping enough extra length for service without creating a loose coil under the seat. Connect it to the subwoofer’s positive power terminal only after the fuse holder is installed at the battery end.
The ground connection deserves the same attention as the power connection. Find a solid piece of vehicle chassis metal close to the subwoofer, ideally within 18 inches. Avoid thin brackets, painted surfaces, seat bolts unless the manufacturer confirms they are suitable, and factory wiring grounds shared with sensitive electronics.
Sand the grounding point to clean bare metal, use a properly sized ring terminal, and fasten it securely with a bolt and star washer. A weak ground is a common cause of low output, alternator noise, random shutdowns, and protect-mode problems.
Connect Audio Signal and Remote Turn-On
With an aftermarket head unit, RCA outputs are generally the cleanest signal option. Run RCA cables from the head unit’s subwoofer or rear-channel outputs to the powered subwoofer, then connect the remote turn-on lead from the radio’s amplifier remote wire.
Factory radio installations usually call for high-level inputs or a line output converter. Identify the correct speaker wires using a wiring diagram and verify them before tapping in. Do not guess based on wire color alone, especially on newer vehicles with premium audio, active noise cancellation, factory amplifiers, or unusual speaker configurations.
If the powered subwoofer has auto turn-on, test it carefully. Some systems create enough signal for reliable turn-on, while others may cause delayed shutoff, turn-on pops, or inconsistent operation. In those cases, a dedicated remote turn-on source or an integration module is the better answer.
Avoid Factory-System Surprises
Modern factory audio is not always a simple speaker-wire connection. Active noise cancellation can react badly to added bass. Factory equalization may roll off low frequencies as volume rises. Some amplified systems use processed or full-range signals that need correction before they reach an aftermarket subwoofer.
This is where a basic install can turn into a vehicle-specific integration job. If the bass disappears at higher volume, sounds boomy, or triggers warning lights after the install, stop and diagnose the signal path rather than turning knobs at random.
Secure the Enclosure Before Reinstalling the Seat
An underseat subwoofer should not be loose under the carpet. It can slide during braking, damage wiring, block seat movement, or become a projectile in a collision. Use the manufacturer’s mounting brackets when possible, and mount into a solid floor structure without drilling into fuel lines, wiring, brake lines, or anything under the vehicle.
Before drilling, inspect from underneath if access allows. In some vehicles, heavy-duty industrial fastener systems may be appropriate, but only if the surface is clean, flat, and the product is rated for the job. A professional installer can determine the safest mounting method when floor access is limited.
Make sure no wiring is stretched, pinched, or able to contact sharp seat tracks. Reconnect the battery only after confirming all terminals are tight and the fuse is installed.
Tune the Subwoofer for Real Music
Start with the subwoofer gain turned down. Set the head unit EQ flat, turn off loudness or bass boost, and play a familiar song with consistent bass. Raise the radio volume to a strong listening level that remains clean, then slowly increase the subwoofer gain until the bass blends with the door speakers.
Set the low-pass crossover around 80 Hz as a starting point. Depending on the vehicle and speaker setup, 70 Hz to 100 Hz may work better. The goal is to let the underseat sub handle low frequencies without making voices, kick drums, and bass notes sound like they are coming from under one seat.
Try the phase setting at both 0 and 180 degrees, then keep the position that gives fuller, more natural bass from the driver’s seat. Use bass boost sparingly. It can sound exciting for a minute, but excessive boost causes distortion and can push a compact subwoofer past its limits.
A properly installed underseat subwoofer should disappear into the system. You should notice fuller music, not a rattling seat or a single-note thump. If you want clean low end without giving up cargo space, Audio Jam can match the right unit to your vehicle and install it with the wiring, integration, and tuning done the right way.
