Safe Car Amplifier Wiring: Preventing Battery Drain and Electrical Issues

Table of Contents

• Why Improper Amplifier Wiring Damages Your Vehicle
• Understanding Electrical Load and Battery Drain
• Choosing the Right Gauge Power Cable
• Installing Proper Fusing and Protection Systems
• Grounding Your Amplifier the Right Way
• Common Wiring Mistakes That Cost Vehicle Owners
• Our Professional Installation Process
• How We Prevent Electrical Issues Before They Start
• Signs Your Current Amplifier Wiring Needs Attention
• Protecting Your Investment With Quality Components

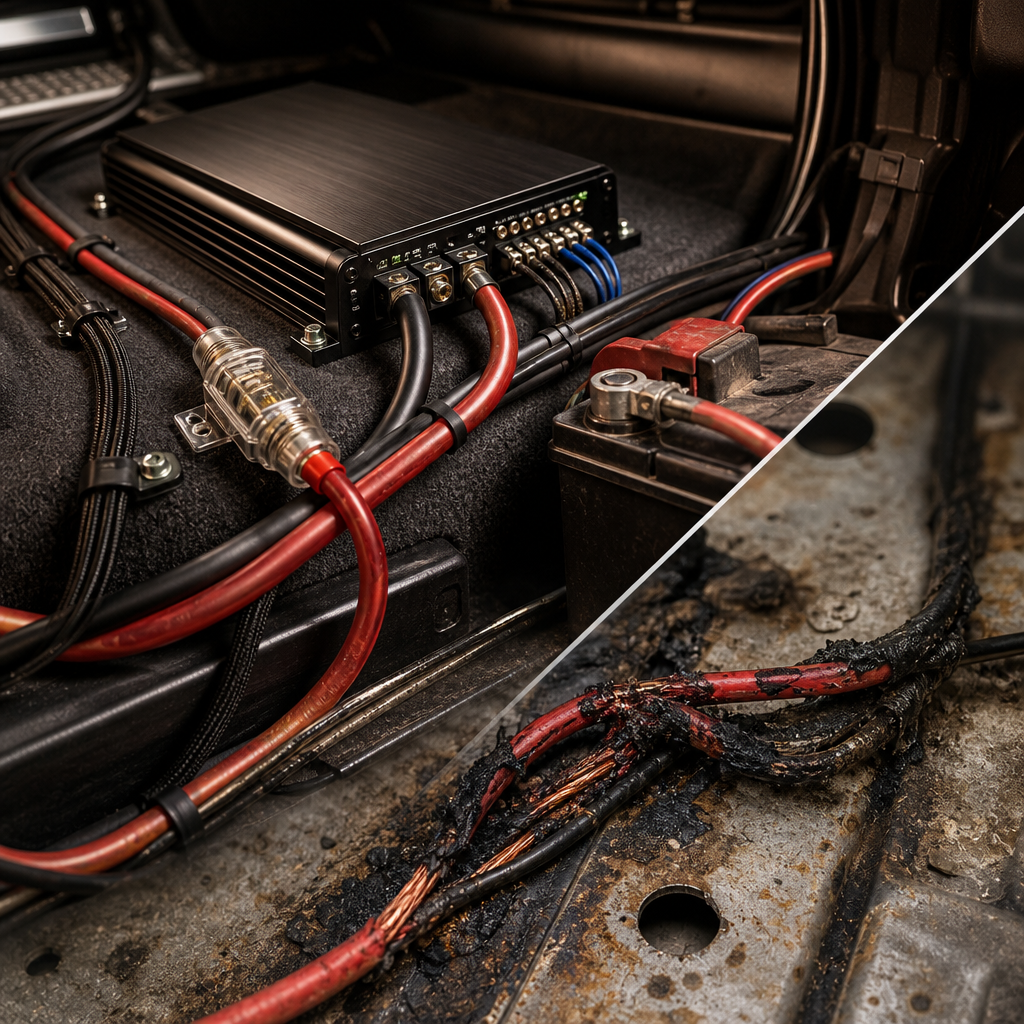

Why Improper Amplifier Wiring Damages Your Vehicle

When you upgrade your vehicle's audio system with a quality amplifier, you're making an investment in your driving experience. But here's what many vehicle owners don't realize: a powerful amplifier wired incorrectly can turn that investment into an expensive electrical nightmare. Battery drain, blown fuses, melted wires, and dashboard fires aren't worst-case scenarios we mention to scare you. We've seen them happen when car owners skip proper installation steps or follow incomplete online guides.

The difference between a system that sounds incredible for years and one that leaves you stranded comes down to wiring fundamentals. At Audio Jam, we've installed hundreds of amplifier systems across Delaware, and we've learned that most electrical problems are entirely preventable with the right approach.

Your vehicle's electrical system wasn't designed to handle the power demands of an aftermarket amplifier. Factory wiring can deliver enough juice for your stereo head unit, but an amplifier pulling 50, 75, or 100+ amps introduces stress that factory components simply weren't engineered for.

When wiring is done wrong, several things break down. Undersized power cables create resistance, generating heat that can melt insulation. Inadequate fusing means excessive current flows through your vehicle's harness without protection. Poor grounding forces electrical current to find alternate paths through metal chassis and components, potentially damaging electronics and creating fire hazards. The alternator and battery work overtime trying to supply power that undersized cables can't deliver efficiently, accelerating battery drain and premature alternator failure.

Think of it like plumbing: if your water supply line is too narrow for the demand, pressure builds up and eventually something ruptures. Your electrical system operates the same way.

The practical consequence? You might notice dim headlights when the amplifier powers up, a battery that dies after a few days of non-use, or worse, smoke coming from under your dashboard during a long drive. We've replaced alternators that failed years before their expected lifespan because improper amp wiring forced them into overdrive.

What to do next: Before considering amplifier installation, decide whether you're ready to upgrade your vehicle's electrical infrastructure. This isn't a cost-cutting area where shortcuts work.

Understanding Electrical Load and Battery Drain

Every electrical component in your vehicle draws current, measured in amps. Your factory stereo might draw 5-10 amps at full volume. An aftermarket amplifier can demand 50-100 amps or more, depending on power rating and impedance load.

Your vehicle's alternator has a maximum output capacity, typically 80-150 amps in most cars and trucks. When an amplifier demands current that exceeds your alternator's output, the battery fills the gap. This is normal during peaks, but if your charging system can't keep up with continuous demand, your battery drains even while driving.

Here's a real scenario: A customer installed a 1,500-watt amplifier in their truck with factory wiring. The amp draws 120 amps at full power. Their alternator maxes out at 140 amps, but now it's also powering the engine, lights, and other accessories. The battery discharges continuously, and after 30 minutes of heavy bass-heavy music, the system voltage drops so low that the amplifier shuts down. Worse, the battery dies after sitting overnight.

Several factors affect electrical load:

• Amplifier power rating (higher watts = higher current draw)
• Impedance load (lower impedance = higher current demand)
• Alternator output capacity (varies by vehicle model and year)
• Number of additional electrical accessories (auxiliary lights, heated seats, etc.)
• Battery condition and size

We calculate electrical load before every installation. If your vehicle's alternator can't handle the amplifier's draw, we discuss upgrading the alternator before installation proceeds. A quality high-output alternator costs $400-600 but prevents thousands in potential damage.

What to do next: Check your vehicle's electrical specifications. Your owner's manual lists alternator output. Compare it against the amplifier's maximum current draw to understand if your charging system needs upgrading.

Choosing the Right Gauge Power Cable

Power cable gauge is measured in AWG (American Wire Gauge), where lower numbers mean thicker wires. A 4-gauge cable carries much more current than 8-gauge with minimal voltage drop, but costs more and is harder to route through your vehicle.

The correct gauge depends on three factors: the distance from battery to amplifier, the amplifier's maximum current draw, and your acceptable voltage drop (we target 3% or less).

For a simple example, if you're installing a 1,500-watt amplifier in a sedan with the amp mounted behind the rear seats, you might need 1/0 or 2/0 gauge cable. But if you're mounting it in a truck bed, the same amp might require 2/0 or 4/0 gauge because the current travels a longer distance.

A quick reference guide for amplifier current draw:

• 500-1,000 watts: 4-8 gauge cable
• 1,000-2,500 watts: 1/0-2/0 gauge cable
• 2,500+ watts: 2/0-4/0 gauge cable

(These are general guidelines; actual requirements depend on cable run length and voltage drop calculations)

The real issue we see repeatedly is using marine battery cables or speaker cables instead of automotive-rated power cables. Marine cables don't have the same insulation standards for underhood heat. Speaker cables are designed for low current and burn up when exposed to amplifier power draws. You need automotive-grade welding cable or OEM power cable rated for your system's current demands.

We stock quality wiring kits that include proper gauge cables, fuses, distribution blocks, and connectors engineered for car audio applications. These kits take guesswork out of the equation.

What to do next: Measure the distance from your vehicle's battery to your amp's planned location. Add that measurement plus extra for routing around engine components, and use it to select the proper cable gauge for your amplifier's current draw.

Installing Proper Fusing and Protection Systems

Fusing is your amplifier's last line of defense against catastrophic electrical failure. A properly rated fuse melts and breaks the circuit before an overcurrent melts your power cable, fires your vehicle, or damages expensive equipment.

The fuse rating depends on your power cable gauge. A 2-gauge cable can safely carry 175 amps before dangerous temperatures develop, so you'd fuse at 150-175 amps. An 8-gauge cable maxes out around 60 amps, so you'd fuse at 50-60 amps. The fuse should always be smaller than the cable's safe continuous rating.

Here's what we insist on for every installation:

• Fuse holder mounted within 18 inches of the battery
• Fuse holder quality-rated to handle the current
• Fuse with correct amperage matching your power cable
• Inline fuse at the amplifier as secondary protection
• Proper cable connections at fuse holder and amplifier

We've encountered setups where vehicle owners used a single oversized fuse at the battery and called it good. During a short circuit, that fuse took 5-10 seconds to blow because the current exceeded its rating so dramatically. In that window, your power cable melts, insulation ignites, and you've got a fire. Properly rated fuses blow almost instantly.

Some advanced systems add circuit breakers instead of, or in addition to, fuses. Circuit breakers can reset automatically after cooling, while fuses require replacement. For vehicle audio installations, we typically use fuses as primary protection and add a circuit breaker for convenience.

What to do next: If your current amp installation only has one fuse, have a professional inspect the fuse rating against your power cable gauge. An undersized or oversized fuse creates serious risk.

Grounding Your Amplifier the Right Way

Grounding is where we see the most common installation errors, and it's also the most misunderstood aspect of car amplifier wiring. Many car owners think any metal contact to the chassis counts as grounding. It doesn't.

Your amplifier needs a dedicated ground cable running directly from the amplifier's ground terminal to a clean metal point on your vehicle's chassis, ideally at the negative battery terminal. The cable gauge should match your power cable size (if power is 2-gauge, ground should be 2-gauge). The path matters tremendously.

Here's why: electrical current needs a return path. If you ground your amp to a random piece of sheet metal on your vehicle, current flows through that metal, spreads to nearby components, and looks for alternate return paths. This causes voltage drop in ground points, increases electrical noise in your system, and can damage vehicle electronics.

The ideal ground point is the negative battery terminal itself, but if distance makes that impractical, you can ground to the chassis near your amplifier. The critical requirements are:

• Bare metal contact (remove paint where the ground cable connects)
• Secure, corrosion-free connection
• Cable gauge matching power cable size
• Short, direct routing from amp to ground point
• No splitting the ground cable to power other components

We've found amateur installations grounding to plastic trim, rusted metal surfaces, or undersized cables. Undersized grounds (like 8-gauge cable paired with 2-gauge power cable) create a bottleneck that prevents proper current flow, causing electrical noise, system voltage fluctuations, and amp shut-offs under load.

What to do next: If your amp installation uses a ground cable smaller than your power cable, or if the ground point shows paint or corrosion, plan to have it re-grounded properly.

Common Wiring Mistakes That Cost Vehicle Owners

Beyond the issues already mentioned, we see specific mistakes repeatedly that cause expensive problems.

Running power cable alongside signal cables creates electrical noise. Audio signals from your head unit are measured in millivolts, while power cables carry hundreds of amps. The electromagnetic field around power cables induces noise into nearby signal cables, creating a constant hum through your speakers. Solution: separate power and signal cables by at least 12 inches, or better yet, run them on opposite sides of your vehicle.

Daisy-chaining ground cables saves money but ruins sound quality and creates safety risks. Instead of each component having its own dedicated ground, installers connect the amp ground to the head unit ground, then the head unit to the chassis. Each connection adds resistance and voltage drop. Use a dedicated ground distribution block where every component has its own path to chassis ground.

Using the factory head unit's remote turn-on wire to trigger aftermarket amplifiers creates a reliability problem. That tiny factory wire (usually 18-22 gauge) wasn't designed to carry amplifier trigger current. We use a proper remote turn-on cable from the head unit to a relay, which switches the amplifier on using its own dedicated circuit. This prevents voltage drop that can cause amps to shut off unexpectedly.

Overlooking battery upgrades for high-powered systems means your battery can't supply enough cranking amps to start your engine reliably while powering an amp at the same time. Upgrading from a factory 600-amp battery to an 800 or 1,000-amp battery ensures stable voltage during startup and heavy amp operation.

Forgetting to run a separate charging wire from alternator to battery allows voltage to drop dramatically. Current from the alternator flows through the entire vehicle's existing wiring (powering lights, engine management, etc.) before reaching the battery. A dedicated charging cable runs straight from alternator to battery, ensuring the battery charges properly even when the amp is drawing power.

What to do next: If your current installation hums through the speakers, shuts down under heavy bass, or has intermittent issues, these mistakes might be the culprit. Have a professional inspect your wiring layout.

Our Professional Installation Process

When you bring your vehicle to Audio Jam for amplifier installation, we follow a systematic process that eliminates the errors we see in DIY and amateur installations.

First, we assess your vehicle's electrical system. We measure alternator output, check battery condition, and evaluate the current infrastructure. For high-powered systems, we determine whether an alternator or battery upgrade is necessary before proceeding.

Next, we perform load calculations. We take your amplifier's specifications, calculate maximum current draw at your target impedance load, and select power and ground cable sizes using industry standards. We also plan cable routing to minimize electromagnetic interference and maximize safety.

During physical installation, we disconnect the negative battery terminal first. This prevents accidental short circuits. We then run the power cable from the positive battery terminal through the vehicle's firewall, using proper grommets to prevent chafing and short circuits. The power cable routes along the vehicle's frame or beneath carpet and trim, staying away from moving parts, heat sources, and fuel lines.

At the amplifier location, we install a quality fuse holder within 18 inches of the battery connection point. The fuse rating matches the power cable gauge. We connect the power cable to the fuse holder, then to the amplifier's power terminal with proper crimped connectors.

For grounding, we run a dedicated cable from the amplifier's ground terminal to a clean metal point on the vehicle chassis. We sand the mounting point to bare metal, bolt the ground cable securely, and apply corrosion-preventing dielectric grease to prevent future oxidation.

Signal cables are routed separately from power cables, maintaining that 12-inch minimum separation. We use shielded RCA cables from the head unit to the amplifier to prevent noise injection. The remote turn-on wire runs separately and triggers a relay that switches the amplifier on reliably.

Finally, we test the system at idle and at operating RPMs to ensure proper voltage stability, confirm the amplifier receives full power, verify the ground is solid, and check for any electrical noise in the audio signal.

What to do next: Schedule a consultation where we can evaluate your vehicle and discuss the specific requirements for your audio upgrade.

How We Prevent Electrical Issues Before They Start

Prevention is vastly cheaper than repairs. We've developed specific practices that catch problems before your system goes into your vehicle.

We use a multimeter to measure voltage drop across power cables during system operation. Acceptable voltage drop is 3% or less of your system voltage (in a 12-volt system, that's 0.36 volts maximum). Any higher, and we know the cable gauge is undersized or the connections are poor.

Before final installation, we load-test the system. We turn up the bass, watch the voltage, and confirm the alternator and battery can handle the draw without the voltage dropping below 11 volts. If voltage sags below 11 volts, we upgrade the charging system before completing the job.

We inspect every crimped connection under magnification. A loose crimp looks similar to a good crimp to the naked eye, but under magnification, poor crimps show gaps and deformed terminal contact. Poor crimps cause intermittent failures and electrical fires. We replace any questionable connections.

We also measure electrical resistance at each ground point. Using a multimeter in resistance mode, we check for corrosion, poor contact, or undersized ground cable. Resistance at ground points should be near zero ohms. Anything higher indicates a problem we'll fix before the system leaves our shop.

Our comprehensive approach takes longer than a quick DIY installation, but it ensures your investment performs reliably for years without electrical surprises.

What to do next: If you're planning an amplifier upgrade, ask potential installers whether they perform load testing, voltage drop measurement, and ground resistance inspection. Professional shops do these consistently.

Signs Your Current Amplifier Wiring Needs Attention

If your system exhibits any of these issues, your wiring installation likely has problems that need correction.

Dimming headlights when the amplifier powers up indicates insufficient battery or alternator capacity, undersized power cable, or poor ground connection. When current tries to flow through resistance in the power or ground circuit, voltage drops at the battery, affecting all electrical systems.

Amplifier shut-offs during heavy bass or extended operation suggest the amplifier's protection circuit is triggering due to low voltage or excessive temperature. Causes include undersized power cable creating voltage drop, inadequate fuse rating causing voltage sag, poor ground connection reducing efficiency, or a struggling alternator unable to supply peak current.

Electrical hum or buzz through your speakers indicates power and signal cables running too close together, or ground loop issues from multiple ground connections at different voltage potentials. Sometimes daisy-chained grounds create this noise.

Intermittent audio dropout, particularly with bass-heavy content, often points to a loose connection somewhere in the power or ground circuit. Vibration from the amplifier can stress marginal connections until they temporarily lose contact.

A burning smell near the amplifier or power cable suggests insulation is melting. This is a fire hazard and requires immediate attention. Turn off the system and have a professional inspect the wiring before using the vehicle.

Battery drain (battery goes dead after a few days of non-use) usually means the amplifier isn't receiving adequate power during charging, so it draws from the battery to compensate. Over time, the battery discharge exceeds the alternator's ability to recharge.

What to do next: If you notice any of these symptoms, have your installation inspected by a professional before the problem escalates.

Protecting Your Investment With Quality Components

The cost difference between budget wiring components and quality automotive-grade components is surprisingly small, but the reliability difference is enormous.

Budget power cables often use substandard insulation that hardens and cracks in underhood heat, exposing bare wire. Quality automotive power cables use insulation rated for the temperature range your engine bay experiences. Similarly, budget fuse holders use poor-quality clamps that loosen over time, while quality fuse holders maintain solid contact through years of vibration.

Crimped connectors deserve attention too. The cheapest battery terminal connectors are bare copper with a simple set screw. These corrode, loosen, and fail. Quality tinned copper connectors with sealed boots resist corrosion and maintain contact under vibration.

Distribution blocks and ground terminals that organize multiple cables are inexpensive but critical. A $20 quality ground distribution block prevents the daisy-chaining mistakes that cause voltage drop and noise. A similar budget block might work initially but develops loose connections as vibration loosens internal contacts.

When you purchase wiring kits from Audio Jam, we include components selected for reliability, not just to meet a price point. Every cable, connector, and fuse holder is sized and rated for safe, continuous operation at the power levels your system demands. These kits are designed by installers who've learned what works and what fails over years of real-world experience.

The same principle applies to amplifiers themselves. Quality amplifiers include protection circuitry that prevents damage from electrical faults. Budget amplifiers sometimes lack these safeguards, meaning a wiring mistake burns out the amplifier instead of just the fuse.

What to do next: Before purchasing amplifier wiring components, confirm they're automotive-grade and rated for your system's power requirements. Bargain components create ongoing headaches.

---

Proper amplifier wiring isn't glamorous, but it's the foundation that keeps your audio system running reliably and safely. The professionals at Audio Jam have installed thousands of systems, and our experience shows that vehicles with properly executed wiring never develop the electrical problems that plague poorly installed systems.

If you're in Delaware and considering a car audio upgrade, we'd welcome the opportunity to assess your vehicle and discuss the right approach for your specific situation. Proper installation protects your vehicle, preserves your investment, and ensures your audio system performs the way you imagined when you first decided to upgrade. Contact us to schedule a consultation and let's build your system the right way.
