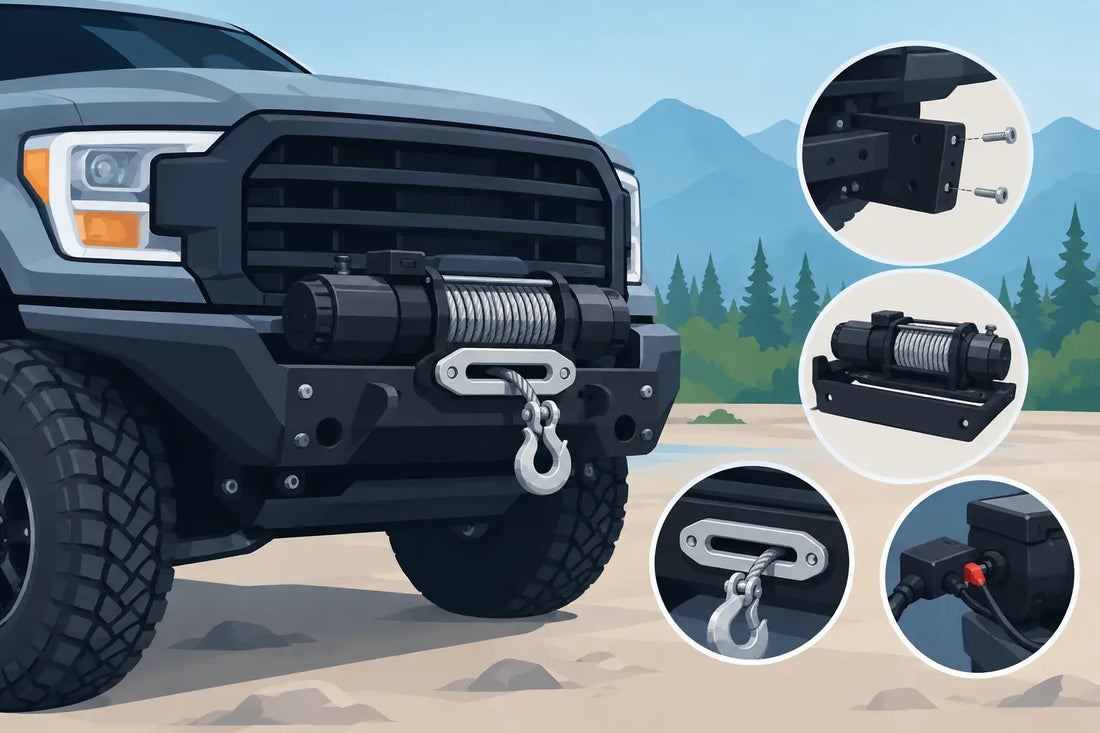

How to Mount a Truck Winch the Right Way

A winch only helps when it is mounted to something that can handle the pull. Whether your truck is built for muddy trails, job-site recovery, boat ramps, or winter weather, the goal is the same: mount a truck winch to a properly supported structure, wire it safely, and make sure the system matches the vehicle.

A cheap universal plate bolted to thin bumper material may look fine parked in the driveway. Under a hard pull, it can bend, loosen, or transfer force where the truck was never designed to take it. A good winch installation starts with the mounting system, not the remote control or the synthetic rope color.

Start With the Right Winch Capacity

Winch ratings are measured in pounds of line pull, but the number on the box is not the entire story. A common starting point is a winch rated at roughly 1.5 times your truck's loaded weight. That includes the truck, passengers, tools, gear, rack accessories, and anything else you normally carry.

For many midsize trucks, a 9,000- to 10,000-pound winch is a practical range. Full-size half-ton and heavy-duty trucks often need a 12,000-pound or higher unit, depending on actual weight and intended use. Bigger is not automatically better, though. Higher-capacity winches are heavier, draw more current, and need a mounting system and electrical setup that can support them.

Also remember that maximum line pull is usually measured with the first wrap of rope on the drum. Pulling with several layers of rope on the drum reduces mechanical advantage. When a recovery is serious, spooling out enough line and using a properly rated snatch block can make a major difference.

Choose a Mount That Ties Into the Frame

The strongest truck winch installations use a winch-ready aftermarket bumper or a vehicle-specific hidden winch mount. Both options should attach to factory frame horns, recovery mounting points, or another engineered structural location.

A winch bumper is the obvious choice for trucks that see frequent off-road use. It puts the winch where it is easy to access, allows room for a fairlead, and can create space for recovery points, lights, and front-end protection. The trade-off is weight, cost, and a more aggressive appearance. Some bumpers also affect parking sensors, front cameras, adaptive cruise systems, and airflow, so vehicle-specific fitment matters.

A hidden winch mount keeps a more factory-style appearance. These setups often place the winch behind the factory bumper cover or inside a compatible lower valance area. They work well for daily-driven trucks, but access can be tighter. Before choosing one, confirm that the fairlead opening, clutch lever, remote port, and rope path will remain usable after the bumper is installed.

A receiver-mounted winch cradle has its place, especially for occasional recovery, utility trailers, or customers who want to move one winch between vehicles. It is not the best answer for every trail truck. A front receiver and cradle place a heavy load farther out from the vehicle, can reduce approach angle, and require careful attention to receiver rating and cable routing.

Do Not Mount a Winch to a Cosmetic Bumper

Many factory bumpers and grille guards are built for appearance, minor impacts, or light accessories. They are not automatically winch mounts. The same goes for light-duty brush guards. If the instructions do not specifically state that the part is winch-rated and list the supported winch capacity, treat it as non-structural.

The winch tray needs to resist pulling force, twisting force, and vibration over time. Use the manufacturer-supplied high-grade hardware, correct bolt sizes, and specified torque values. Do not substitute random hardware-store bolts because they happen to fit the holes.

Confirm Fitment Before Ordering Parts

Truck trim level matters. A mount that fits one model year may interfere with another due to changes in intercooler placement, tow hooks, active shutters, bumper sensors, or front camera equipment. Diesel models can have different front-end packaging than gas models, and lifted trucks may still need specific bumper brackets.

Check the winch dimensions in addition to its pulling capacity. Pay attention to overall width, height, depth, mounting bolt pattern, control box location, and drum orientation. Some compact winches fit hidden mounts easily, while larger units require a bumper with more internal space.

You also need the correct fairlead. Synthetic rope should run through a smooth aluminum hawse fairlead designed for synthetic line. Steel cable typically uses roller fairleads, although some modern recovery setups use hawse fairleads based on the manufacturer's guidance. The fairlead must line up straight with the drum opening. A badly angled rope path can damage rope, cable, or the fairlead during a side pull.

Wire the Winch for Real-World Use

Winches can draw several hundred amps under load. That is why the supplied power cables are short, heavy, and not optional. Run the positive cable directly to the battery positive terminal and the negative cable directly to the battery negative terminal unless the winch manufacturer specifically instructs otherwise.

Avoid grounding the winch only to a painted bumper, frame rail, or random bolt. A poor ground creates voltage drop, slow operation, heat, and unreliable performance when you need the winch most.

Route both cables away from exhaust heat, sharp edges, steering components, suspension travel, and moving belts. Use abrasion protection where cables pass near metal, secure them with insulated clamps or quality ties, and leave enough slack for engine movement. If a cable must pass through a panel, use a properly sized grommet.

Most winches do not require an inline fuse because normal working current can exceed what practical fuses can handle. A high-current battery disconnect is still a smart addition for certain builds. It can isolate the winch during service, long-term storage, or when troubleshooting an electrical issue. Choose a disconnect rated for winch duty, not a small accessory switch.

Battery and Charging System Considerations

A winch can work with a healthy stock battery on occasional short pulls. Repeated hard recovery, cold weather, auxiliary lighting, refrigerators, audio upgrades, and other accessories put more demand on the electrical system. For a truck used regularly off-road or for work recovery, a quality AGM battery, upgraded battery terminals, and a charging system in good condition are worthwhile.

The engine should generally be running during a winch pull to support battery voltage, provided the situation is safe and the vehicle is in a stable position. Do not expect the alternator alone to power a hard pull. The battery supplies the surge current, while the alternator helps replenish it.

Install the Rope and Recovery Gear Correctly

Synthetic rope is lighter, easier to handle, and safer to manage than steel cable when maintained properly. It does need protection from abrasion, UV exposure, and heat. Steel cable is durable but can develop sharp broken strands and stores more energy under load. Either choice can work when matched to the application and inspected regularly.

Use a closed recovery point or properly rated shackle mount for pulls. Never hook the winch line to a trailer ball, bumper skin, suspension component, or unknown tie-down point. A recovery strap is not a winch extension unless it is specifically rated for winching. Keep people clear of the line path, use a line damper, and pull as straight as conditions allow.

After use, inspect the rope or cable, hook, fairlead, mounting bolts, electrical terminals, and control connections. Re-spool the line evenly under light tension. Loose, uneven wraps can pinch lower layers and create problems on the next pull.

When Professional Installation Makes Sense

A bolt-on winch mount can still become a complicated install when the truck has cameras, parking sensors, aftermarket lighting, grille shutters, a lift kit, or limited space behind the bumper. Professional installation is especially valuable when trimming is required, wiring needs to be routed through a crowded engine bay, or a bumper must be aligned around factory safety equipment.

For truck owners in Bear, Delaware, and the surrounding area, Audio Jam can help match a winch, mount, bumper, lighting, and recovery setup to the way the truck is actually used. The best build is not the one with the biggest number on the winch label. It is the one that stays secure, works when the trail turns bad, and does not create new problems for the rest of the truck.
