WyreStorm 4K 4x2 HDMI Matrix Switcher
The 4K 4x2 HDMI Matrix Switcher from WyreStorm is a powerful, compact matrix switcher with four HDMI inputs and two HDMI outputs that handle bandwidths up to 18 Gb/s. The unit supports ARC as well as CEC triggering and can de-embed audio for outputting via the 3.5mm analog stereo port and/or the digital TOSLINK port.
WyreStorm EXP-MX-0402-H2 Overview

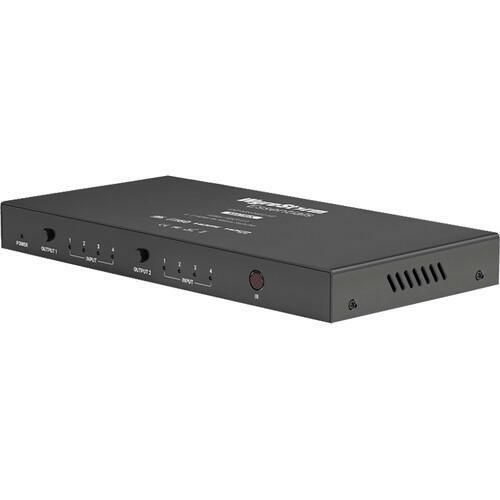

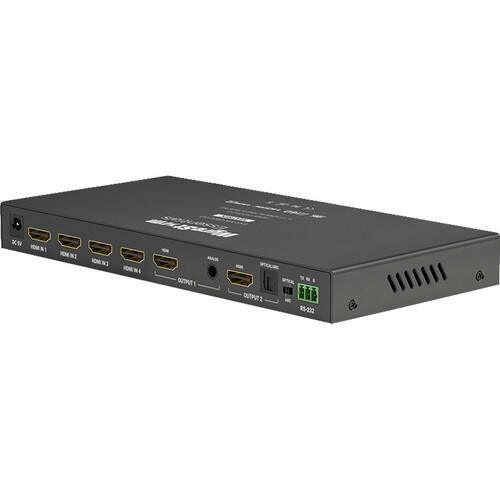

The 4K 4x2 HDMI Matrix Switcher from WyreStorm is a powerful, compact matrix switcher with four HDMI inputs and two HDMI outputs that handle bandwidths up to 18 Gb/s. The unit supports ARC as well as CEC triggering and can de-embed audio for outputting via the 3.5mm analog stereo port and/or the digital TOSLINK port. Compatible with HDR10, HLG, and Dolby Vision, in addition to being HDCP 2.2 compliant, the switcher allows users to simultaneously connect 4K and 1080p displays, using its powerful built-in scaler to deliver the most optimal signal to the appropriate display. An included 3-pin block connector facilitates RS-232 control, and the unit's sleek design ensures placement flexibility. Two mounting brackets are also included for rack mounting.
Switching Type IR Remote, Pushbutton
Processing Resolution DCI 4K at 60
Color Processing 12-Bit
10-Bit 4:2:0
8-Bit 4:4:4
Input
Video Inputs 4 x HDMI Female
Input Video Format HDMI (8/10/16-Bit 4:4:4/4:2:2)
DCI 4K at 60 fps
UHD 4K at 60 fps
1080p at 60 fps
Embedded Audio Input HDMI
Output
Video Outputs 2 x HDMI Female
Output Video Format HDMI (8/10/12/16-Bit 4:4:4/4:2:0)
DCI 4K at 60 fps
UHD 4K at 60 fps
1080p at 60 fps
Audio Outputs 1 x 1/8" / 3.5 mm TRS Stereo Analog Female
1 x TOSLINK S/PDIF Female
Output Audio Format Analog
S/PDIF
LPCM (Linear Pulse-Code Modulation)
Embedded Audio Output HDMI
Connectivity
Other I/O 1 x 1/8" / 3.5 mm IR
1 x Block 3-Pin RS-232
HDCP Support , Version 2.2
HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma
DTS Compatibility DTS:X
Dolby Compatibility Dolby Atmos
Hardware
Wi-Fi Yes
Bluetooth Yes
Power
Power I/O 1 x Barrel (5 VDC at 1 A) Input
Power Consumption 5 W
Environmental
Operating Temperature 32 to 113°F / 0 to 45°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
General
Certifications CE, FCC, RoHS
*as per Manufacturer
Rack Form Factor 1 RU
Dimensions 7.2 x 3 x 0.9" / 182 x 77 x 22 mm
Weight 12 oz / 340 g
In the Box
WyreStorm 4K 4x2 HDMI Matrix Switcher
5 VDC Power Supply
2 x Mounting Bracket
3-Pin Terminal Block
Remote Control (Batteries Available Separately)
Limited 2-Year Manufacturer Warranty
