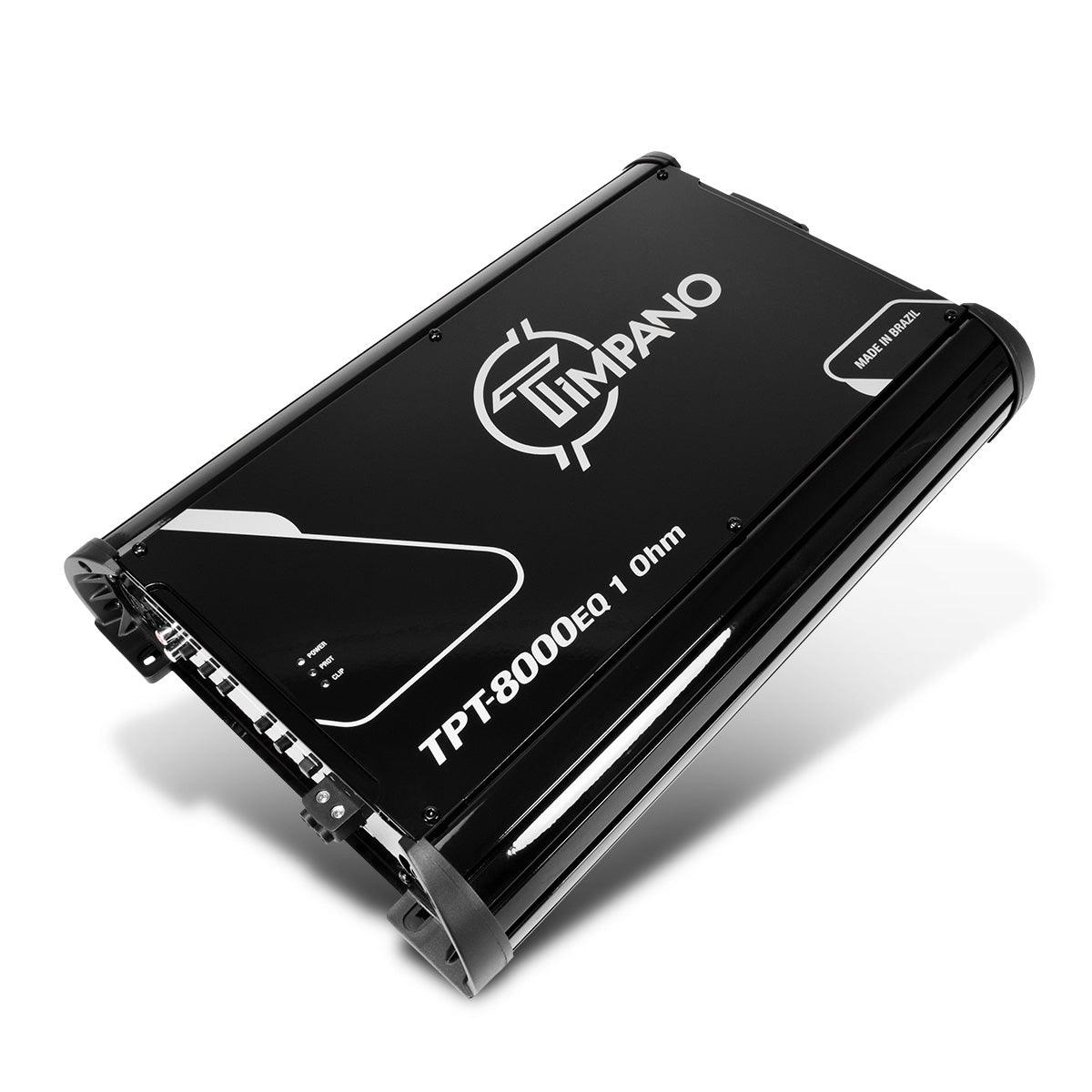

Timpano Audio TPT-8000EQ 1 Ohm 1 Channel Car Audio Amplifier

Additional Information:

Number of Channels: 1
RMS Power at 1 Ohm 12.6V: 8000W RMS
RMS Power at 2 Ohm 12.6V: 5100W RMS
RMS Power at 4 Ohm 12.6V: 3030W RMS

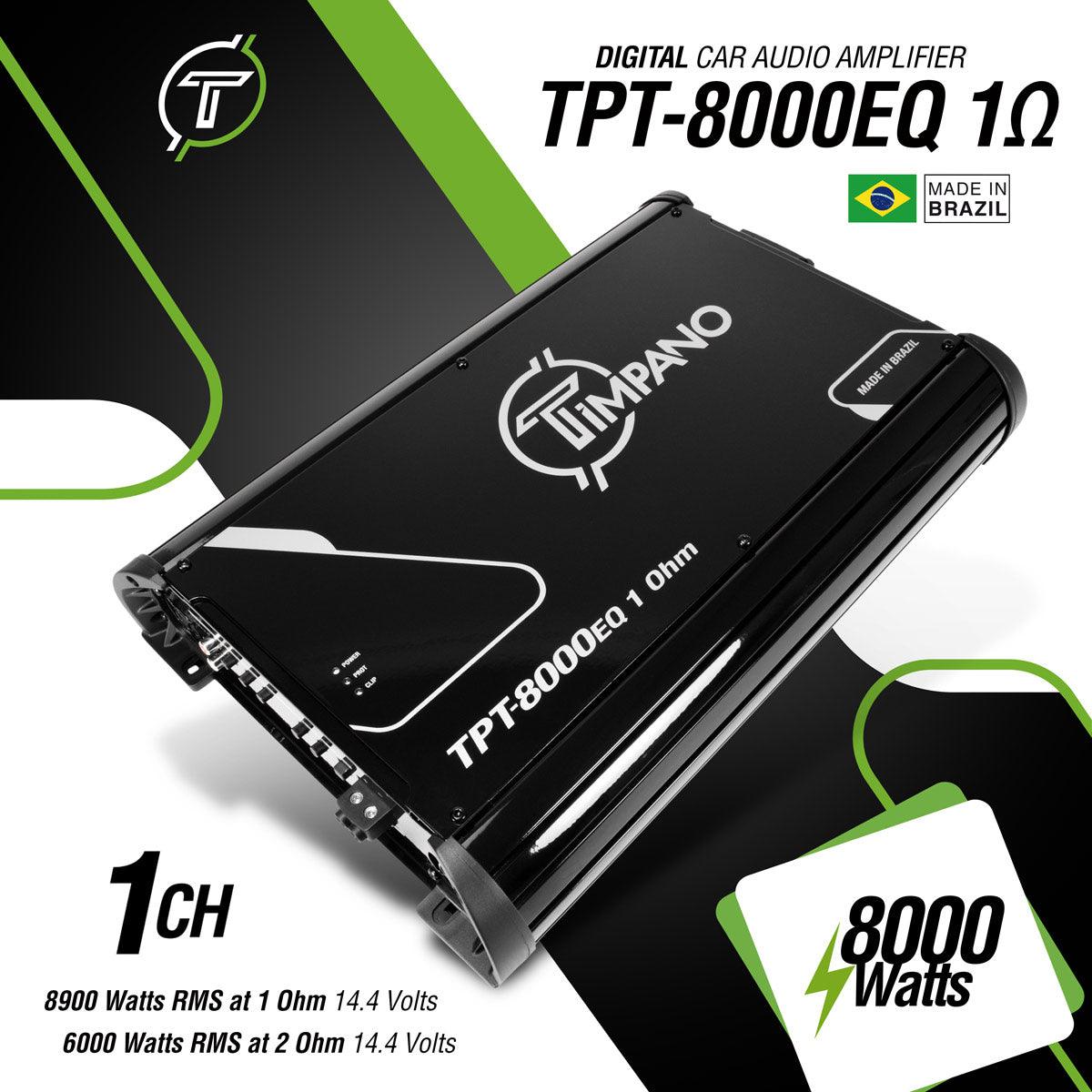

RMS Power at 1 Ohm 14.4V: 8900W RMS
RMS Power at 2 Ohm 14.4V: 6000W RMS
RMS Power at 4 Ohm 14.4V: 4000W RMS
Supply Voltage: 9.5 ~ 15V
Frequency Response: 10Hz ~ 15KHz
Crossover Low Pass: 50Hz ~ 15KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2V
Input Impedance: 25K Ohm
Impedance Output: 1 Ohm
Consumption with Signal Musical: 5.2A ~ 396A
Consumption with Signal Bass: 5.2A ~ 790A

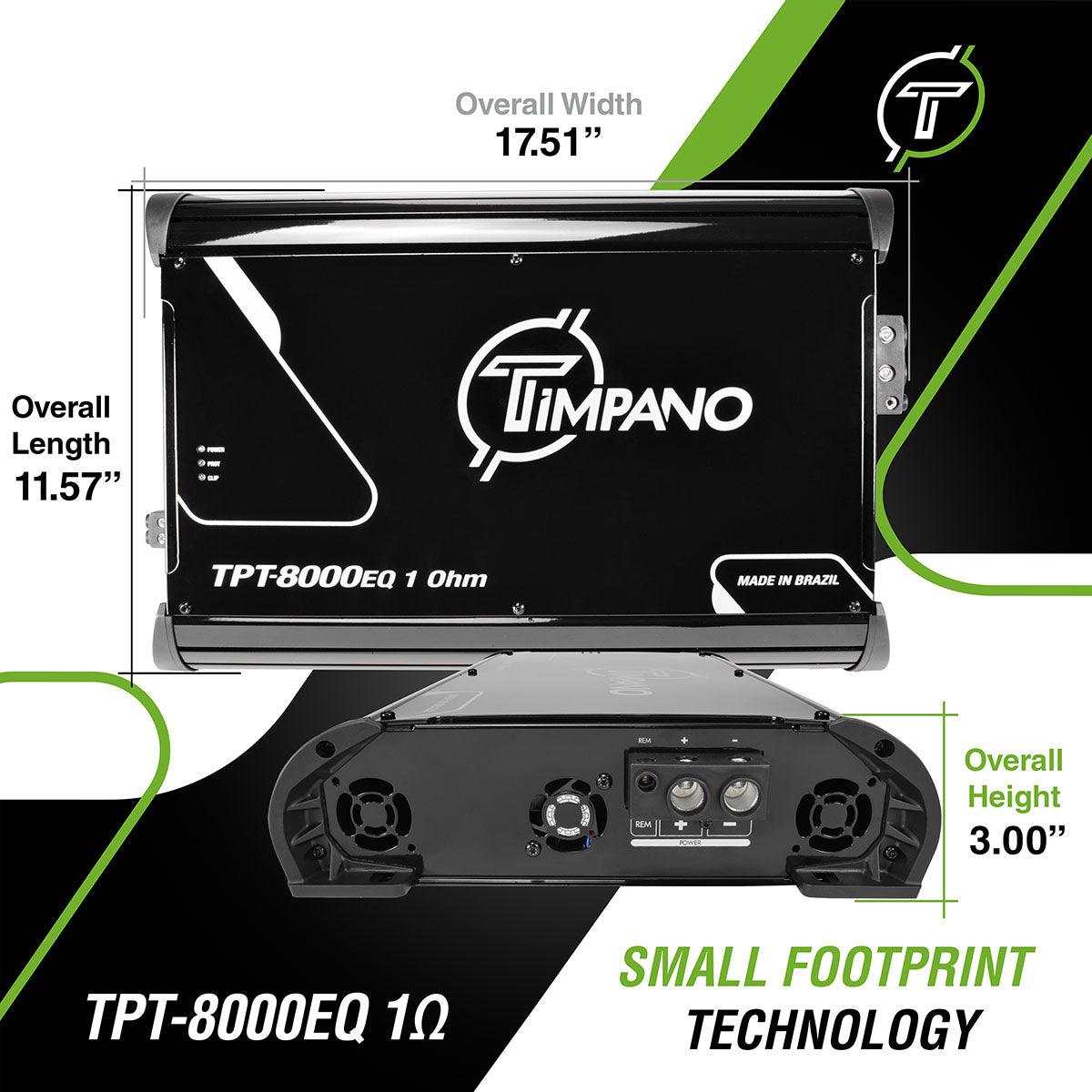

Dimensions (L x W x H): 11.57 x 17.51 x 3
Weight: 13.9 Lbs

Features:

The TPT-8000EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Fullrange frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.

Use the guide Below for recommended applications, where you can get the full potential of your amplifier.

Before Installing:

You must follow the instructions for the products installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;

Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;

Always use 100% Copper cables and good quality connectors. This guarantees the sounds quality and fidelity;

To avoid damaging the cables, make sure that they do not touch sharp metal edges.Important: Use a 350A fuse 12 inches away from the battery as a safety precaution

The power rated data are based on equipment from the STETSOM laboratory. Frequency reference of 1Khz with THD+N to ?10% in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
