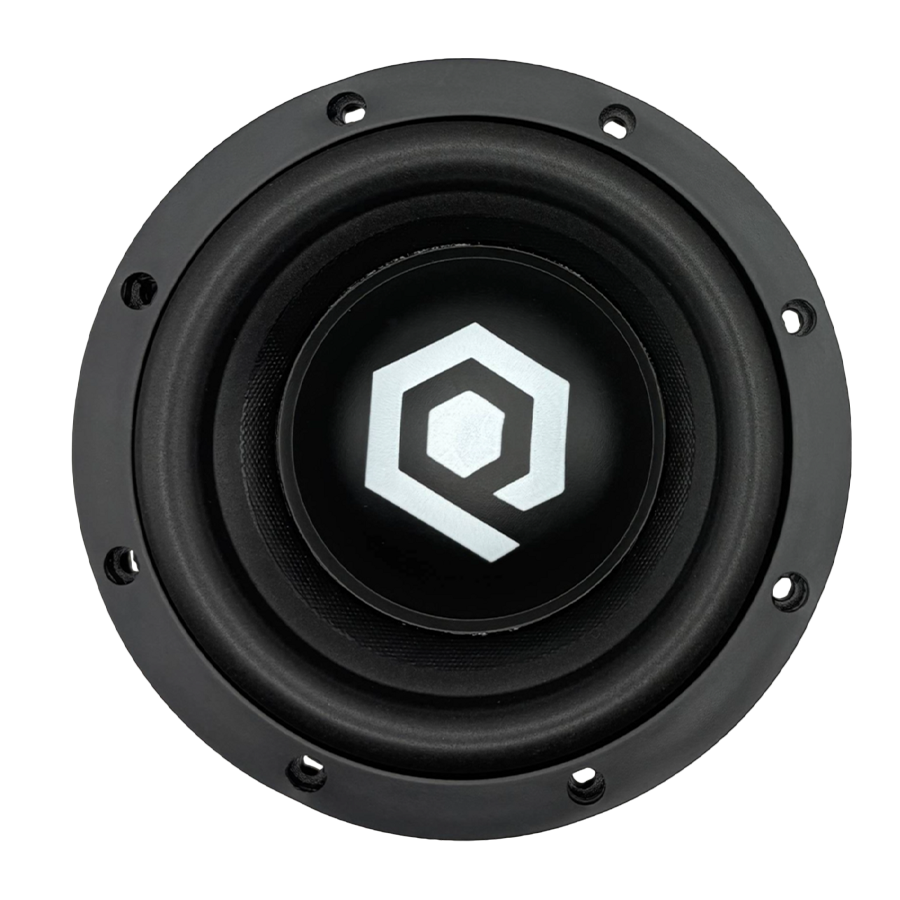

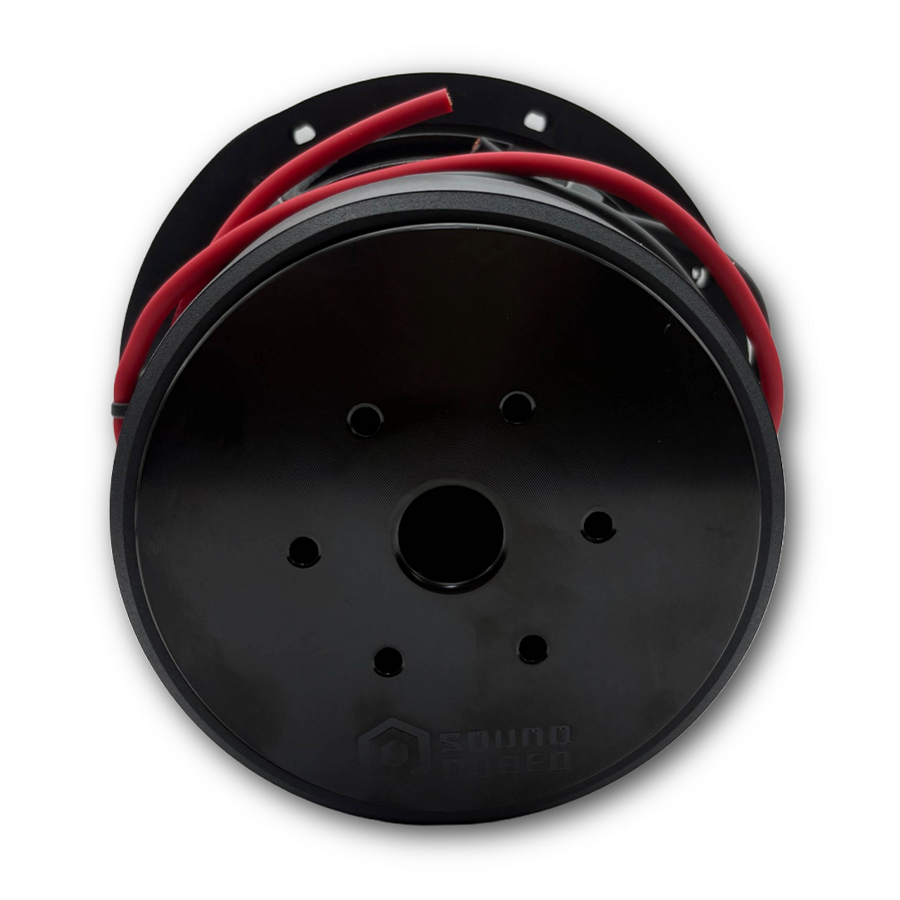

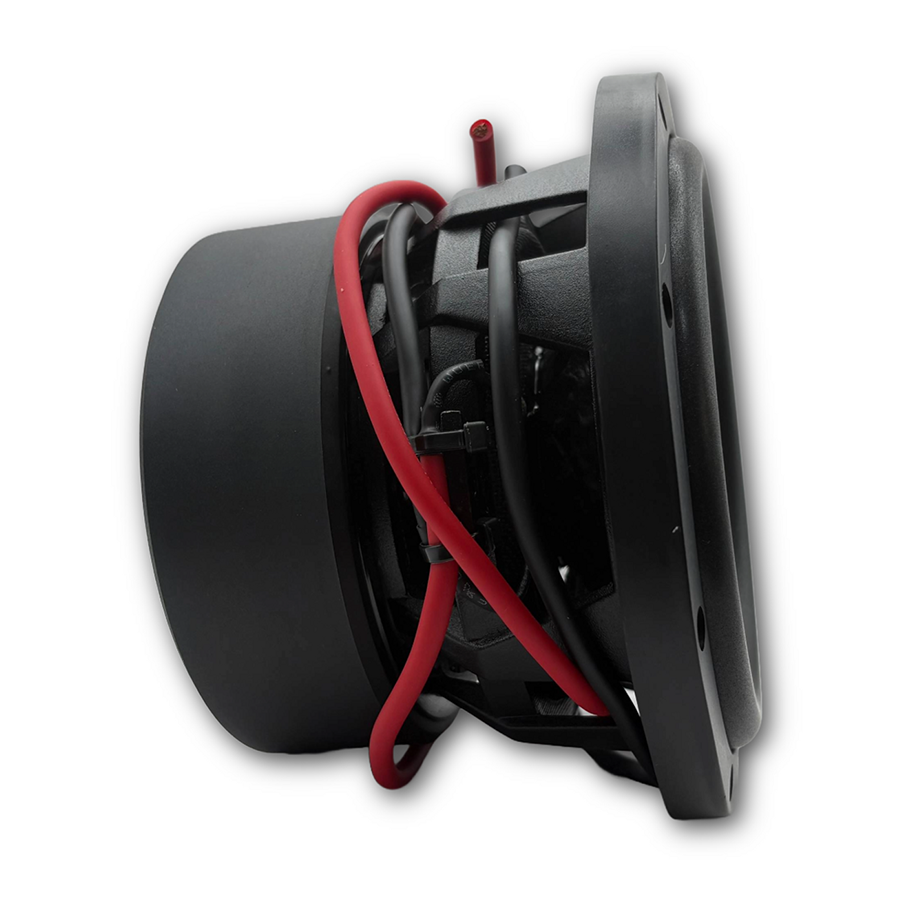

🔊 SoundQubed HDS2.3-06D4 6.5 Inch Car Subwoofer – 500W/1000W RMS
🚀 Powerful Bass in a Compact Package. Upgrade your vehicle's sound system with the SoundQubed HDS2.3-06D4 6.5 Inch Car Subwoofer.
This HDS 2.3 Series driver delivers 500 watts RMS and 1,000 watts peak power.
Its compact design makes it an excellent choice for limited-space car audio installations.
Dual 4-ohm voice coils provide flexible wiring options for compatible external amplifiers.
🎵 Punchy Bass and Responsive Performance
Enjoy strong low-frequency performance from a compact, high-output bass speaker.
Its 54.4Hz resonant frequency supports responsive bass when installed in a properly designed enclosure.
The 63-ounce magnet assembly provides reliable motor strength.
A 2-inch voice coil helps manage heat during demanding listening sessions.
Its 9mm Xmax supports controlled cone excursion for accurate low-frequency reproduction.
💪 Heavy-Duty Construction
The die-cast aluminum basket provides structural strength and durability.
A robust suspension helps maintain stable cone movement during bass-heavy music.
The compact design supports custom audio projects where larger subwoofers may not fit.
Proper enclosure design and amplifier matching help maximize performance.
⚡ Flexible Installation Options
Choose a sealed enclosure for controlled bass or a ported design for additional low-frequency output.
The 4.29-inch mounting depth supports installations in appropriately designed compact boxes.
A 5.9-inch cutout diameter helps installers prepare the mounting opening.
Connect the voice coils in parallel for 2 ohms or series for 8 ohms.
Always confirm amplifier compatibility before wiring.
🔧 Key Features and Specifications
-
🔊 Brand: SoundQubed
-
🏷️ Model: HDS2.3-06D4
-
📏 Subwoofer Size: 6.5 inches
-
💪 RMS Power: 500 watts
-
⚡ Peak Power: 1,000 watts
-
🔌 Voice Coils: Dual 4 ohms
-
🔥 Voice Coil Diameter: 2 inches
-
🧲 Magnet Weight: 63 ounces
-
🎶 Sensitivity: 80.2dB
-
🎼 Resonant Frequency: 54.4Hz
-
📐 Mounting Depth: 4.29 inches
-
🛠️ Cutout Diameter: 5.9 inches
-
📦 Sold As: Single subwoofer
🛒 Complete Your Audio Upgrade
Explore our Car Speakers Collection for additional automotive audio upgrades.
Enhance your vehicle's appearance with professional car window tinting services.
❓ Frequently Asked Questions
🔊 1. Does this subwoofer include an enclosure?
No. This product includes one subwoofer driver. The enclosure must be purchased separately.
⚡ 2. Can I wire this subwoofer to 2 ohms?
Yes. Parallel wiring of its dual 4-ohm coils creates a nominal 2-ohm load.
🎵 3. Does this subwoofer require an external amplifier?
Yes. Choose an amplifier matched to its 500W RMS rating and final impedance.
