SPL Pro Series Dual 10" Down-fire Enclosure with 2 x alpine RS-W10D2 for 2007-2018 Chevy Crew Cab
SPL Boxes PRO210CHEV07
Custom-fit dual 10" sealed shallow-mount subwoofer enclosure — fits 2007-18 Chevrolet Crew Cab trucks
Great bass that looks sharp

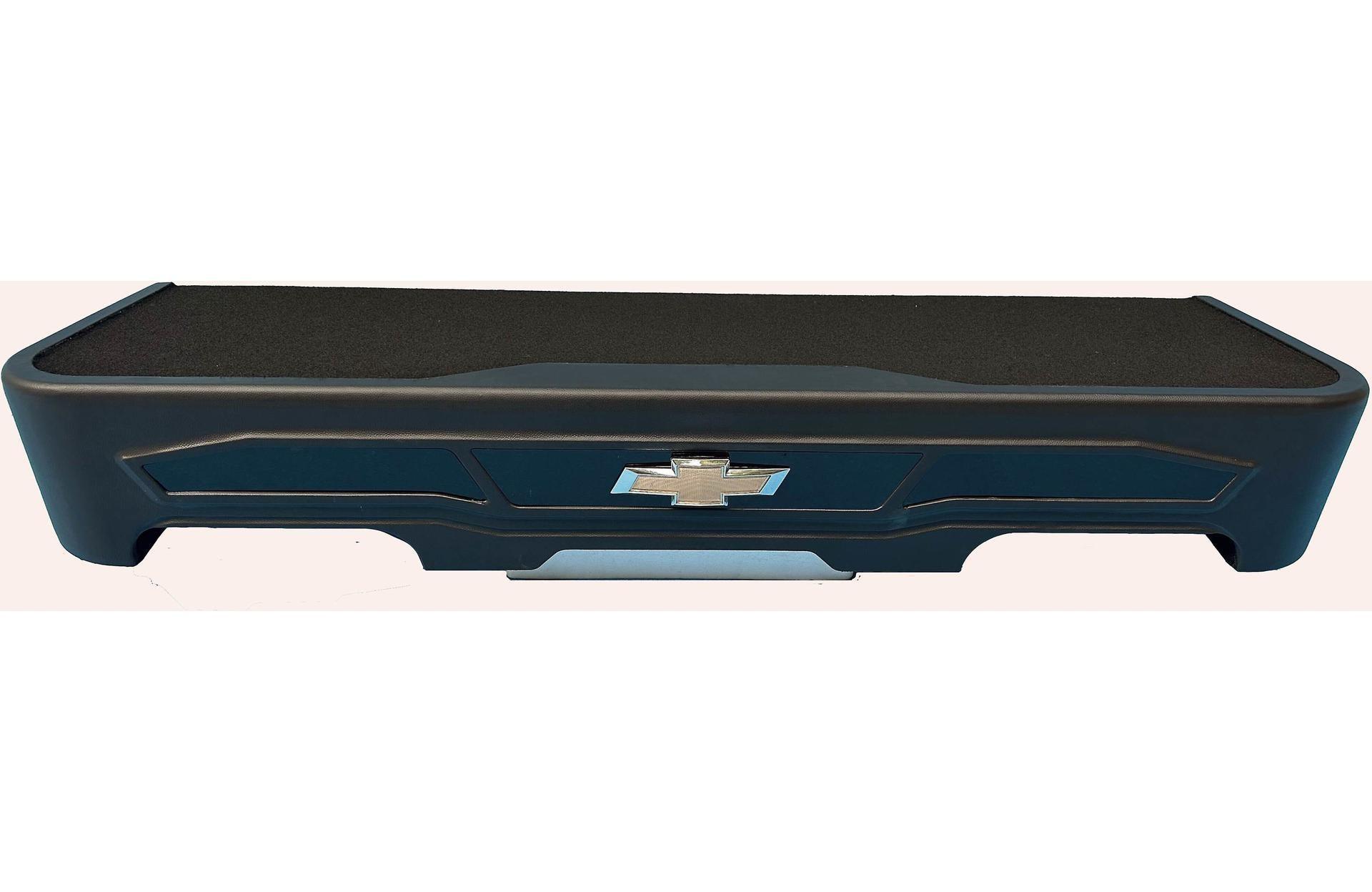

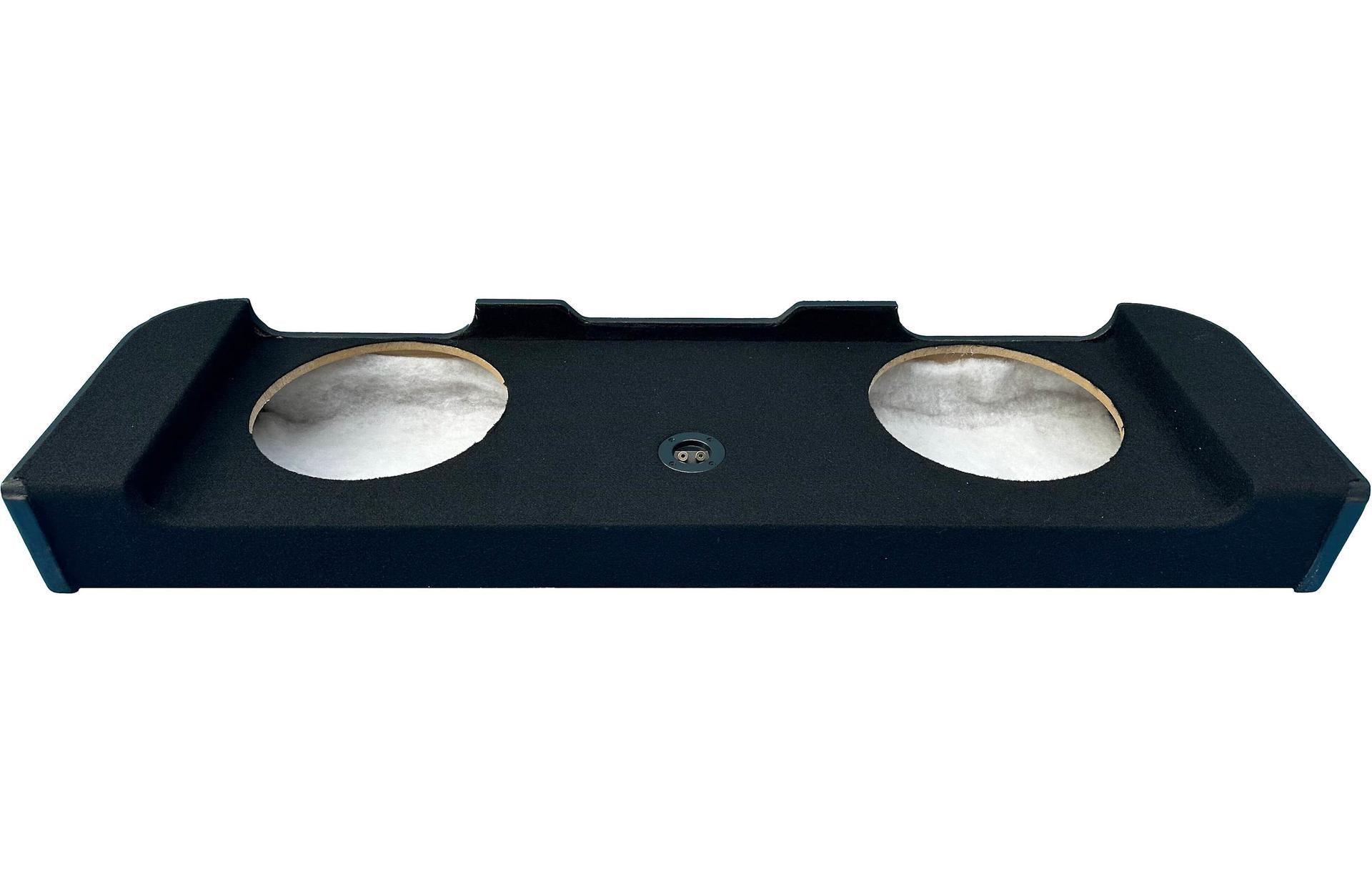

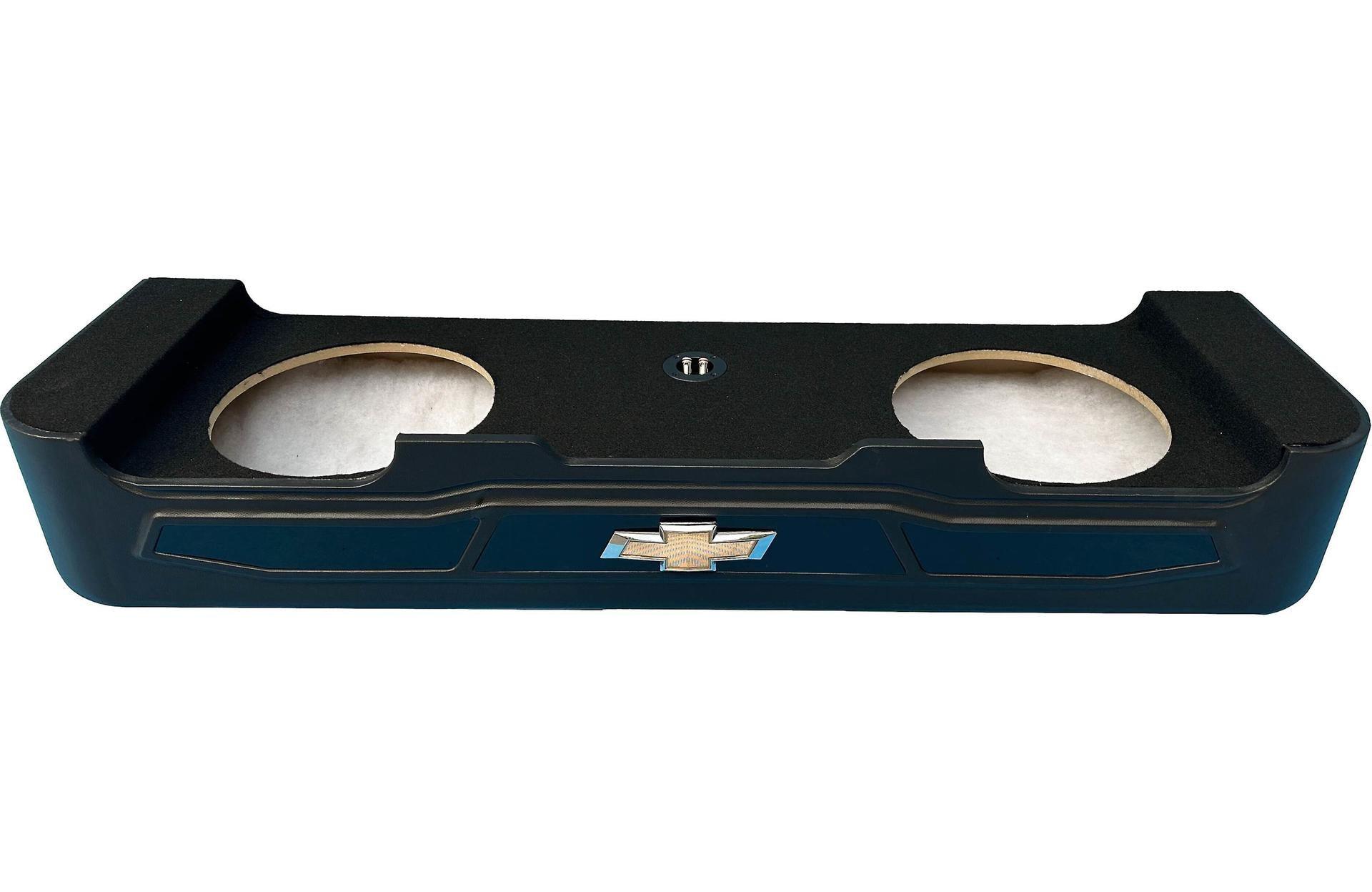

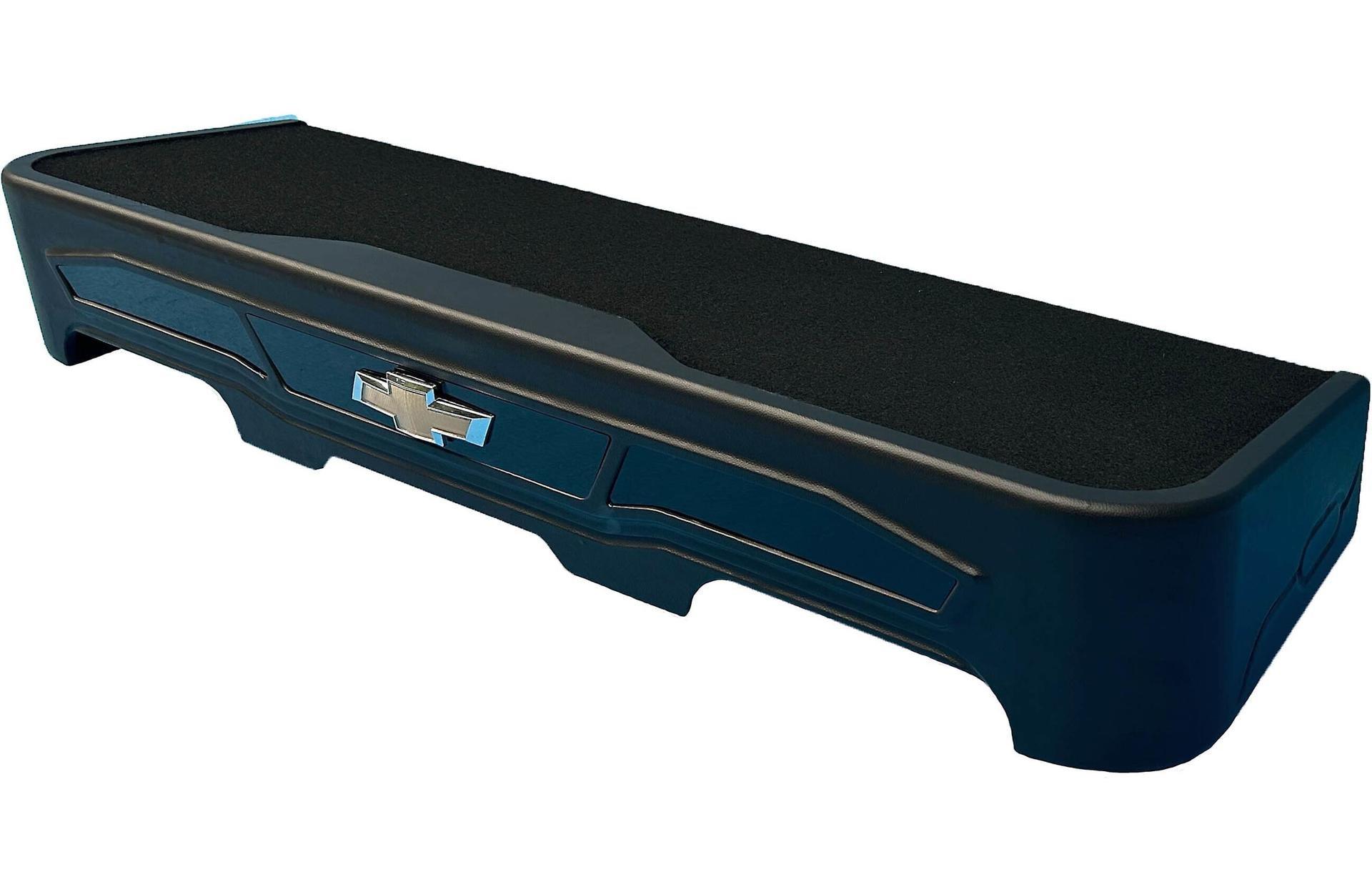

SPL Boxes' PRO210CHEV07 custom-fit enclosure installs under the rear seat of select 2007-18 Chevrolet Crew Cab trucks. This down-firing box holds two 10" shallow-mount subwoofers of your choice, and its rugged MDF construction will stand up to years of service. The enclosure's chambers each have an internal volume of 0.8 feet per chamber with a maximum speaker mounting depth of 3.625". Polyfill insulation helps reduce resonance for clearer bass reproduction. The exterior features a black vinyl covering and a raised Chevrolet logo to give your installation a sleek, custom look. Note: this enclosure only fits Crew Cab trucks; it will not fit Double Cab trucks.
Installation Note: You'll have to drill screw holes to install subs in this enclosure, and you'll need to wire up your subs to the enclosure's terminals. Mounting hardware and speaker wire are not included.
Product highlights:
vehicle-specific downward-firing sealed subwoofer enclosure
holds two 10" shallow-mount subwoofers (not included)
installs under rear seat of 2007-14 Chevrolet Crew Cab trucks
MDF construction with custom vinyl covering and raised Chevrolet logo
subwoofer installation requires drilling screw holes in the enclosure and connecting speaker wire to subs
mounting hardware and speaker wire not included
internal volume: 0.8 cubic feet per chamber
subwoofer mounting depth: 3.625"
dimensions: 54"W x 17.25"H x 10.25"D
warranty: 1 year
MFR # PRO210CHEV07
What's in the box:
One vehicle specific sealed enclosure for two 10" subwoofers with spring-post terminals
Polyfil batting (installed)

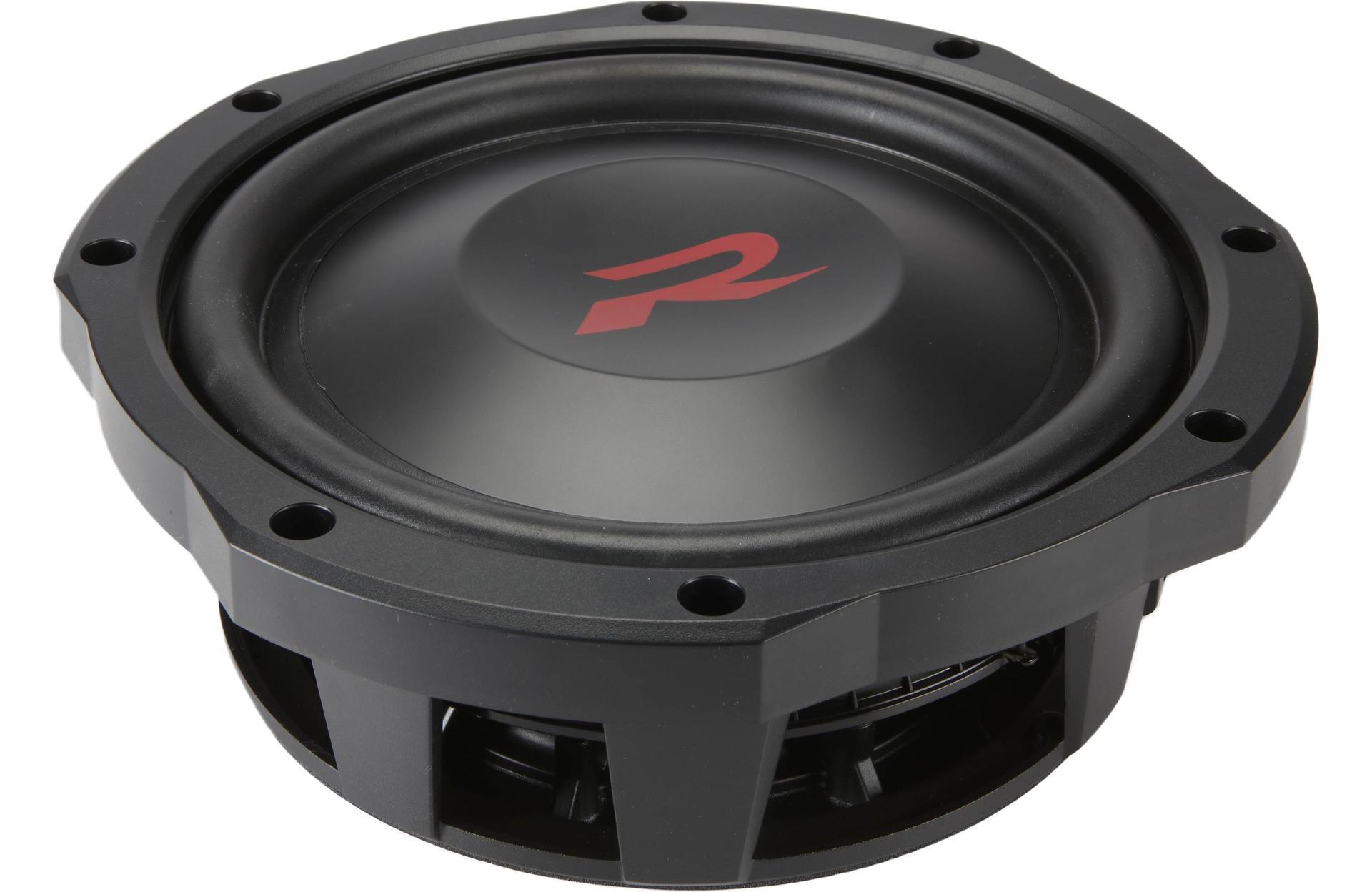

Alpine RS-W10D2
R-Series shallow-mount 10" subwoofer with dual 2-ohm voice coils
Shallow-mount upgrade
Alpine's R-Series subwoofers are known for their high power handling and tight response. The new RS-W10D2 shallow-mount sub delivers the same quality in a speaker that'll fit where other subs won't.
Small size, big impact

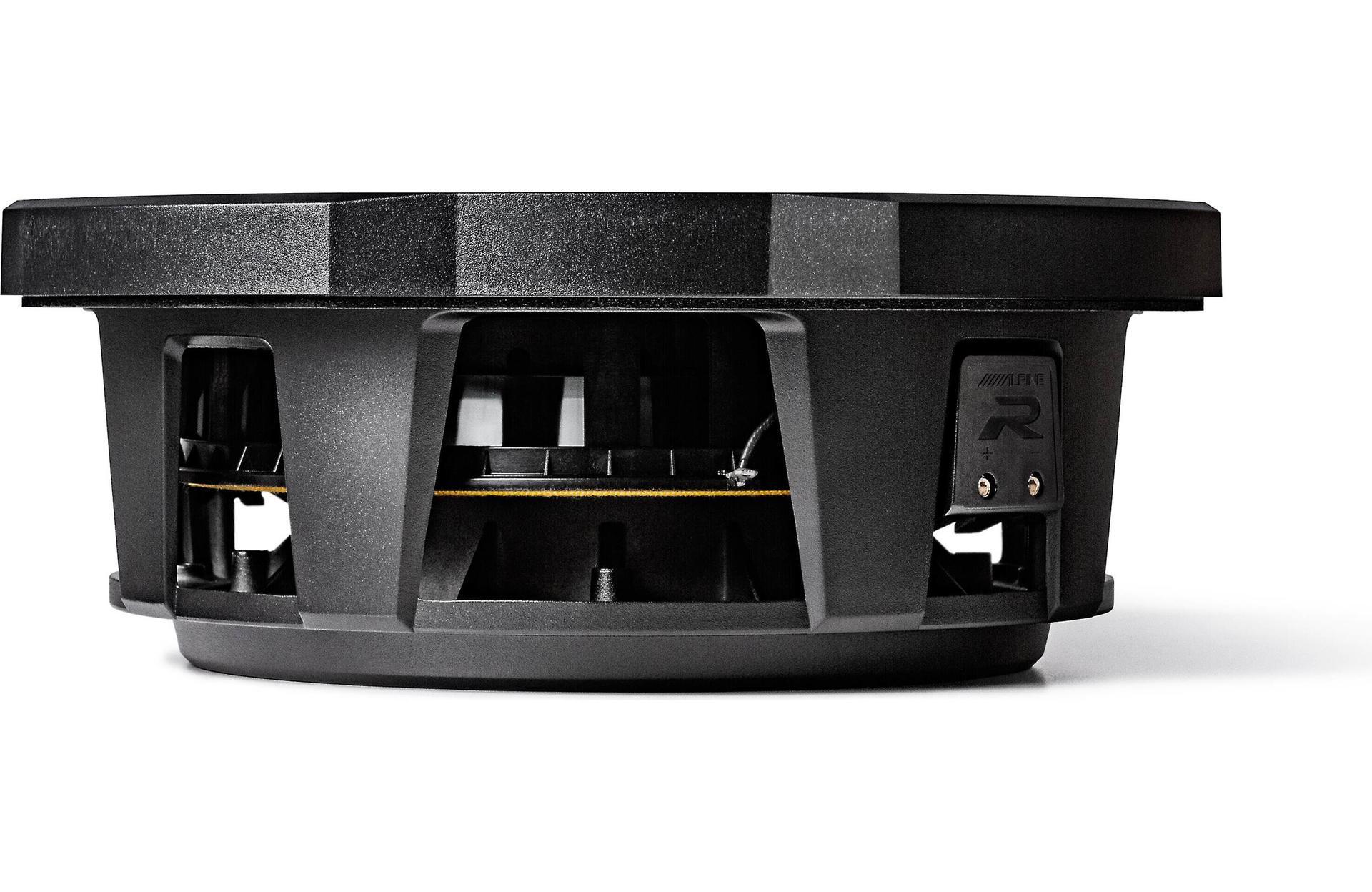

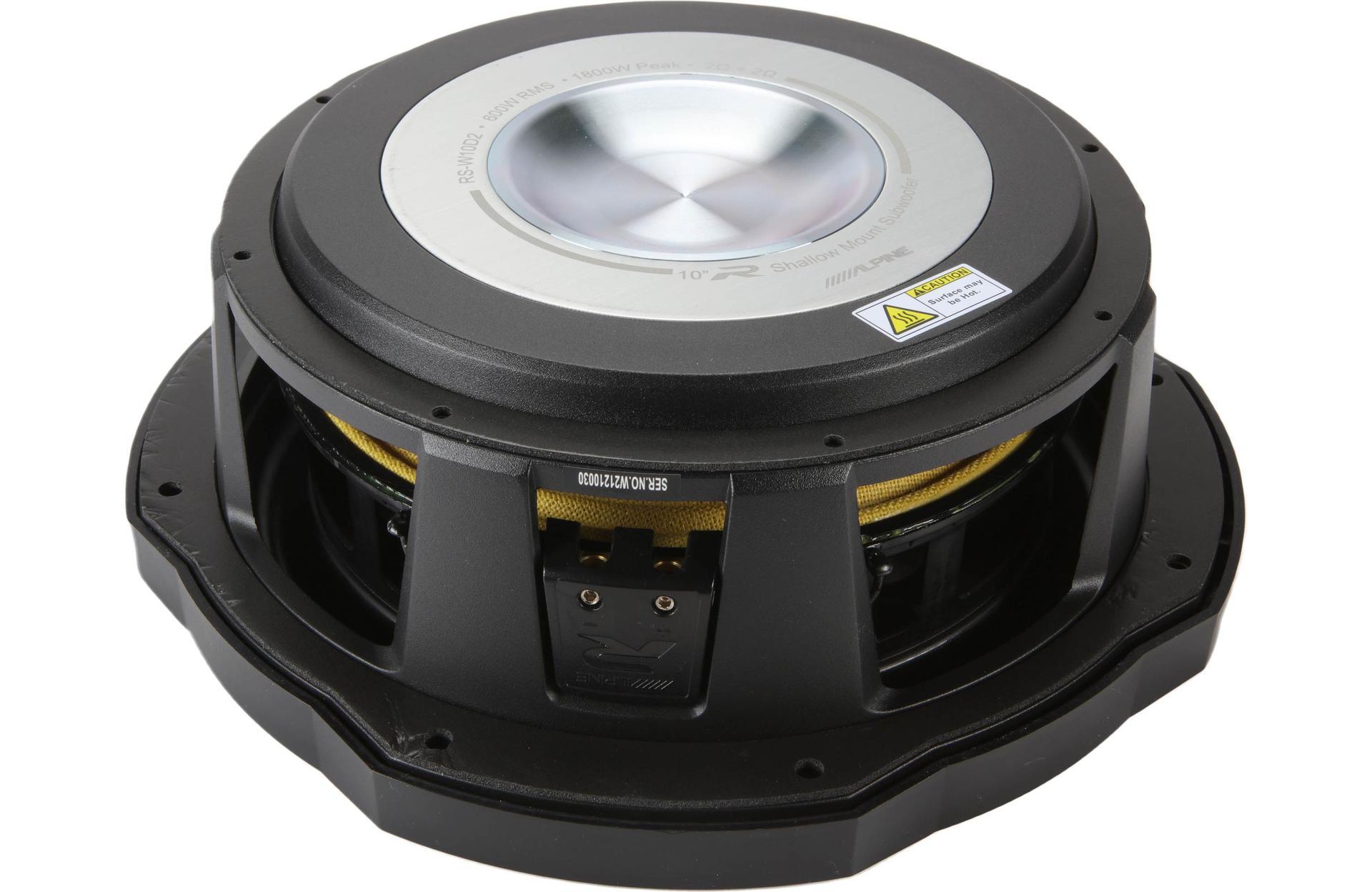

Built around a solid, cast-aluminum frame, this shallow sub requires a mounting depth of only 3.271 inches. Yet the RS-W10D2's cone excursion is the same as a regular R-Series sub, so you'll enjoy the kind of impact you expect from Alpine.
Fits into your system

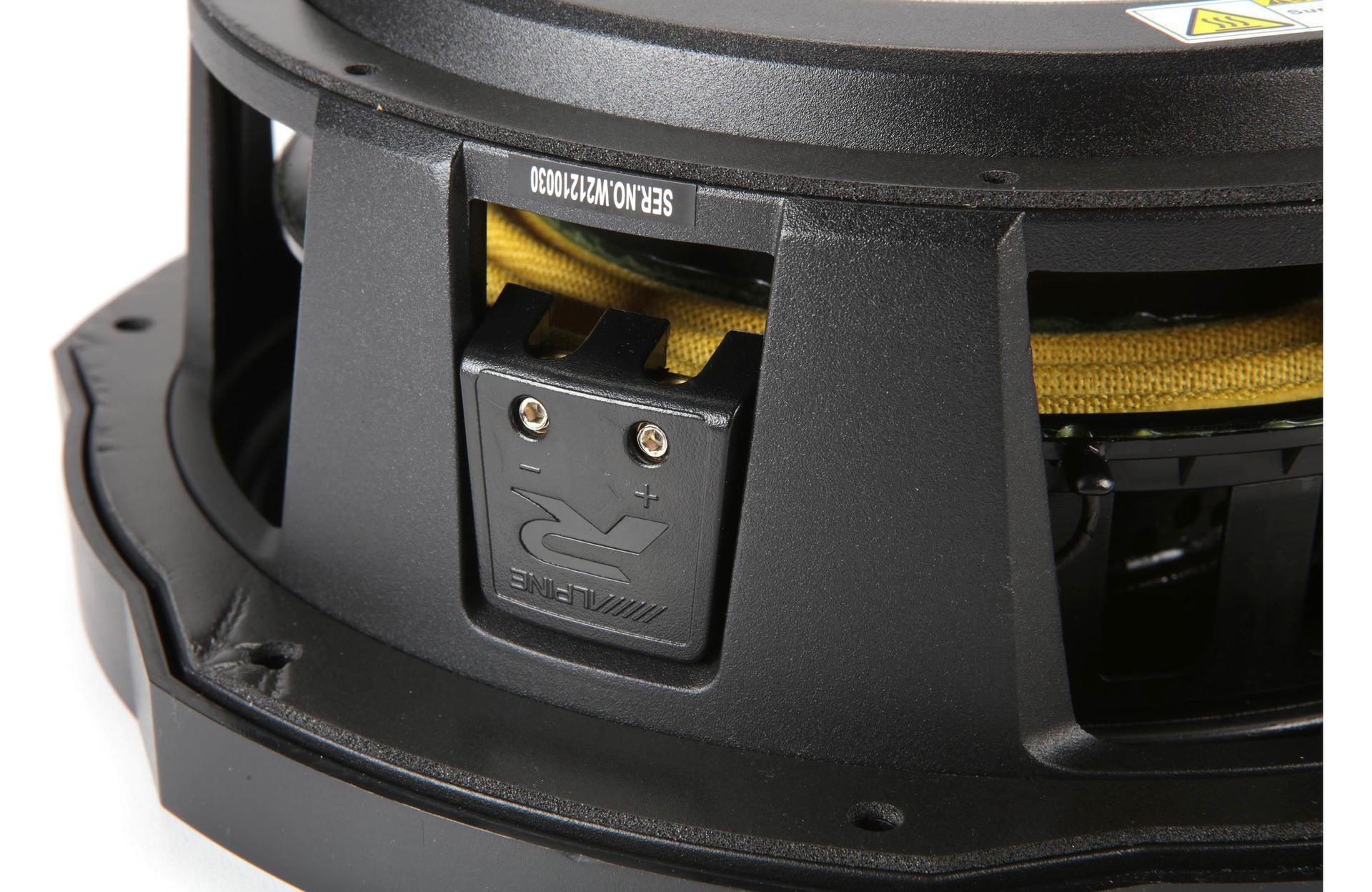

This versatile sub sounds great in sealed or ported enclosures. You can wire the dual voice coils for either 1- or 4-ohm total impedance, giving you more wiring options when setting up your system. The sub handles up to 600 watts RMS (1800 watts peak) so make sure you've got a solid amp to power it. Grille sold separately.
Product highlights:
10" shallow-mount subwoofer with dual 2-ohm voice coils
polypropylene cone with aluminum dust cap and butyl rubber surround
cast aluminum frame
frequency response: 25-100 Hz
power handling: 600 watts RMS (300 watts per coil)
peak power: 1800 watts
sensitivity: 79 dB
top-mount depth: 3.271"
sealed box volume: 0.49-1.04 cu. ft.
grille not included
warranty: 1 year
60-day returns
MFR # RS-W10D2
