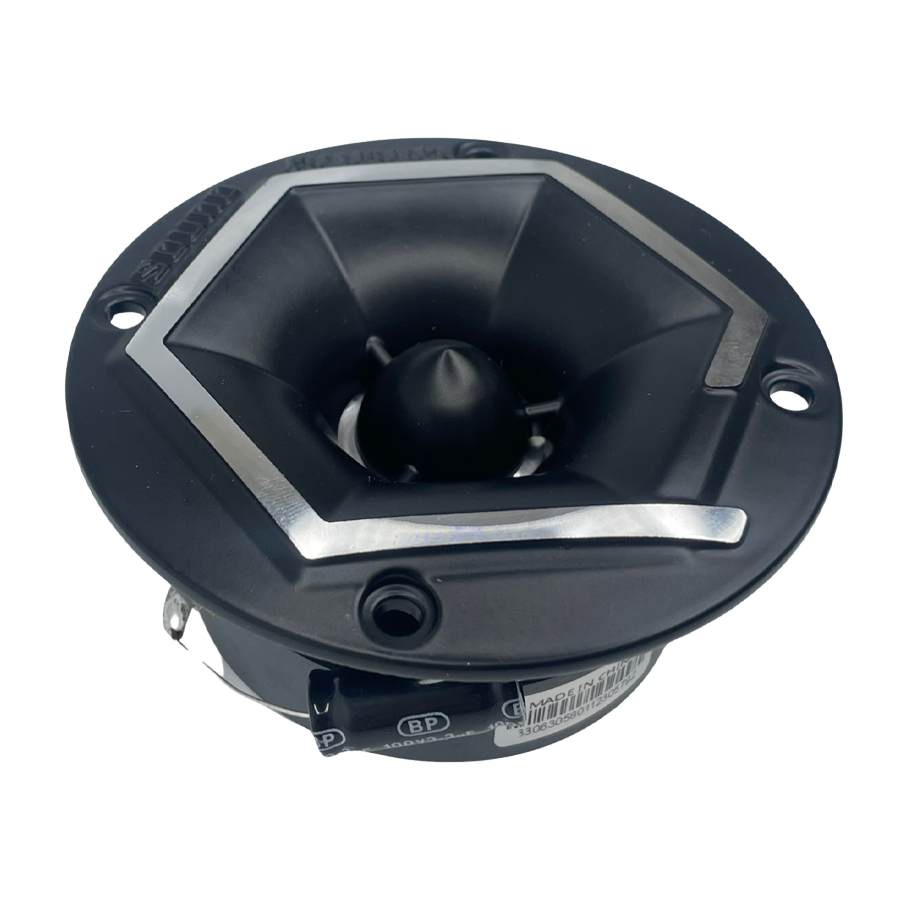

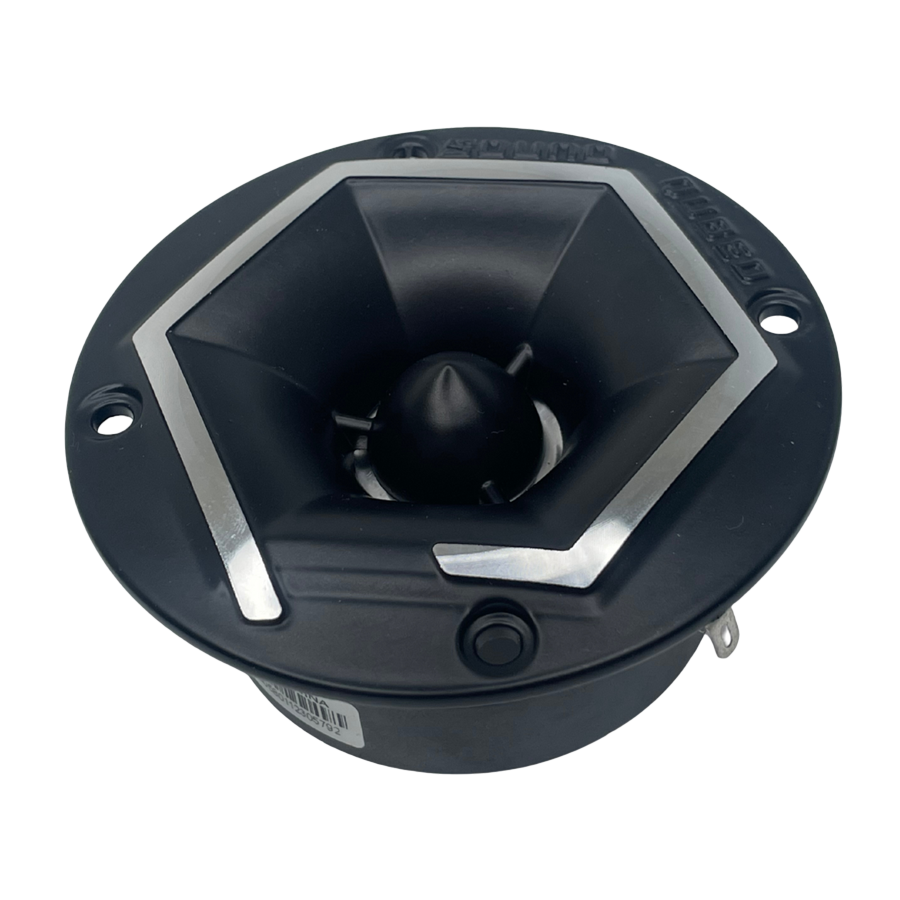

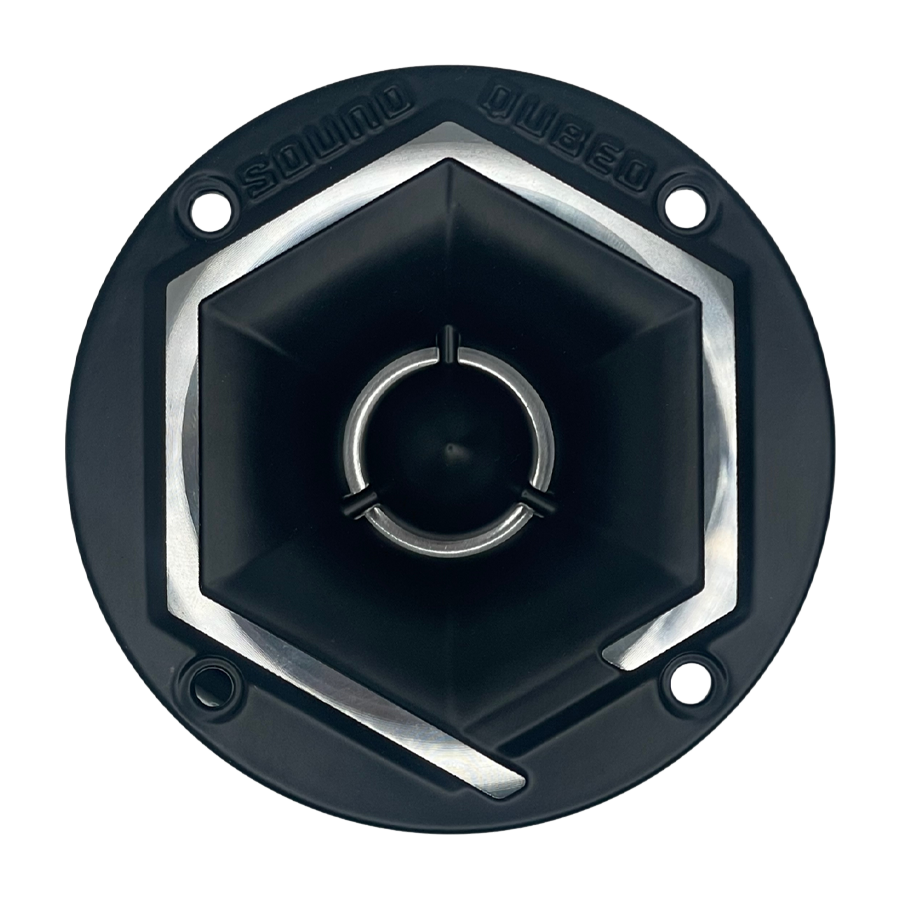

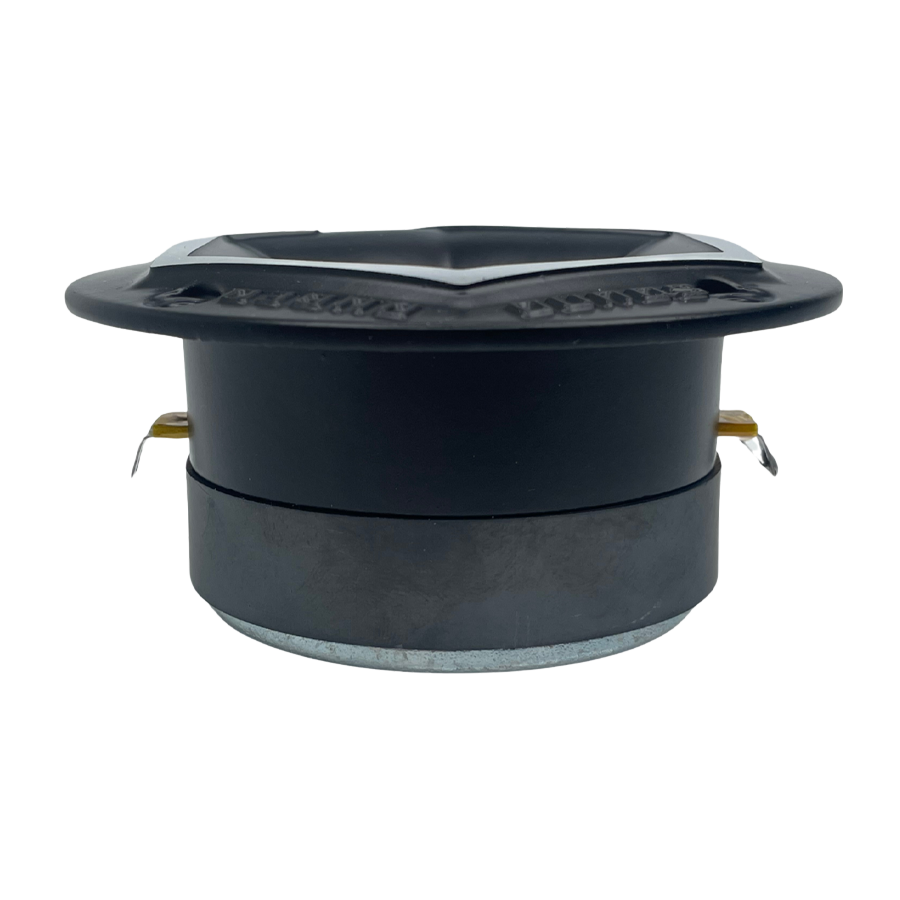

🔊 SoundQubed HDS-PAT1 3.8 Inch Pro Audio Tweeter – 4 Ohm Pair
🚀 Powerful High-Frequency Performance. Upgrade your sound system with the SoundQubed HDS-PAT1 Pro Audio Tweeter.
Designed for high-output automotive audio, these compression tweeters deliver crisp highs and impressive musical detail.
Each speaker handles 60 watts RMS, providing 120 watts RMS across the pair.
With 240 watts peak power per speaker, this system supports demanding high-frequency applications.
🎵 Crystal-Clear Highs and Exceptional Sensitivity
Experience brilliant cymbals, detailed instruments, and improved high-frequency reproduction.
The aluminum diaphragm supports responsive sound reproduction across the 3.5kHz–20kHz frequency range.
Its 103.5dB sensitivity helps produce strong output with relatively modest amplifier power.
The distinctive Q-shaped aluminum faceplate adds a professional appearance to custom speaker installations.
💪 Durable Construction for Custom Car Audio
The HDS-PAT1 features an 8-ounce ferrite magnet and a 1-inch voice coil.
Its CCAW winding and Kapton former support reliable operation when properly amplified.
The 4-ohm impedance makes these tweeters compatible with appropriately configured automotive amplifiers.
Pair them with suitable midrange speakers and subwoofers for balanced sound reproduction.
Professional installation helps ensure proper placement, crossover protection, and amplifier matching.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
🏷️ Model: HDS-PAT1
-
📏 Speaker Size: 3.8 inches
-
💪 RMS Power: 60W per speaker
-
⚡ Peak Power: 240W per speaker
-
🔌 Impedance: 4 ohms
-
🎶 Sensitivity: 103.5dB
-
🎼 Frequency Response: 3.5kHz–20kHz
-
🔥 Voice Coil: 1-inch CCAW
-
🧲 Magnet: 8-ounce ferrite
-
🛡️ Diaphragm: Aluminum
-
📐 Mounting Depth: 2.56 inches
-
📦 Sold As: Pair of tweeters
🛠️ Important Installation Information
These tweeters require external high-pass crossover protection.
Use a compatible crossover or DSP with a recommended 3.5kHz high-pass setting.
Never connect these high-frequency drivers directly to a full-range signal without appropriate filtering.
🛒 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional automotive audio upgrades.
Enhance your vehicle's appearance with professional car window tinting services.
❓ Frequently Asked Questions
🔊 1. Are SoundQubed HDS-PAT1 tweeters sold individually?
No. This product includes two tweeters for a stereo installation.
⚡ 2. Do these tweeters include a built-in crossover?
No. An external crossover or DSP is required to protect the speakers from low frequencies.
🎵 3. Can these tweeters work with aftermarket amplifiers?
Yes. Use compatible 4-ohm amplification and appropriate high-pass filtering for reliable performance.
