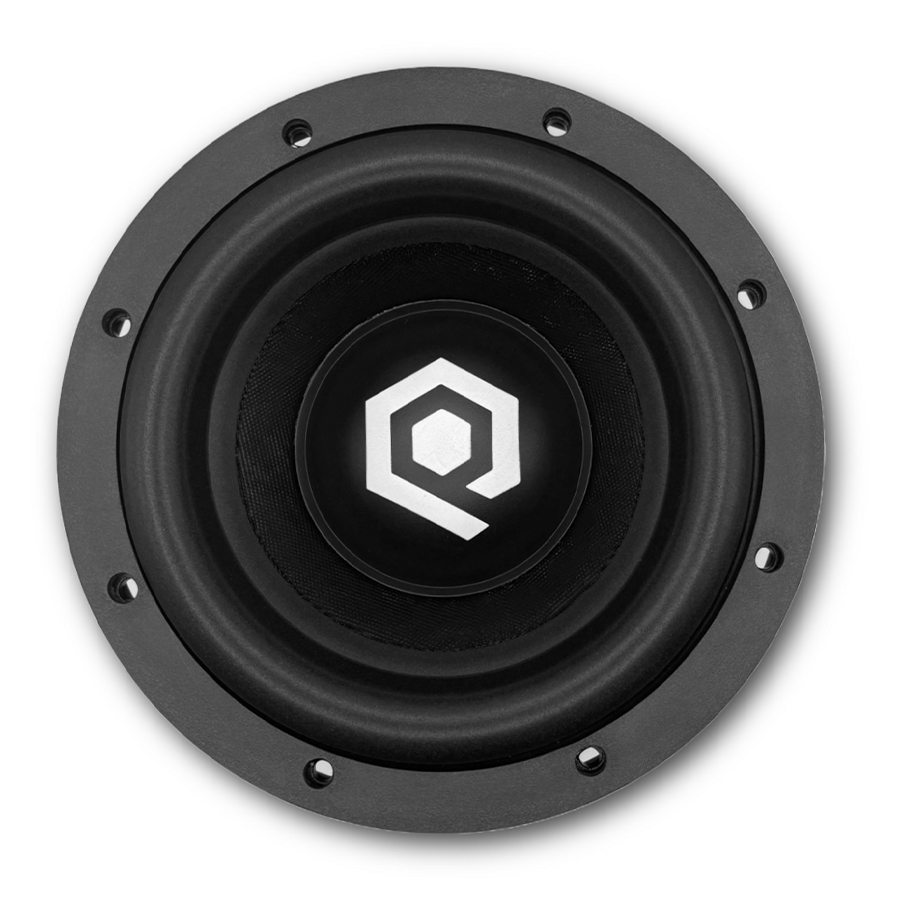

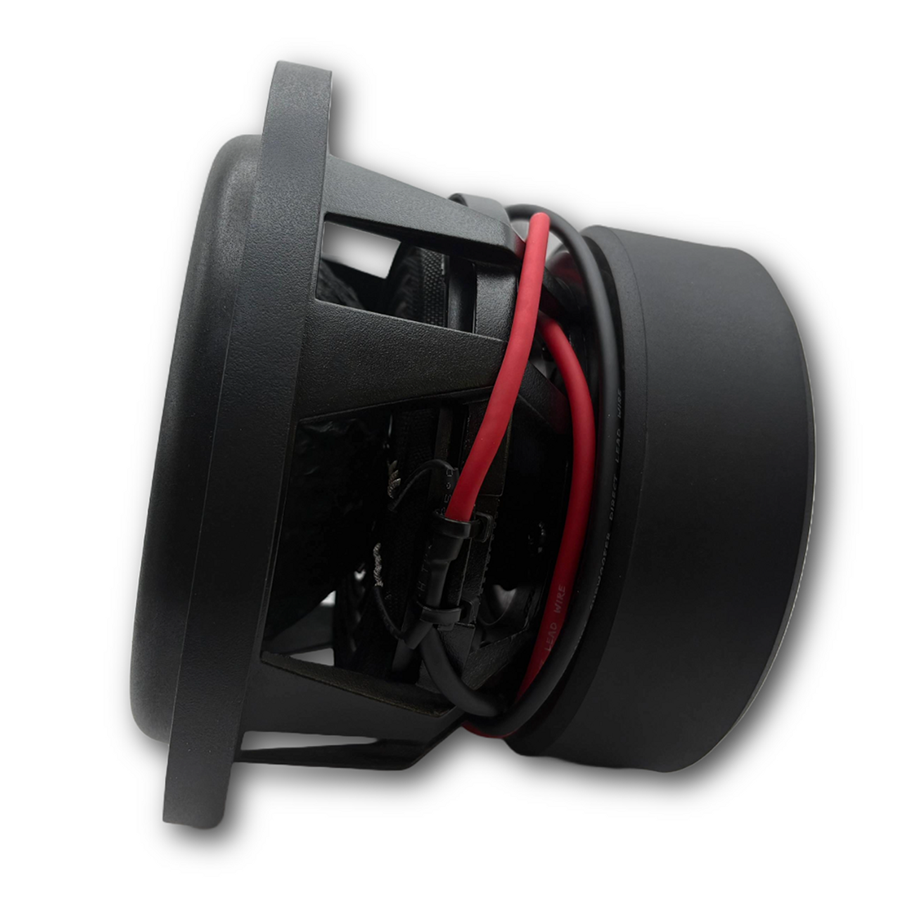

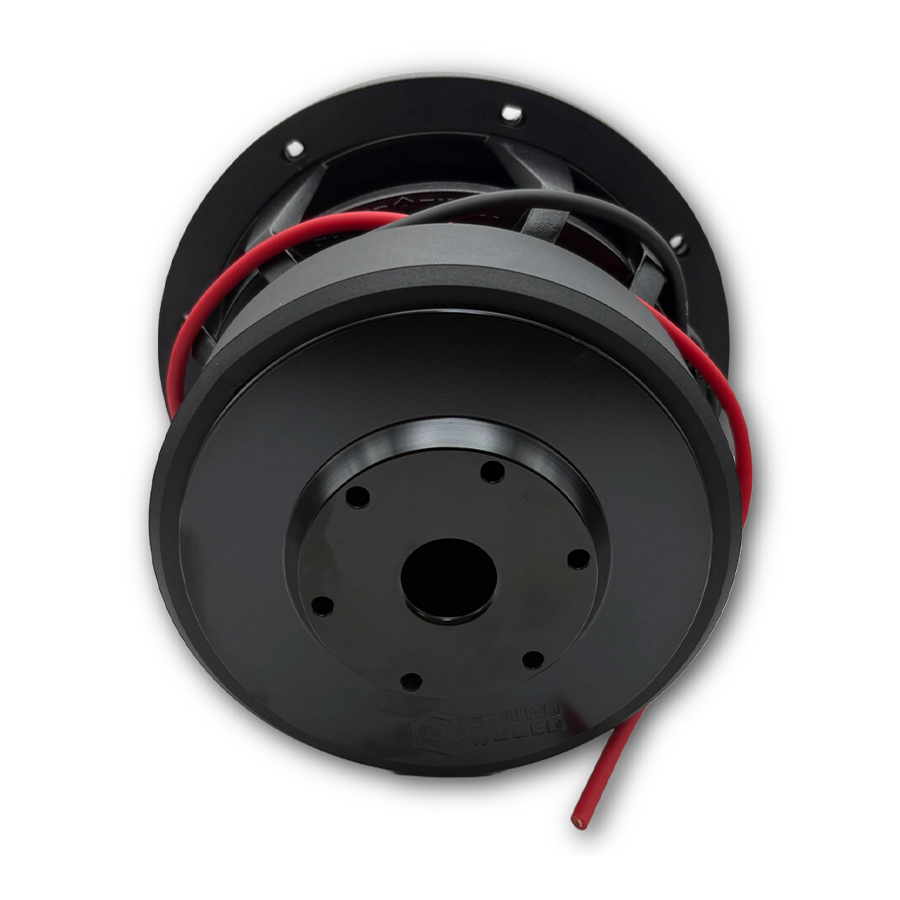

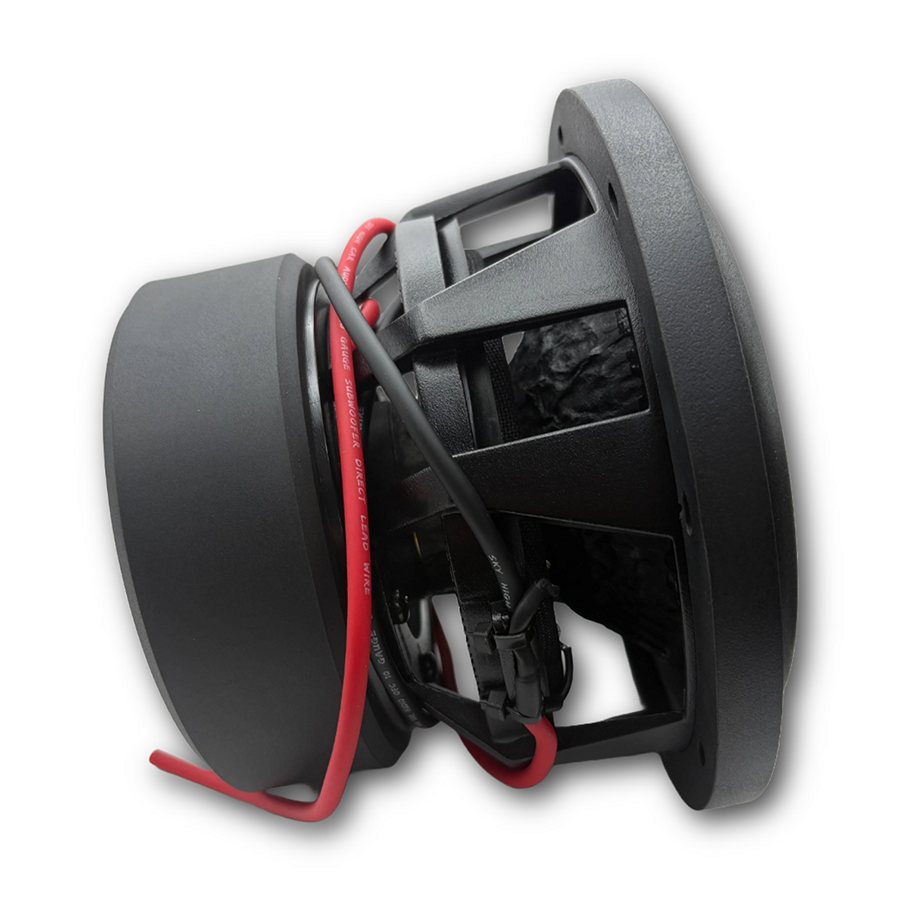

SoundQubed HDS2.3-08D4 8 Inch Car Subwoofer – 700W RMS Dual 4 Ohm
🔊 Powerful Performance. Upgrade your vehicle's bass with the SoundQubed HDS2.3-08D4 8 inch car subwoofer.
This HDS2.3 Series driver handles 700 watts RMS and 1400 watts of peak power.
Its dual 4-ohm voice coils offer flexible wiring configurations for compatible car audio amplifiers.
Enjoy powerful low-frequency reproduction from a compact 8-inch speaker.
🎵 Sound Quality and Performance
The SoundQubed HDS2.3 Series delivers responsive bass for demanding daily listening systems.
Its 13mm Xmax supports substantial cone movement during low-frequency playback.
A 41.6Hz resonant frequency helps define the driver's acoustic characteristics.
Choose a properly designed enclosure to achieve the performance your system requires.
🛠️ Construction and Design
A durable die-cast aluminum basket provides structural support.
The 2.5-inch high-temperature voice coil supports demanding power handling.
A 5.75-inch mounting depth requires adequate clearance during installation.
Its compact diameter makes this driver suitable for carefully planned custom enclosures.
🔧 Installation and Compatibility
This dual 4 ohm subwoofer supports two standard wiring configurations.
Parallel wiring produces a 2-ohm final impedance.
Series wiring produces an 8-ohm final impedance.
Select an amplifier rated for the chosen impedance and appropriate RMS output.
Verify mounting clearance, enclosure volume, and amplifier compatibility before installation.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS2.3-08D4
-
📏 Speaker Size: 8 inches
-
⚡ RMS Power: 700 watts
-
🔥 Peak Power: 1400 watts
-
🔌 Impedance: Dual 4 Ohm
-
🎵 Voice Coil Diameter: 2.5 inches
-
📐 Mounting Depth: 5.75 inches
-
🔉 Resonant Frequency: 41.6Hz
-
🎚️ Xmax: 13mm
-
🛠️ Basket: Die-cast aluminum
-
📦 Configuration: Passive subwoofer driver
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional speaker upgrades and audio accessories.
Enhance your vehicle with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Can this subwoofer be wired to 2 ohms?
Yes. Connecting both 4-ohm voice coils in parallel produces a 2-ohm final load.
What amplifier should I use?
Choose a compatible amplifier delivering suitable RMS power at 2 or 8 ohms.
Does this subwoofer require a special enclosure?
Use a properly designed sealed or ported enclosure within SoundQubed's recommended volume ranges.
