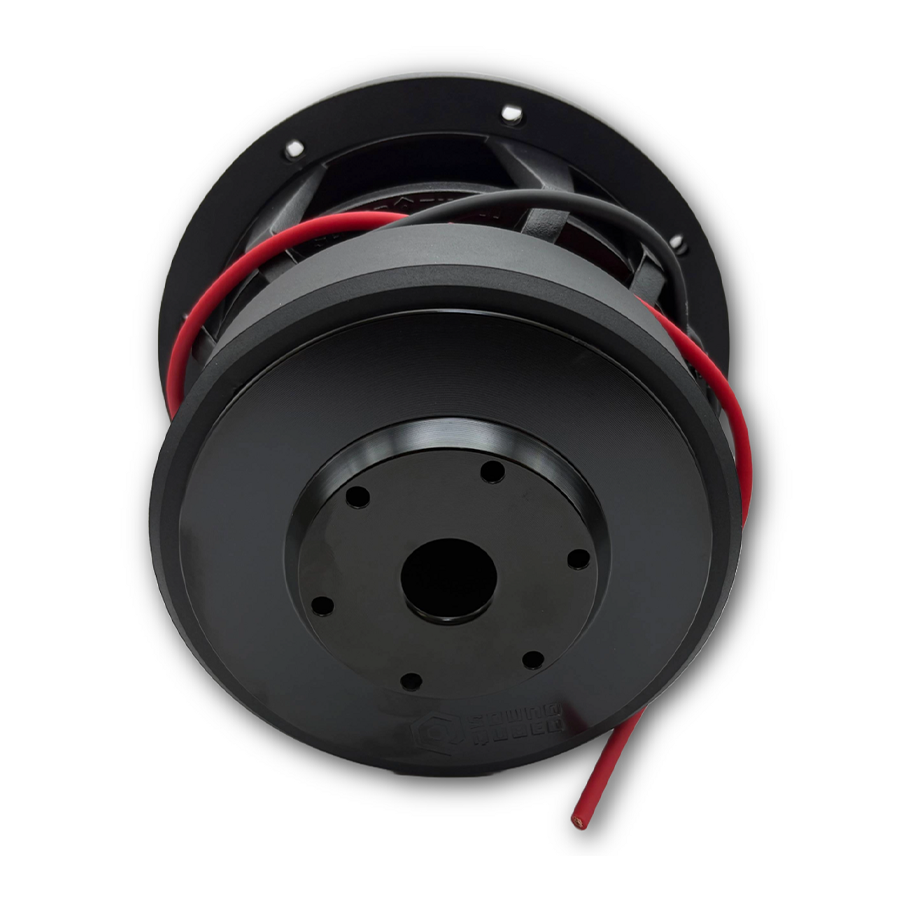

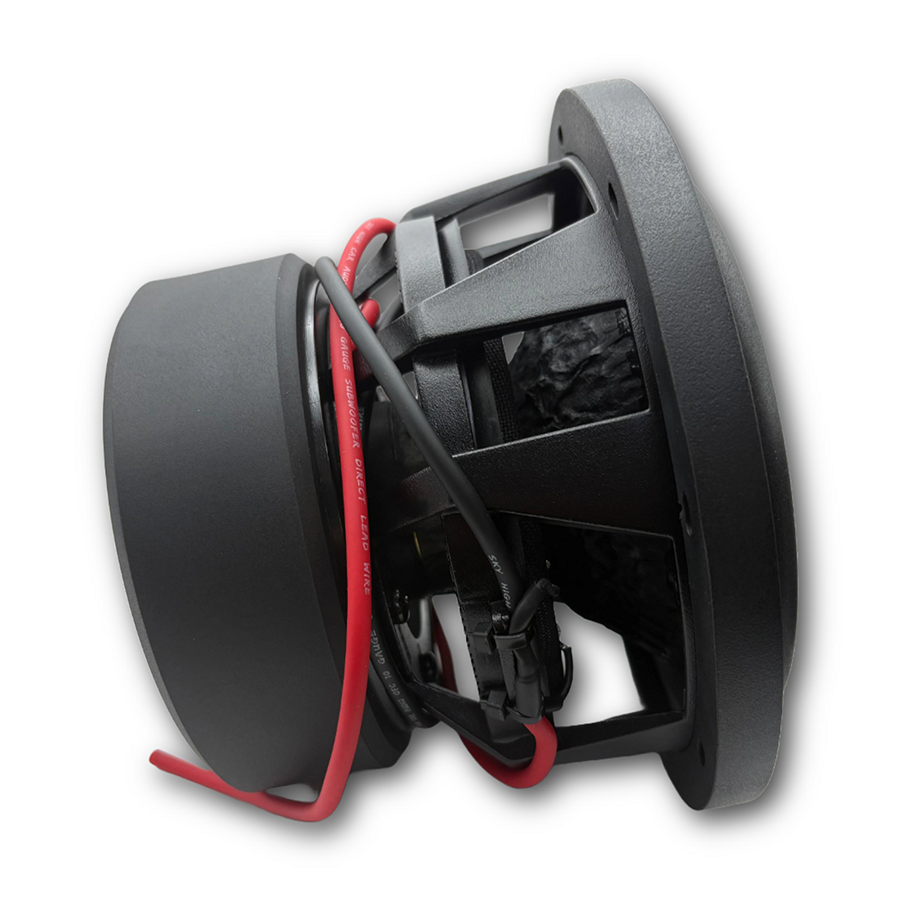

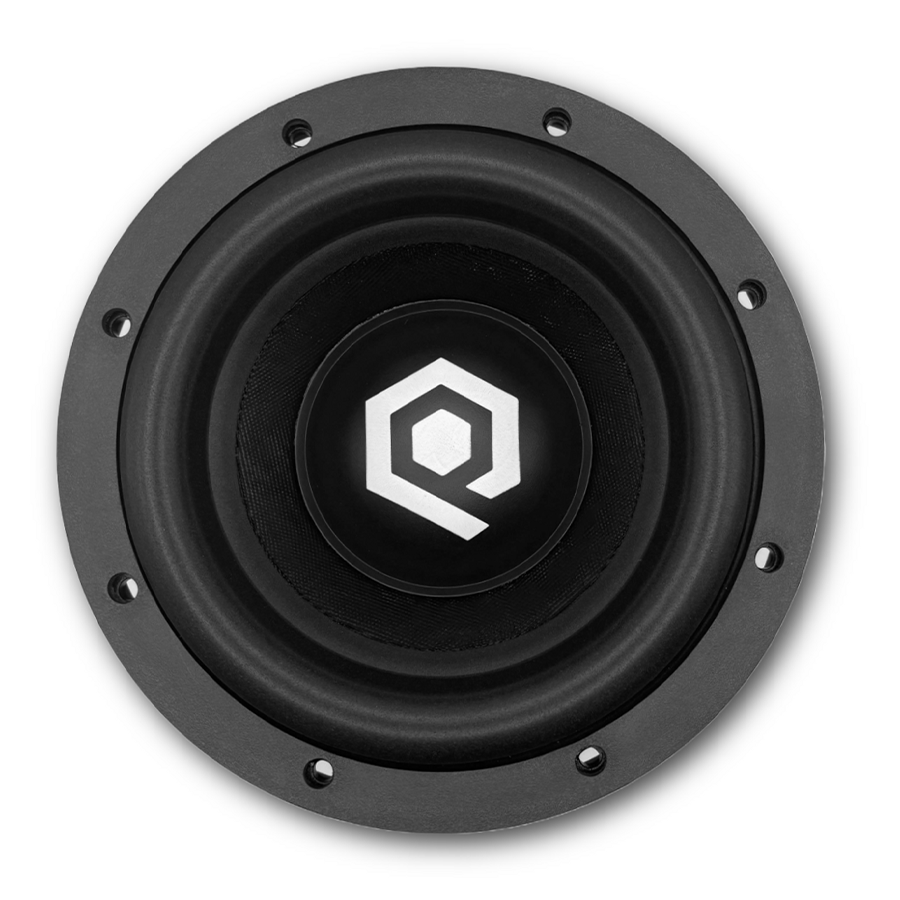

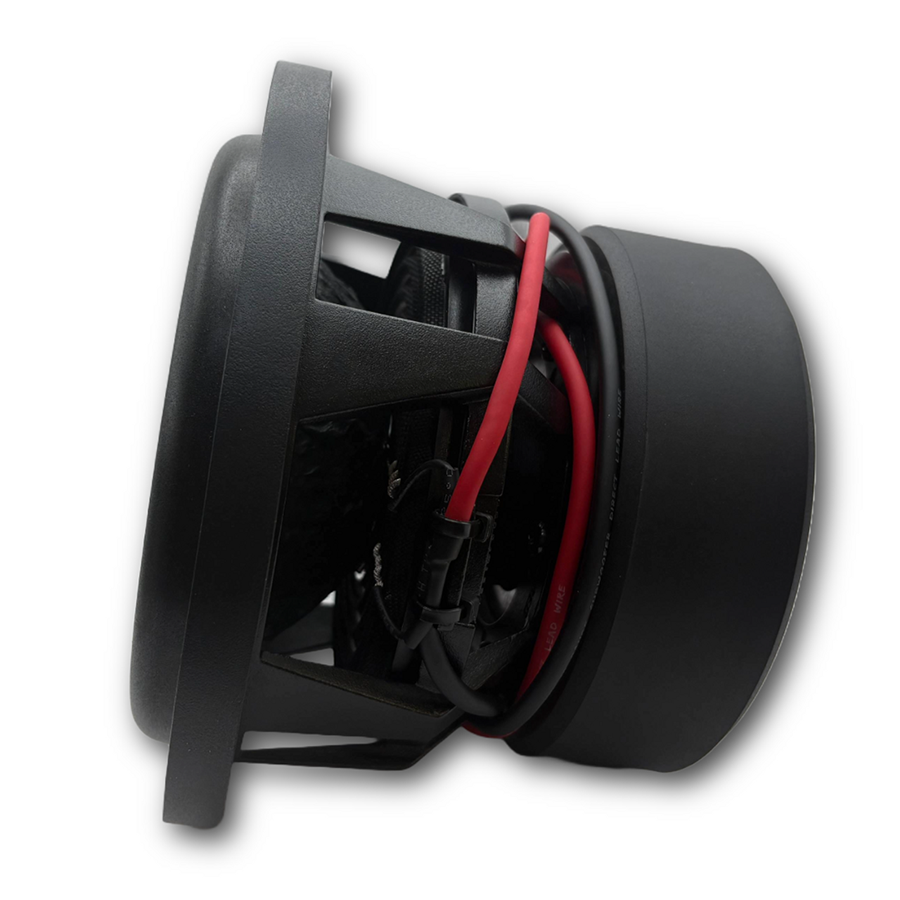

SoundQubed HDS2.3-08D2 8 Inch Car Subwoofer – 700W RMS Dual 2 Ohm
🔊 Powerful Performance. Upgrade your sound system with the SoundQubed HDS2.3-08D2 8 inch car subwoofer.
This compact bass driver delivers 700 watts RMS and 1400 watts maximum power handling.
Its dual 2-ohm voice coils provide flexible amplifier wiring options for powerful daily listening.
Experience impressive low-frequency performance without choosing a larger speaker diameter.
🎵 Sound Quality and Performance
The HDS2.3 Series combines strong power handling with controlled bass reproduction.
Its 13mm Xmax supports cone movement during demanding low-frequency passages.
A 40.1Hz resonant frequency helps characterize its bass performance.
Choose a properly designed sealed or ported enclosure to match your listening preferences.
🛠️ Construction and Design
This SoundQubed subwoofer features a durable die-cast aluminum basket.
Its 2.5-inch voice coil supports the driver's demanding power requirements.
The 5.75-inch mounting depth requires careful enclosure planning.
Its 8-inch design suits custom installations where available space matters.
🔧 Installation and Compatibility
The HDS2.3-08D2 features dual 2-ohm voice coils.
Wire both coils in parallel for a 1-ohm final load.
Series wiring provides a 4-ohm final load.
Always verify amplifier stability, available power, enclosure dimensions, and vehicle clearance before installation.
An external amplifier and suitable subwoofer enclosure are required.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS2.3-08D2
-
📏 Speaker Size: 8 inches
-
⚡ RMS Power: 700 watts
-
🔥 Maximum Power: 1400 watts
-
🔌 Impedance: Dual 2 Ohm
-
🎵 Voice Coil: 2.5 inches
-
📐 Mounting Depth: 5.75 inches
-
🔉 Xmax: 13mm
-
🎚️ Resonant Frequency: 40.1Hz
-
🛠️ Basket: Die-cast aluminum
-
📦 Configuration: Standalone subwoofer driver
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional audio upgrade options.
Complete your vehicle transformation with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Does this subwoofer require an external amplifier?
Yes. This passive subwoofer requires a compatible external amplifier for operation.
Can I wire this dual 2-ohm subwoofer to 1 ohm?
Yes. Parallel wiring produces 1 ohm, while series wiring produces 4 ohms.
Can this subwoofer operate in a sealed or ported enclosure?
Yes. SoundQubed provides recommended enclosure volumes for both designs.
