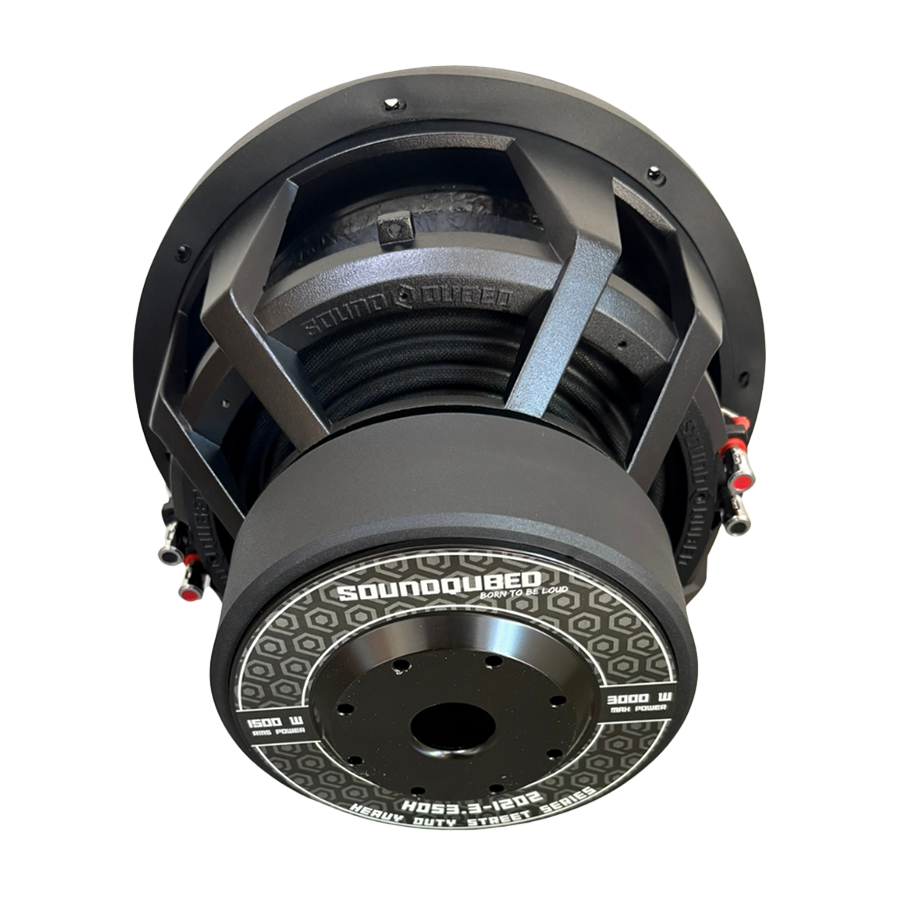

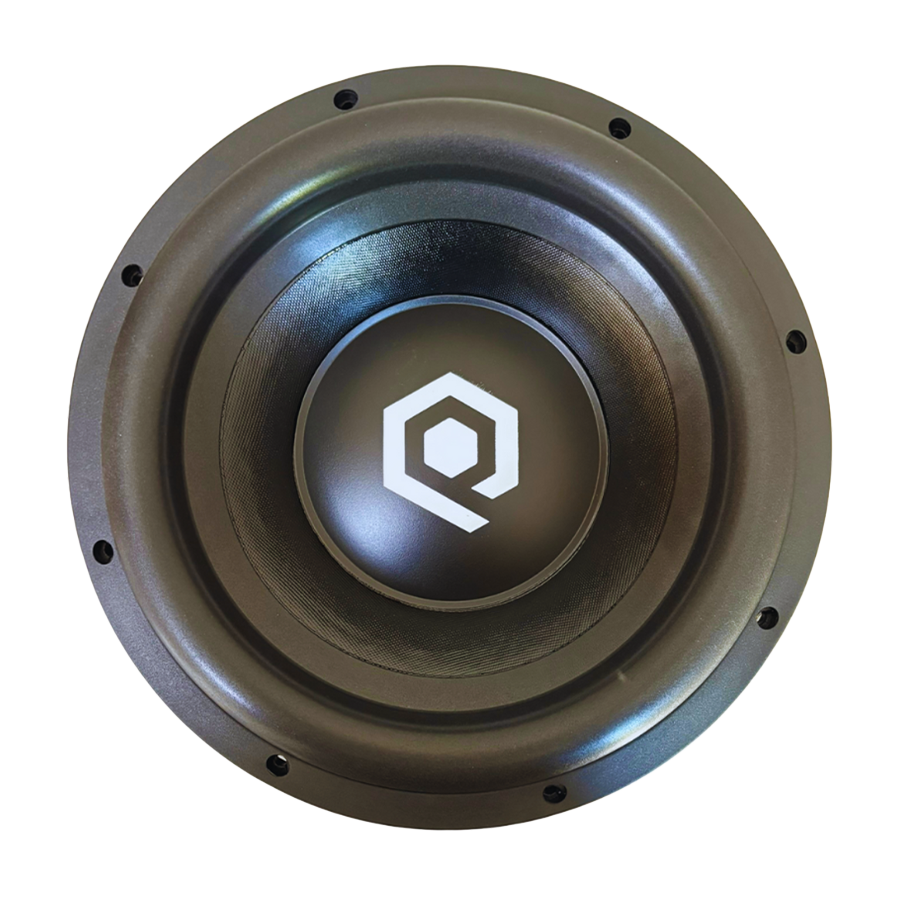

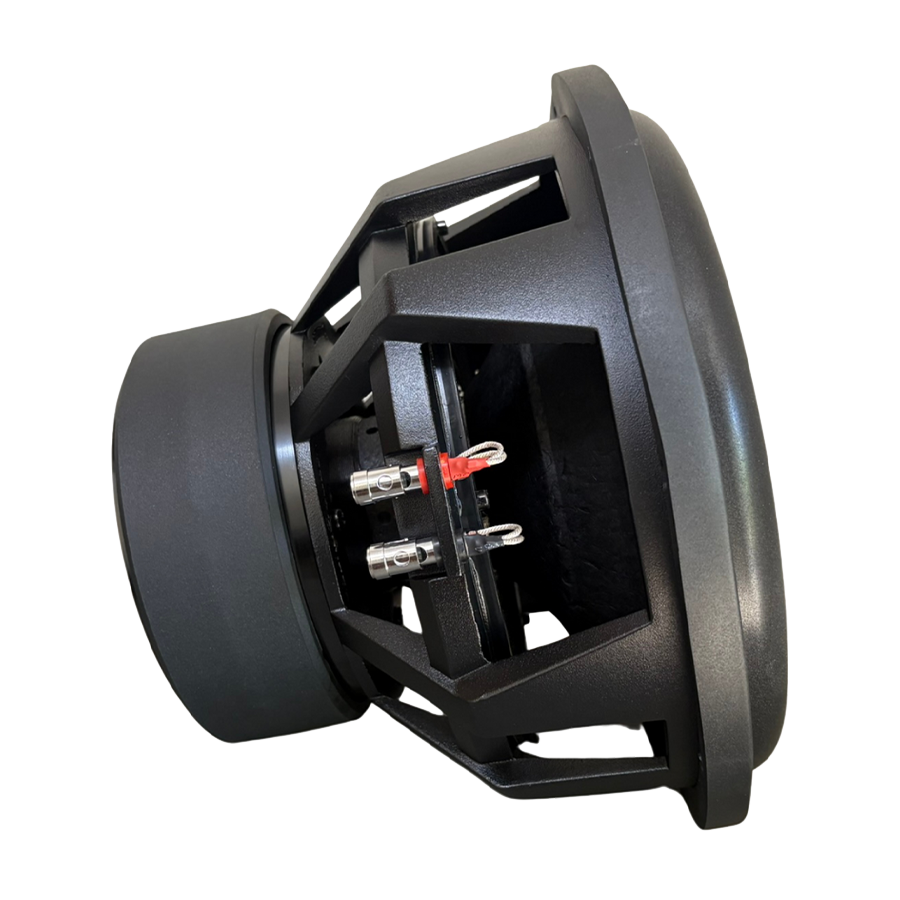

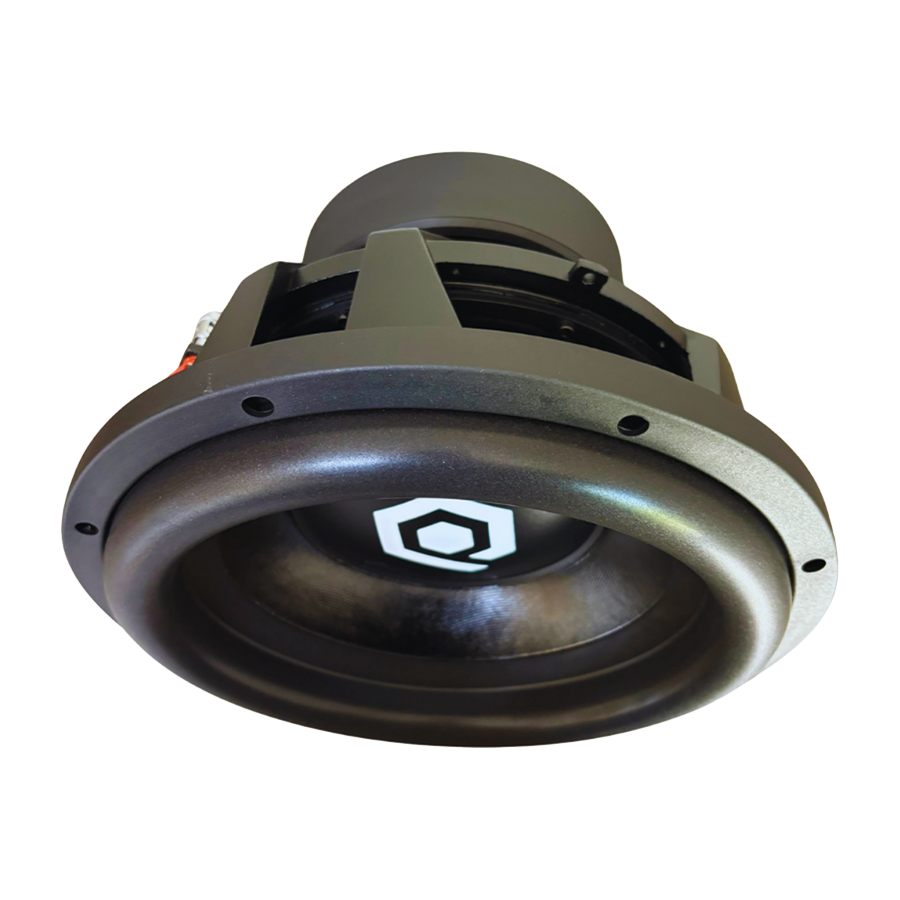

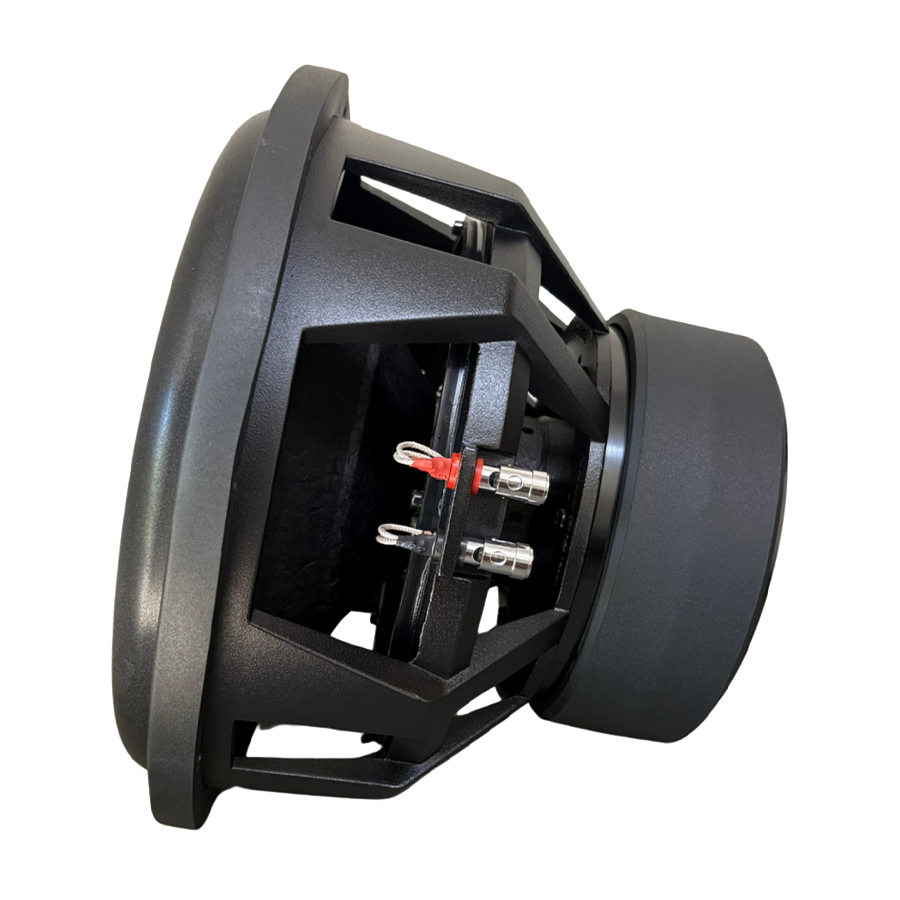

SoundQubed HDS3.3-12D2 12 Inch Car Subwoofer – 1500W RMS Dual 2 Ohm
🔊 Powerful Performance. Upgrade your vehicle's sound system with the SoundQubed HDS3.3-12D2 12 inch car subwoofer.
This powerful HDS3.3 Series driver delivers 1500 watts RMS and handles up to 3000 watts peak power.
Its dual 2-ohm voice coils provide flexible wiring options for compatible car audio amplifiers.
Experience aggressive bass performance for daily driving, custom installations, and high-output sound systems.
🎵 Sound Quality and Performance
The HDS3.3 Series is engineered for powerful low-frequency reproduction and demanding audio applications.
Its 26.6Hz resonant frequency supports deep bass response in properly designed enclosures.
The 83.3dB sensitivity specification helps describe its acoustic efficiency.
A 13mm Xmax rating supports controlled cone excursion during demanding bass passages.
🛠️ Construction and Design
A 3-inch high-temperature voice coil supports substantial continuous power handling.
The 160-ounce magnet assembly provides a robust foundation for the motor structure.
Its heavy-duty construction suits custom car audio installations requiring strong bass output.
Proper ventilation and amplifier settings help maintain reliable operation.
🔧 Installation and Compatibility
This dual 2 ohm subwoofer supports parallel and series voice coil wiring.
Parallel wiring produces a 1-ohm final impedance.
Series wiring produces a 4-ohm final impedance.
Select an amplifier compatible with the chosen impedance and appropriate RMS power.
Verify mounting clearance, enclosure dimensions, and vehicle electrical capacity before installation.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS3.3-12D2
-
📏 Speaker Size: 12 inches
-
⚡ RMS Power: 1500 watts
-
🔥 Peak Power: 3000 watts
-
🔌 Impedance: Dual 2 Ohm
-
🎵 Voice Coil: 3 inches
-
🧲 Magnet Weight: 160 ounces
-
🔉 Resonant Frequency: 26.6Hz
-
🎚️ Sensitivity: 83.3dB
-
📐 Xmax: 13mm
-
📦 Configuration: Passive subwoofer driver
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional speaker upgrades and audio accessories.
Complete your vehicle transformation with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Can this subwoofer be wired to 1 ohm?
Yes. Parallel wiring produces a 1-ohm load, while series wiring produces 4 ohms.
What amplifier should I use?
Choose an amplifier delivering suitable RMS power at your selected impedance.
Does this subwoofer include an enclosure?
No. A compatible enclosure must be purchased or constructed separately.
