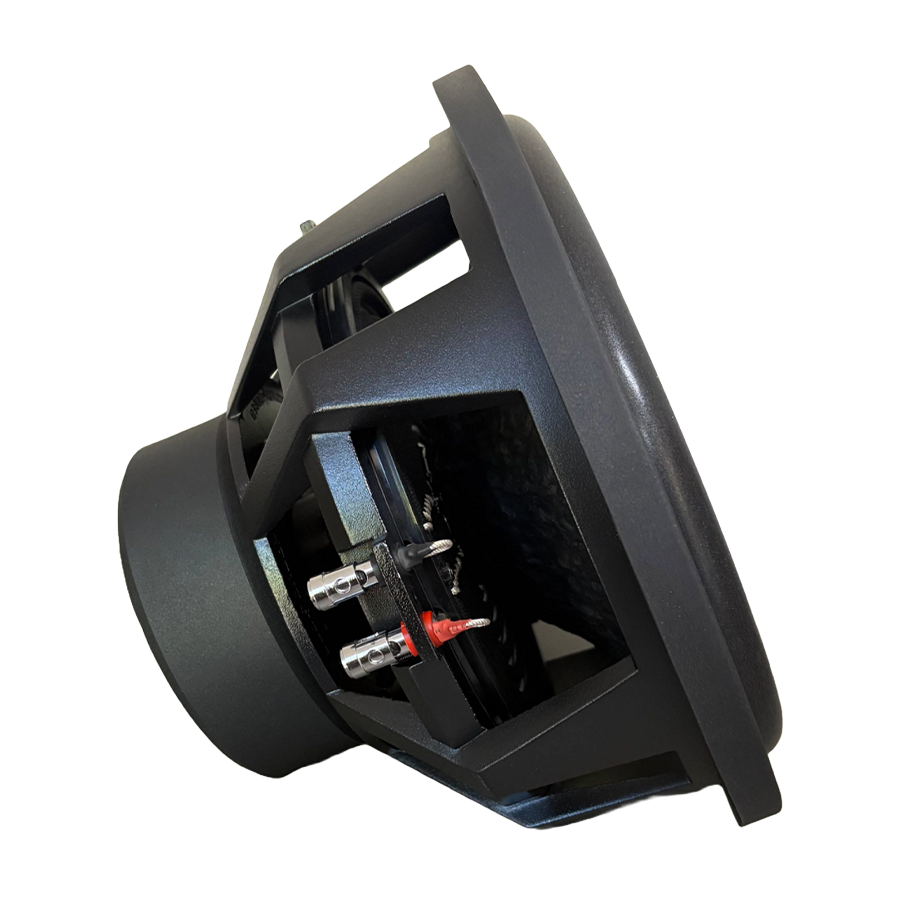

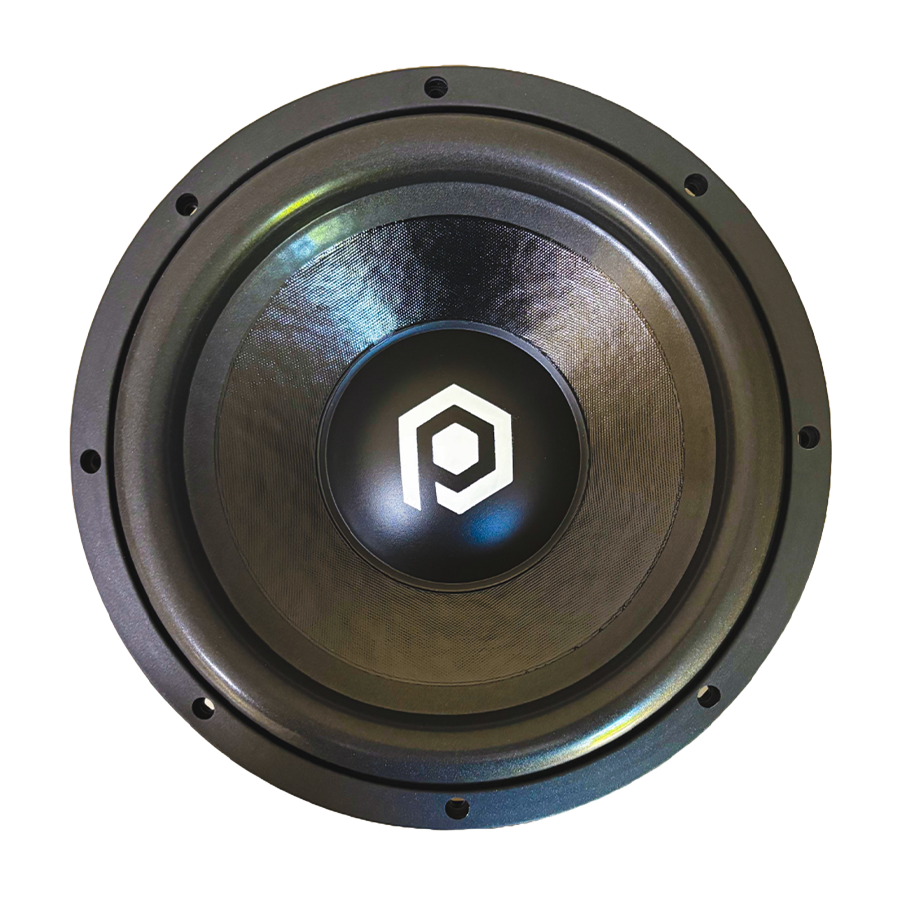

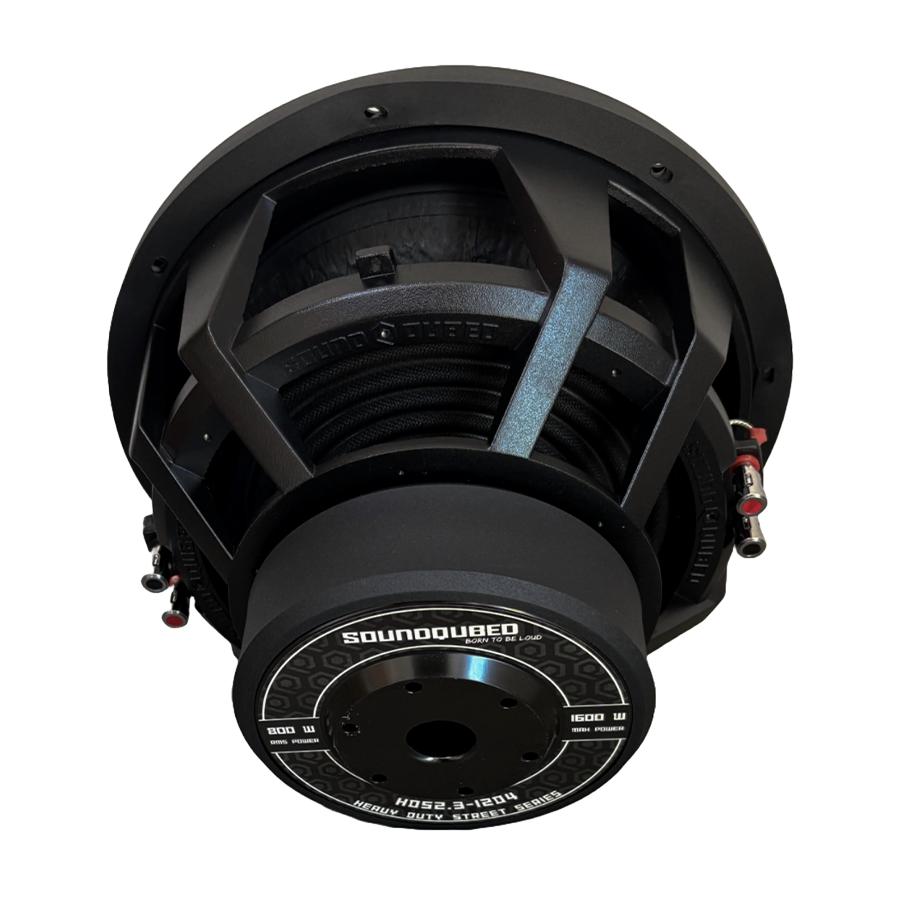

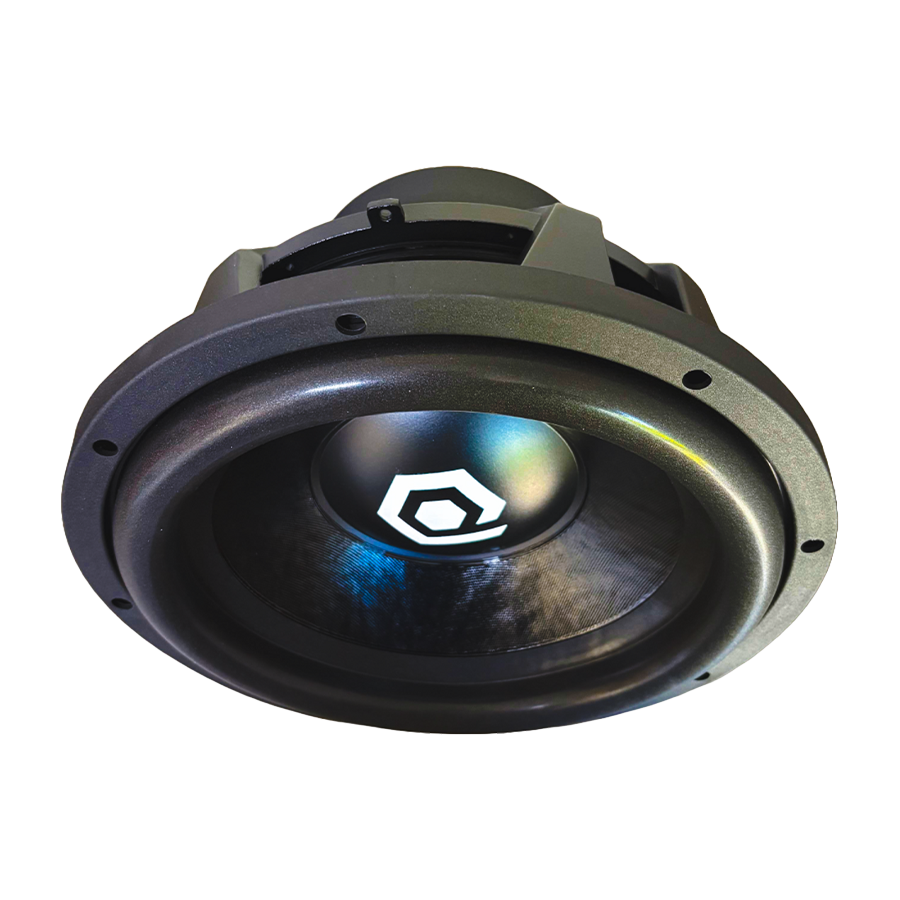

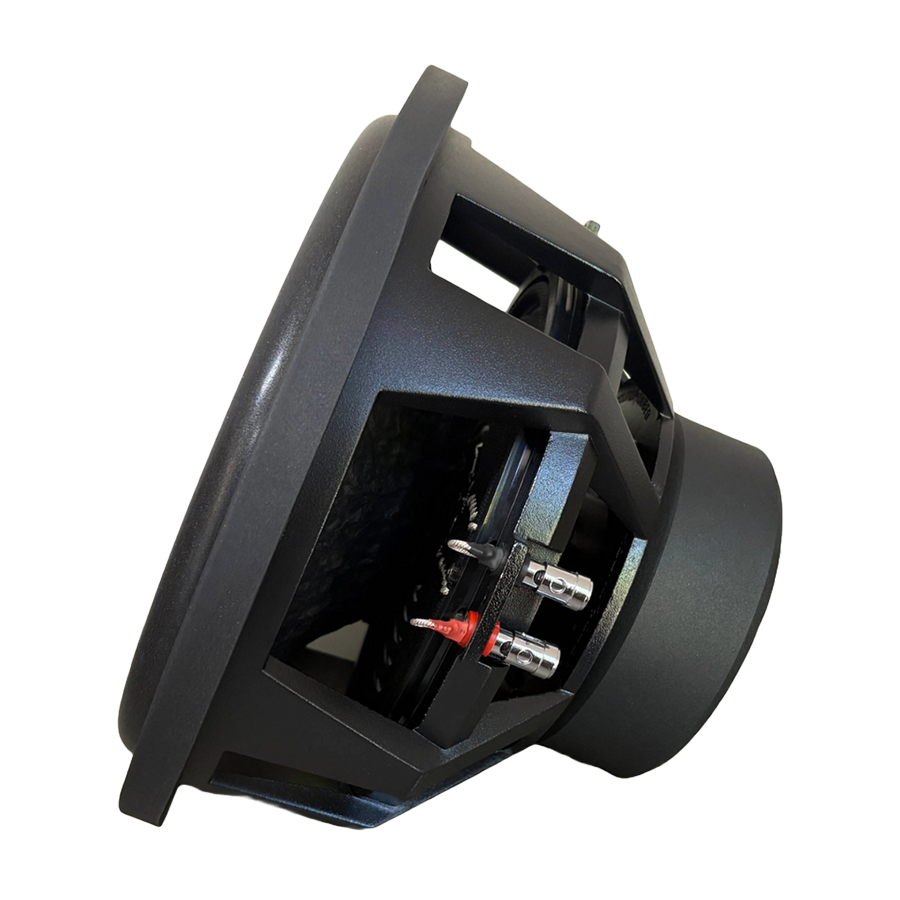

SoundQubed HDS2.3-12D4 12 Inch Car Subwoofer – 800W RMS Dual 4 Ohm
🔊 Powerful Performance. Upgrade your vehicle's sound system with the SoundQubed HDS2.3-12D4 12 inch car subwoofer.
This HDS2.3 Series driver handles 800 watts RMS and 1600 watts maximum power.
Its dual 4-ohm voice coils provide flexible wiring options for compatible car audio amplifiers.
Experience powerful bass performance designed for daily driving and custom audio systems.
🎵 Sound Quality and Performance
The SoundQubed HDS2.3 Series delivers strong low-frequency output for demanding music enthusiasts.
Its 31.6Hz resonant frequency supports extended bass reproduction in properly designed enclosures.
The 14mm Xmax specification provides substantial cone excursion for demanding low-frequency passages.
An appropriately tuned enclosure helps balance bass response, output, and overall performance.
🛠️ Construction and Design
A die-cast aluminum basket provides rigid structural support.
The 2.5-inch voice coil features a 40mm winding length.
Its 7.56-inch mounting depth requires sufficient enclosure clearance.
This 12-inch driver offers a solid foundation for custom automotive sound systems.
🔧 Installation and Compatibility
The HDS2.3-12D4 features two 4-ohm voice coils.
Parallel wiring produces a 2-ohm final impedance.
Series wiring produces an 8-ohm final impedance.
Select an external amplifier with appropriate RMS output at the selected impedance.
Verify enclosure dimensions, available vehicle space, and amplifier compatibility before installation.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS2.3-12D4
-
📏 Speaker Size: 12 inches
-
⚡ RMS Power: 800 watts
-
🔥 Maximum Power: 1600 watts
-
🔌 Impedance: Dual 4 Ohm
-
🎵 Voice Coil Diameter: 2.5 inches
-
📐 Mounting Depth: 7.56 inches
-
🔉 Resonant Frequency: 31.6Hz
-
🎚️ Xmax: 14mm
-
🛠️ Basket: Die-cast aluminum
-
📦 Configuration: Standalone passive subwoofer
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional speakers and audio upgrades.
Complete your vehicle transformation with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Can this subwoofer be wired to 2 ohms?
Yes. Connecting both 4-ohm voice coils in parallel produces a 2-ohm final load.
What amplifier should I use?
Choose a compatible amplifier delivering suitable RMS power at the selected impedance.
Can I install this subwoofer in a sealed or ported enclosure?
Yes. Both enclosure types are supported within SoundQubed's recommended internal volume ranges.
