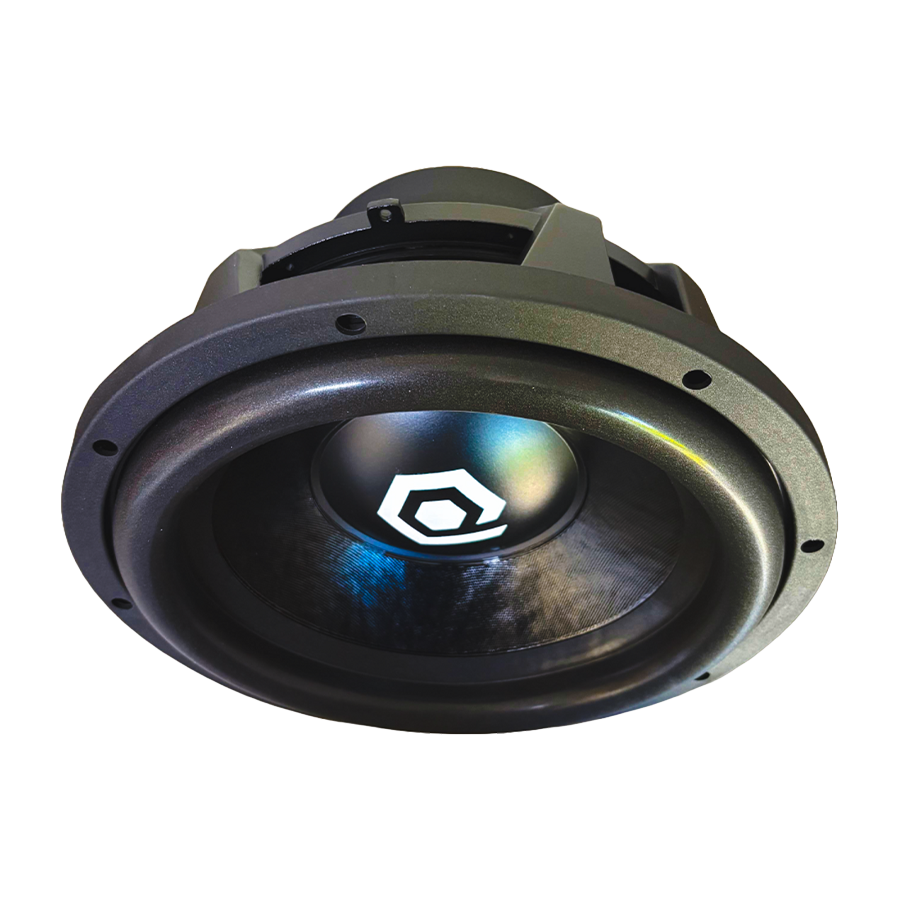

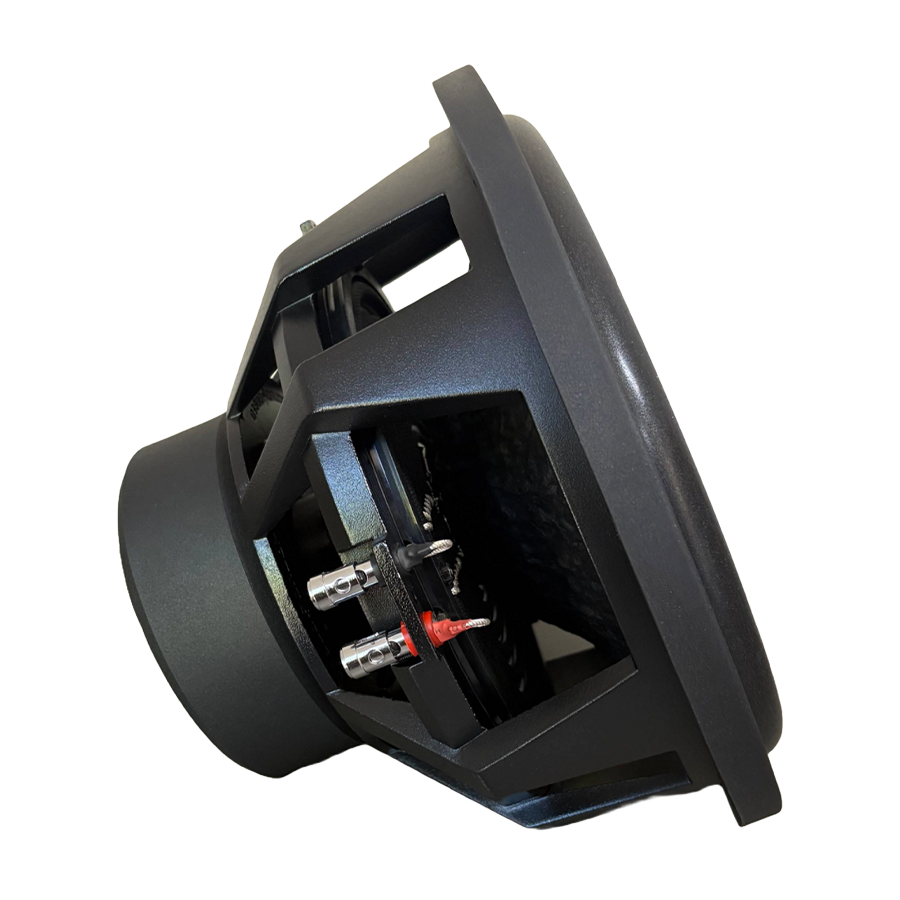

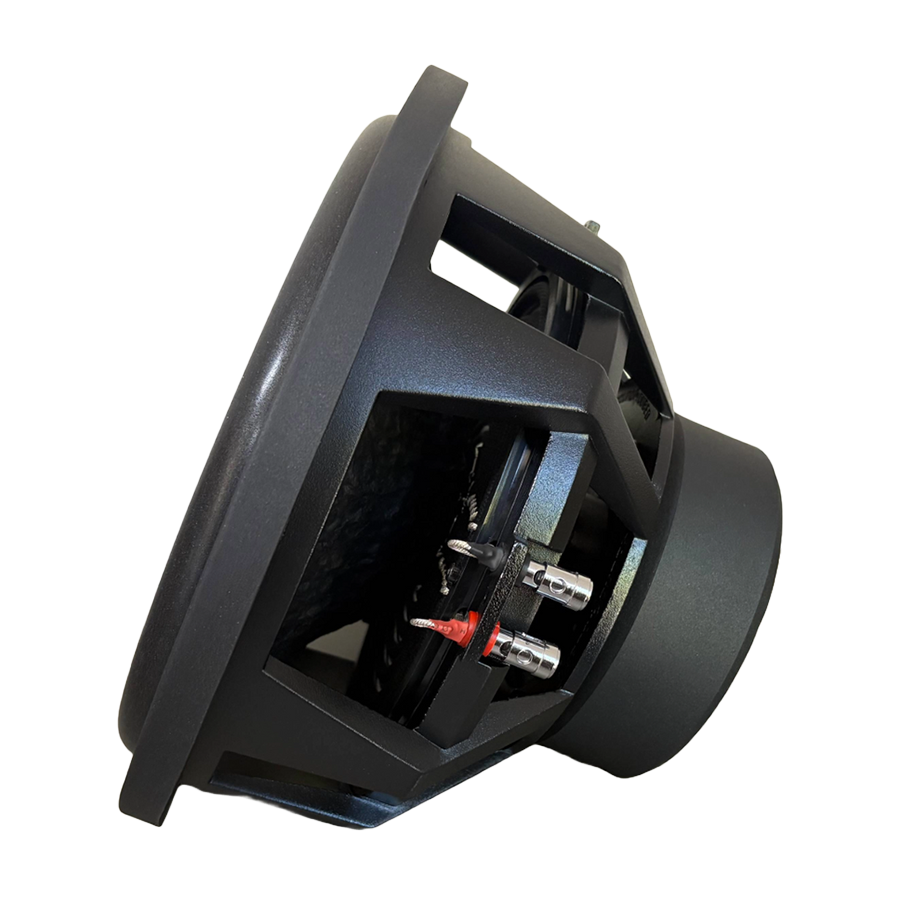

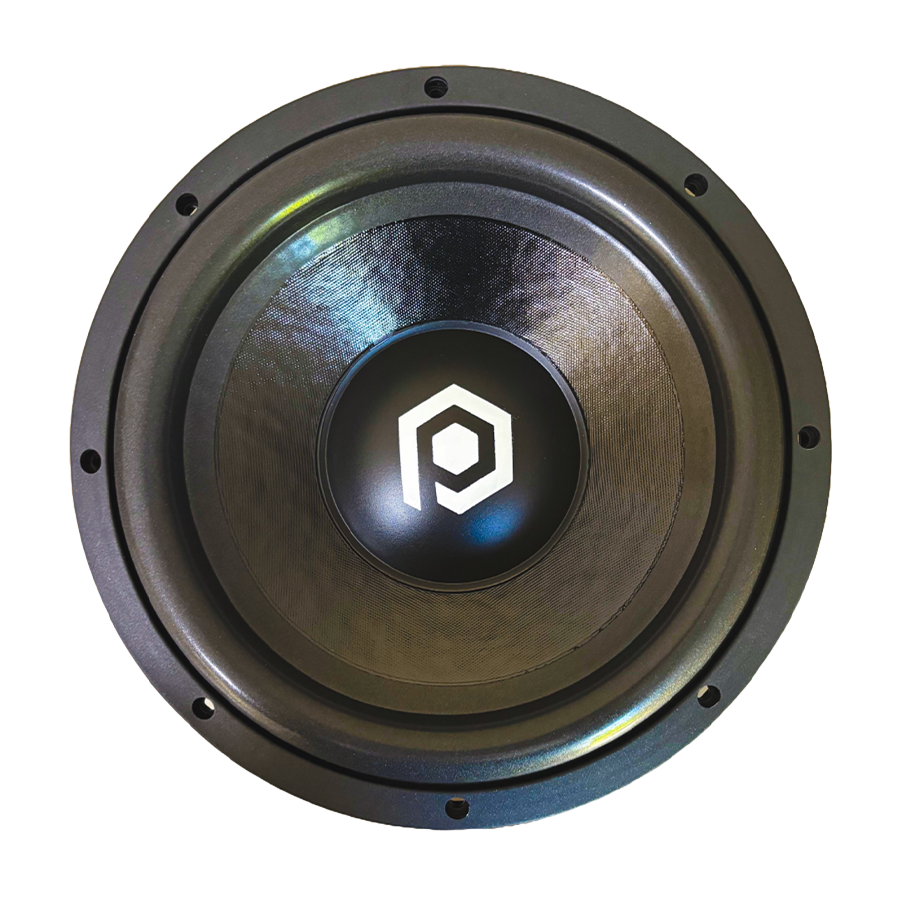

SoundQubed HDS2.3-12D2 12 Inch Car Subwoofer – 800W RMS Dual 2 Ohm
🔊 Powerful Performance. Upgrade your sound system with the SoundQubed HDS2.3-12D2 12 inch car subwoofer.
This HDS2.3 Series driver delivers 800 watts RMS and handles up to 1600 watts maximum power.
Its dual 2-ohm voice coils provide flexible wiring options for compatible car audio amplifiers.
Enjoy powerful bass reproduction designed for daily driving and custom sound systems.
🎵 Sound Quality and Performance
The SoundQubed HDS2.3 Series combines strong power handling with deep low-frequency performance.
Its 27Hz resonant frequency supports applications requiring extended bass reproduction.
The 14mm Xmax specification provides substantial cone excursion for demanding music.
Proper enclosure design helps achieve balanced bass response and reliable performance.
🛠️ Construction and Design
A durable die-cast aluminum basket provides structural support for the speaker assembly.
The 2.5-inch voice coil features a 40mm winding length.
Its 7.56-inch mounting depth requires adequate clearance inside the enclosure.
This 12-inch driver offers an excellent foundation for custom car audio installations.
🔧 Installation and Compatibility
The HDS2.3-12D2 12 inch car subwoofer features dual 2-ohm voice coils.
Parallel wiring produces a 1-ohm final impedance.
Series wiring produces a 4-ohm final impedance.
Choose an external amplifier rated for the selected impedance and appropriate RMS output.
Confirm enclosure volume, mounting clearance, and amplifier compatibility before installation.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS2.3-12D2
-
📏 Speaker Size: 12 inches
-
⚡ RMS Power: 800 watts
-
🔥 Maximum Power: 1600 watts
-
🔌 Impedance: Dual 2 Ohm
-
🎵 Voice Coil: 2.5 inches
-
📐 Mounting Depth: 7.56 inches
-
🔉 Resonant Frequency: 27Hz
-
🎚️ Xmax: 14mm
-
🛠️ Basket: Die-cast aluminum
-
📦 Configuration: Standalone passive subwoofer
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional speaker upgrades and audio accessories.
Complete your vehicle transformation with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Can this subwoofer be wired to 1 ohm?
Yes. Connecting both 2-ohm voice coils in parallel produces a 1-ohm final load.
What amplifier should I use?
Choose an amplifier with suitable RMS output and stability at your selected impedance.
Does this subwoofer require a sealed or ported enclosure?
Both enclosure types are supported. Follow SoundQubed's recommended internal volume ranges for proper performance.
