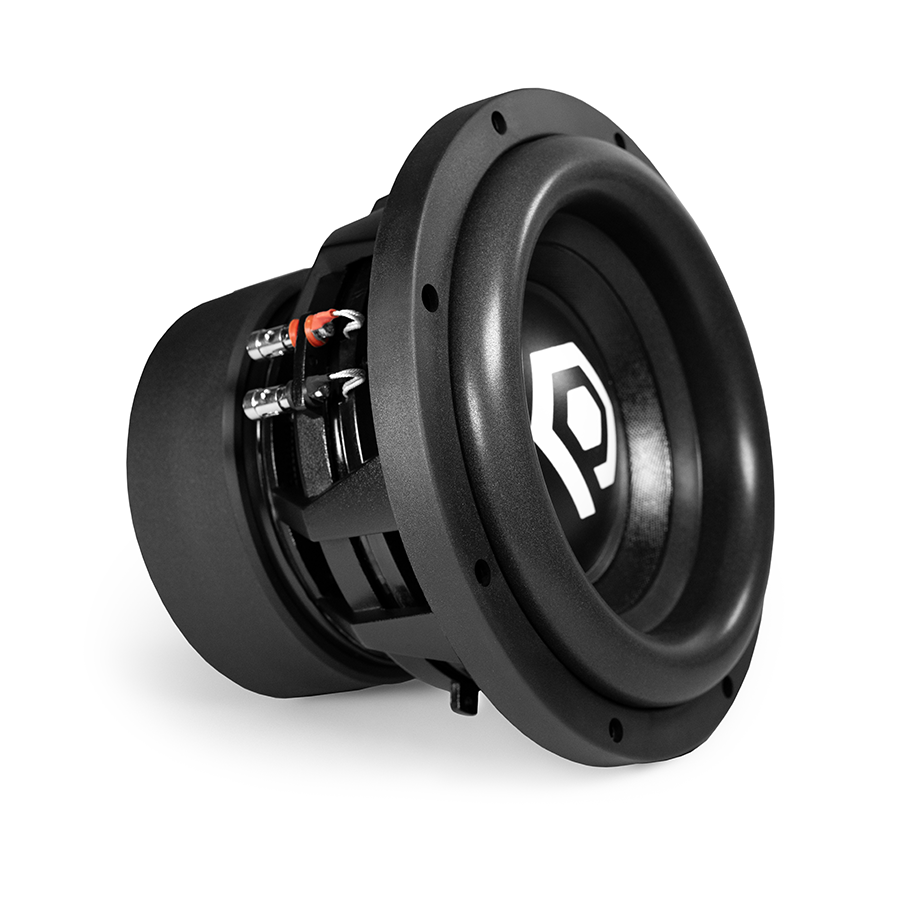

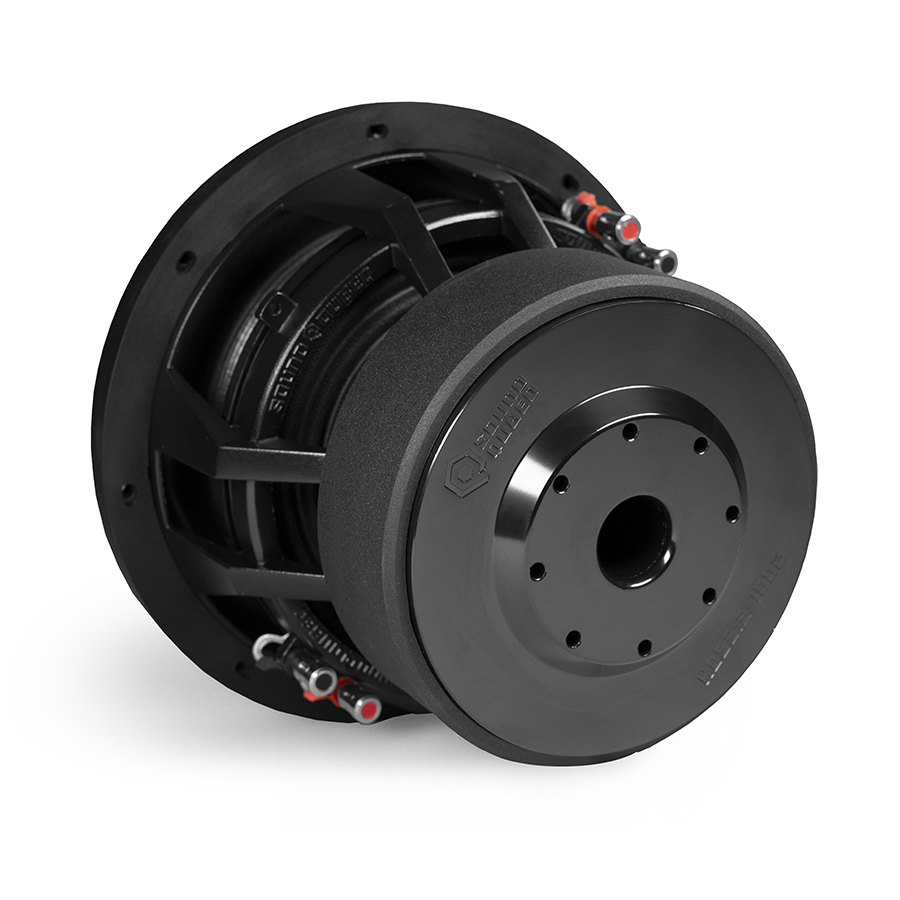

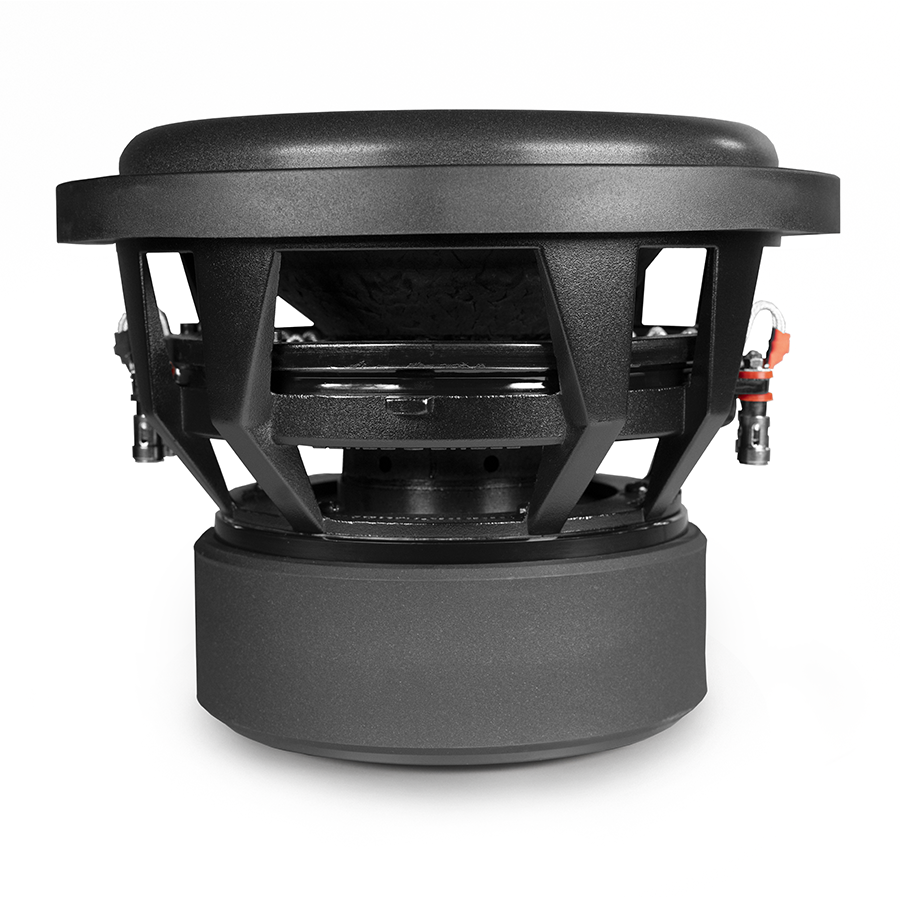

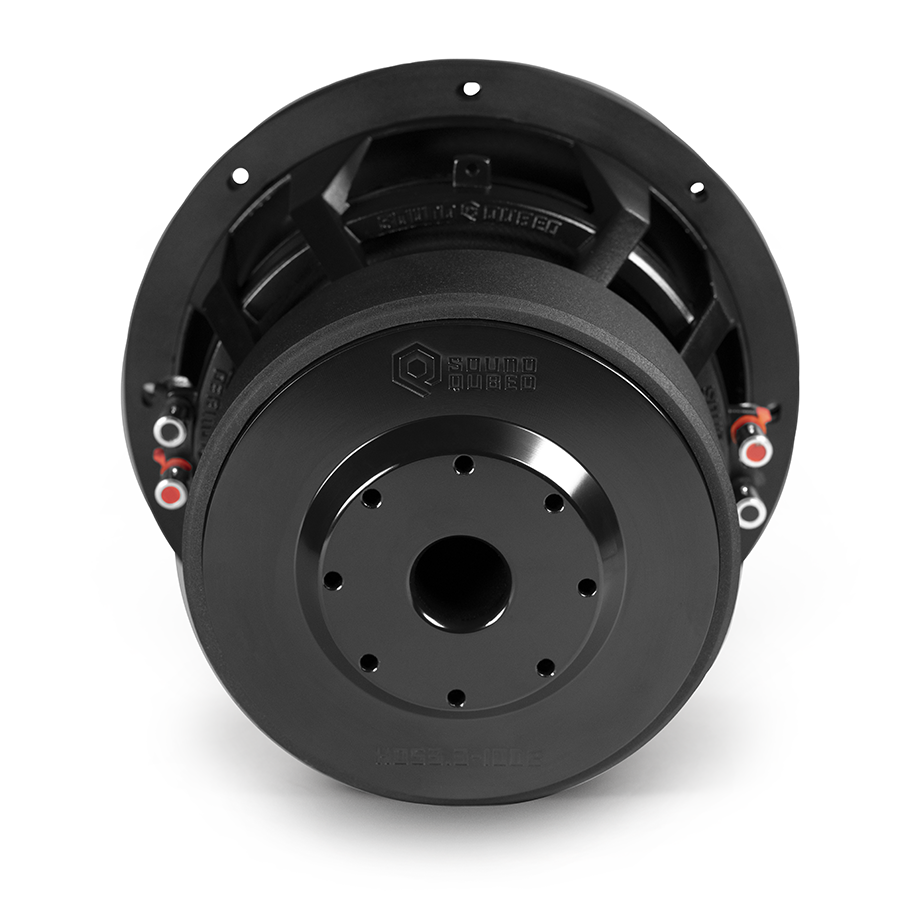

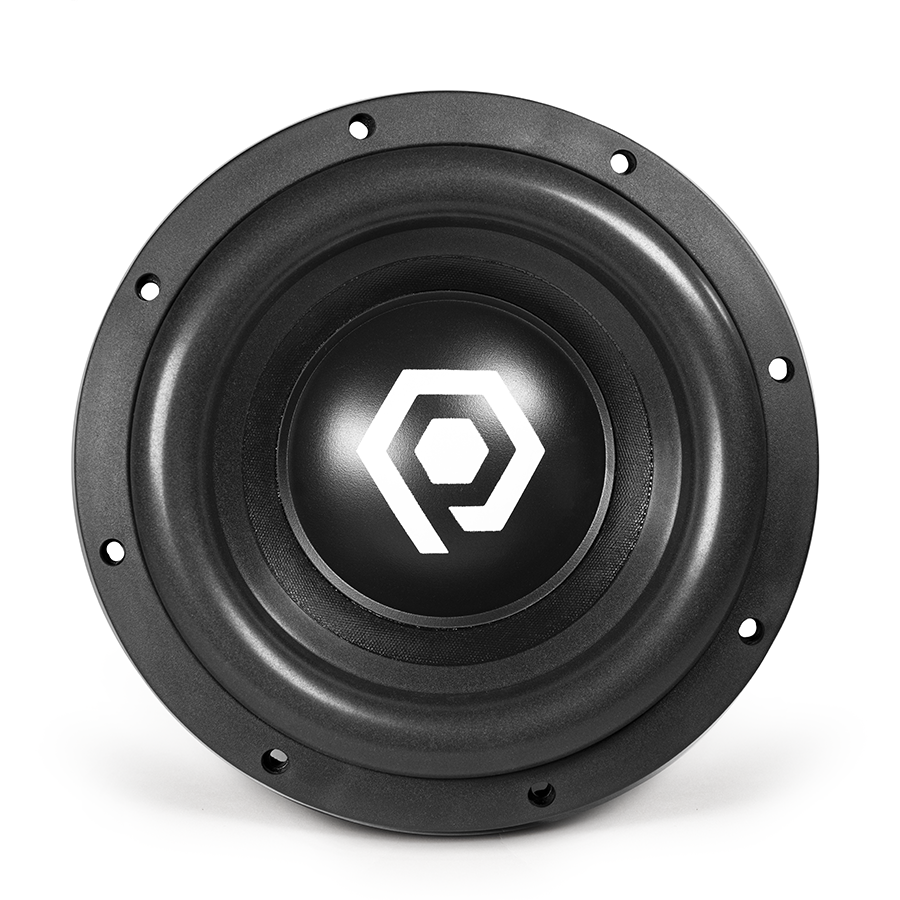

SoundQubed HDS3.310-D2 10 Inch Car Subwoofer – 1500W RMS Dual 2 Ohm
🔊 Powerful Performance. Upgrade your vehicle's audio system with the SoundQubed HDS3.310-D2 10 inch car subwoofer.
This powerful HDS3.3 Series driver handles 1500 watts RMS and 3000 watts peak power.
Its dual 2-ohm voice coils provide flexible wiring options for compatible car audio amplifiers.
Enjoy powerful bass output for daily driving, custom installations, and high-performance sound systems.
🎵 Sound Quality and Performance
The HDS3.3 Series combines controlled bass response with substantial power handling.
Its 27.6Hz resonant frequency supports deep low-frequency performance in properly designed enclosures.
An 82.5dB sensitivity rating describes its acoustic efficiency.
The 13mm Xmax specification supports cone movement during demanding bass passages.
🛠️ Construction and Design
A 3-inch voice coil supports substantial continuous power handling.
The 160-ounce magnet assembly provides a strong foundation for the motor structure.
Its heavy-duty construction supports demanding car audio applications.
The 6.97-inch mounting depth requires adequate clearance inside the enclosure.
🔧 Installation and Compatibility
This dual 2 ohm subwoofer supports parallel and series voice coil wiring.
Parallel wiring produces a 1-ohm final impedance.
Series wiring produces a 4-ohm final impedance.
Choose an amplifier with suitable RMS power at your selected impedance.
Verify enclosure volume, mounting clearance, and vehicle electrical capacity before installation.
⚡ Key Features and Specifications
-
🔊 Brand: SoundQubed
-
📦 Model: HDS3.310-D2
-
📏 Speaker Size: 10 inches
-
⚡ RMS Power: 1500 watts
-
🔥 Peak Power: 3000 watts
-
🔌 Impedance: Dual 2 Ohm
-
🎵 Voice Coil: 3 inches
-
🧲 Magnet Weight: 160 ounces
-
📐 Mounting Depth: 6.97 inches
-
🔉 Resonant Frequency: 27.6Hz
-
🎚️ Sensitivity: 82.5dB
-
📦 Configuration: Passive subwoofer driver
🚗 Complete Your Car Audio Upgrade
Explore our Car Speakers Collection for additional speakers and audio upgrades.
Complete your vehicle transformation with professional Car Window Tinting services in Delaware.
❓ Frequently Asked Questions
Can this subwoofer be wired to 1 ohm?
Yes. Parallel wiring produces a 1-ohm load, while series wiring produces 4 ohms.
What amplifier should I use?
Choose an amplifier delivering suitable RMS power at your selected impedance.
Can this subwoofer use a sealed or ported enclosure?
Yes. SoundQubed provides recommended volume ranges for both enclosure designs.
