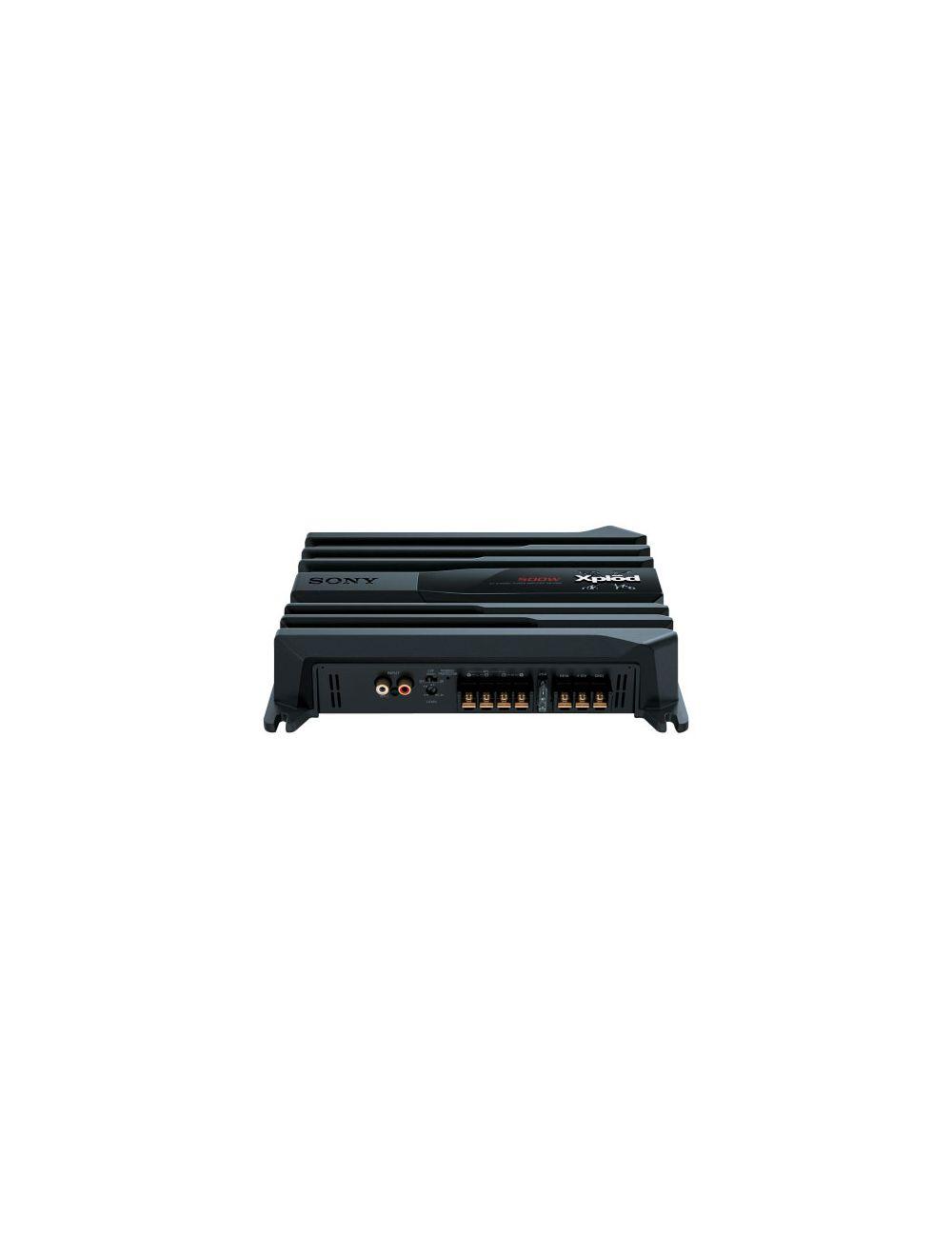

Sony XM-N502 2/1 Channel 500W Amplifier (XMN502)

Amplifier Section

• Power Ad Hoc : 65W per channel at 4 Ohms from 20Hz-20kHz with < 1% THD1
• Speaker Impedance : 2-8 Ohm stereo
  4-8 Ohms mono
• Max power output : 500W max power

Audio

• Harmonic Distortion : 0.05% (1kHz @ 4 ohm)
• Power Supply : OTL (Output Transformerless) circuit
  Pulse Power Supply
• Input Level : 0.3 - 6.0V (RCA input)
• Band : Selectable crossover: 18dB/oct LPF @ 80 HZ
• Signal Circuitry : Selectable LPF crossover
• Signal-to-Noise Ratio (dB) : 93 dBA
• Frequency Response : 5 Hz - 50 Khz (+0/-3 db)

Audio Features

• Level Control : 0.3 - 6.0V (RCA input)
• Color : Graphite
• Color : Graphite
• Impedance : 2-8 Ohms in Stereo Mode
• 4-8 Ohms mono

Inputs and Outputs

• Audio Out : Speaker Terminals
• RCA Audio Input(s) : Pin Jacks: 0.3 - 6V
• Input(s) : RCA Pin Jacks
• Output(s) : Speaker Terminals
• Line Level Input(s) : RCA pin jacks
• Audio In : RCA Pin Jacks

Power

• Power Requirements : 12V DC Car Battery (Negative Ground)
• Current Drain : At rated output: 15A (at 4 Ohms) Remote Input: 1 mA
• Output Power : Maximum Output: 150W x 2 (at 4 Ohm)
• Rated Output : 65W x 2 (20Hz-20kHz, 1% THD+N, 4 Ohms, 14.4V)1
  85W x 2 (20Hz-20kHz, 1% THD+N, 2 Ohms, 14.4V)
  175W x 1 RMS (20Hz-20kHZ 1.0% THD+N, at 4 Ohms)
• Input Voltage : 10.5-16V Power Supply Voltage
• Internal Power Supply : OTL (Output Transformerless) circuit
  Pulse Power Supply

Speaker

• Impedance : 2-8 Ohm stereo
  4-8 Ohms mono
• Speaker Terminal Type : Gold plated terminals
• Circuit System : OTL (Output Transformerless) circuit
  Pulse Power Supply

Weights and Measurements

• Dimensions (Approx.) : 10 5/8" x 2 1/8" x 7 1/4" (271 x 55 x 185 mm)
• Weight (Approx.) : 3 lbs. 5 oz. (1.5 kg)
• Dimensions (Approx) Width : 10 5/8"
• Dimensions (Approx) Height : 2 1/8"
• Dimensions (Approx) Depth : 7 1/4"
