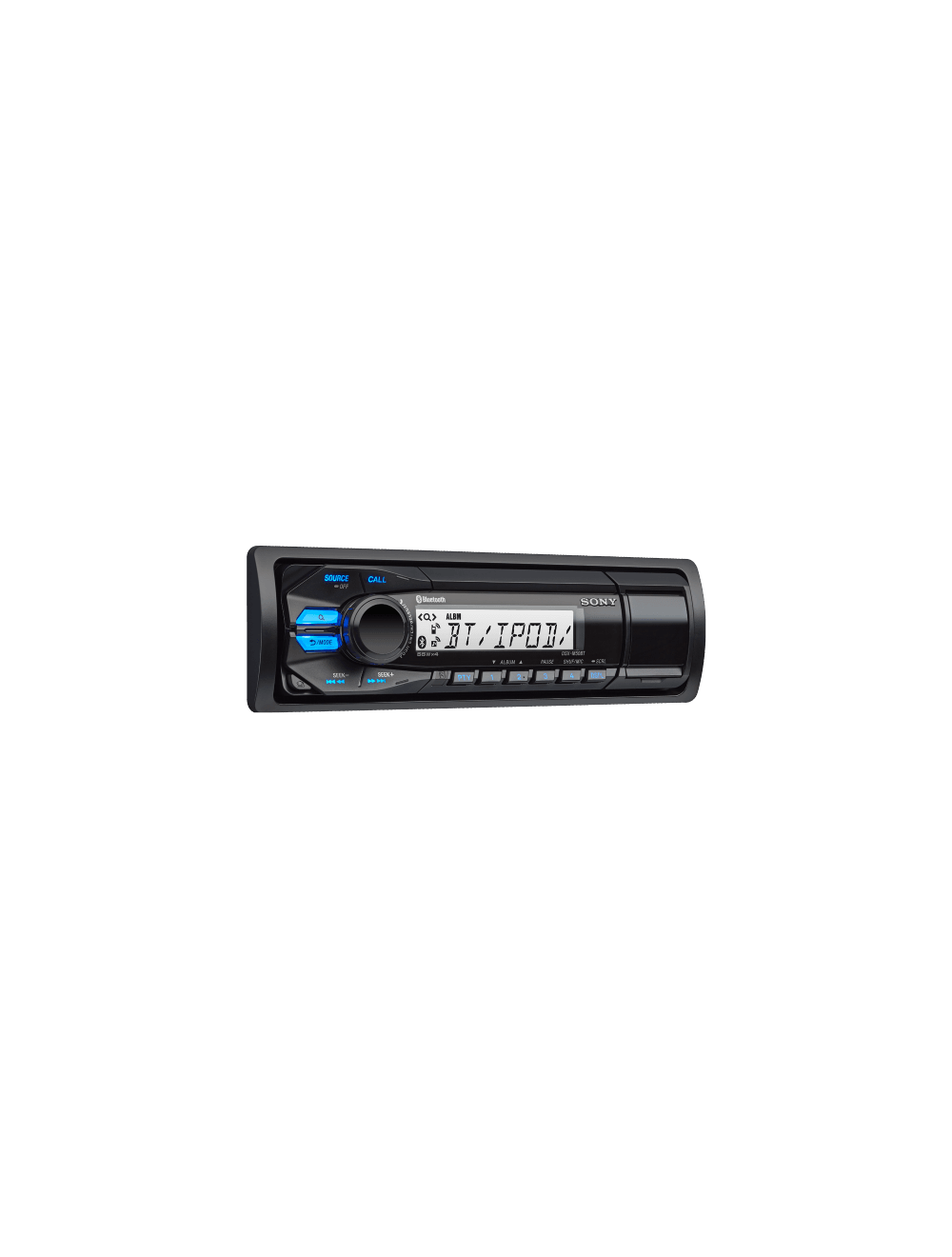

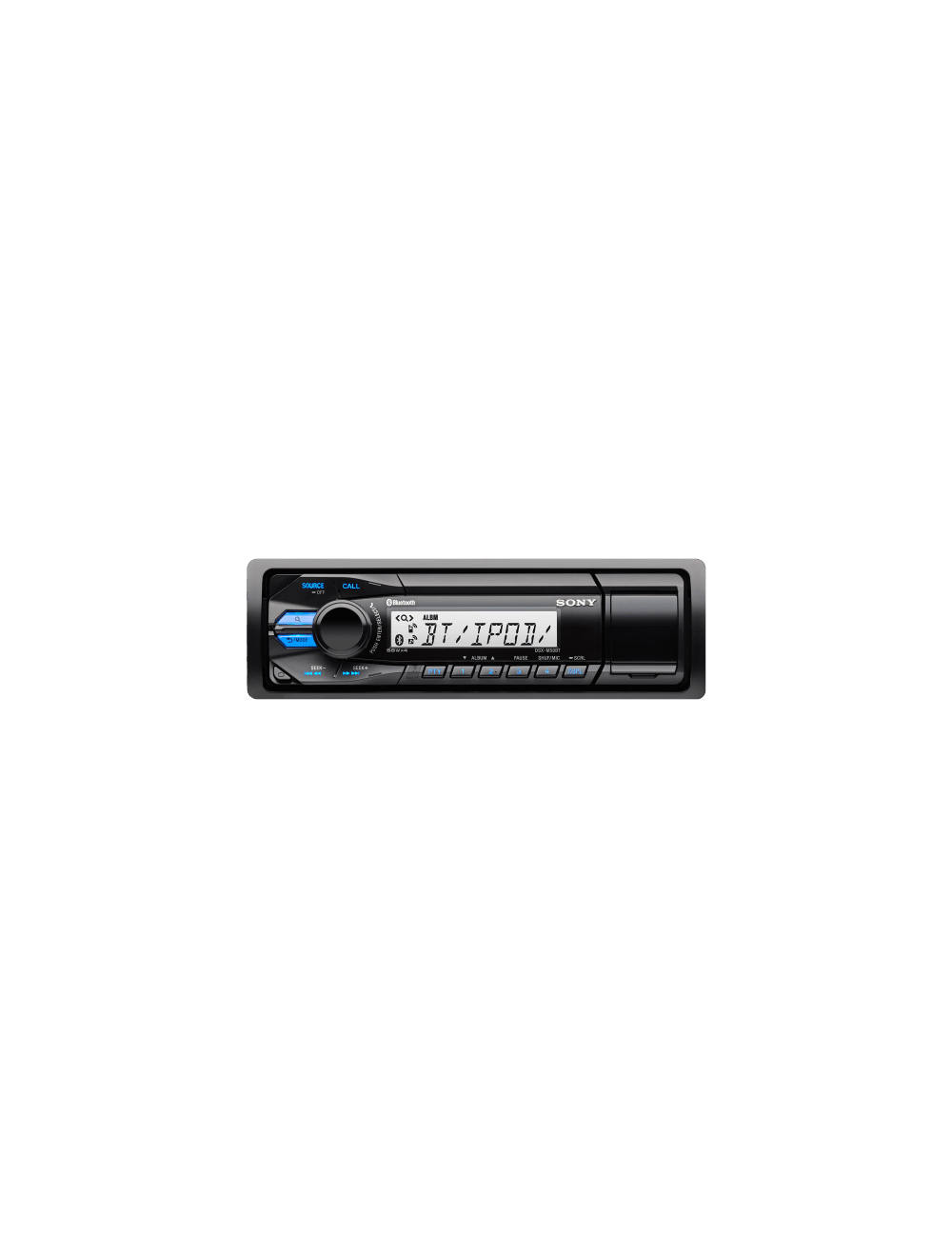

Sony DSX-M50BT Marine Digital Media Receiver w/Bluetooth (DSXM50BT)

Amplifier Section

• Power Ad Hoc : CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with less than 1% THD+N.
• Speaker Impedance : 4-8 Ohms
• Max power output : 55 watts x 4 at 4 ohms

Audio

• Preout Voltage : 2 volt
• Preout Impedance : 220 ohms
• Station Preset(s) : 18 FM / 12 AM
• S/N Ratio : Audio Power: CEA2006 S/N 80 dBA
• Tuner Type : Digital Clarity Tuner with RDS
• Equalizer : EQ3: 3 band equalizer with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.
• Band : AM / FM
• Tuner Frequency Range :
  FM (MHz): 87.5-107.9
  AM (kHz): 530-1710
• Audio Format(s) Supported : MP3/WMA files1

Bluetooth Feature & Device BT Spec

• Version : Bluetooth Version 2.1
• Secure Simple Pairing : Yes

Bluetooth Feature & Device Bluetooth Audio

• Meta Data Indication : Yes
• PAUSE : Yes
• Audio Codec : SBC
• Audio Level Adjustment : Yes (-8dB to +18dB)
• TRACK +/- : Yes
• CUE/REV : Yes

Bluetooth Feature & Device Bluetooth Feature

• Phonebook Access via PBAP : Yes
• Call history browse with PBAP : Yes
• Connection Status (maximum #) : (1) HFP/PBAP+ (1) Audio
• # of records connected : 9 (HFP+Audio)
• Call history (# of) : 20 numbers
• Speed dial : 6x1=6 memories
• Last dialed call : Yes
• Ring volume level control : Yes
• Call Volume Level Control : Yes
• MIC GAIN Adjustment : Yes
• RF ON/OFF : Yes
• Internal ringtone : 1 (Sony Ericsson PCM)
• Echo/Noise Canceler : Yes
• Ring alert select : Internal/Cellular

Bluetooth Feature & Device Other Features

• Network Carrier Information : Yes

Bluetooth Feature & Device Profile

• PBAP : Yes
• AVRCP : Version1.3
• A2DP : Version1.2
• HFP : Version1.5

Convenience

• Tilt Range : 0-45 mounting angle

Convenience Features

• On-Screen Clock : 12H
• Key Illumination : Blue

Display

• Display Technology : LCD
• Text Lines : 1 line of information
• Text Displayed : Source, artist, track, playback time, menu, clock, and Bluetoothdata
• Display Color : Black / Variable Color

Feature & Device AUX in Feature

• Level Adjustment : -8dB / +18dB

Feature & Device Amp & General

• Pre Out : (2) Front and Rear
• Output Power (4ohm, 1kHz,16V)(W) : 55 watts x 4
• High Voltage Pre Out : 2 Volt
• USB : Front
• Aux-In : Front
• EQ : EQ3: 3 band equalizer with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.

Feature & Device Display Panel

• Auto off mode : Yes
• Key Illumination Initial : Blue
• Dimmer Adjust : Manual

Feature & Device Other Features

• Rotary commander ( ):Option : Yes
• Detachable Panel : Partial detachable face
• Clock : 12H

Feature & Device Panel Design

• Key Illumination : Blue
• Display color (Color Variation/Nega or Posi) : Black color/Negative
• Display Device (LCD/FL/OEL/TFT) : LCD
• Panel finish color : Black

Feature & Device Tuner Feature

• RDS/EON (NA Only:RBDS, Others:RDS) : RBDS
• Preset : FM18/AM12

Inputs and Outputs

• Digital Audio Input(s) : Ability to use all forms of USB devices may vary as not all devices are compatible. This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard. This unit cannot recognize USB devices via a USB hub.
  This unit can be connected to the following iPods. Update your iPod to the latest software before you use it.
  iPod Nano 1st - 7th ge...

  More Information

  Brands	Sony
  Color	Black
