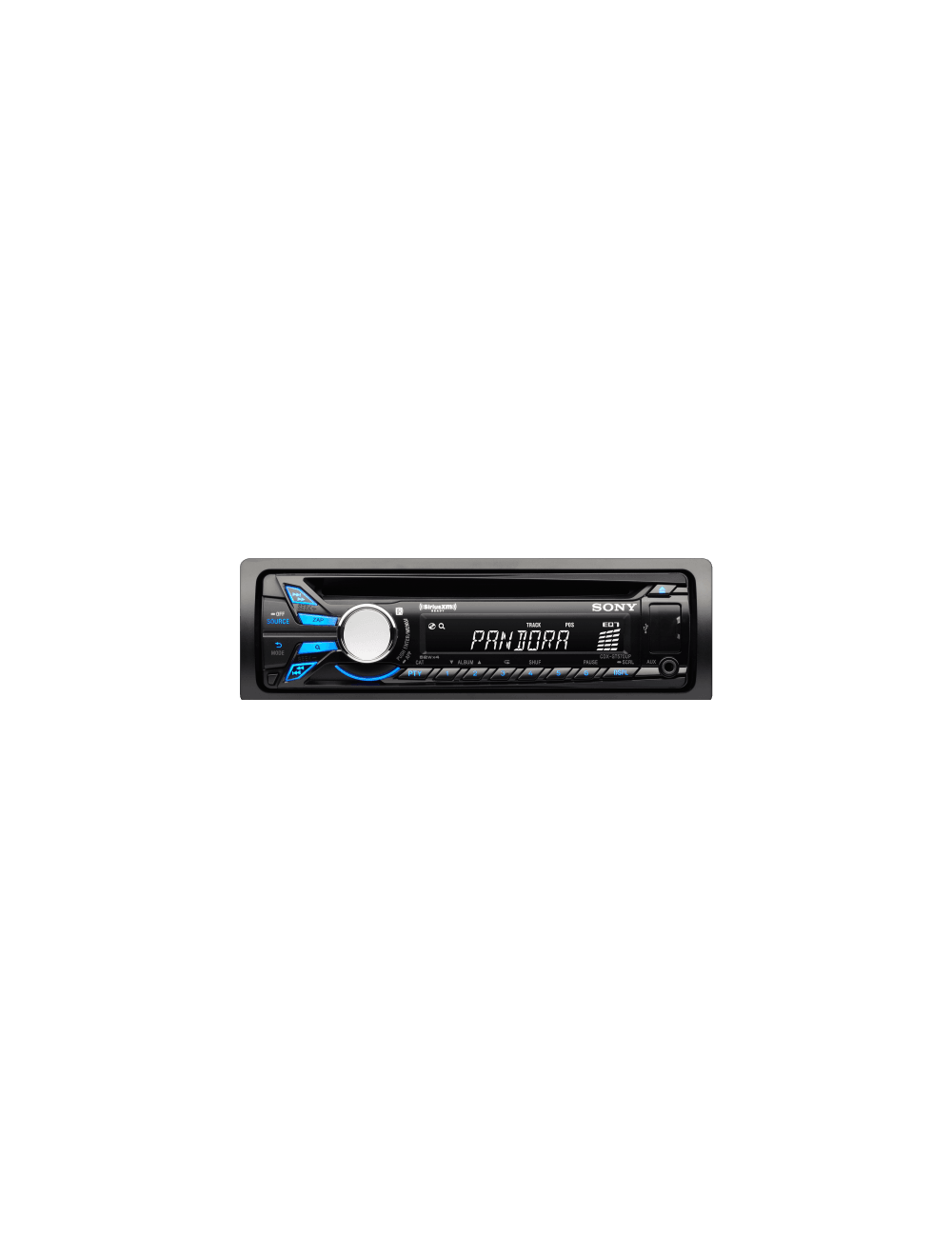

Sony CDX-GT570UP CD/USB Receiver w/Pandora control (CDXGT570UP)

Amplifier Section

• Speaker Impedance : 4-8 Ohms
• Power Ad Hoc : CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with less than 1% THD+N.
• Max power output : 52 watts x 4 at 4 ohms

Audio

• Preout Voltage : 2 volt
• Preout Impedance : 220 ohms
• Wow and Flutter : Below measurable limit
• S/N Ratio : Audio Power: CEA2006 S/N 80 dBA
• Equalizer : EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
• Signal-to-Noise Ratio (dB) : CD: 120 dB
• Audio Format(s) Supported : MP3/WMA/AAC files1
• Station Preset(s) : 18 FM / 12 AM
• Tuner Type : Digital clarity tuner with RDS
• Band : AM / FM
• Tuner Frequency Range :
  FM (MHz): 87.5-107.9
  AM (kHz): 530-1710

Capability

• CD : CD, CD-R/RW

Convenience

• Tilt Range : 0-45 mounting angle

Convenience Features

• Dimmer Adjust : Manual on/off
• On-Screen Clock : 12H
• Key Illumination : Blue

Display

• Display Technology : LCD
• Text Lines : 1 line of information
• Text Displayed : Source, artist, track, playback time, menu, clock and Pandoradata
• Display Color : Black /Negative

Feature & Device AUX in Feature

• Level Adjustment : -8dB - +18dB

Feature & Device Amp & General

• Subwoofer Direct Connection : Yes
• Pre Out : (2) Front+Rear/Sub switchable
• Output Power (4ohm, 1kHz,16V)(W) : 52W
• Rear/Sub initial : Sub
• USB : Front
• Aux-In : Front
• Time Alignment Preset : Yes
• Rear Bass Enhancer : Yes
• Time Alignment Custom : Adjustable
• EQ : EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
• High Pass Filter : Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
• Low Pass Filter : Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
• Loudness : Dynamic
• DM+ (Codec enhancer) : Gen2.1
• Sirius/XM Connector : Yes
• Automatic Level Optimizer : Yes

Feature & Device Display Panel

• Auto off mode : Yes
• Dimmer Adjust : Manual on/off

Feature & Device Other Features

• CD lock mode : Yes
• Rotary commander ( ):Option : Optional wired remote input
• Card Remote ( ): Option : RM-X211
• Detachable Panel : Detachable
• Clock : 12H

Feature & Device Panel Design

• Key Illumination : Blue
• Display color (Color Variation/Nega or Posi) : Black color/Negative
• Display Device (LCD/FL/OEL/TFT) : LCD
• Panel finish color : Black (Bare)
• Knob finish : Plating + Rubber
• USB Shutter : Yes

Feature & Device Tuner Feature

• RDS/EON (NA Only:RBDS, Others:RDS) : RBDS
• Preset : FM18/AM12

Inputs and Outputs

• Digital Audio Input(s) : Ability to use all forms of USB devices may vary as not all devices are compatible. This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard. This unit cannot recognize USB devices via a USB hub.
  This unit can be connected to the following iPods. Update your iPod to the latest software before you use it.
  iPod Nano 1st - 6th generation
  iPod Touch 1st - 4th generation
  iPod Classic
  iPod with video
  iPhone
  iPhone 3G
  iPhone 3GS
  iPhone 4
  iPhone 4S
  If you have any questions or problems concerning your unit that are not covered in the owners manual, consult your nearest Sony dealer.
• USB Port(s) : Front
• Remote Jack : Optional wired remote terminal
• 12V Trigger Output(s) : Power remote on
• RCA Audio Output(s) ...
