Sanus LC1A
Universal tilt/swivel ceiling mount for 37"-70" flat-panel TVs

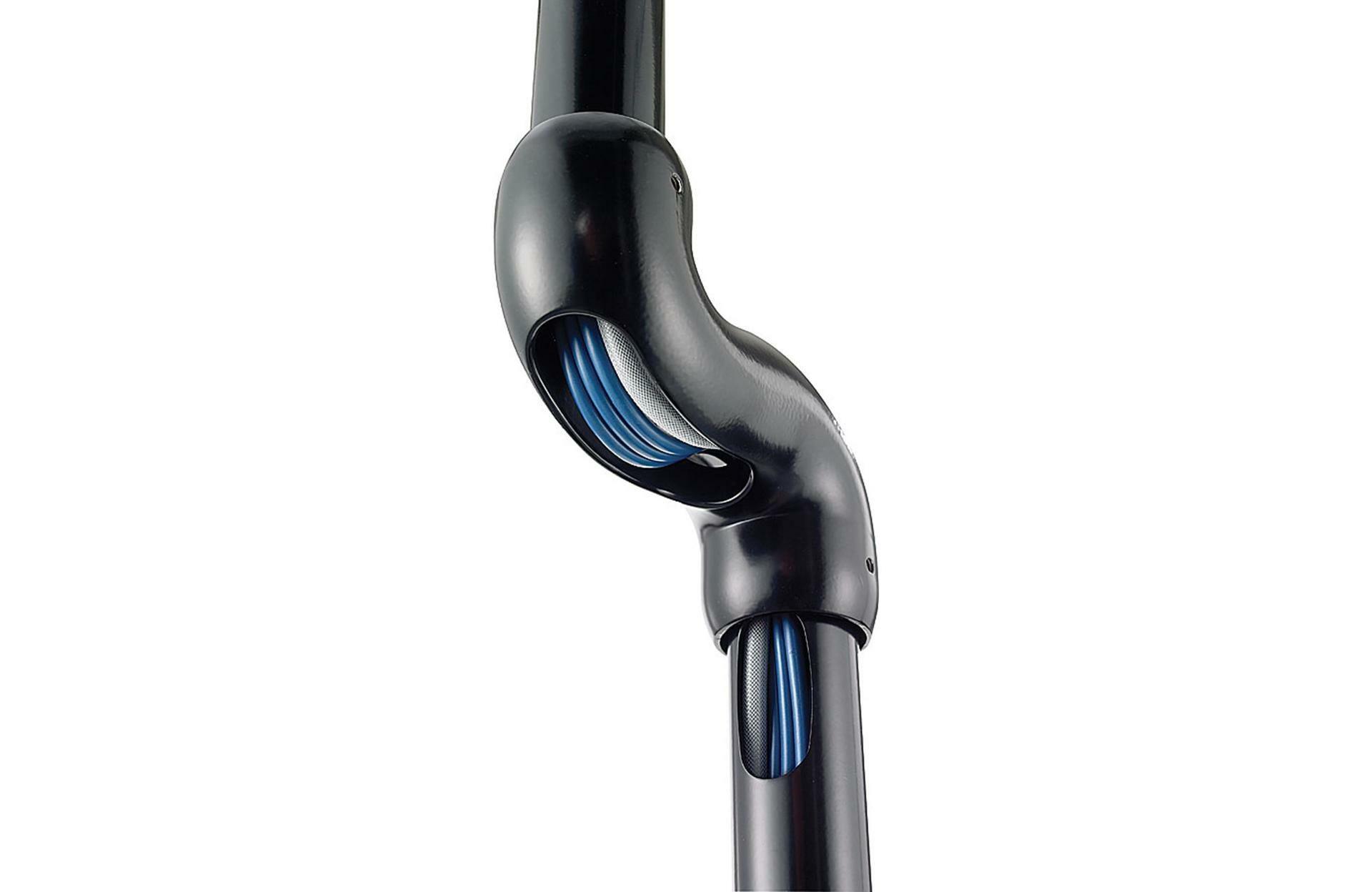

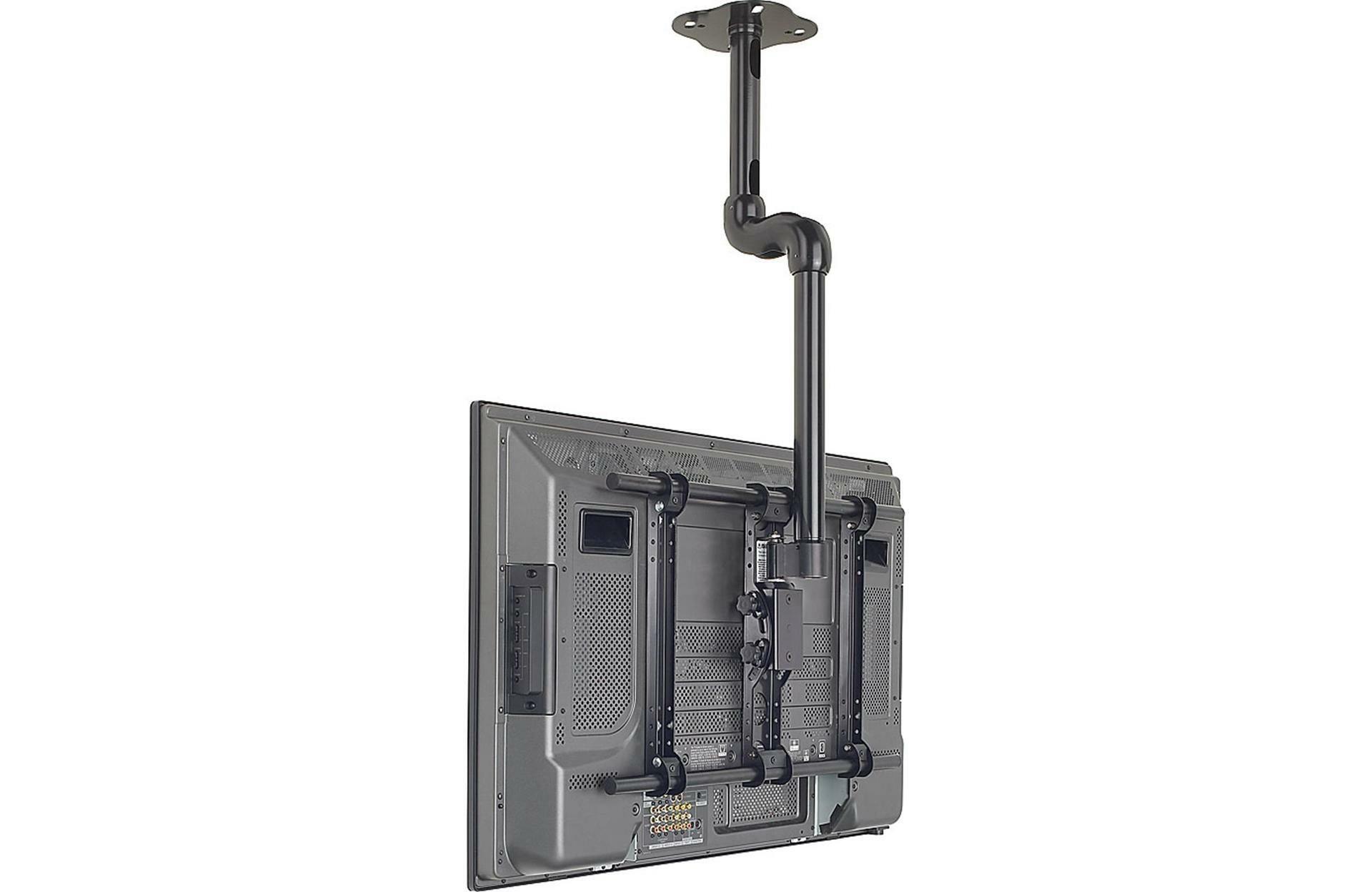

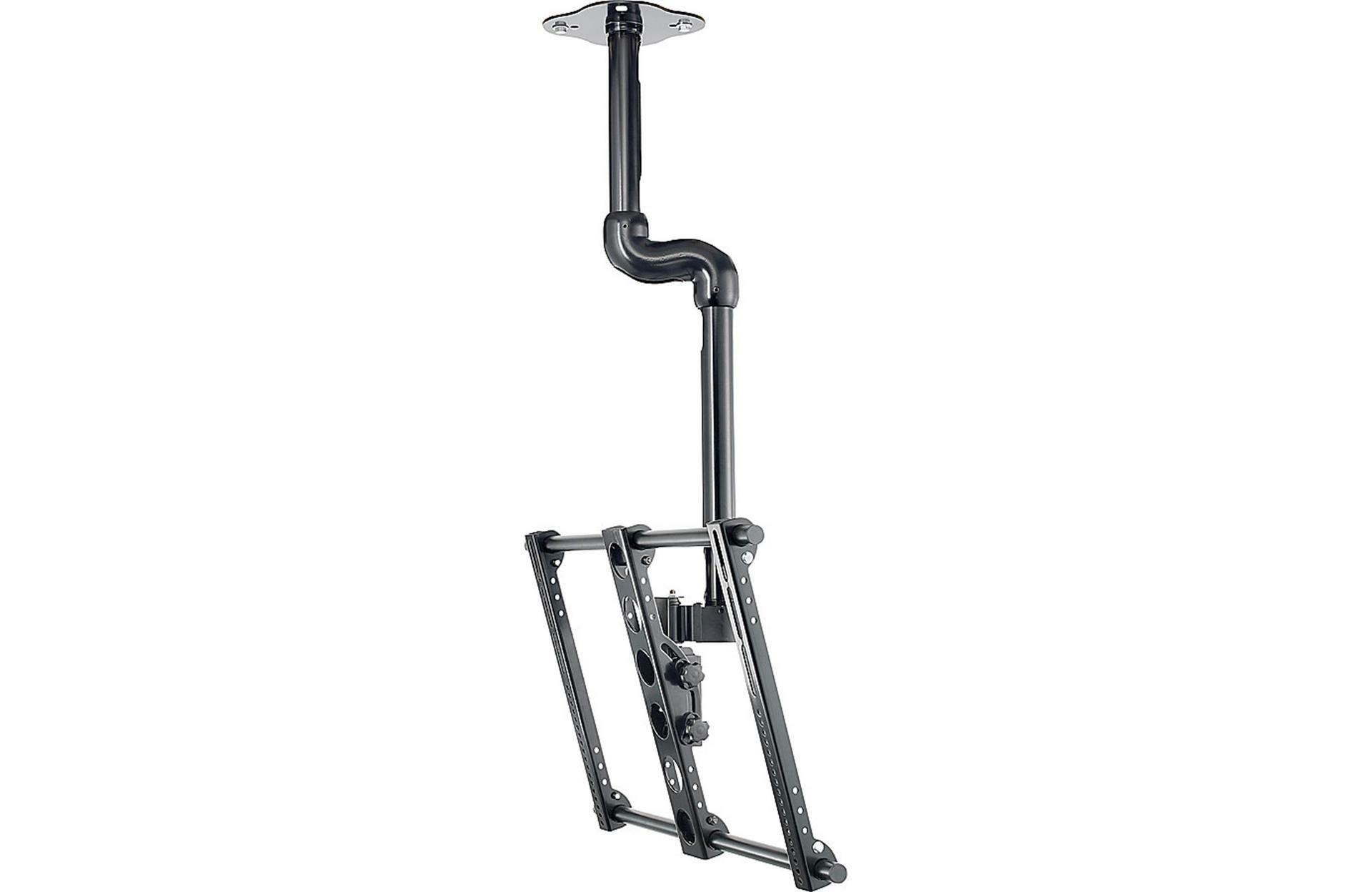

The Sanus LC1A ceiling mount lets you place your flat-panel TV in locations where wall-mounting isn't practical, such as in a corner of your room. The mounting bracket accommodates virtually any 37" to 70" flat-panel TV. Two steel tubes connected by an elbow joint hold your TV securely in place. With two different lengths of tubing, you can select the distance your TV is suspended from the ceiling. A channel in the back of the mount keeps your TV's cables hidden for an uncluttered appearance.
You can swivel your TV a full 90° to the left or right, and tilt it up 5° or down 15°. Sanus' Virtual Axis™ technology allows variable angle adjustment with just the touch of a finger. With Virtual Axis, the display stays exactly where you aim it, and you can lock the position by simply tightening a knob.
Will this mount work with my TV?
Use the Sanus MountFinder™ to see a list of mounts that work with your specific TV.
Where do I drill the holes?
Tell the Sanus HeightFinder™ Installation Assistant how high you want your TV, and it tells you exactly where to drill.
Product highlights:
designed for flat-panel plasma and LCD TVs 37"- 70"
heavy-gauge steel construction
up to 10-1/4" mounting distance from ceiling
includes 12" and 18" pipe lengths for multiple configurations

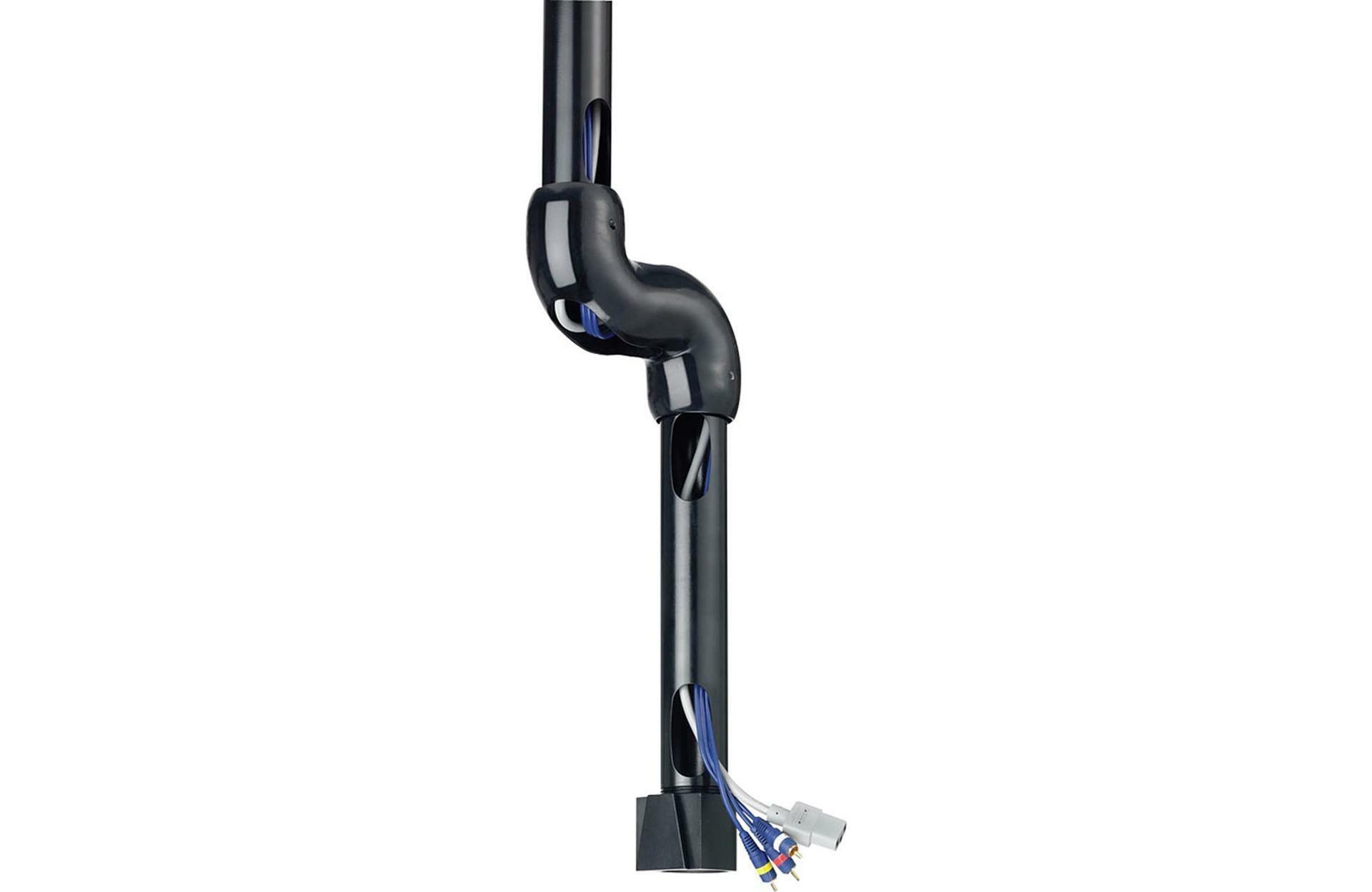

hidden channels for cable management
tilt range: +5° to -15°
swivel range: +90° to -90°
roll control: +6° to -6°
supports up to 175 lbs.
joist-mounting required
29-1/2"W x 45"H x 10-1/4"D
MFR # LC1A-B1
What's in the box:
Sanus LC1A owner's manual
Center bracket
2 TV brackets
2 Cross bars
Ceiling adapter
12" Pipe
18" Pipe
"S" coupler
Metal collar
4 Bracket inserts
Two 5/16 x 2-12" screws
Four M4 x 12mm bolts
Four M5 x 12mm bolts
Four M6 x 12mm bolts
Four M8 x 16mm bolts
Four M4 x 30mm bolts
Four M5 x 30mm bolts
Four M6 x 35mm bolts
Four M8 x 40mm bolts
Locking screw
Four M4 star washers
Four M5 star washers
Four M6 star washers
Four M8 star washers
Two 5/6" flat washers
Eight M4/M5 flat washers
Four M6/M8 flat washers
Four 1/4-20 nuts
One 10-24x 0.25" set screw
Four 1/4-20 x 0.25" set screws
Four M4/M5 spacers
Four M6/M8 spacers
5 Wire ties
3 Allen wrenches
