PRV Audio RS500 BASS 1 Ohm Compact Mono Car Amplifier 500W

PRV Audio RS500 BASS 500W Mono Class D Car Amplifier

Choosing the right power source is essential when upgrading any vehicle sound system. The PRV Audio RS500 BASS Car Amplifier is designed for drivers who want strong, controlled bass performance without sacrificing electrical efficiency or installation flexibility. This mono amplifier delivers dependable output in a compact design, making it a smart solution for daily drivers and SPL-inspired builds alike.

As a dedicated car amplifier for low-frequency applications, the RS500 BASS focuses entirely on bass response. Its internal design differs from full-range models, allowing it to deliver deeper and more consistent low-end output. This approach ensures reliable performance under real-world driving conditions.

🔊 Purpose-Built for Bass Performance

The RS Series was developed with bass-focused systems in mind. This model produces 500 watts RMS at 1 ohm, delivering steady power for subwoofer applications. That output level provides enough headroom for clean, impactful bass without overwhelming a vehicle’s electrical system.

This high-power car amplifier balances output and efficiency carefully. Its design minimizes voltage drop and heat buildup, allowing the system to perform consistently during long listening sessions. Drivers benefit from powerful bass without excessive battery drain.

⚙️ Efficient Class D Design in a Compact Package

Using modern Class D car amplifier architecture, the RS500 BASS delivers strong performance in a tiny footprint. This makes it an excellent compact car amplifier choice for vehicles with limited mounting space.

Despite its size, the amplifier features an overbuilt power supply with true copper components. This construction ensures stable voltage delivery and dependable operation during heavy bass playback. It also improves long-term durability compared to entry-level designs.

🎛️ Built-In Controls for Precise Bass Tuning

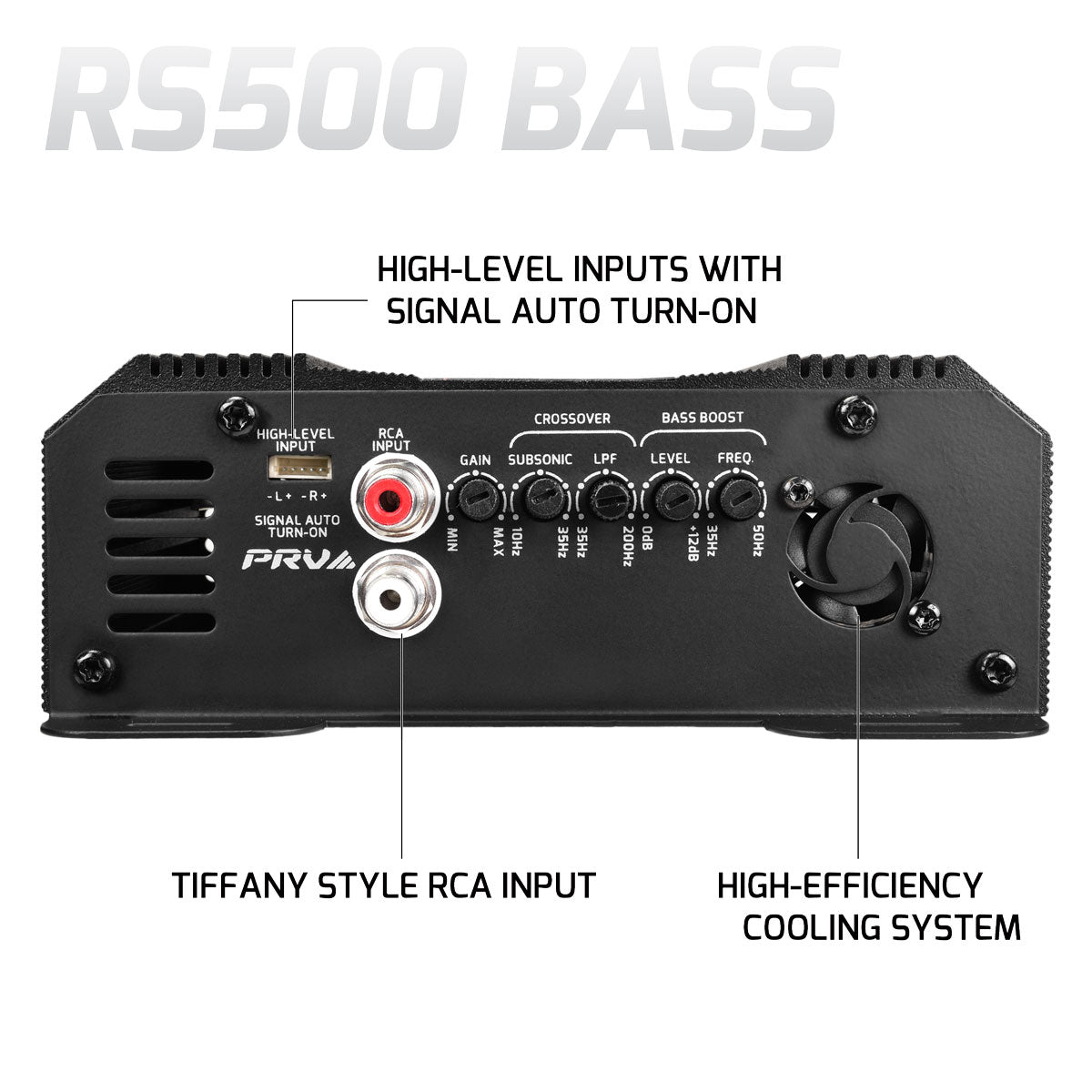

This car audio amplifier includes onboard tuning features that eliminate the need for external processors. These controls allow users to fine-tune bass output to match enclosure type, vehicle acoustics, and listening preferences.

Key tuning options include:

• Adjustable bass boost from 0 to +12 dB

• Variable bass boost frequency from 35 Hz to 50 Hz

• Subsonic filter for low-frequency protection

• Low-pass filter for clean bass reproduction

These features help maintain speaker safety while maximizing bass impact.

🔌 Easy Integration with Factory and Aftermarket Systems

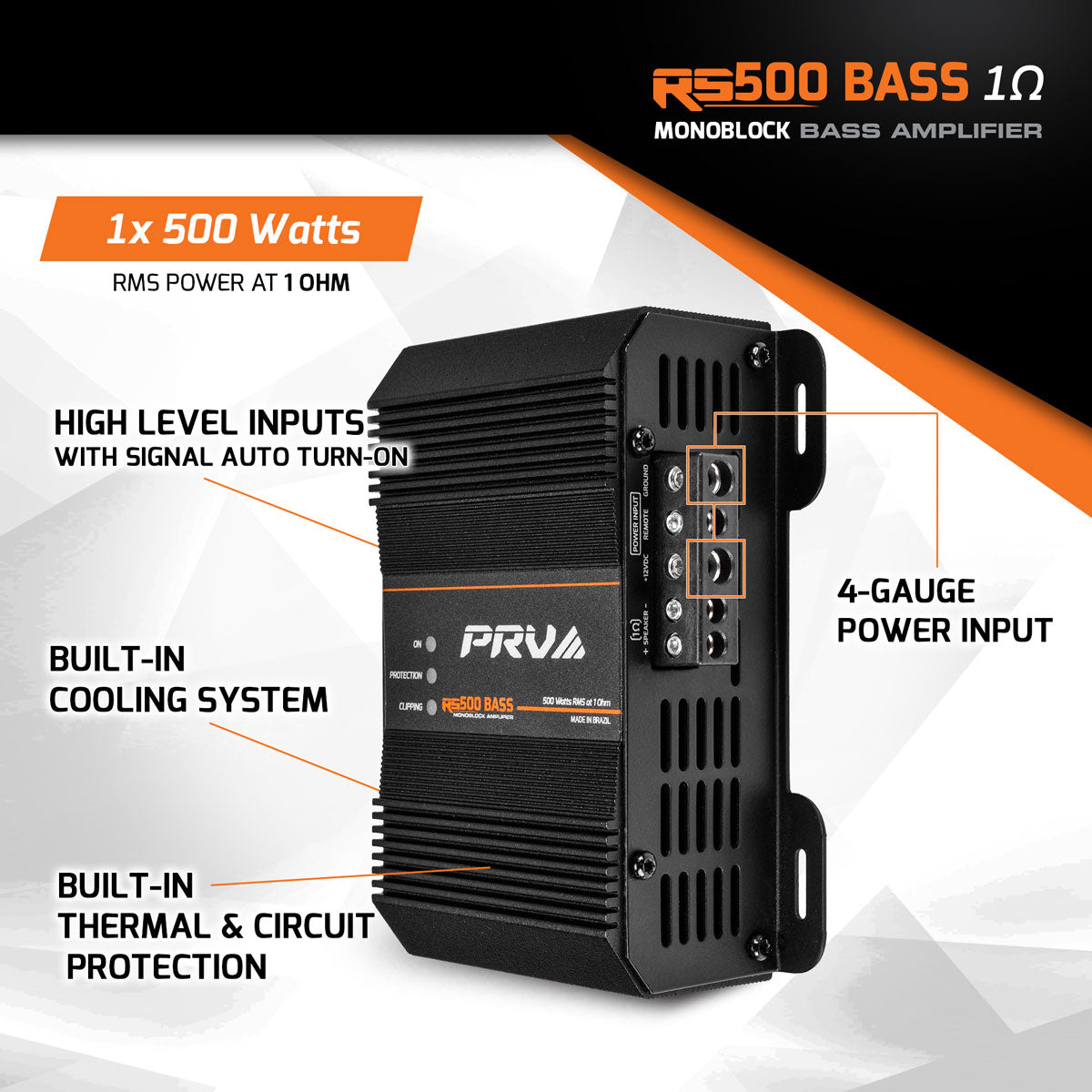

The RS500 BASS includes high-level speaker inputs, making it easy to integrate into factory audio systems. This allows the amplifier to connect directly to speaker wiring without requiring a line output converter.

The built-in signal-sensing auto turn-on feature removes the need for a remote turn-on wire. This simplifies installation and reduces wiring complexity. Because of this flexibility, the RS500 BASS works well as a vehicle amplifier upgrade for many factory systems.

🧱 Premium Construction and Intelligent Protection

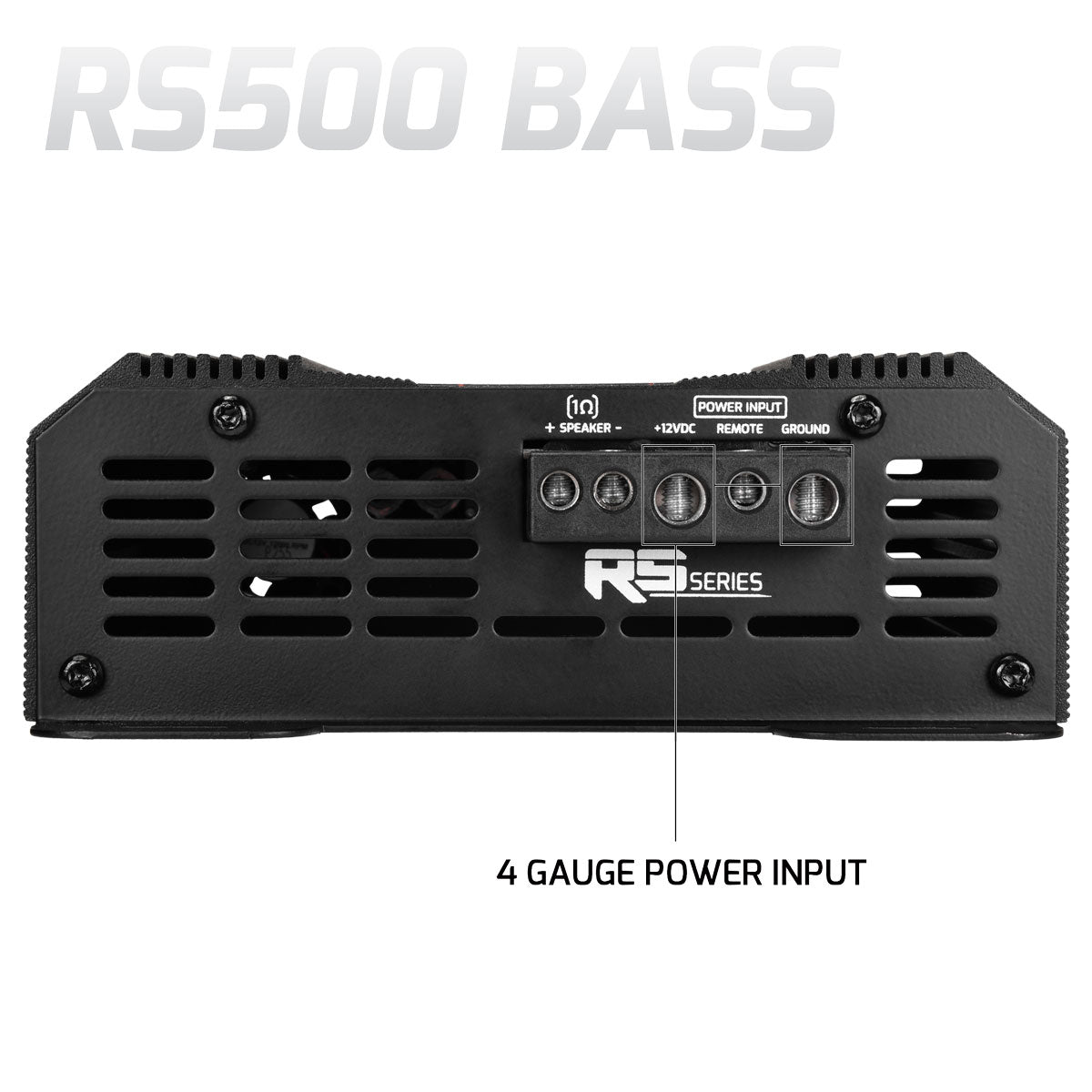

PRV Audio built this amplifier using high-quality internal components designed to handle vibration and high current flow. The unit features vibration-resistant RCA inputs, heavy-duty 4-gauge power terminals, and 10-gauge speaker outputs.

The amplifier includes intelligent four-way protection circuitry:

• High-voltage protection

• Low-voltage protection

• Short-circuit protection

• Current overload protection

A built-in clip LED indicator helps prevent distortion by showing when the input signal is too strong.

📐 Size, Weight, and Installation Benefits

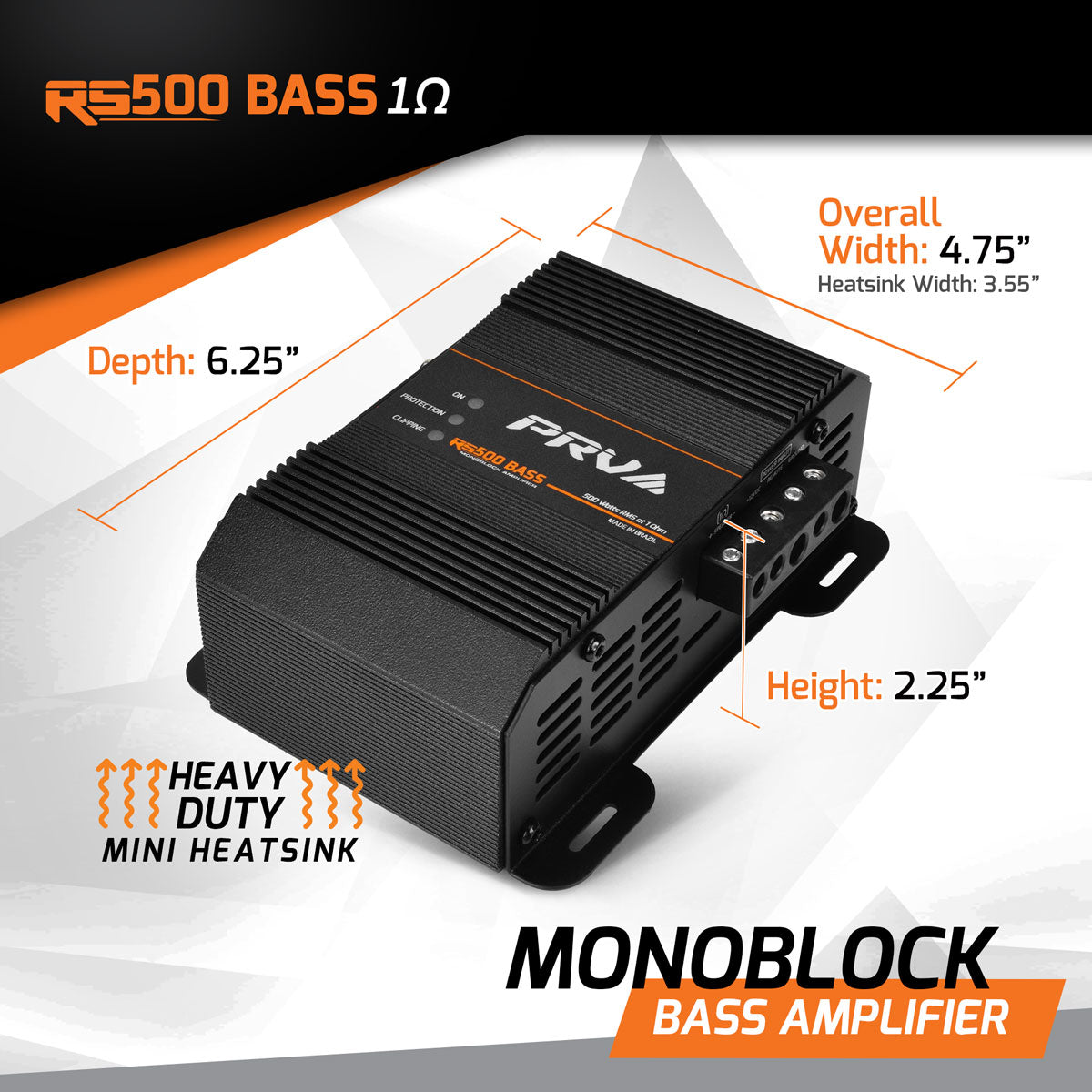

• Dimensions: 4.75” W x 6.25” L x 2.25” H

• Weight: 2 lbs

The small size allows flexible mounting in trunks, under seats, or side panels. Compared to larger automotive amplifier options, this unit offers an excellent power-to-weight ratio.

For best performance and safety, professional installation is recommended. You can explore installation options here:
👉 https://audiojamonline.com/collections/car-audio-video-installation

🔧 Technical Specifications Overview

• Brand: PRV Audio

• Model: RS500 BASS

• Channels: 1 (Mono car amplifier)

• Amplifier Class: Class D

• Stable Impedance: 1 Ohm

• RMS Output: 500W @ 1 Ohm

• Operating Voltage: 9V – 16V

• Frequency Range: 10 Hz – 200 Hz

🔊 Recommended Subwoofer Configuration

This amplifier is ideal for dual 4-ohm subwoofers. Wiring two subwoofers in parallel creates a 1-ohm load, delivering approximately 250 watts per subwoofer. This setup provides balanced output and efficient power distribution.

🚗 Built for Daily Driving and Performance Builds

The RS500 BASS offers a reliable balance of output, efficiency, and compact size. It performs well in daily-driven vehicles and entry-level SPL builds. Compared to a multi-channel amplifier or 4-channel power amplifier, this mono design focuses entirely on bass performance.

Enhancing your vehicle experience goes beyond audio alone. Comfort and protection upgrades can also improve daily driving enjoyment. Learn more here:
👉 https://windowtintdelaware.com/

🛡️ Warranty Coverage

PRV Audio products include a 1-year manufacturer warranty against defects in materials and workmanship under normal use. This coverage adds confidence and long-term value to your purchase.

❓ Frequently Asked Questions (FAQ)

Q1: Is this car amp suitable for factory sound systems?
Yes, this car amp includes high-level inputs for easy factory integration.

Q2: What type of subwoofer works best with this car amp?
Dual 4-ohm subwoofers wired to a 1-ohm load work best for optimal output.

Q3: Can this car amp be used for daily driving?
Yes, this car amp is designed for efficient, reliable daily use.
