PRV Audio WGP275Ph 1" Exit Phenolic Compression Driver + Horn - Combo

Features This powerful 1 Exit Phenolic horn driver, the WGP275Ph-S is all about midrange vocal reproduction at...
Vendor: PRV Audio
SKU: WGP275Ph
Availability: Out Of Stock
$39.91
$39.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio WGP275Ph 1" Exit Phenolic Compression Driver + Horn - Combo

PRV Audio WGP275Ph 1" Exit Phenolic Compression Driver + Horn - Combo

$39.91

PRV Audio WGP275Ph 1" Exit Phenolic Compression Driver + Horn - Combo

$39.91

Features

This powerful 1 Exit Phenolic horn driver, the WGP275Ph-S is all about midrange vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that are designed to reproduce the all-important vocal range with authority!

Featuring our powerful D275Ph-S + High Output 1 Screw-on Horn from the WGP14-25 Series , creating a simple solution for stuntwalls with a smaller diameter driver allows front mounting, making it easy to install.

  • High Temperature copper voice coil and phenolic diaphragm for natural response
  • Designed for midrange and vocals from 500 to 6,500 Hz
  • High Output 107 dB sensitivity
  • Ideal horn and driver combo for mid range and vocal reinforcement
  • The large 2 inch voice coil can handle up to 200 watts of musical power.

TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

The phenolic diaphragm is attached to a 2? diameter copper wire with Kapton former for a high 200 Watts RMS musical power handling, when used with recommended HPF:

  • 600 Hz at 12 dB per octave filter Crossover / BT12
  • 500 Hz at 18 dB per octave filter Crossover / BT18

Its incredible output capabilities make this midrange driver one of the loudest vocal drivers on the market!


PRV Trio 1? Midrange Horn Driver D275Ph-S 200 Watts 8 Ohm with 66 Horn Phenolic Diaphragm

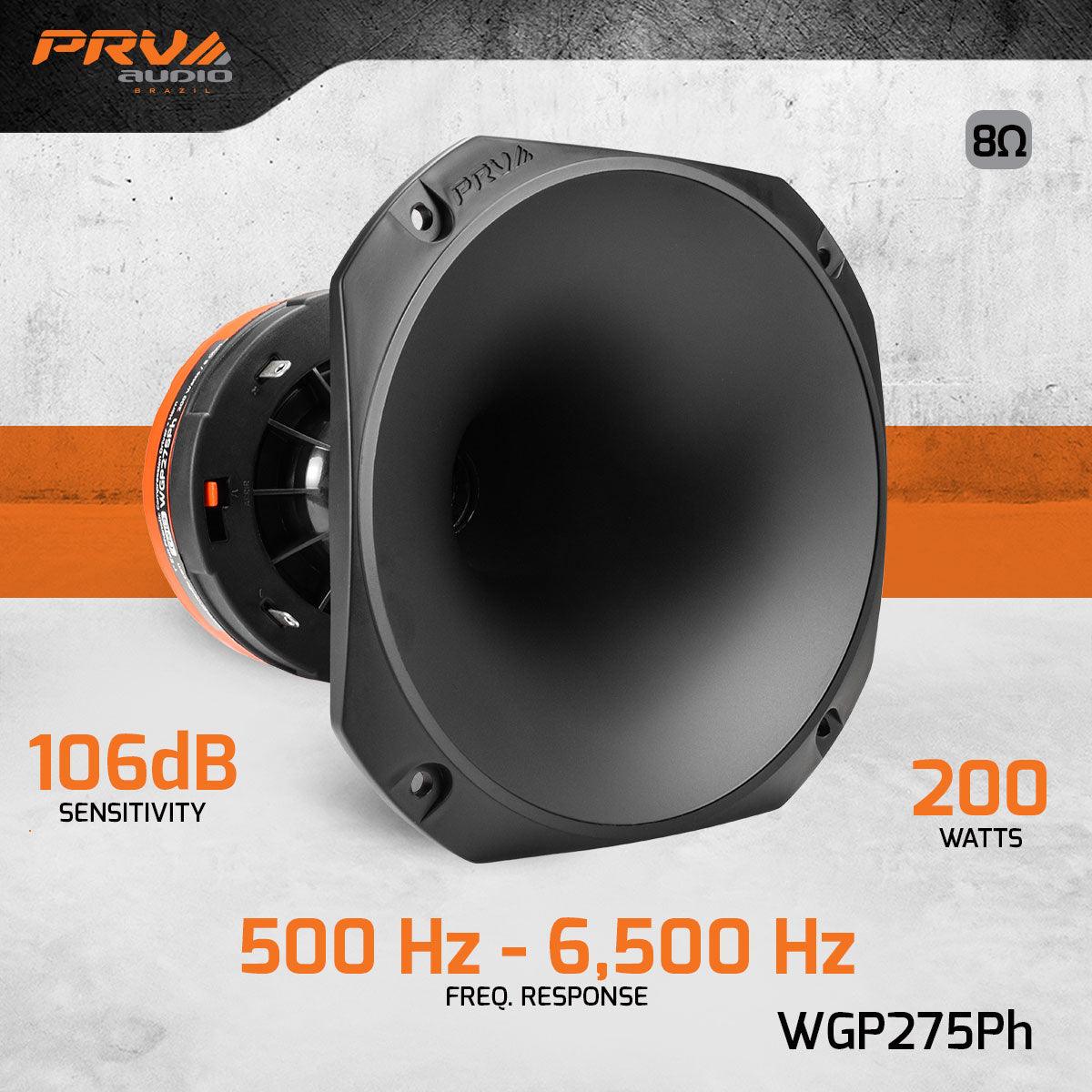

GENERAL SPECIFICATIONS

Exit Throat Diameter 1 (25.4mm)
Nominal impedance 8 Ohm
Nominal Power Handling 100 Watts
Continuous Program Power (RMS) 200 Watts
Peak Power 400 Watts
Sensitivity 2.83V at 1m* 106 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
600 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 500 6,500 Hz
Voice Coil Diameter 2? (51 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic Resin
Flux Density 1.1 T
Magnet Material Ferrite


EXTRA INFO

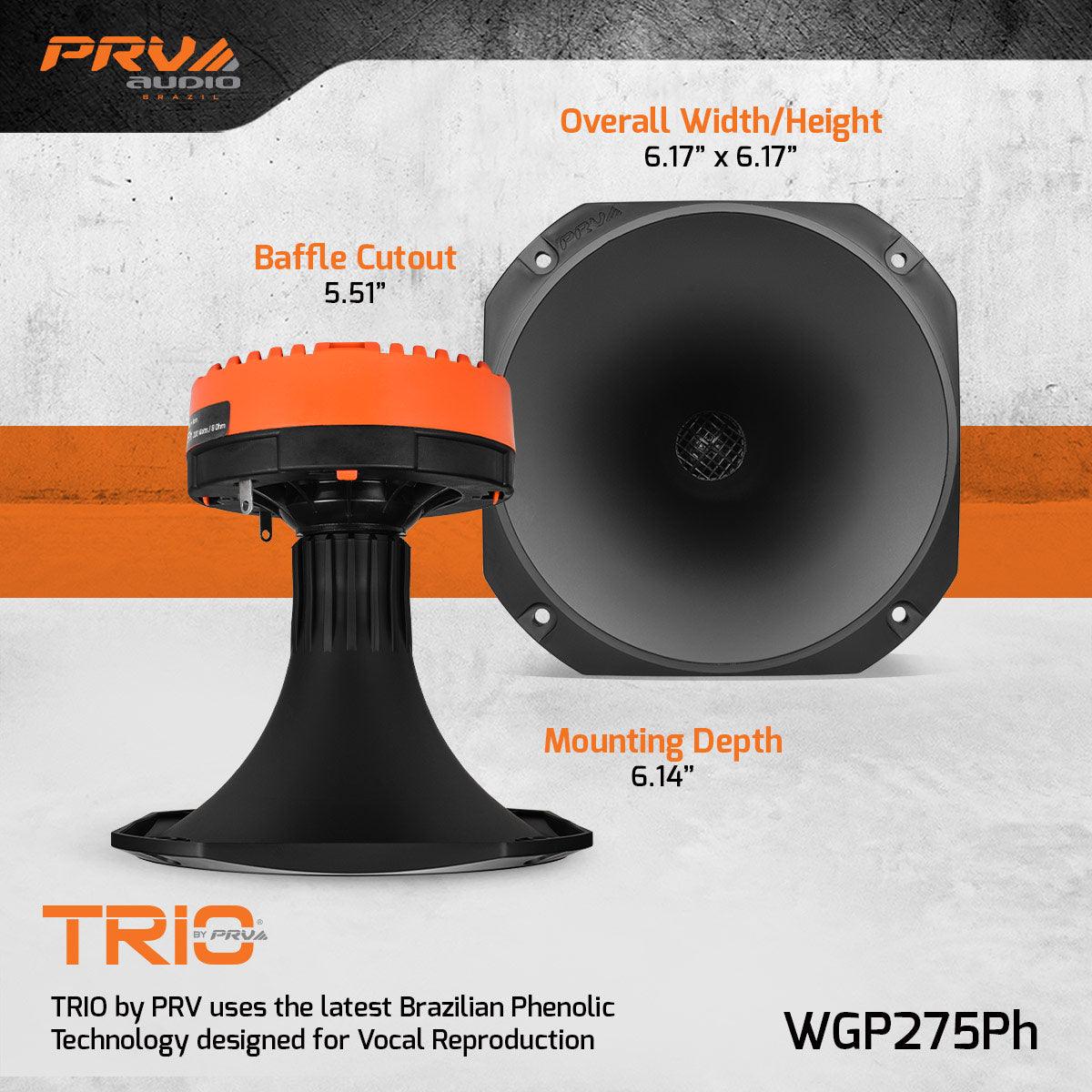

Overall Depth 6.53 (166 mm)
Mounting Depth 6.14 (156 mm)
Overall Width 6.17 (154.7 mm)
Overall Height 6.17 (154.7 mm)
Net Weight 2.24 lbs (1.02 kg)
Shipping Weight 2.49 lbs (1.13 kg)
Carton Dimensions W x L x H 6.16 x 6.16 x 6.88
(156.5 x 156.5 x 175 mm)

PRV AUDIO WGP275Ph DATASHEETDownload
