Features

We are proud to present the WGP22-50X Series. We have implemented our cutting-edge technology from the WGP14-50X Horn Series, which features an unique octagonal shape engineered not only for outstanding looks, but to dramatically increase dispersion and output on vocal frequency range!

Designed to reproduce the highest vocal output possible, this long throw horn can take your custom system to the next level. The WGP22-50X Horn Series is a waveguide with a 2? throat exit designed to work with any of our 2? Exit Midrange Compression Drivers.

This new series is available in BLACK or WHITE finishes, making it easy to blend with any color system.

  • Long throw design allows mounting to 2? midrange drivers and amplifying vocal response
  • Squared outside edges allow easy side or up stacking of multiple drivers in a compact format
  • 2? throat with standard 4-bolt mounting pattern
  • Non-resonant reinforced plastic construction
  • The 30 x 30 dispersion is suitable for direct focus output with a low 350Hz cutoff frequency


GENERAL SPECIFICATIONS

Throat Diameter 2 (50.8 mm)
Mounting Type Bolt-on
Hole Dimensions 0.31? 8 mm
Bolt Circle 4? 102 mm
Nominal Coverage
Horizontal 30
Vertical 30
Flare type Hybrid
Material Plastic (ABS)
Finish / Coating Black/White

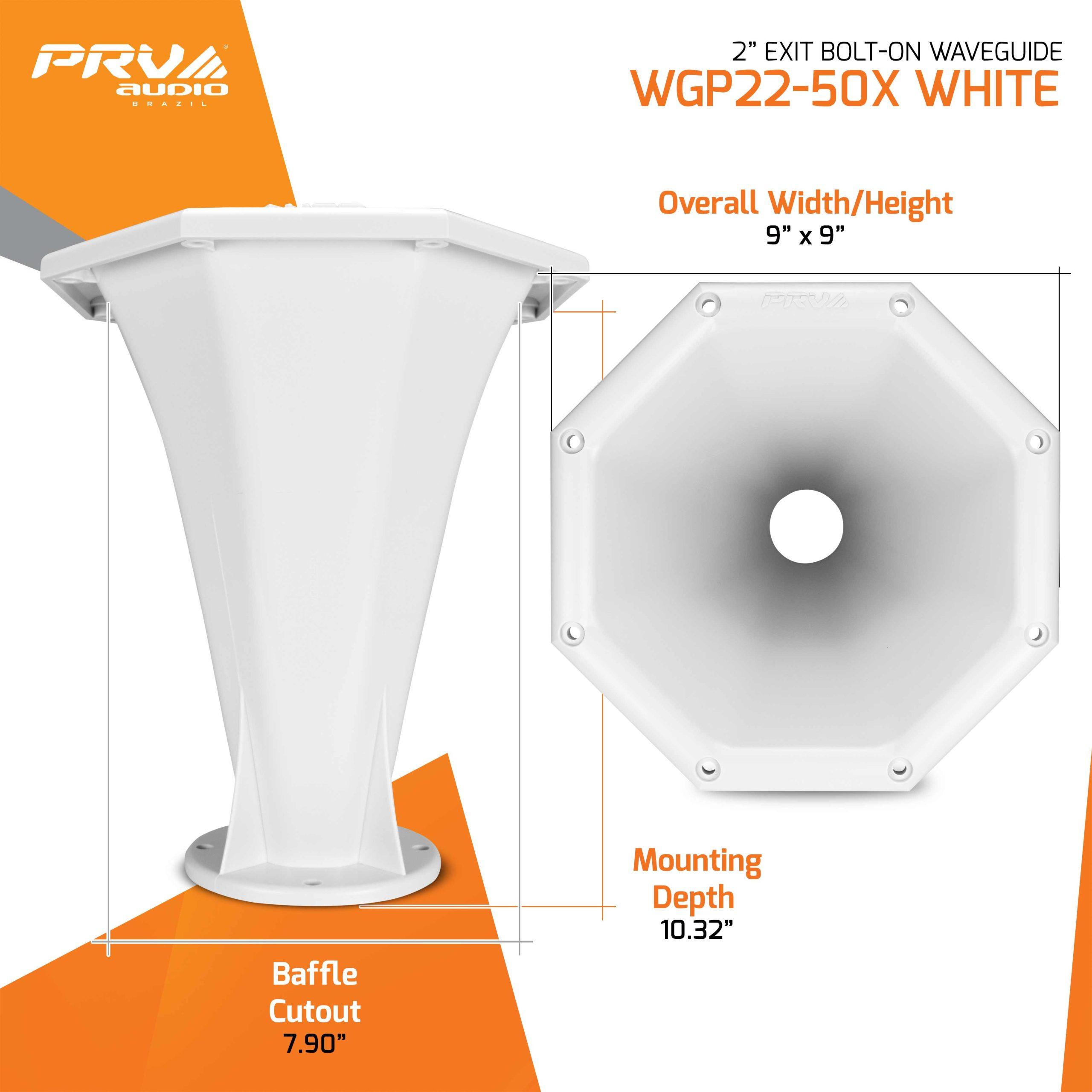

Dimensions
Height 9.00? (228.6mm)
Width 9.00? (228.6 mm)
Depth 10.85? (275.5 mm)
Mount Depth 10.32? (262 mm)
Baffle Cutout
Diameter 7.9? (200.7 mm)
Net weight 1.23lb (0.56 kg)

PRV AUDIO WGP22-50X WHITE DATASHEETDownload
