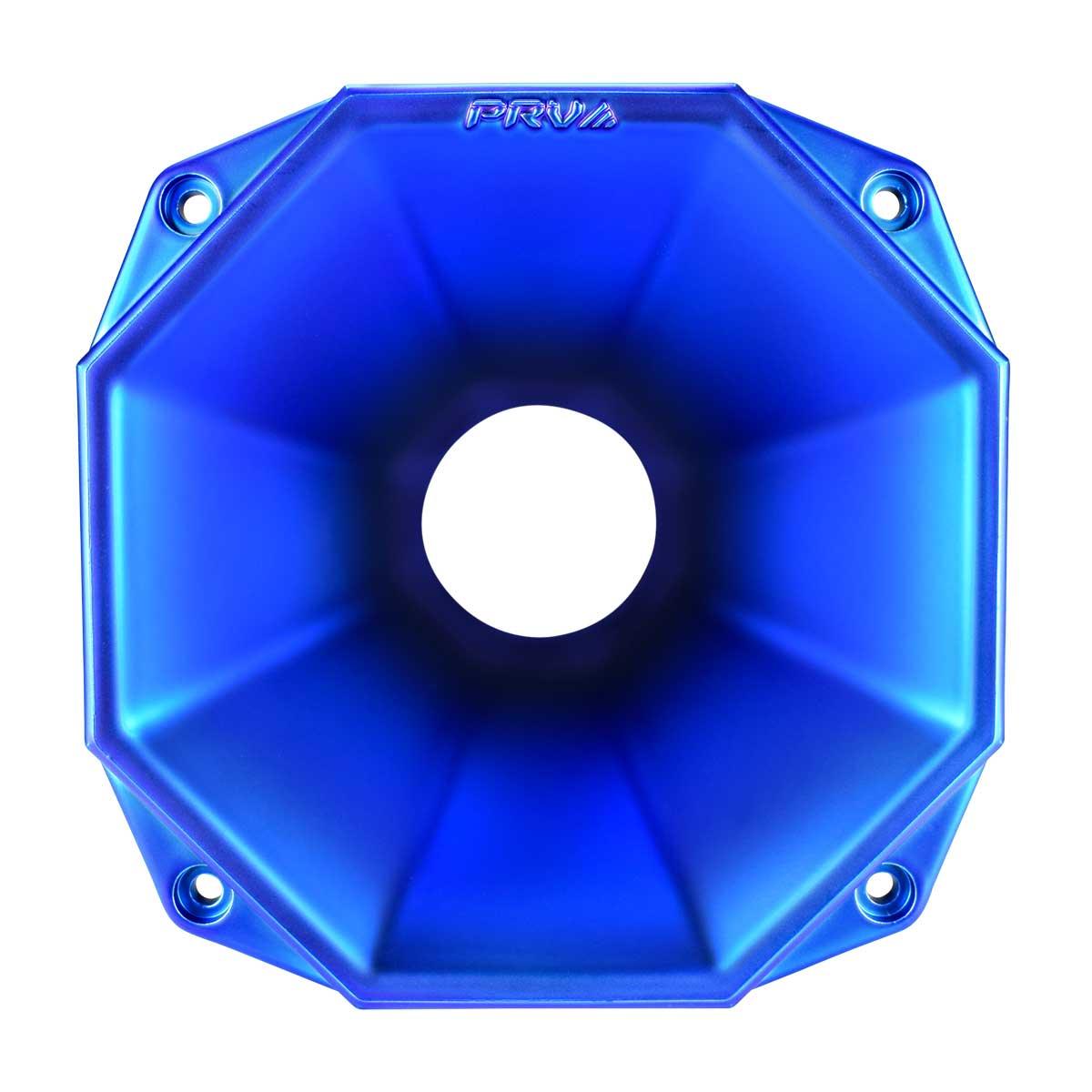

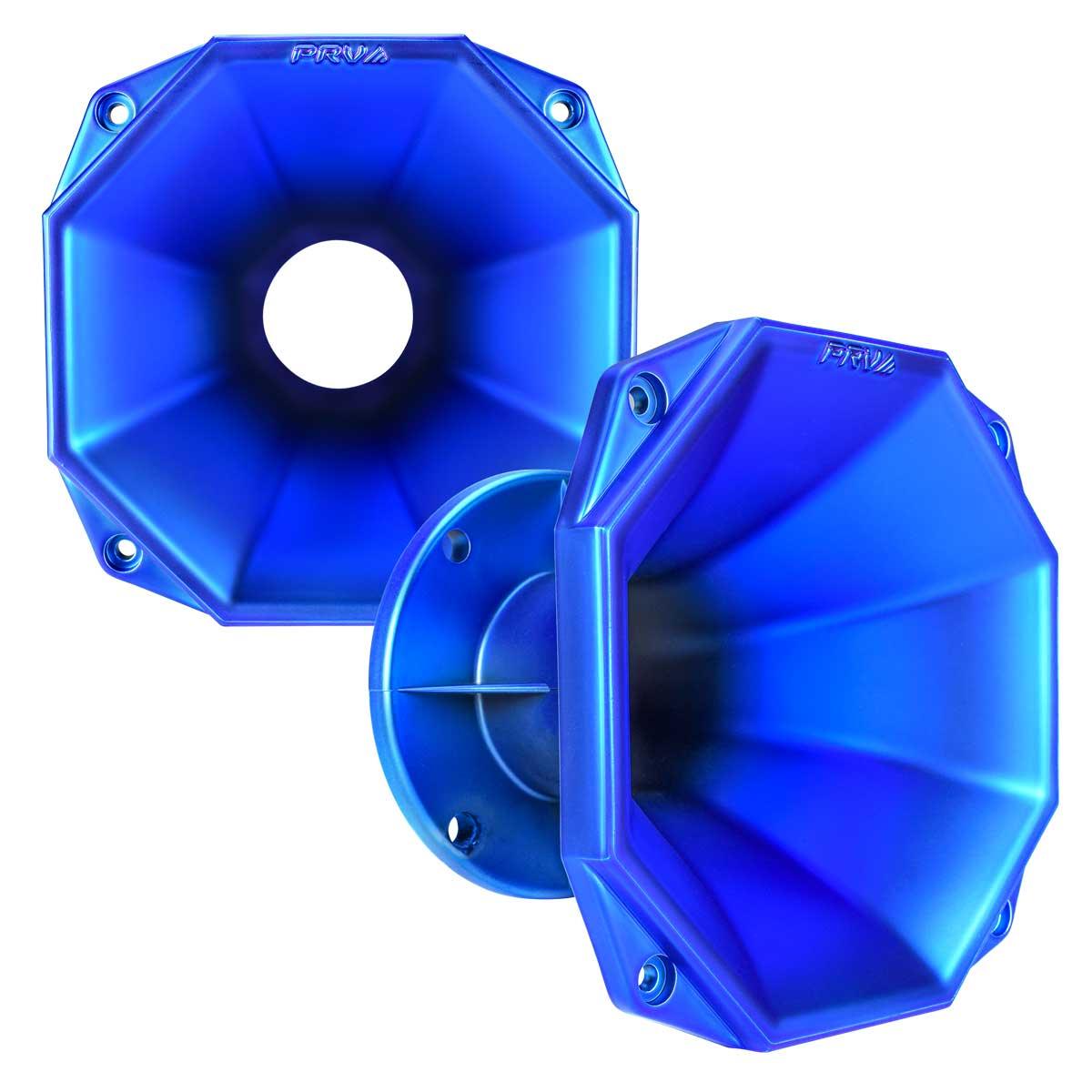

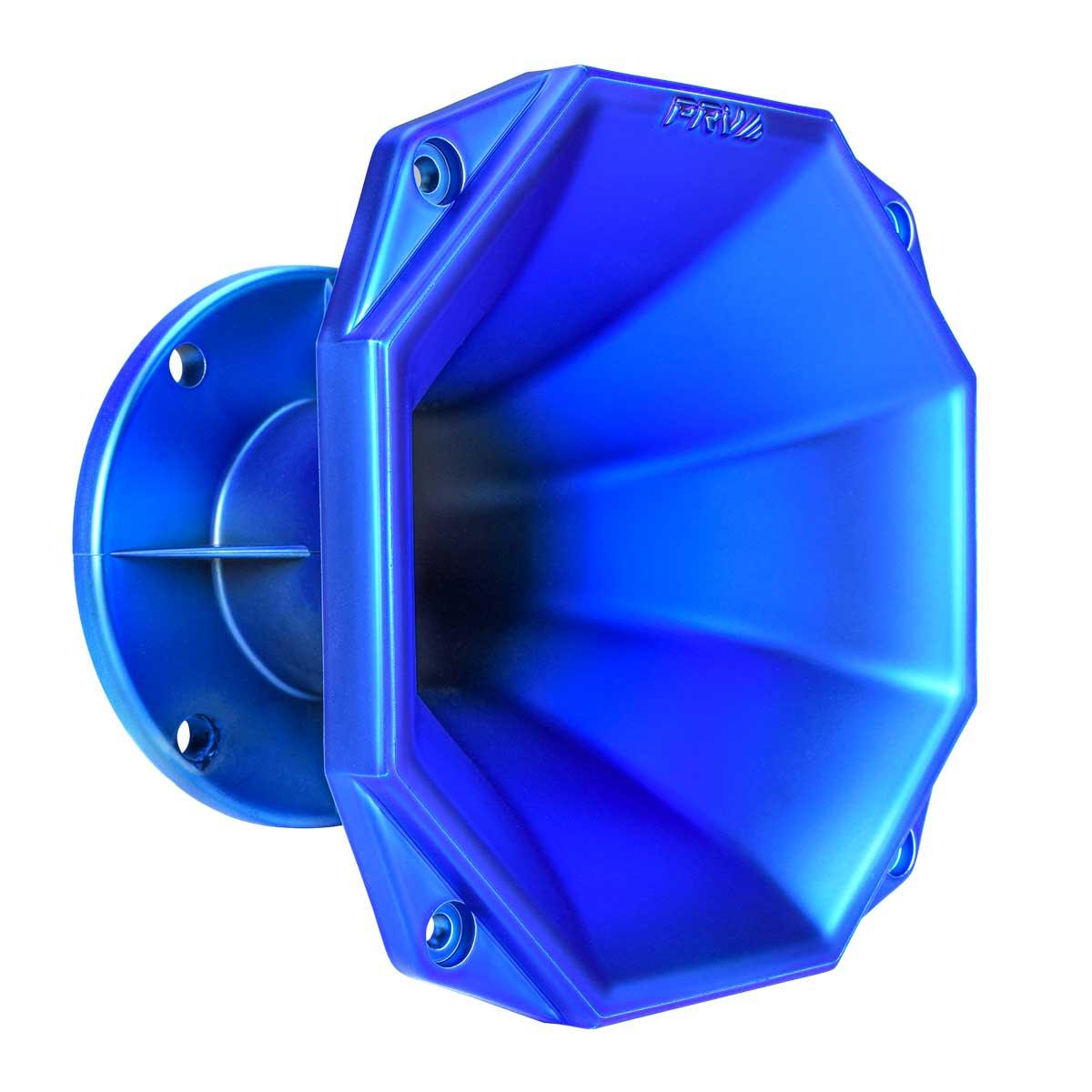

PRV Audio WGP14-50X BLUE MATTE Compact Profile Waveguide

Features After several months of research and development in search of a shorter horn that would still...
Vendor: PRV Audio
SKU: WGP14-50X BLUE MATTE
Availability: Out Of Stock
$29.91
$29.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio WGP14-50X BLUE MATTE Compact Profile Waveguide

PRV Audio WGP14-50X BLUE MATTE Compact Profile Waveguide

$29.91

PRV Audio WGP14-50X BLUE MATTE Compact Profile Waveguide

$29.91

Features

After several months of research and development in search of a shorter horn that would still amplify low frequencies without any output loss, PRV Audio Group engineers developed the WGP14-50X Horn Series patented design (Patent #29/842,663), which features a unique octagonal shape engineered not only for outstanding looks, but to dramatically increase dispersion and output on a compact profile!

Take your custom system to the next level armed with a unique LOOK with the WGP14-50X Horn Series, a waveguide with a 2? throat exit designed to work with any of our2? Exit Compression Drivers.

We reduced 1.16? off its mounting depth, compared to our rounded WGP14-50 Horn Series, giving the new design only 3.86? of mounting depth. This increases options for custom systems, allowing you to fit more with less space, which is ideal for both custom door panels and trunk systems.

Its blue matte paint gives it a distinct finish, making this new series the most unique horn in todays car audio market!

  • Compact Profile allows to mount 2? drivers with very little depth
  • Squared outside edges allow easy side or up stack of multiple drivers in a compact format
  • 2? throat with standard 4-bolt mounting pattern
  • Non-resonant reinforced plastic construction
  • Wide 60 x 60 Coverage with low 700Hz cutoff frequency


GENERAL SPECIFICATIONS

Throat Diameter 2 (50.8 mm)
Mounting Type Bolt-on
Hole Dimensions 0.31? 8 mm
Bolt Circle 4? 102 mm
Nominal Coverage
Horizontal 60
Vertical 60
Flare type Hybrid
Material Plastic (ABS)
Finish / Coating Several Colors

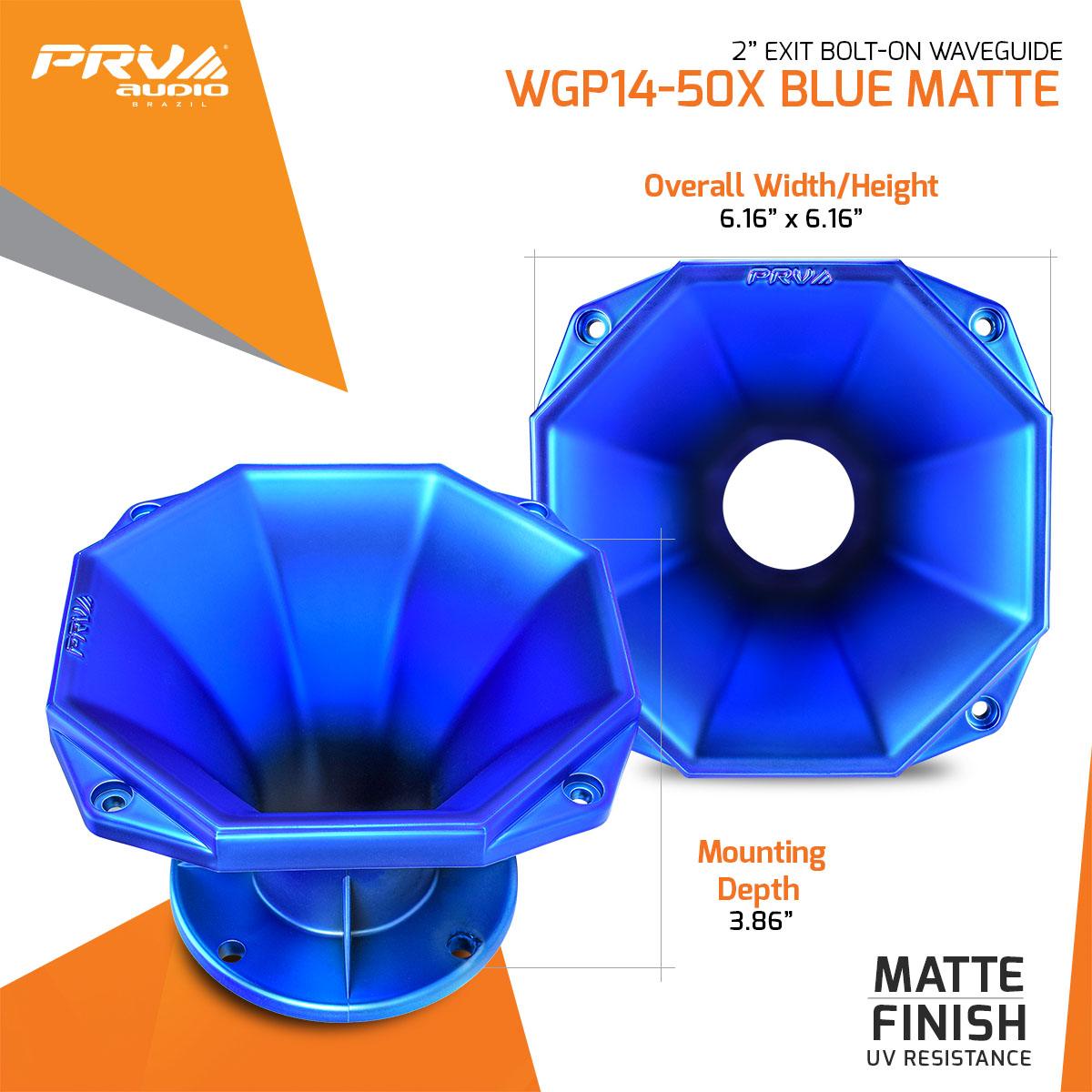

Dimensions
Height 6.16? (156.5 mm)
Width 6.16? (156.5 mm)
Depth 4.37? (111 mm)
Mounting Depth 3.86? (98 mm)
Baffle Cutout
Diameter Circle 5.75? (146 mm)
Net weight 0.46 lb (0.21 kg)

PRV AUDIO WGP14-50X DATASHEETDownload
