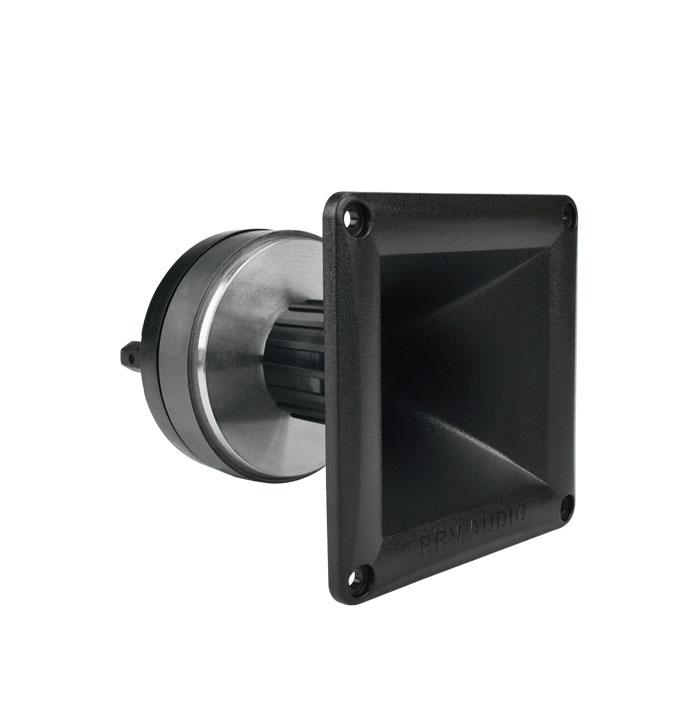

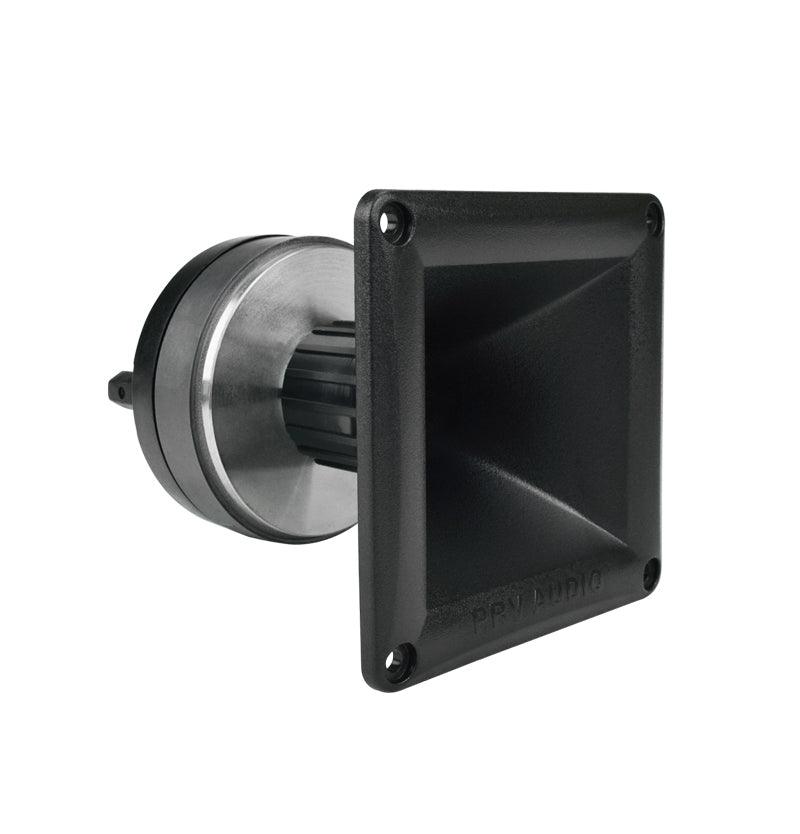

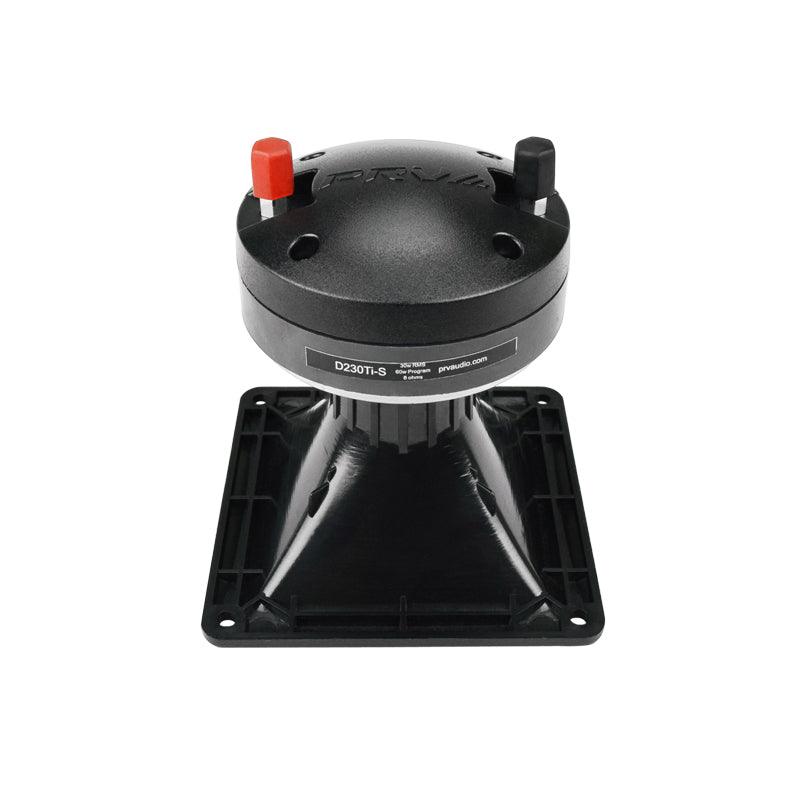

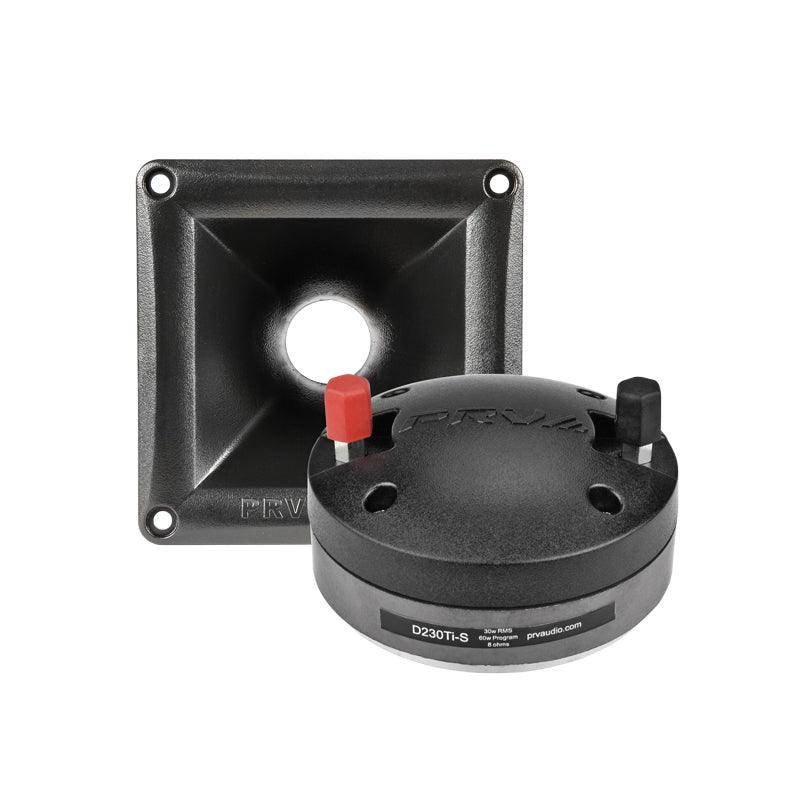

PRV Audio WG230Ti 1" Exit Titanium Compression Driver + Horn - Combo

Features The WG230Ti compression driver combo is known for excellent driver performance, reliability, and power handling as...
Vendor: PRV Audio
SKU: WG230Ti
Availability: Out Of Stock
$32.91
$32.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio WG230Ti 1" Exit Titanium Compression Driver + Horn - Combo

PRV Audio WG230Ti 1" Exit Titanium Compression Driver + Horn - Combo

$32.91

PRV Audio WG230Ti 1" Exit Titanium Compression Driver + Horn - Combo

$32.91

Features

The WG230Ti compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8?-18 TPI horn.

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.


Highlights

  • Throat Diameter: 1?
  • Type: Combo
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 30 Watts
  • Program Power: 60 Watts

The WG230Ti is a lightweight driver that weighs just 2.20lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

The WG230Ti is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1? screw-on design.



GENERAL SPECIFICATIONS

Exit Throat Diameter 1 (25.4mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 30 Watts
Program Power 60 Watts
Sensitivity 2.83V at 1m 105 dB
Recommended Hi Pass Crossover** **For Full Power Handling 2000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 1,800 20,000 Hz
Voice Coil Diameter 1.4? (35.5 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.65 T
Magnet Material Ferrite

EXTRA INFO

Overall Depth 5.11 (130 mm)
Mounting Depth 4.86 (123.5 mm)
Overall Width 4.54? (115.5 mm)
Overall Height 4.54? (115.5 mm)
Baffle Cutout 4.16? (102 mm)
Net Weight 2.20 lbs (1.00 kg)
Shipping Weight 2.41 lbs (1.10 kg)
Carton Dimensions W x L x H 4.64 x 4.64 x 5.31 (118 x 118 x 135 mm)
PRV AUDIO WG230Ti DATASHEETDownload
