PRV Audio WG175Ph 1" Exit High Frequency Driver + Horn - Combo

PRV Audio WG175Ph 1" Exit High Frequency Driver + Horn - Combo

$23.91

PRV Audio WG175Ph 1" Exit High Frequency Driver + Horn - Combo

$23.91

Features

The WG175Ph horn driver combo is known for great high frequency performance, reliability, and power handling as replacement and upgrade for many guitar cabinets and car audio systems that use 4.55? x 4.55? horn.

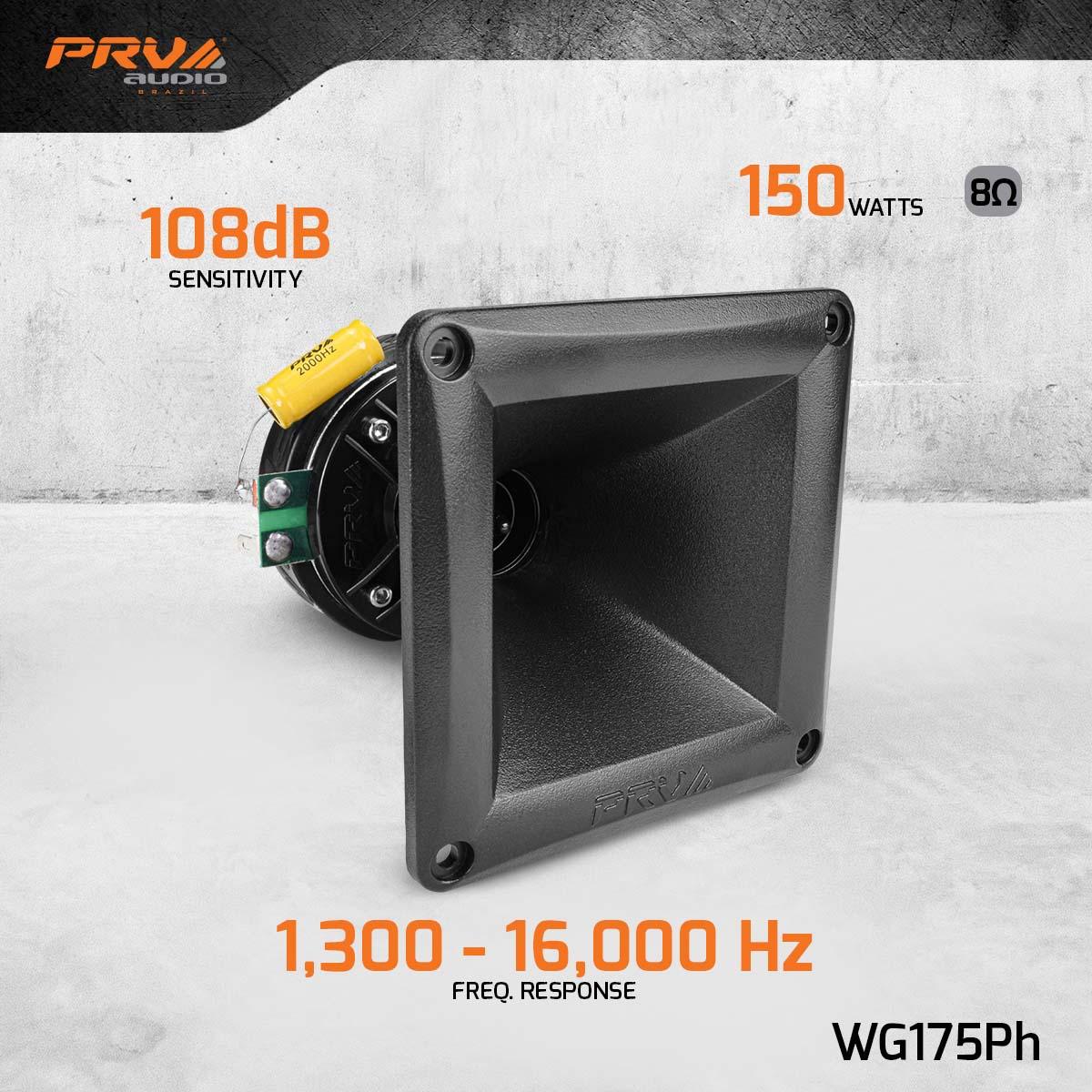

  • The 108 dB sensitivity allows the speaker to generate high output even with only 150 watts, providing fantastic high-frequency performance, even better value.
  • The lightweight design of this horn driver makes it easy to install in car systems such as doors, stuntwalls and trunks lids.

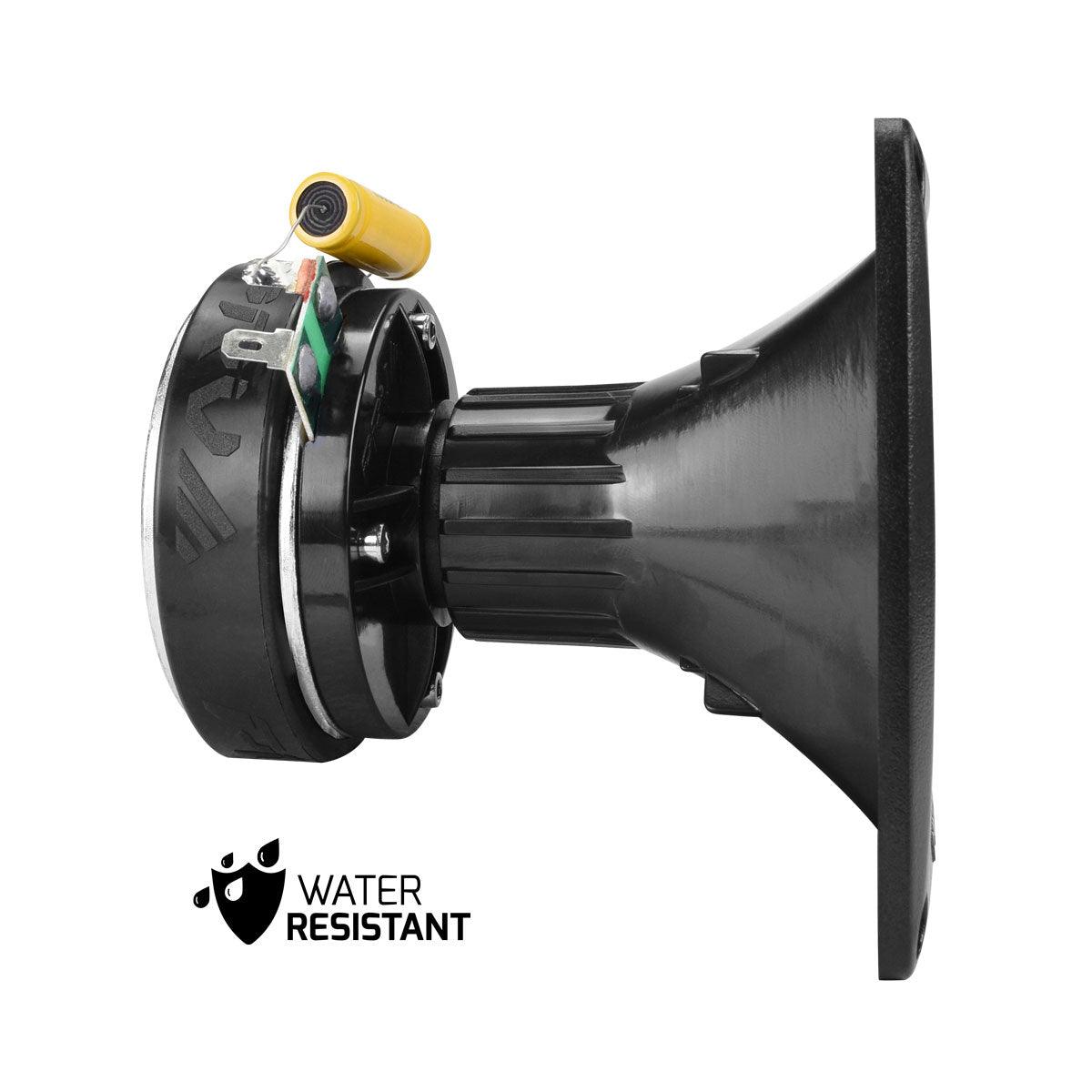

  • Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
  • The horn design ensures a wide 45 x 45 dispersion pattern which is ideal for filling any size space with sound. Capacitor included. 8 Ohm Voice Coil.

The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers outstanding response through 16kHz.

Its upper midrange and high response, translates into smooth, non-fatiguing output thanks to its built-in capacitor.

With only 4.32 of mounting depth, these horn tweeters are an excellent solution when you need wide dispersion of high frequency sounds.


PRV 1? Horn Driver WG175Ph PRO Audio High Frequency 150 Watts 8 Ohm



GENERAL SPECIFICATIONS

Exit Throat Diameter 1 (25.4mm)
Nominal impedance 8 Ohms
Nominal Power Handling 75 Watts
Continuous Program Power (RMS) 150Watts
Peak Power 300 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover** **For Full Power Handling 3000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 1,300 16,000 Hz
Voice Coil Diameter 1? (25.4 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Phenolic Resin
Flux Density 1.02 T
Magnet Material Ferrite

EXTRA INFO

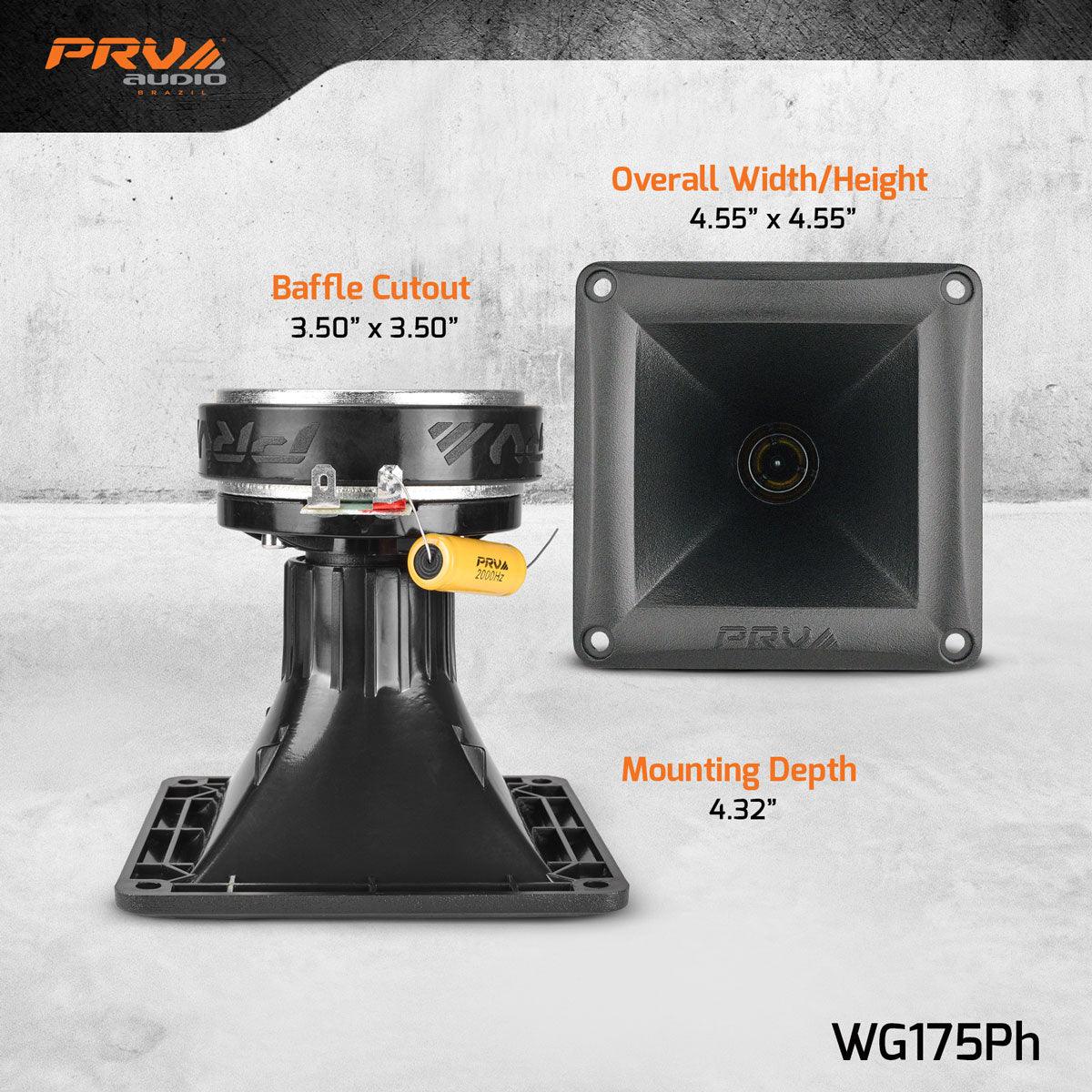

Overall Depth 4.61 (117.0 mm)
Mounting Depth 4.32 (109.7 mm)
Overall Width 4.55 (115.5 mm)
Overall Height 4.55 (115.5 mm)
Baffle Cutout WxH 3.50? x 3.50? (89.0 x 89.0 mm)
Net Weight 1.9 lbs (0.86 kg)
Shipping Weight 2.0 lbs (0.92 kg)
Carton Dimensions W x L x H 4.80 x 4.80 x 4.96 (122 x 122 x 126 mm)
PRV AUDIO WG175Ph DATASHEETDownload
