PRV Audio WG14-50CR 2" Exit Waveguide

PRV Audio WG14-50CR 2" Exit Waveguide

$32.91

PRV Audio WG14-50CR 2" Exit Waveguide

$32.91

Features

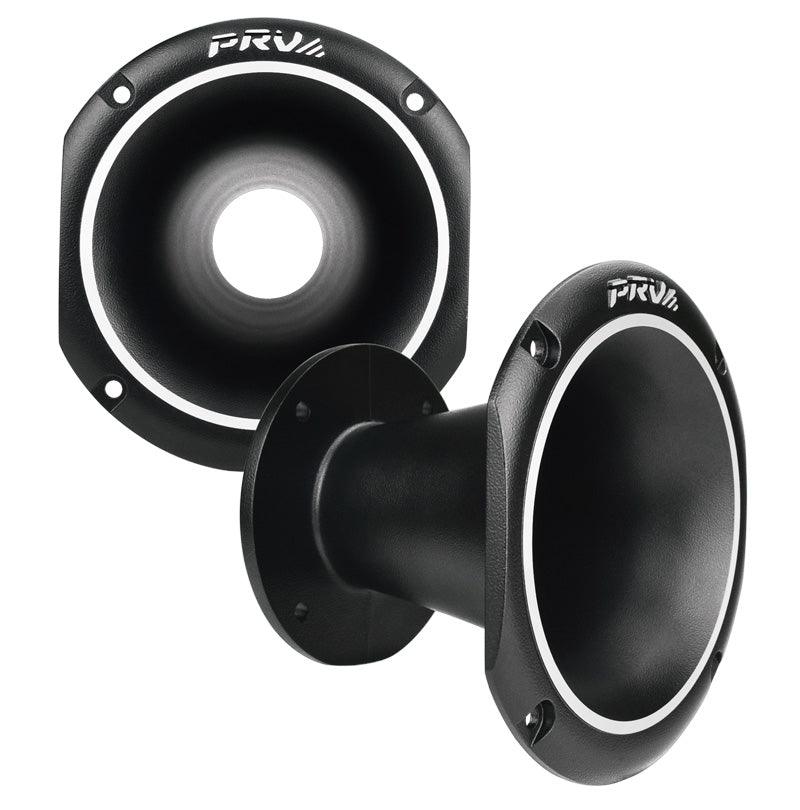

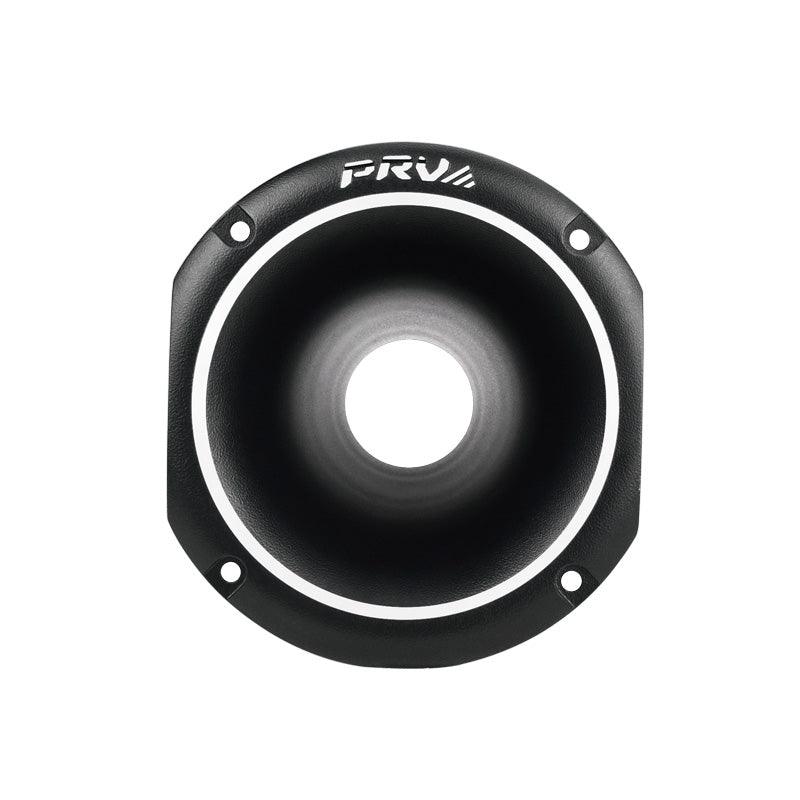

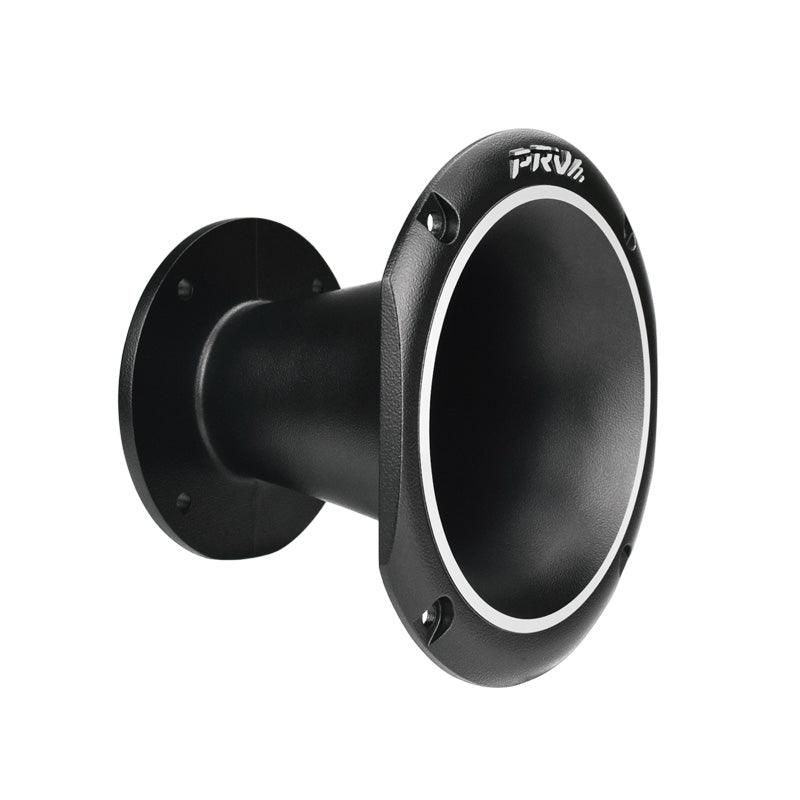

PRV Audios WG 14-50CR 45 x 45 exponential horn is designed to project a controlled dispersion pattern, such as needed with personal stage monitors, over a long distance.

Strong, lightweight aluminum construction is used to keep cabinets as light as possible for easy transport while supporting the weight of the compression driver. A standard 4-bolt flange is compatible with many 2? compression drivers. Acoustic loading is maintained down to 600 Hz.

Specifications:
Horn type: Exponential
Minimum frequency: 600 Hz
Nominal dispersion: 45 H x 45 V
Throat diameter: 2?
Mounting type: 4-bolt

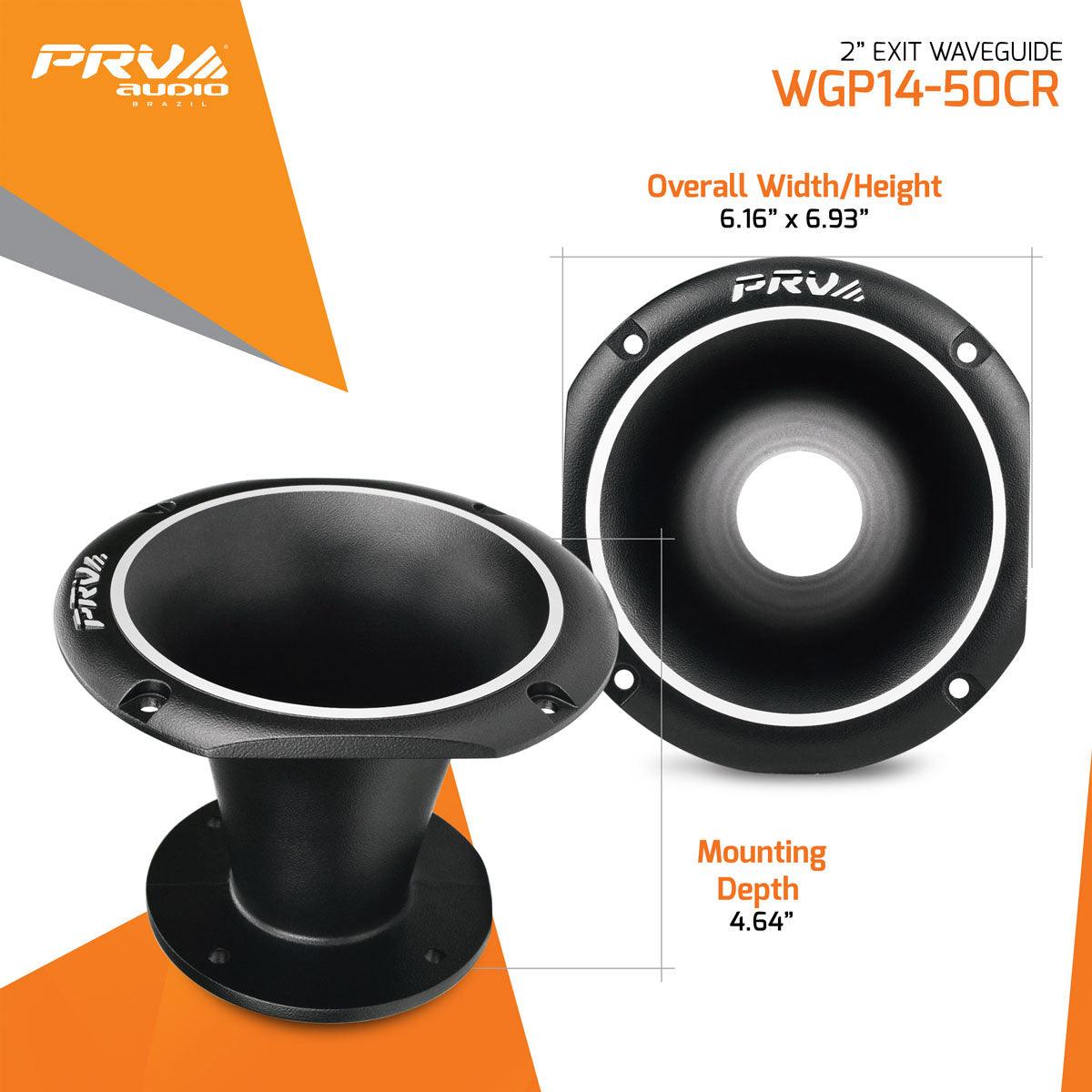

Overall front Size: 6.93? x 6.16?
Baffle cutout: 5.39? Diameter Circle
Mounting Depth: 4.64?

PRV Audio WG 14-50CR 45 x 45 Aluminum Waveguide 2? Exit Horn Bolt-on



GENERAL SPECIFICATIONS

Throat Diameter 2 (50.8 mm)
Mounting Type Bolt-on
Hole Dimensions 0.24?
8 mm
Bolt Circle 4?
102 mm
Nominal Coverage
Horizontal 45
Vertical 45
Flare type Exponential
Material Aluminum
Finish / Coating Black
Dimensions
Height 6.93? (176 mm)
Width 6.16? (156.5 mm)
Depth 5.02? (127.5 mm)
Mounting Depth 4.64? (118 mm)
Baffle Cutout
Diameter Circle 5.39? (137 mm)
Net weight 1.5 lb (0.67 kg)
PRV AUDIO WGP14-50CR DATASHEETDownload
