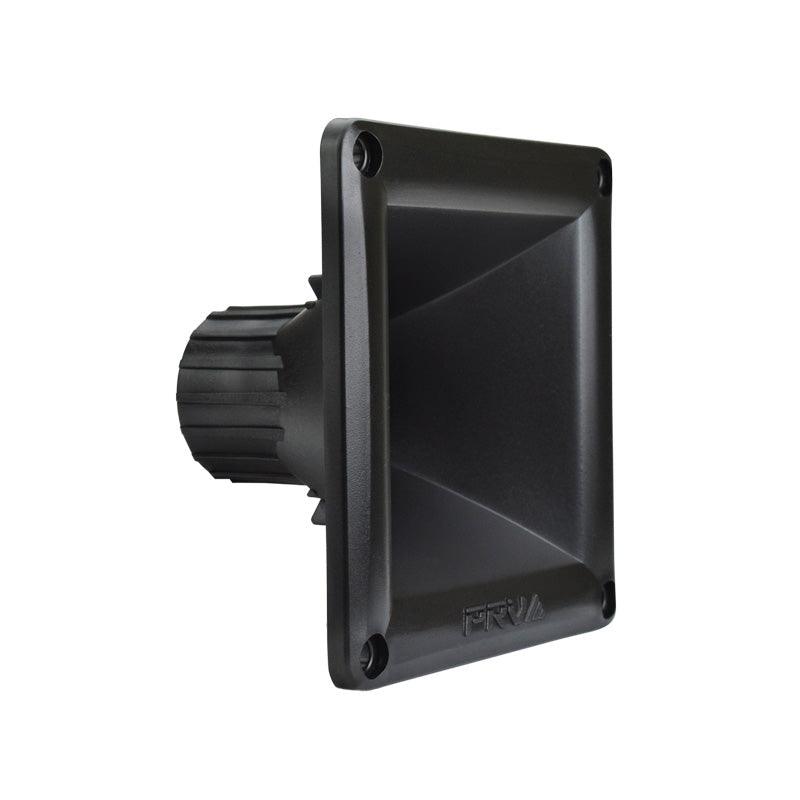

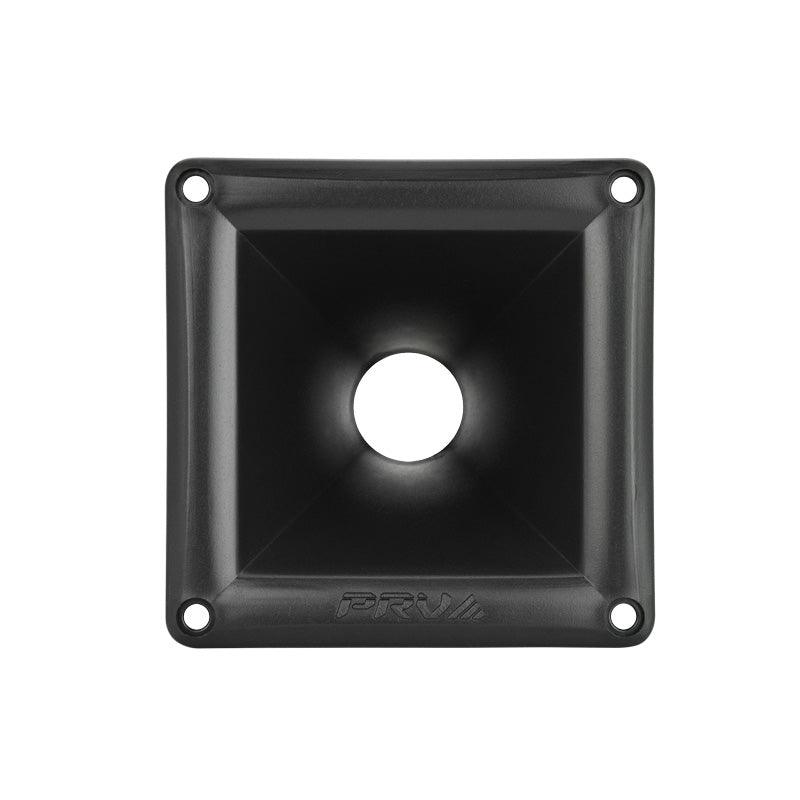

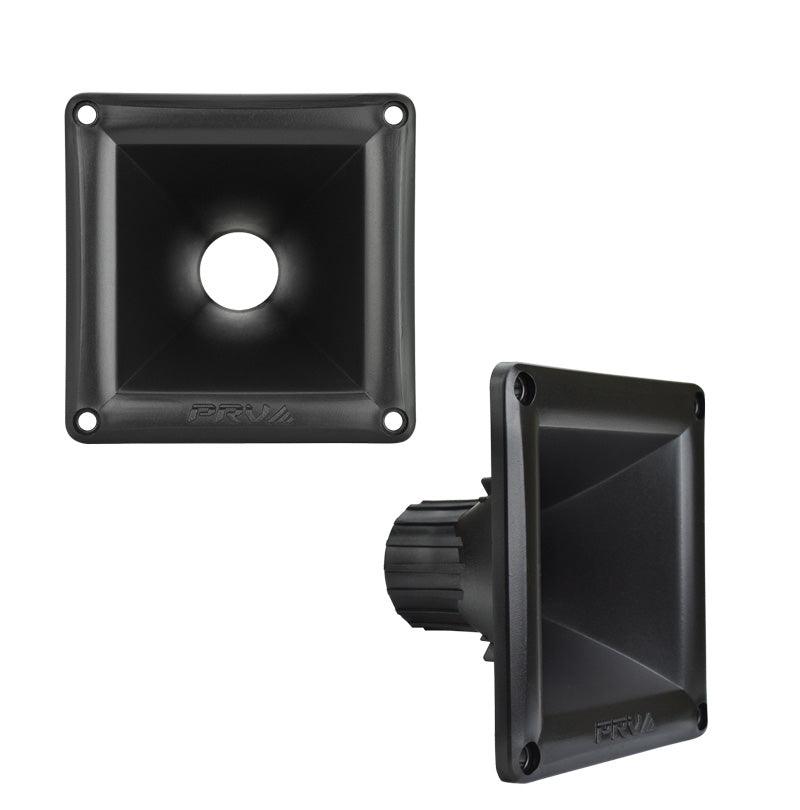

PRV Audio WG11-25 1" Exit Waveguide

Features Screw-On compact PRV Audios WG11-25 exponential horn. At under 3? of depth this horn makes installation...
Vendor: PRV Audio
SKU: WG11-25
Availability: Out Of Stock
$19.99
$19.99
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio WG11-25 1" Exit Waveguide

PRV Audio WG11-25 1" Exit Waveguide

$19.99

PRV Audio WG11-25 1" Exit Waveguide

$19.99

Features

Screw-On compact PRV Audios WG11-25 exponential horn. At under 3? of depth this horn makes installation easy in tight spaces.

A standard 1-3/8?-18 TPI Screw on mount is compatible with most 1? compression drivers. The WG11-25is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1200 Hz.


Highlights

  • Under 3? of mounting depth for installation in tight spaces
  • 1? Exit throat
  • Non-resonant reinforced plastic construction
  • Minimum recommended frequency of 1200 Hz


GENERAL SPECIFICATIONS

Throat Diameter 1 (25.4mm)
Mounting Type Screw-on
Thread dimensions 1-3/8?
Nominal Coverage
Horizontal 60
Vertical 60
Flare type Exponential
Material Plastic (ABS)
Finish / Coating Black
Dimensions
Height 4.5? (115mm)
Width 4.5? (115mm)
Depth 2.95? (75mm)
Mount Depth 2.71? (69mm)
Baffle Cutout
Width 3.31? (84mm)
Height 3.31? (84mm)
Net weight 0.18lb (0.08kg)

PRV AUDIO WG11-25 DATASHEETDownload
