PRV Audio WG08-25 1" Exit Mini Waveguide

PRV Audio WG08-25 1" Exit Mini Waveguide

$19.99

PRV Audio WG08-25 1" Exit Mini Waveguide

$19.99

Features

Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72? of depth, this horn makes installation easy in tight spaces.

A standard 1-3/8?-18 TPI Screw on mount is compatible with any PRV 1? exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.

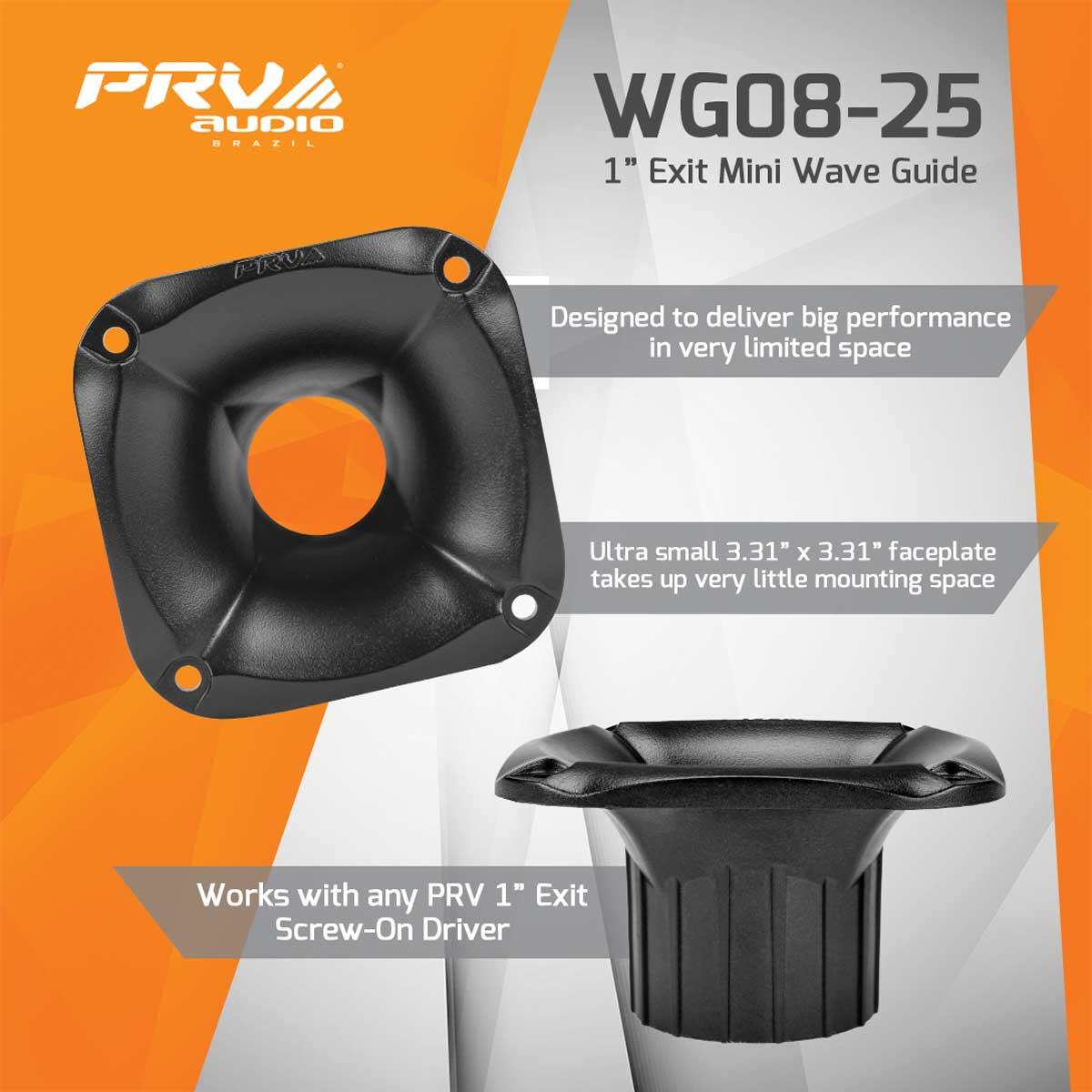

WG08-25 Compact Design Highlights

  • Its slim mounting depth of 1.72?, with an ultra small 3.31? x 3.31? faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
  • Designed to deliver big performance in very limited space, when you add any PRV 1? Exit Driver to it.
  • Its 90 x 90 dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,600 Hz

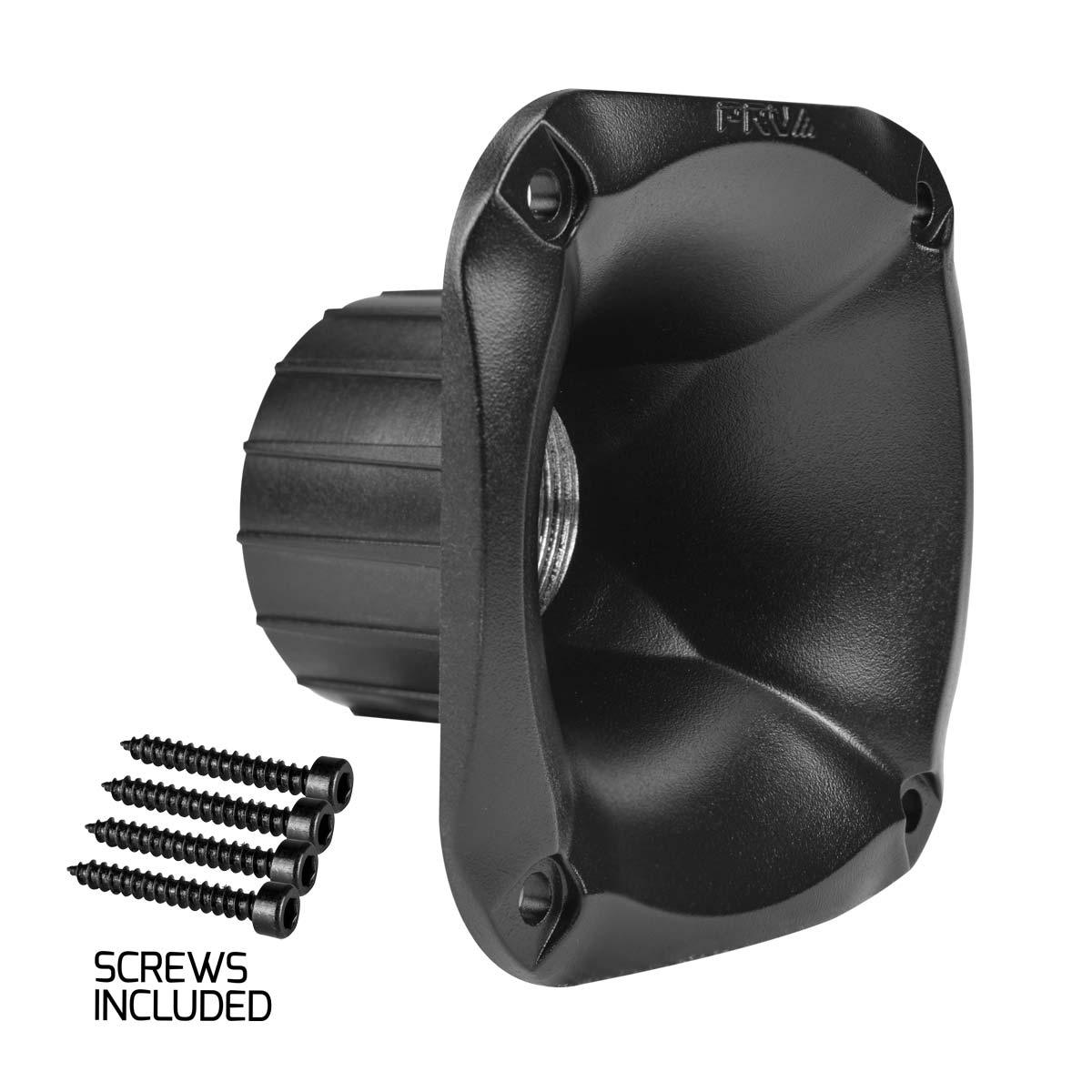

  • Includes 4x screws


GENERAL SPECIFICATIONS

Throat Diameter 1 (25.4mm)
Mounting Type Screw-on
Thread dimensions 1-3/8?
Nominal Coverage
Horizontal 90
Vertical 90
Flare type Exponential
Material Plastic (ABS)
Finish / Coating Black

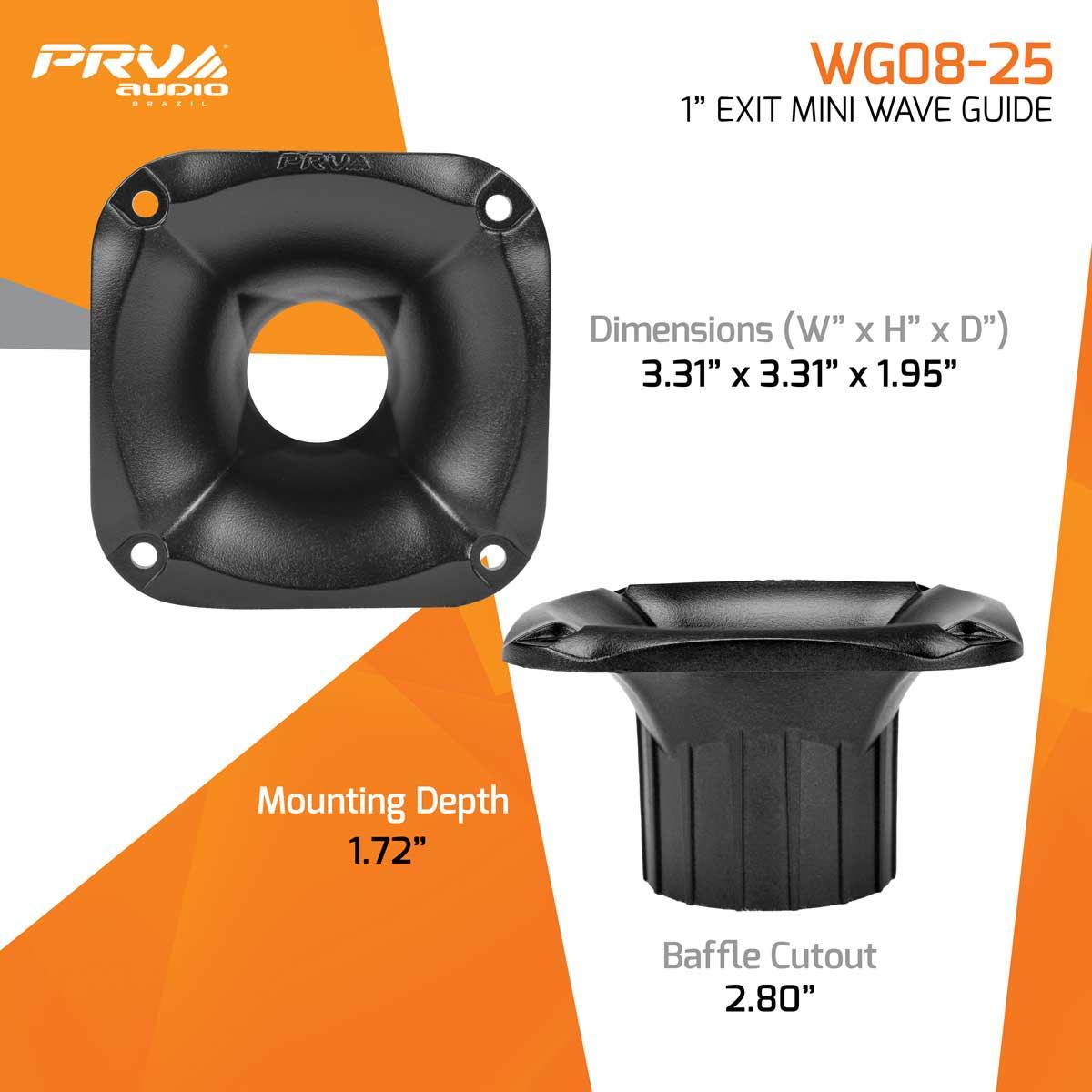

Dimensions
Height 3.31? (84mm)
Width 3.31? (84mm)
Depth 1.95? (49.5mm)
Mount Depth 1.72? (43.5mm)
Baffle Cutout
Width 2.80? (71mm)
Height 3.31? (84mm)
Net weight 0.13lb (0.06kg)
PRV AUDIO WG08-25 DATASHEETDownload
