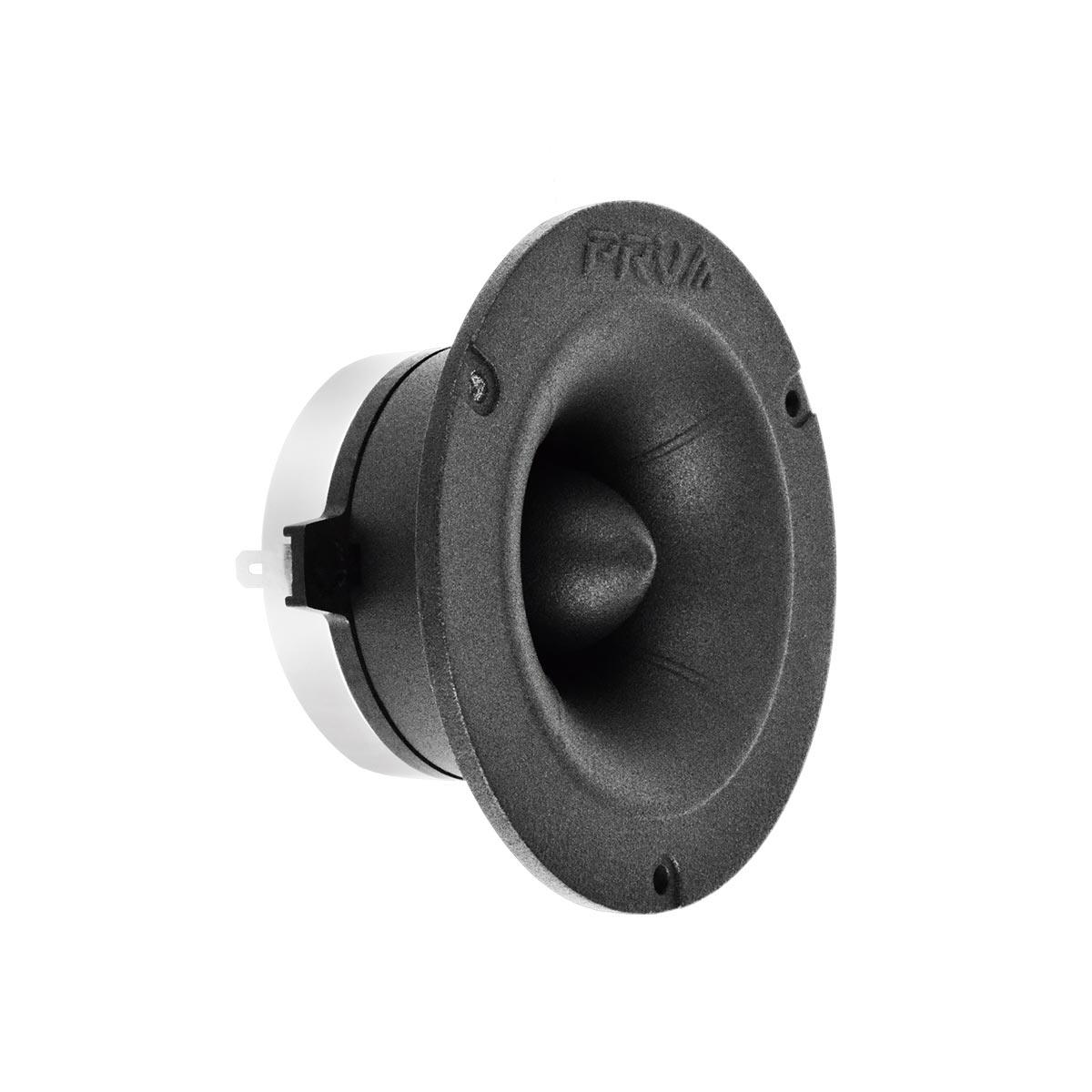

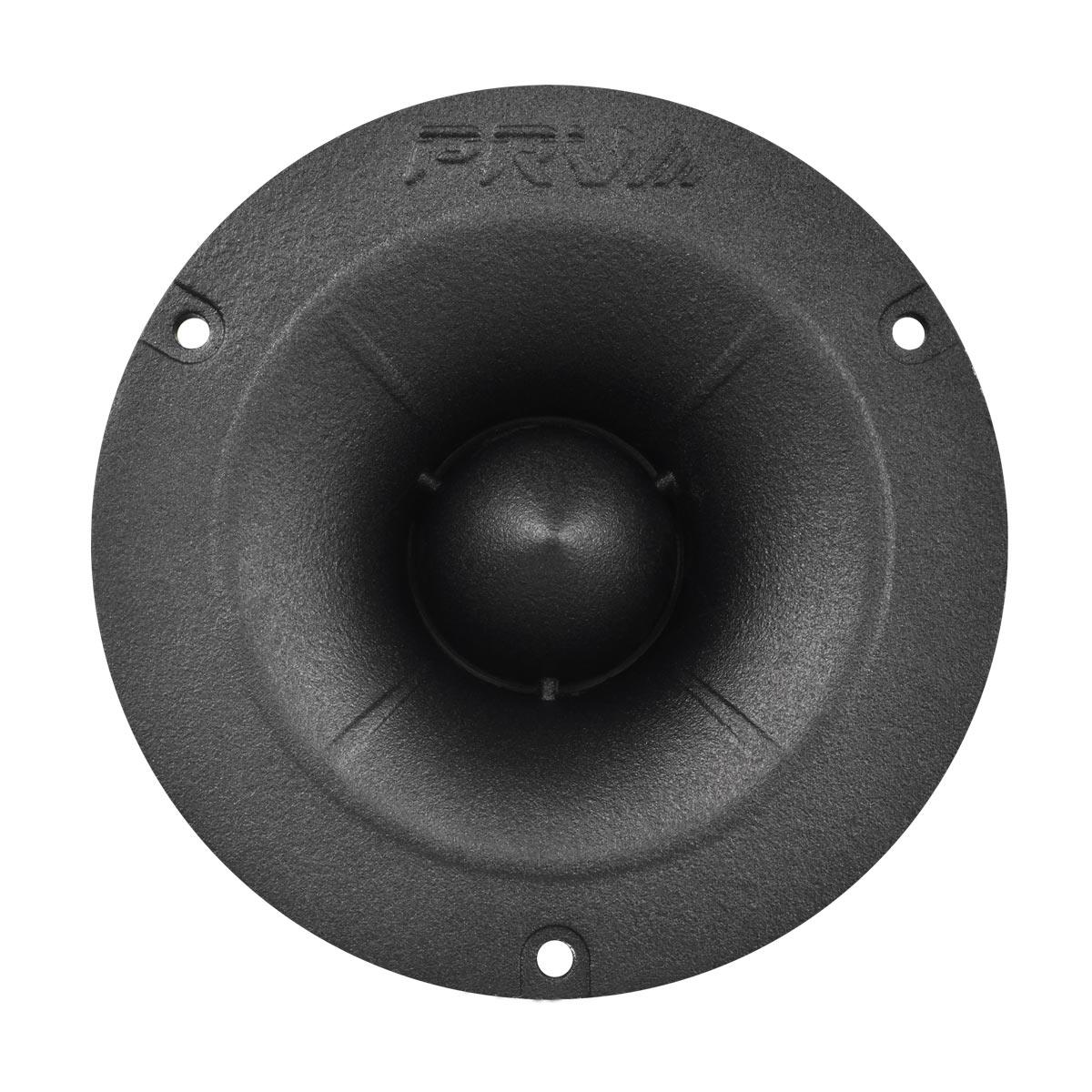

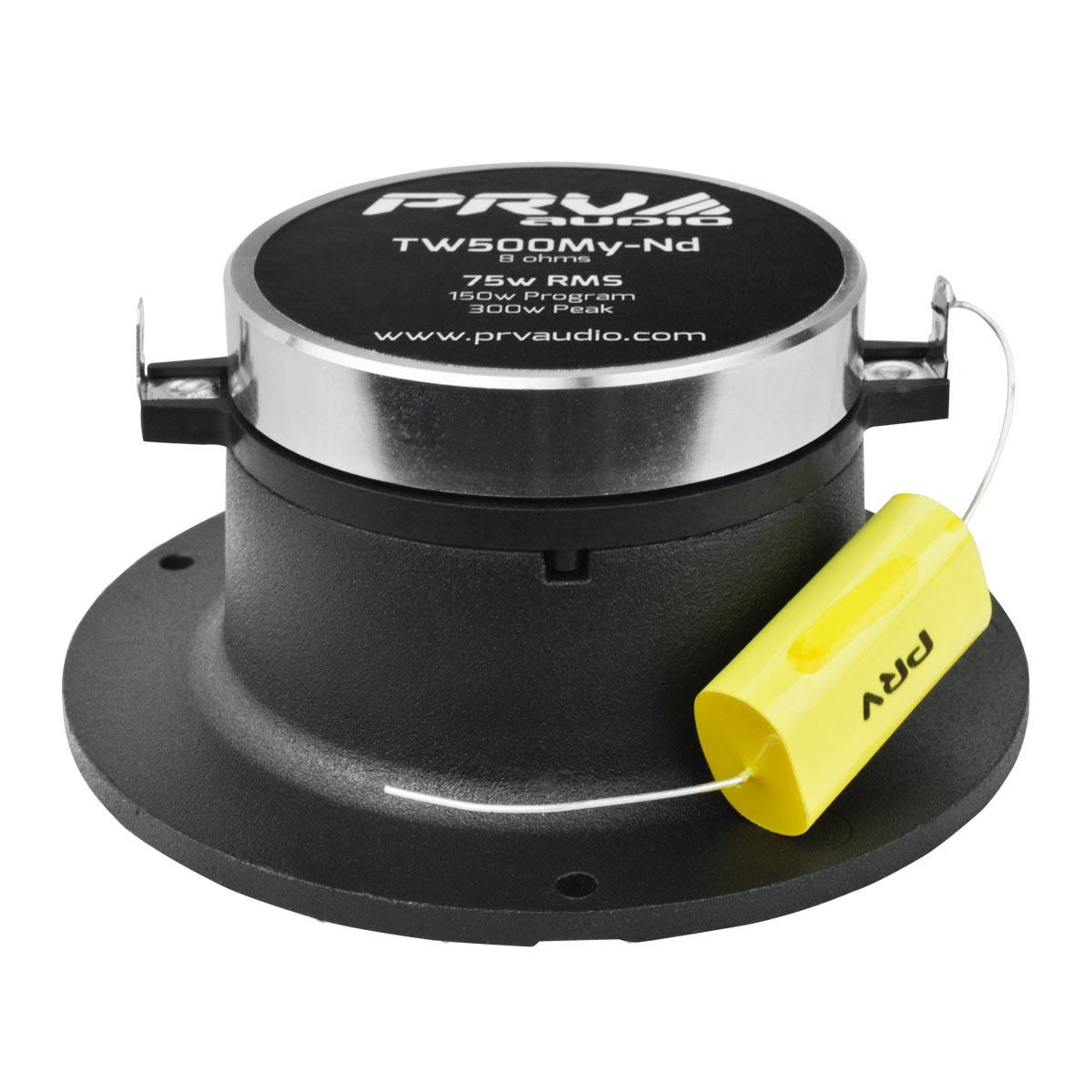

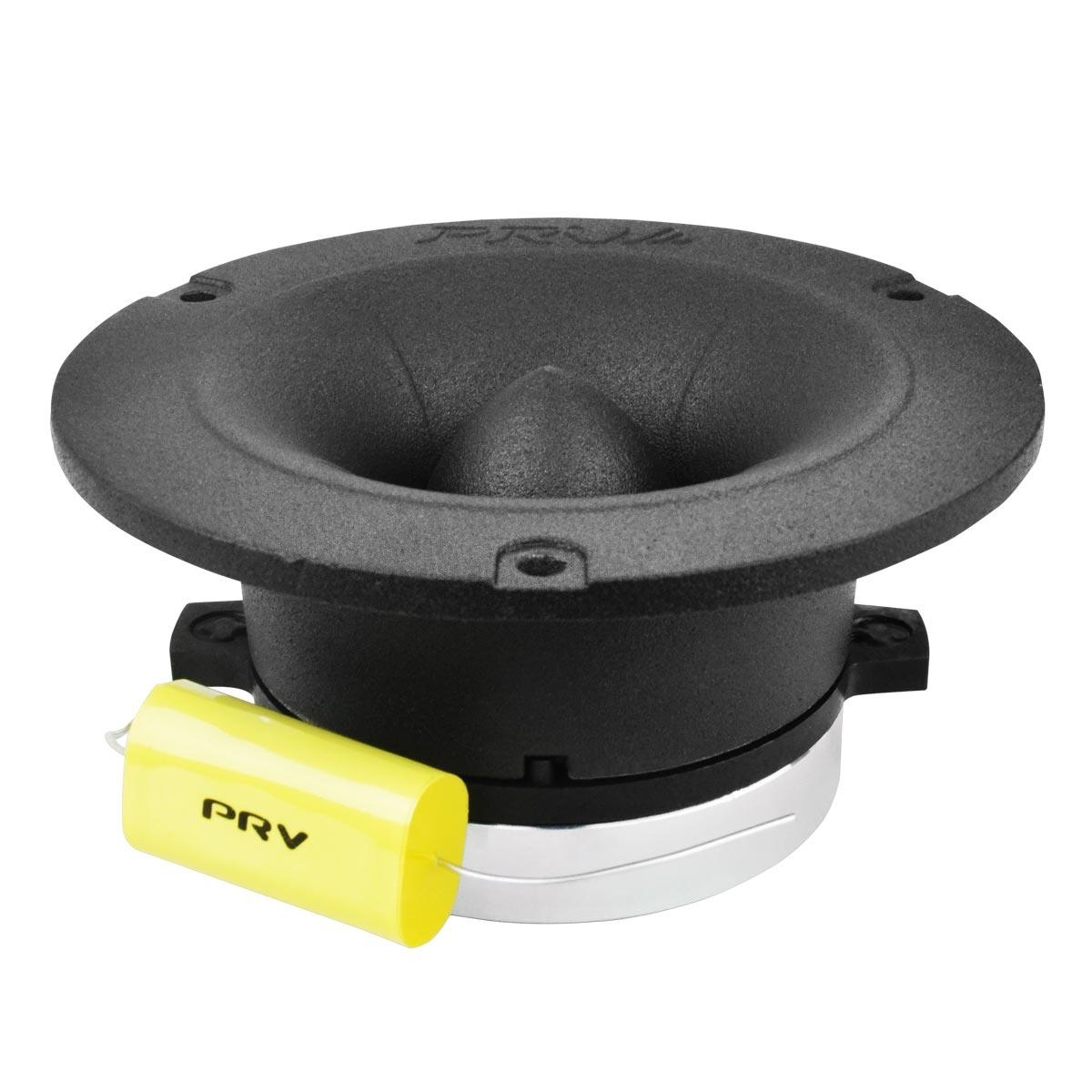

PRV Audio TW500My-Nd Pro Audio Super Tweeter

Features This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response....
Vendor: PRV Audio
SKU: TW500My-Nd
Availability: Out Of Stock
$49.91
$49.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio TW500My-Nd Pro Audio Super Tweeter

PRV Audio TW500My-Nd Pro Audio Super Tweeter

$49.91

PRV Audio TW500My-Nd Pro Audio Super Tweeter

$49.91

Features


This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response. The Mylar diaphragm is light, thin and durable for long play applications.

TW500My-Nd is designed with cast aluminum frame to ensure a quality sound and long lasting play in most any environment. Replacement Diaphragms available.


Highlights

  • Type: Super Tweeter
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 75 Watts
  • Program Power: 150 Watts
  • Voice Coil Diameter: 1.25?


GENERAL SPECIFICATIONS

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 75 Watts
Program Power 150 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
4000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 3,500 19,000 Hz
Voice Coil Diameter 1.25(32 mm)
Voice Coil Wire Aluminum
Voice Coil Former Material Kapton
Diaphragm Material Mylar
Flux Density 1.30 T
Magnet Material Neodymium


EXTRA INFO

Overall Depth 1.77 (45 mm)
Mounting Depth 1.61 (41 mm)
Overall Diameter 4.0 (100 mm)
Cutout Diameter 3.19 (81 mm)
Net Weight 1.25 lbs (0.56 kg)
Shipping Weight 1.33 lbs (0.60 kg)
Carton Dimensions W x L x H 4.1 x 4.1 x 2.1
(105 x 105 x 55 mm)

PRV AUDIO TW500My-Nd DATASHEETDownload
