PRV Audio TW1000Ph Pro Audio Super Tweeter

Features The new PRV TW1000Ph delivers the combination of pleasant crystal clear sound and long lasting quality....
Vendor: PRV Audio
SKU: TW1000Ph
Availability: In Stock
$39.91
$39.91
Please hurry! Only 2 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio TW1000Ph Pro Audio Super Tweeter

PRV Audio TW1000Ph Pro Audio Super Tweeter

$39.91

PRV Audio TW1000Ph Pro Audio Super Tweeter

$39.91

Features

The new PRV TW1000Ph delivers the combination of pleasant crystal clear sound and long lasting quality.

The durable Phenolic Diaphragm is mounted inside and out to reduce the amount of moving mass, extending the high frequency response to a more natural sound than a metallic diaphragm. The bullet-shaped horn design on the TW1000Ph allows it to deliver a high output and longer throw with 40 x 40 dispersion.

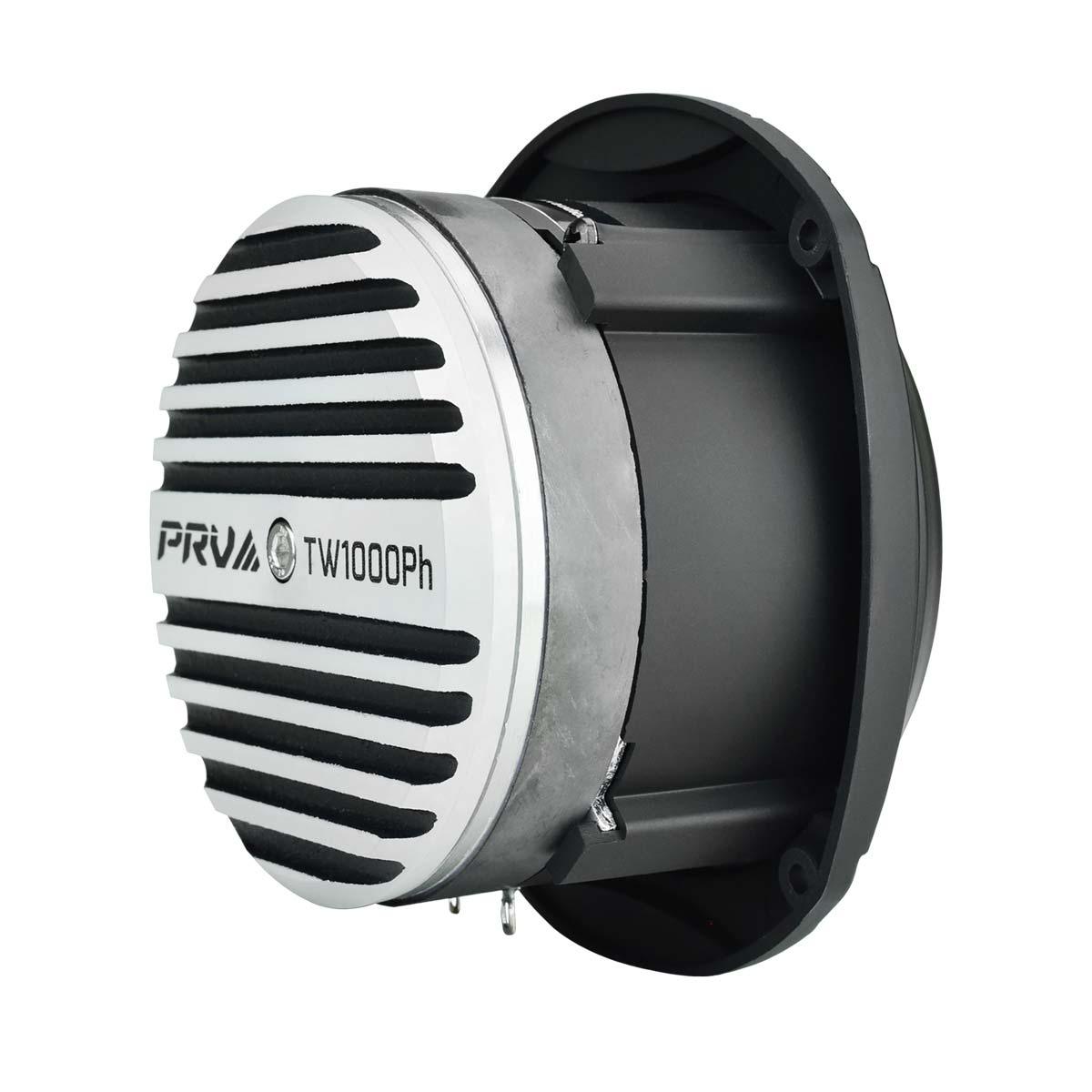

The use of a 1.83 copper voice coil with an unique Aluminum back plate heatsink design improves the power handling and durability for any professional large environment application.


Highlights

  • Type: Super Tweeter
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Voice Coil Diameter: 1.83?


GENERAL SPECIFICATIONS

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 106 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
5000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 4,000 20,000 Hz
Voice Coil Diameter 1.83(46.5 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic
Flux Density 1.58 T
Magnet Material Ferrite


EXTRA INFO

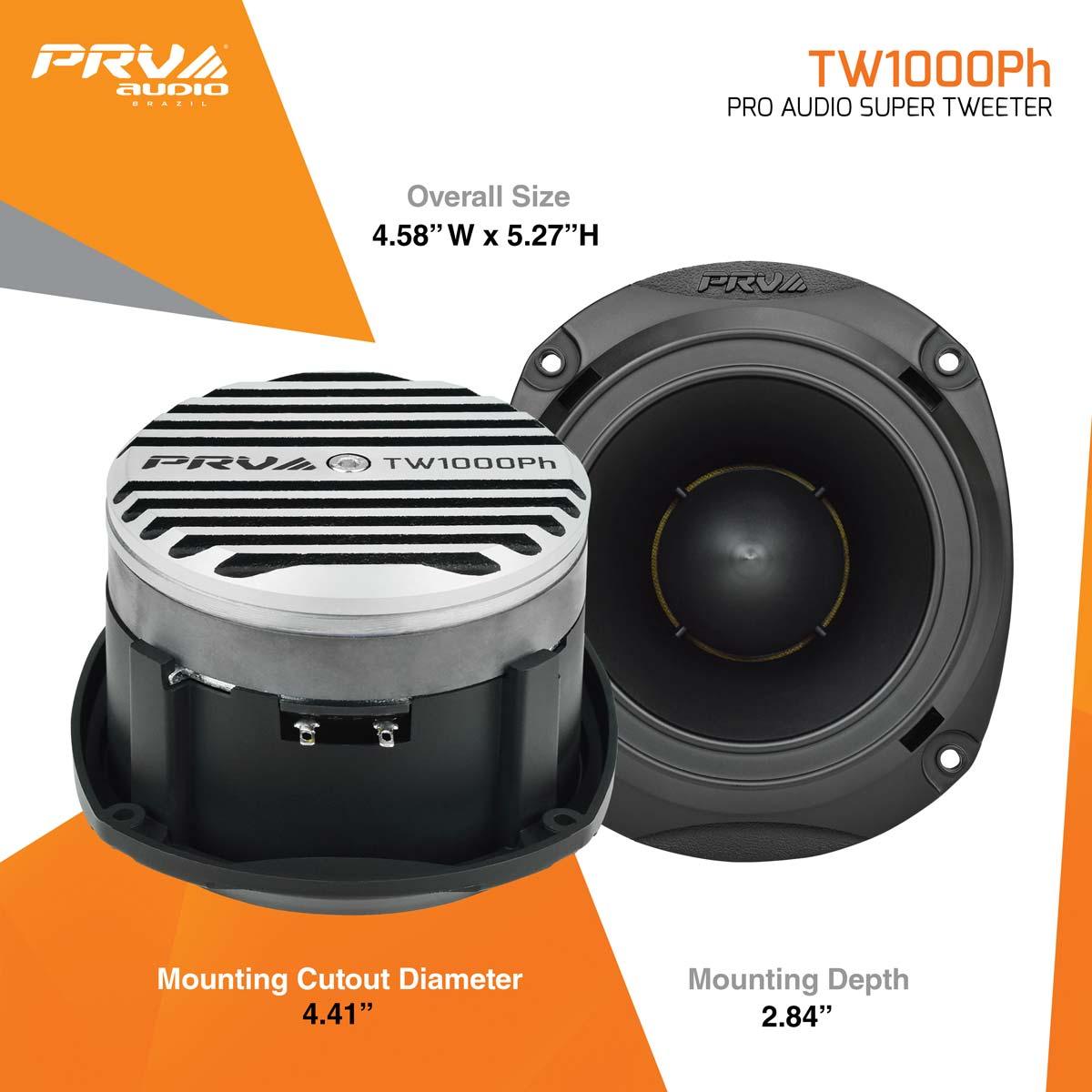

Overall Depth 3.10 (78.75 mm)
Mounting Depth 2.84 (58.0 mm)
Overall Width 4.58 (116.5 mm)
Overall Height 5.27 (134.0 mm)
Cutout Diameter 4.41 (112.0 mm)
Net Weight 2.55 lbs (1.19 kg)
Shipping Weight 2.67 lbs (1.21 kg)
Carton Dimensions W x L x H 5.43 x 4.92 x 3.54
(138 x 125 x 90 mm)

PRV AUDIO TW1000Ph DATASHEETDownload
