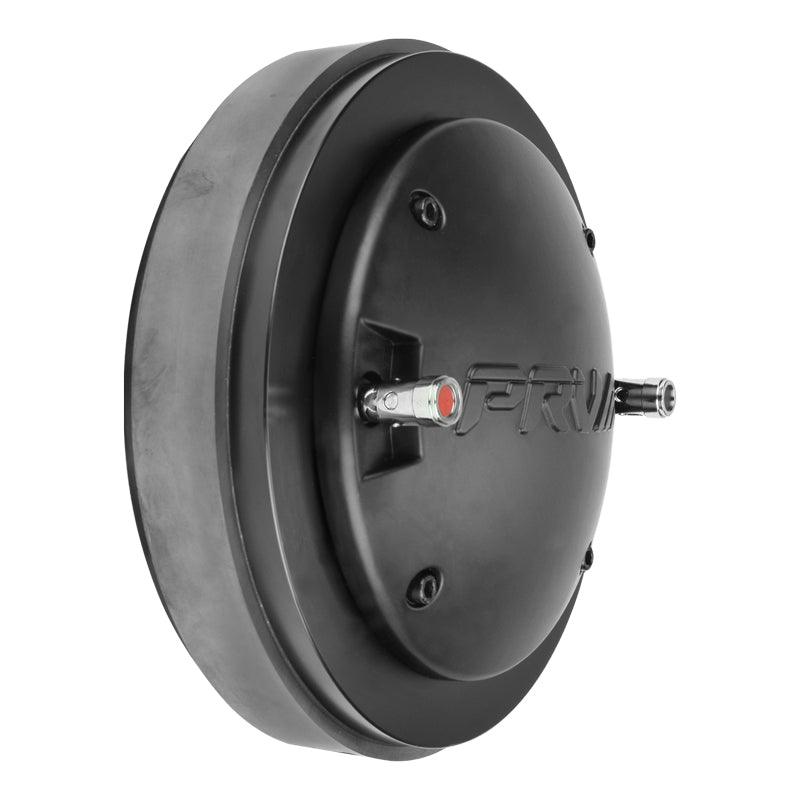

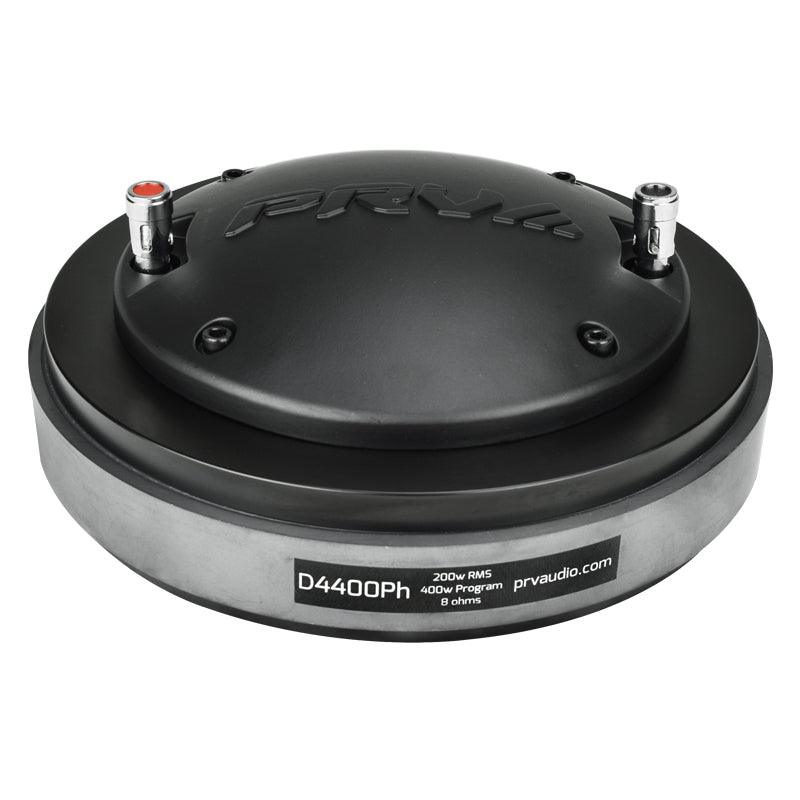

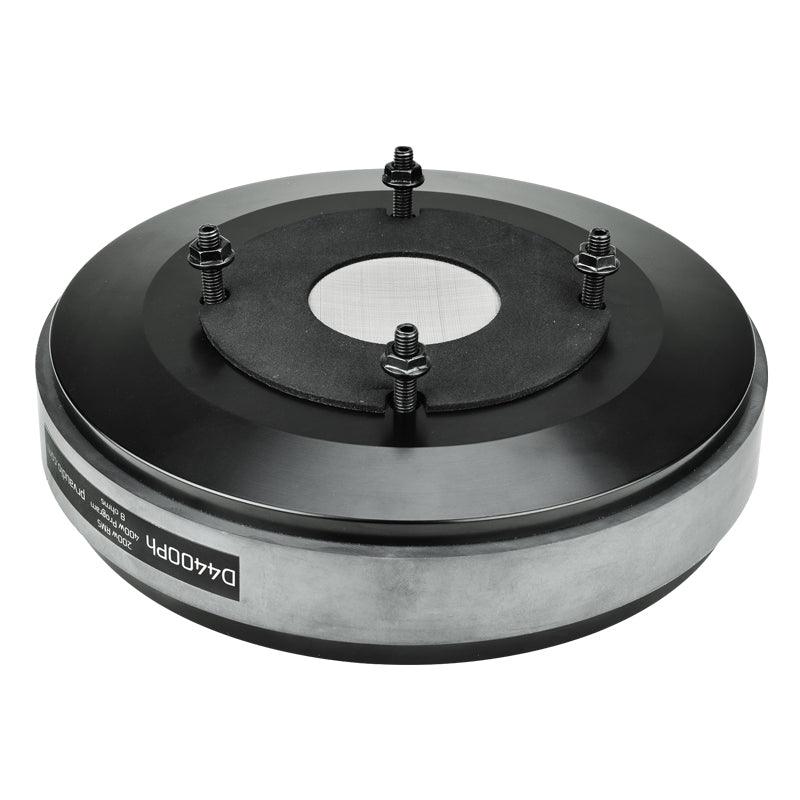

PRV Audio D4400Ph 2" Exit Midrange Compression Driver

Features Brazilian Phenolic Technology Designed For Vocal Reproduction. High temperature CCAW is used for the voice coil...
Vendor: PRV Audio
SKU: D4400Ph
Availability: Out Of Stock
$129.91
$129.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio D4400Ph 2" Exit Midrange Compression Driver

PRV Audio D4400Ph 2" Exit Midrange Compression Driver

$129.91

PRV Audio D4400Ph 2" Exit Midrange Compression Driver

$129.91

Features

Brazilian Phenolic Technology Designed For Vocal Reproduction. High temperature CCAW is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 600 to 7000 Hz. This driver is recommended for midrange support in multi-way PAs, stage monitors, side fills and high SPL car audio systems.

The D4400Ph uses the latest Brazilian Phenolic technology TRIO by PRV designed for vocal reproduction. This 2 Exit phenolic compression driver features a 4? voice coil and new and improved motor that is all about high output and low distortion vocal reproduction all the way down to 600 Hz!

The D4400Ph is designed to ensure a quality sound and long lasting play in most any environment. Designed to be the smallest possible without sacrificing any performance in the motor for its 4? voice coil, we have used a 7.86? diameter ferrite motor, to keep the smallest size and weight on its category. Car audio SPL enthusiasts use this driver for vocal reinforcement on 3 way systems.

Highlights

  • 109 dB efficient driver is perfect for the highest output audio systems
  • Large 4? voice coil can handle up to 400 watts max musical power
  • Rated AES Power Handling (RMS): 200 Watts
  • Phenolic diaphragm delivers natural response throughout the vocal range
  • Type Bolt-On Nominal Impedance: 8 Ohms



GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 200 Watts
Program Power 400 Watts
Sensitivity 2.83V at 1m 109 dB
Recommended Hi Pass Crossover** **For Full Power Handling 700 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 600 7,000 Hz
Voice Coil Diameter 4(101.6 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Phenolic resin
Flux Density 1.85 T
Magnet Material Ferrite

EXTRA INFO

Overall Diameter 7.86 (199.75 mm)
Overall Depth 3.18 (81 mm)
Mounting Bolt Circle M6x4 4 (101.6 mm)
Net Weight 19.20 lbs (8.70 kg)
Shipping Weight 21.16 lbs (9.60 kg)
Carton Dimensions W x L x H 8.66 x 8.66 x 4.60 (220 x 220 x 117 mm)
PRV AUDIO D4400Ph DATASHEETDownload
