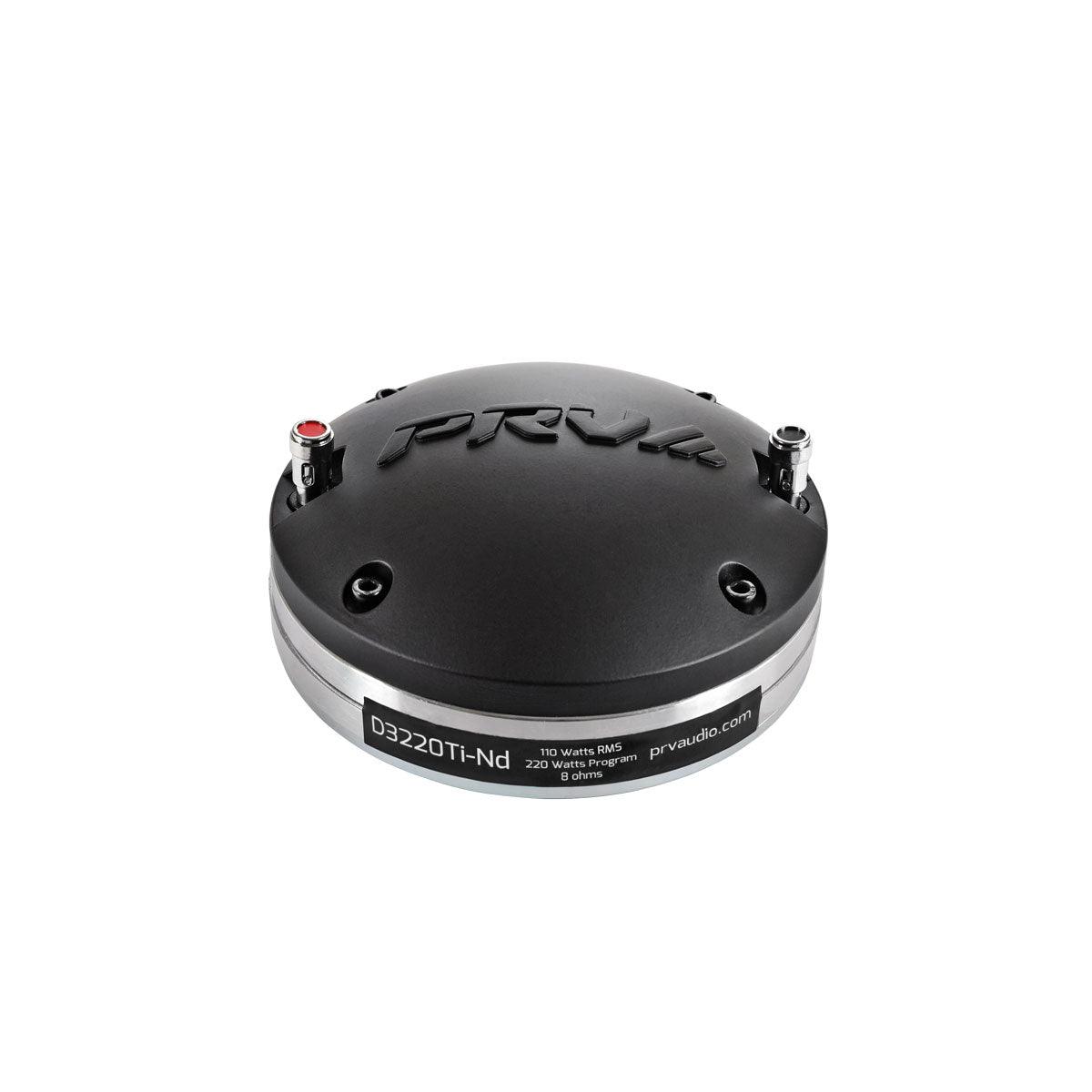

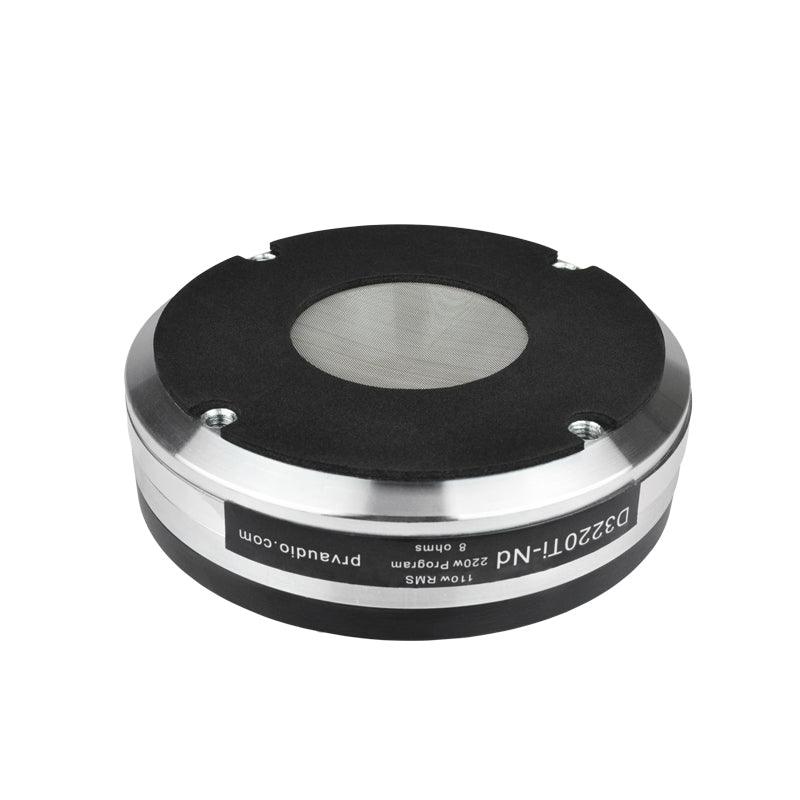

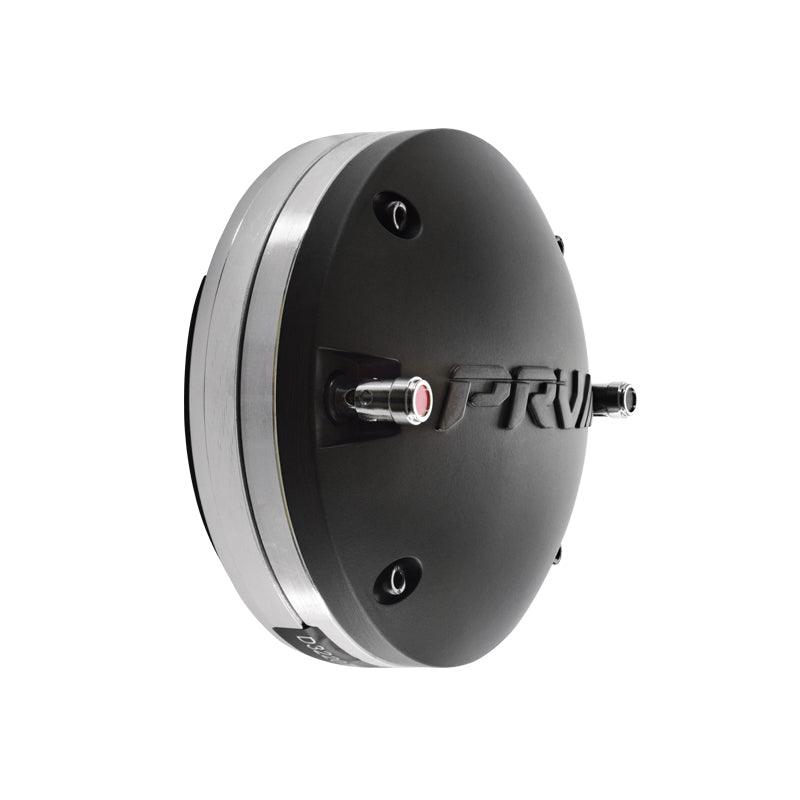

PRV Audio D3220Ti-Nd 2" Exit High Frequency Compression Driver

PRV Audio D3220Ti-Nd 2" Exit High Frequency Compression Driver

$174.98 $139.91

PRV Audio D3220Ti-Nd 2" Exit High Frequency Compression Driver

$174.98 $139.91

Features

The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2? exit supported by a 3? voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.

The D3220Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.

Highlights

  • Throat Diameter: 2?
  • Type: Bolt-On
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 110 Watts
  • Program Power: 220 Watts


GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 110 Watts
Program Power 220Watts
Sensitivity 2.83V at 1m 110 dB
Recommended Hi Pass Crossover** **For Full Power Handling 1600 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 1,600 19,000 Hz
Voice Coil Diameter 3(76.2 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.80 T
Magnet Material Neodymium

EXTRA INFO

Overall Diameter 4.88 (124 mm)
Overall Depth 2.21 (56 mm)
Mounting Bolt Circle M6 x 4 4 (101.6 mm)
Net Weight 5.00 lbs (2.27 kg)
Shipping Weight 5.27 lbs (2.39 kg)
Carton Dimensions W x L x H 5.71 x 5.71 x 3.35 (145 x 145 x 85 mm)
PRV AUDIO D3220Ti-Nd DATASHEETDownload
