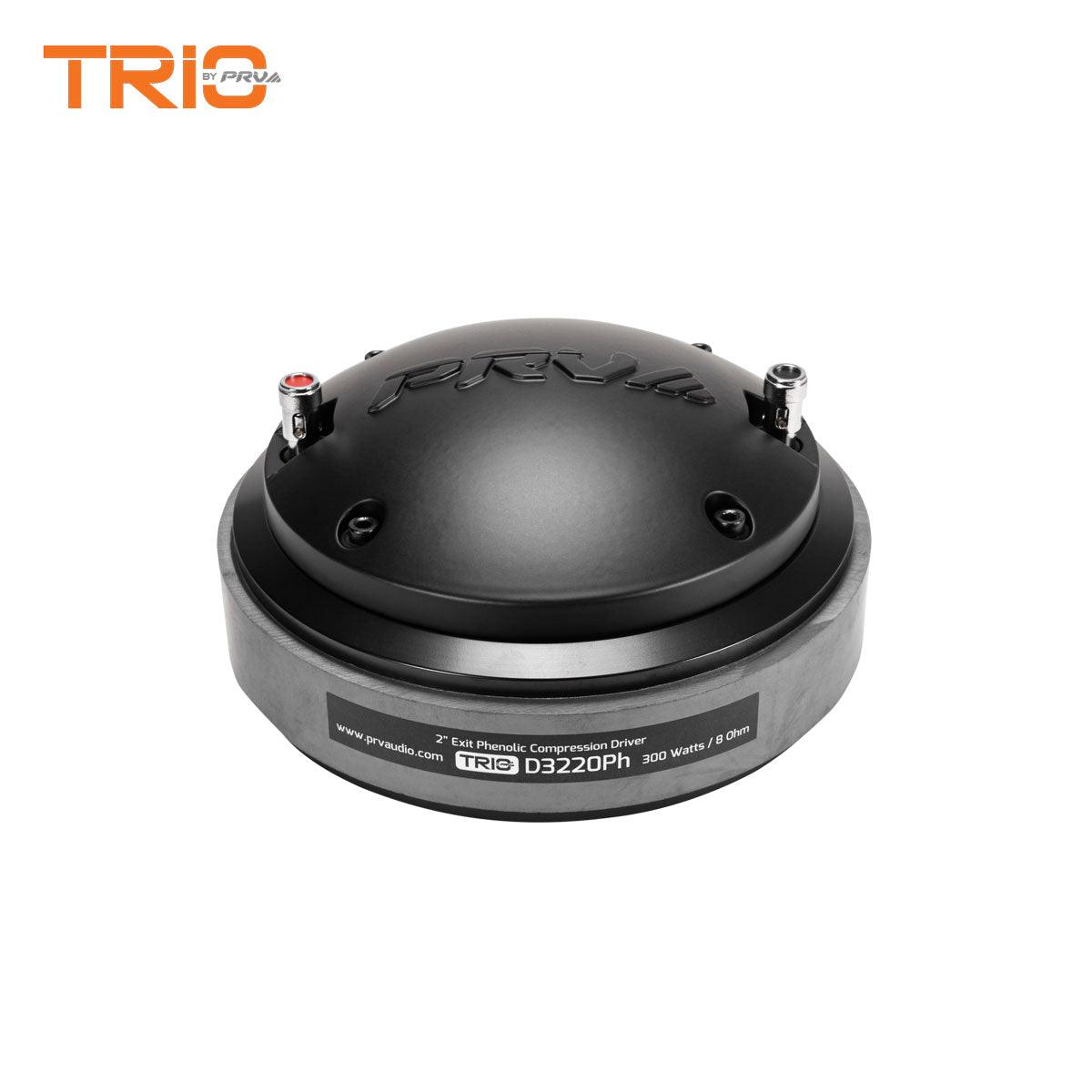

PRV Audio D3220Ph 2" Exit Midrange Compression Driver

Features Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep...
Vendor: PRV Audio
SKU: D3220Ph
Availability: Out Of Stock
Product Type: Consumer Electronics
$79.91
$79.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio D3220Ph 2" Exit Midrange Compression Driver

PRV Audio D3220Ph 2" Exit Midrange Compression Driver

$79.91

PRV Audio D3220Ph 2" Exit Midrange Compression Driver

$79.91

Features

Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this midrange 2? exit driver is taking the car audio industry to the next level!

The new D3220Ph design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio low midrange response, with accuracy (from 650 to 7,500 Hz) with an emphasis on the vocal mid frequency range.

  • With a nearly indestructible phenolic diaphragm and a 3 inch voice coil, this Brazilian technology delivers natural vocal midrange response at an efficient of 108 dB sensitivity

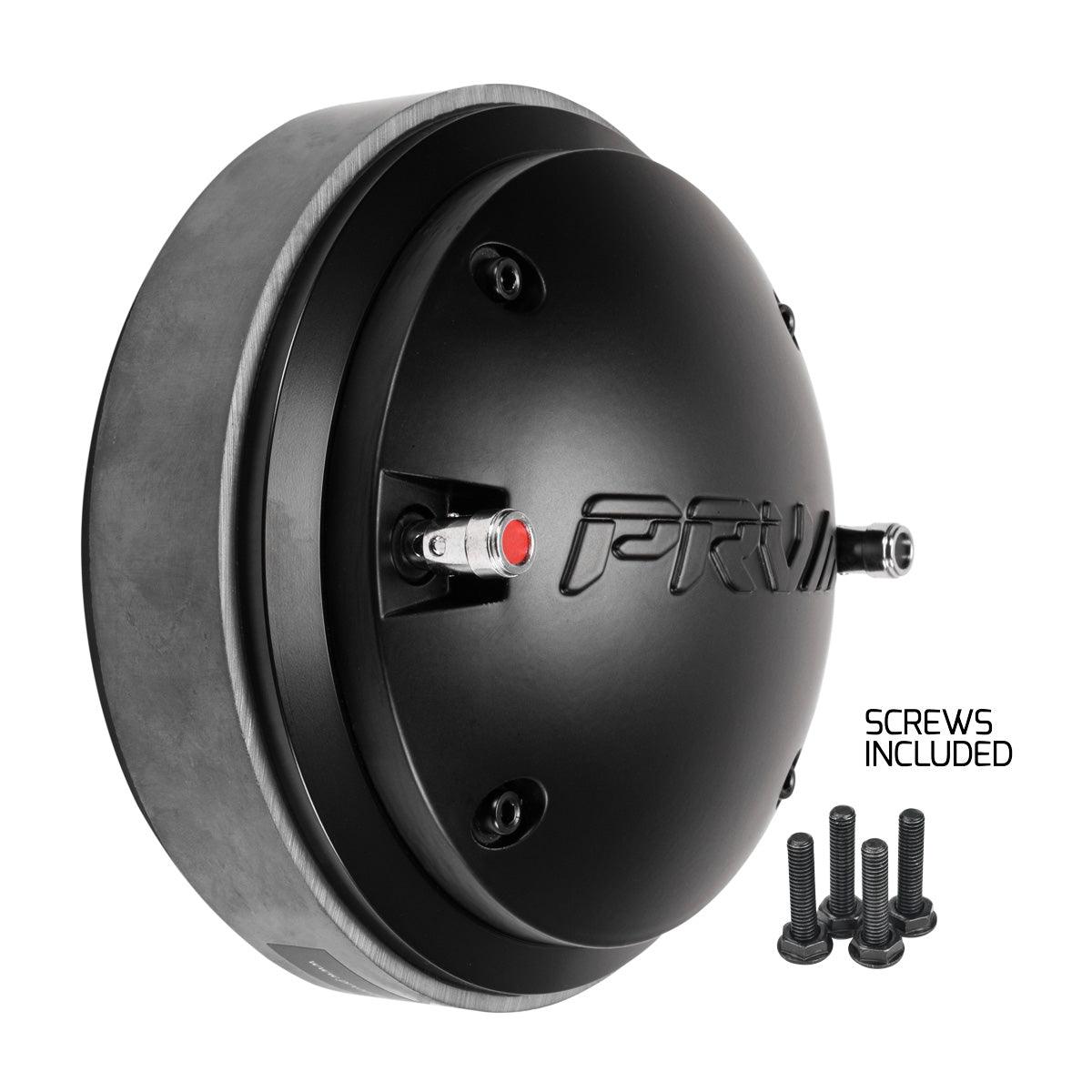

  • Works great with any Shallow Horn from WGP14-50X Series Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver designed for vocal reinforcement on 3-Way car audio systems with a usable frequency response from 650 to 7,500 Hz
  • PRO Audio midrange driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

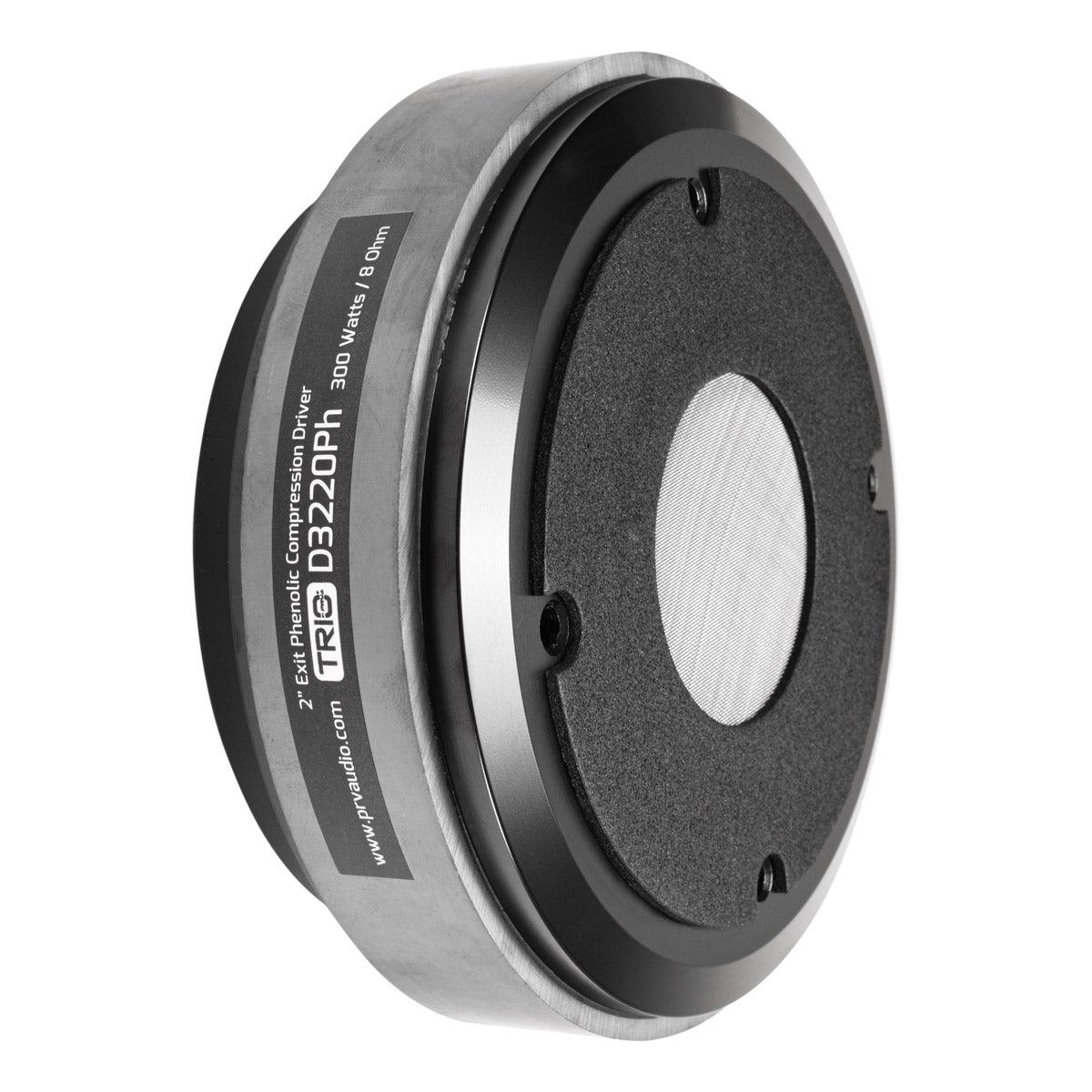

The D3220Ph ferrite phenolic compression horn driver, offers the best performance for the price, features a compact magnet motor.

This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement. We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems.

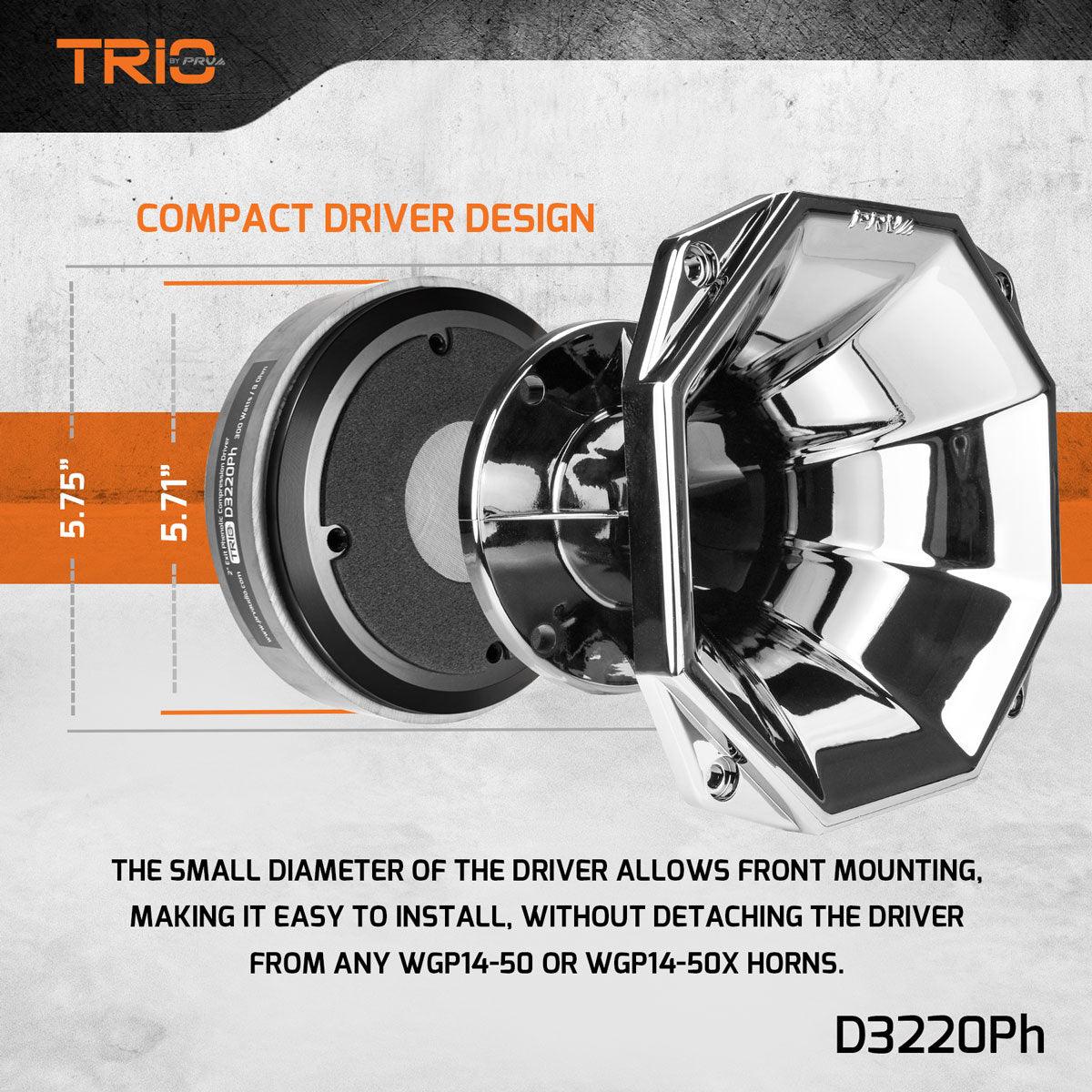

The special diameter allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The driver diameter measures only 5.71? having enough clearance to fit inside the 5.75? baffle cut needed for our 2? exit horns from the WGP14-50 Series.

Make your system unique with our colored horns. Available on Single Color, Dual Color, and Dual Tone Finish.


TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

The phenolic diaphragm is attached to a 3? diameter copper-clad aluminum wire with Kapton former for a high 300 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP.

  • 800 Hz at 12 dB per octave filter Crossover / BT12
  • 700 Hz at 18 dB per octave filter Crossover / BT18

Its compact size combined with high power handling provides great output capabilities make this midrange driver one of the smallest 2 exit vocal driver in the market!

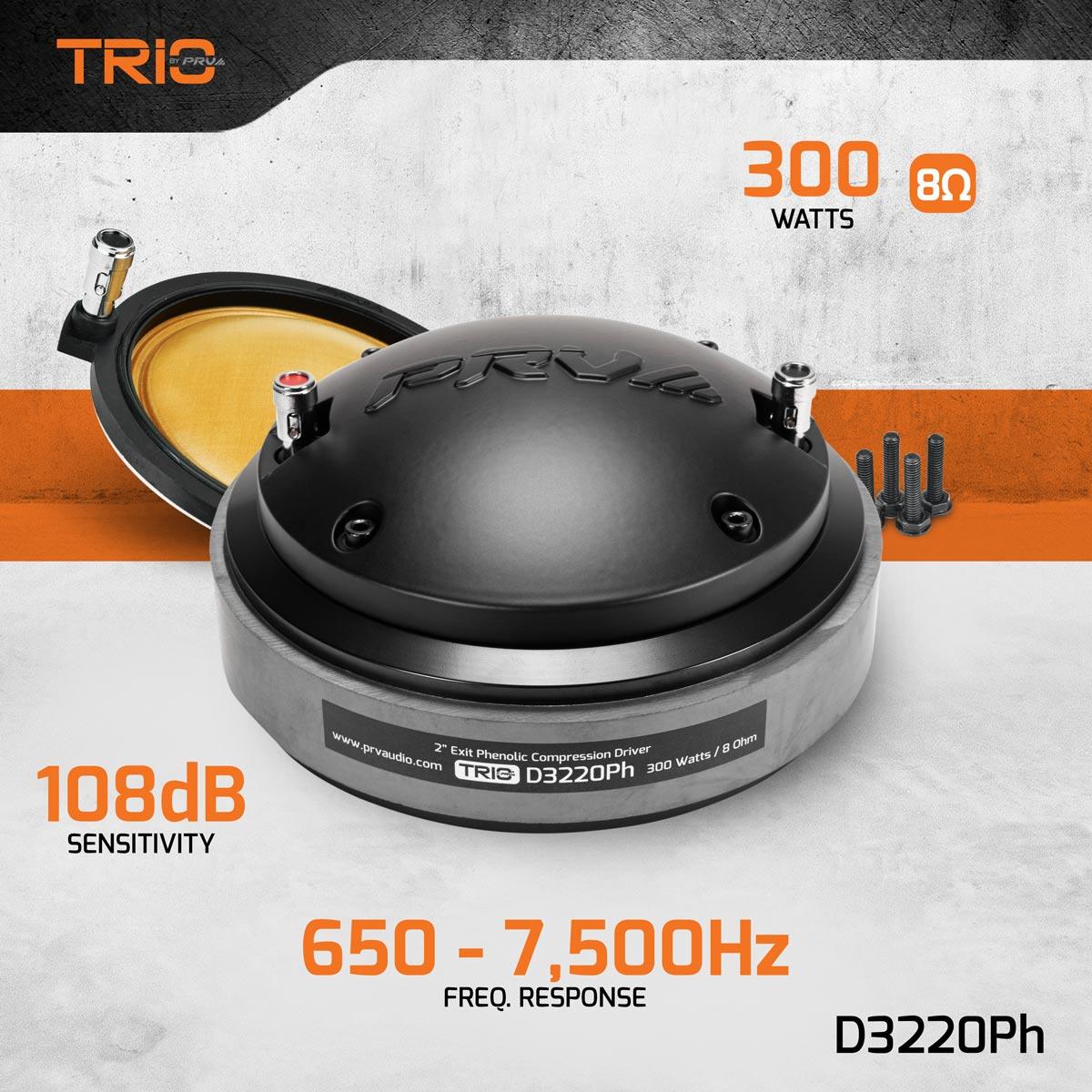

PRV D3220Ph 2? Midrange Driver 300 Watts 8 Ohm TRIO Phenolic Diaphragm



GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohm
Nominal Power Handling* 150 Watts
Continuous Program Power (RMS)** 300 Watts
Peak Power*** 600 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover
For Full Power Handling
800 Hz
12db/oct Crossover
Frequency Response at -10dB 650 7,500 Hz
Voice Coil D...
