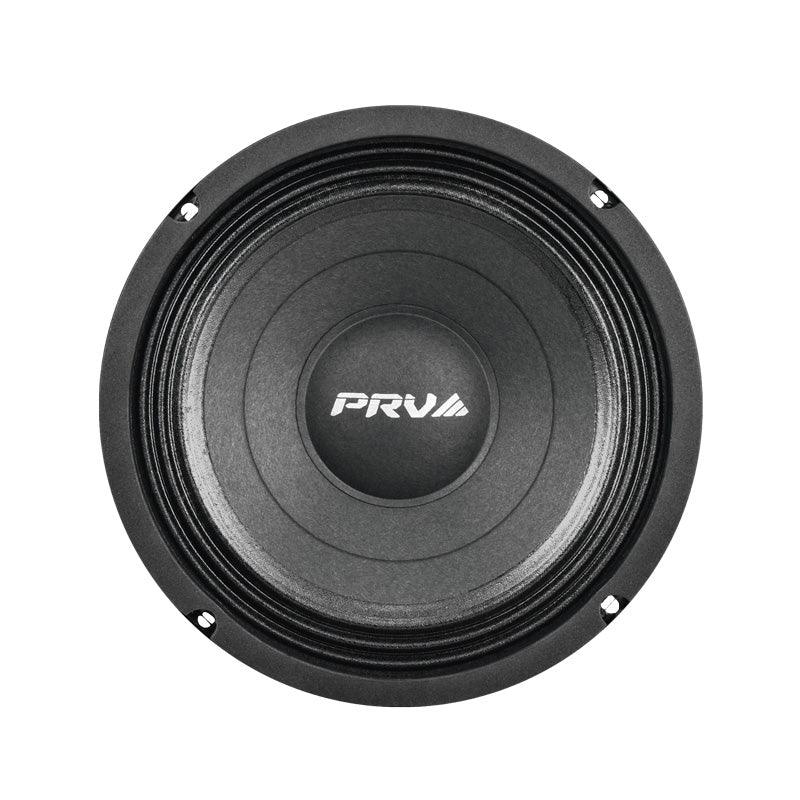

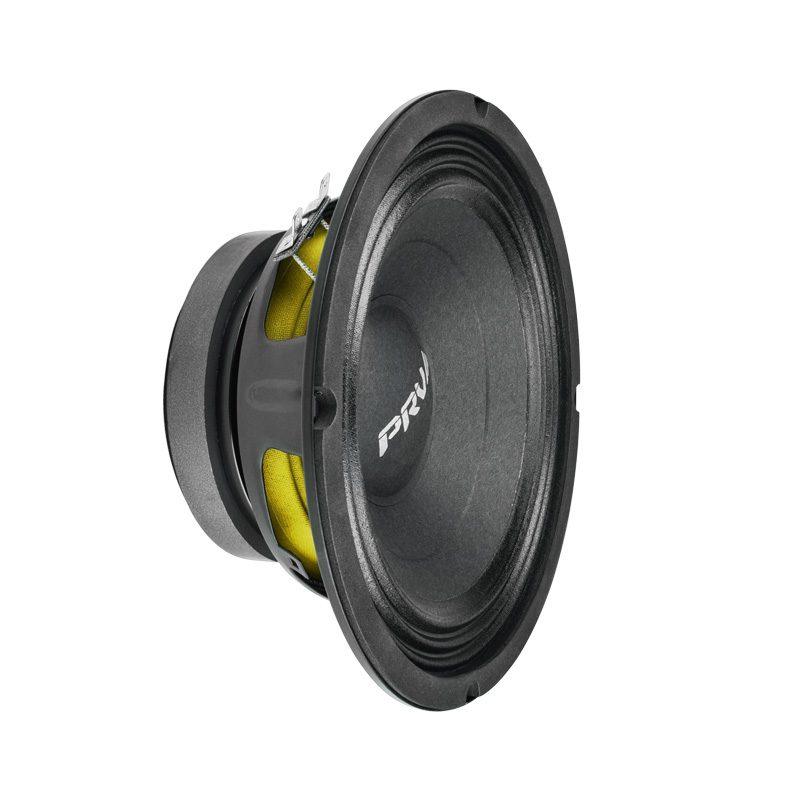

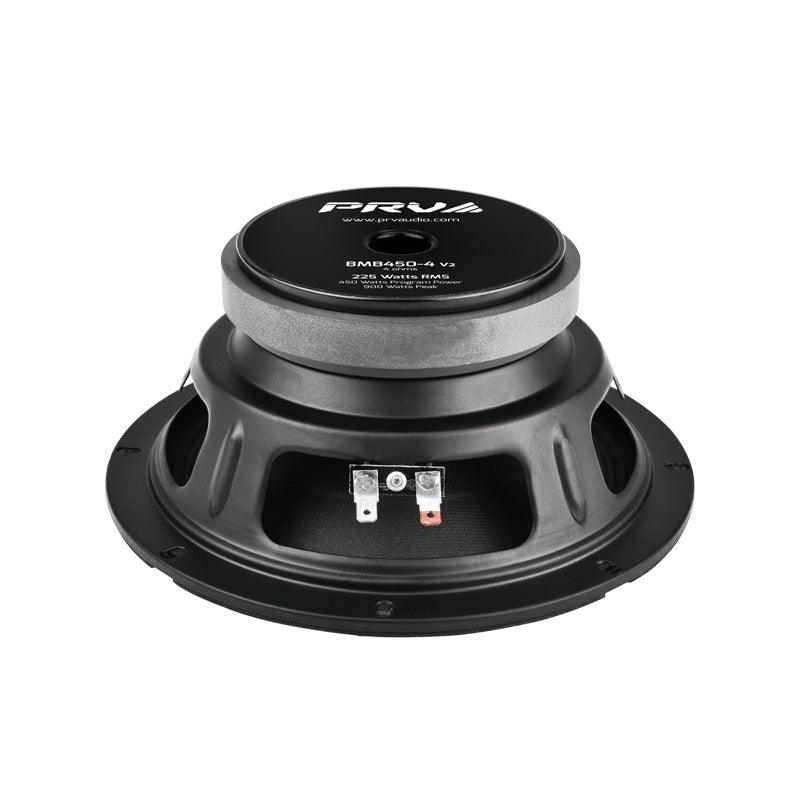

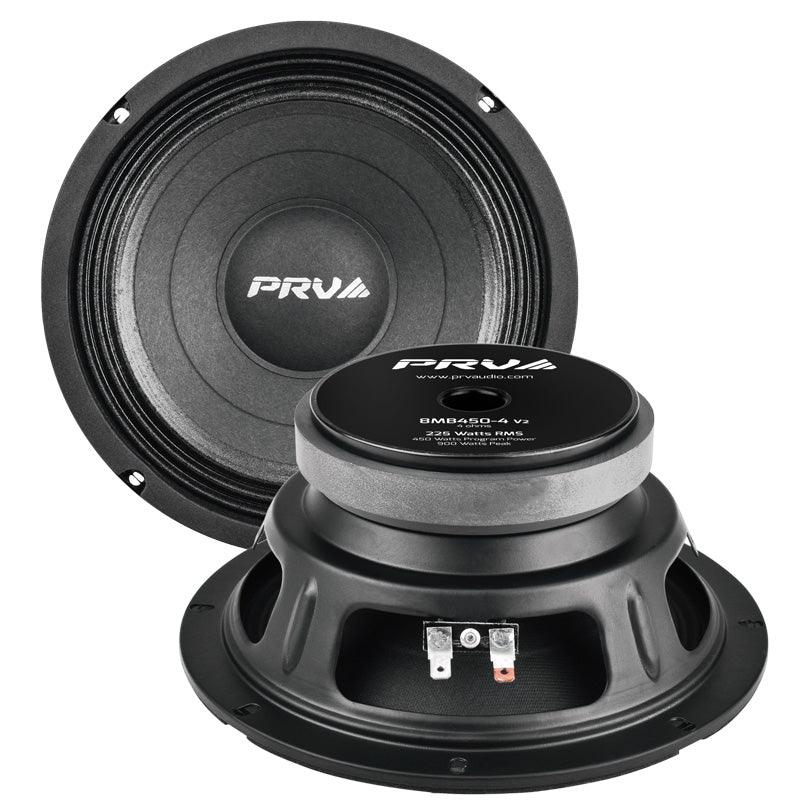

PRV Audio 8MB450-4 v2 8" Midbass Loudspeaker

Features The 8MB450 v2, 8? PRV Audio Pro Audio Midbass Woofer offers smooth lower response through a...
Vendor: PRV Audio
SKU: 8MB450-4 v2
Availability: Out Of Stock
$35.91
$35.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 8MB450-4 v2 8" Midbass Loudspeaker

PRV Audio 8MB450-4 v2 8" Midbass Loudspeaker

$35.91

PRV Audio 8MB450-4 v2 8" Midbass Loudspeaker

$35.91

Features

The 8MB450 v2, 8? PRV Audio Pro Audio Midbass Woofer offers smooth lower response through a punchy mid bass range and the frequency response that takes your applications smoothly through the 7,500 Hz range. The 2? voice coil, durable spider suspension and the woven surround all supported by the sturdy steel basket ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling.

The size and punch of this pro audio driver makes it perfect for a midrange driver in a 3 way loudspeaker cabinet or woofer in your studio monitor and even works great in home Hi-Fi installs. Also a great car audio woofer!


Highlights

  • Smooth midrange combined with strong midbass punch
  • Rated AES Power Handling (RMS): 225 Watts
  • Designed for small sealed cabinets
  • Also Available at 8 Ohms 8MB450v2
  • Ideal for use as replacement speaker for studio monitors, hi-fi cabinets, or car audio installations


GENERAL SPECIFICATIONS

Nominal Diameter 8? (203 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS)
225 Watts
Program Power 450 Watts
Sensitivity 2.00V at 1m 93.5 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
120 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 75 7,500 Hz
Voice Coil Diameter 2? (50 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 12.0 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 17.02 l
Excursion (mathematical)*** Xmax 4.5 mm
Free Air Resonance Fs 76.59 Hz
Mechanical Factor Qms 22.84
Electrical Factor Qes 0.92
Total Factor Qts 0.88
Cone Area Sd 241 cm
Mechanical Mass Mms 20.48 g
Bl Factor Bl 6.19 Tm
Dc Resistance Re 3.6 Ohms
Inductance Le 0.17 mH at 1 kHz
Mechanical Mass Without Air Mmd 18.37 g
Mechanical Compliance Cms 0.210 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diam...
