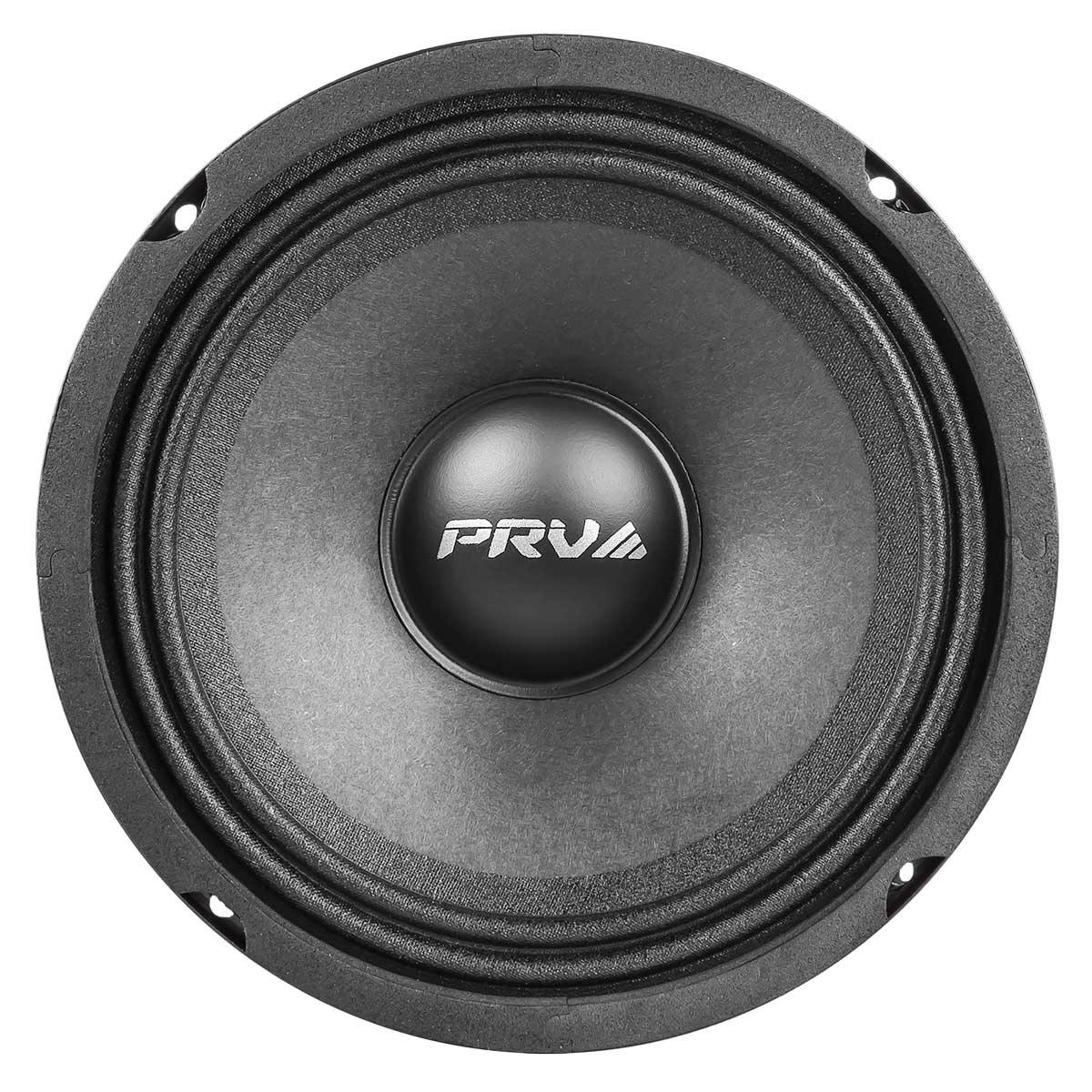

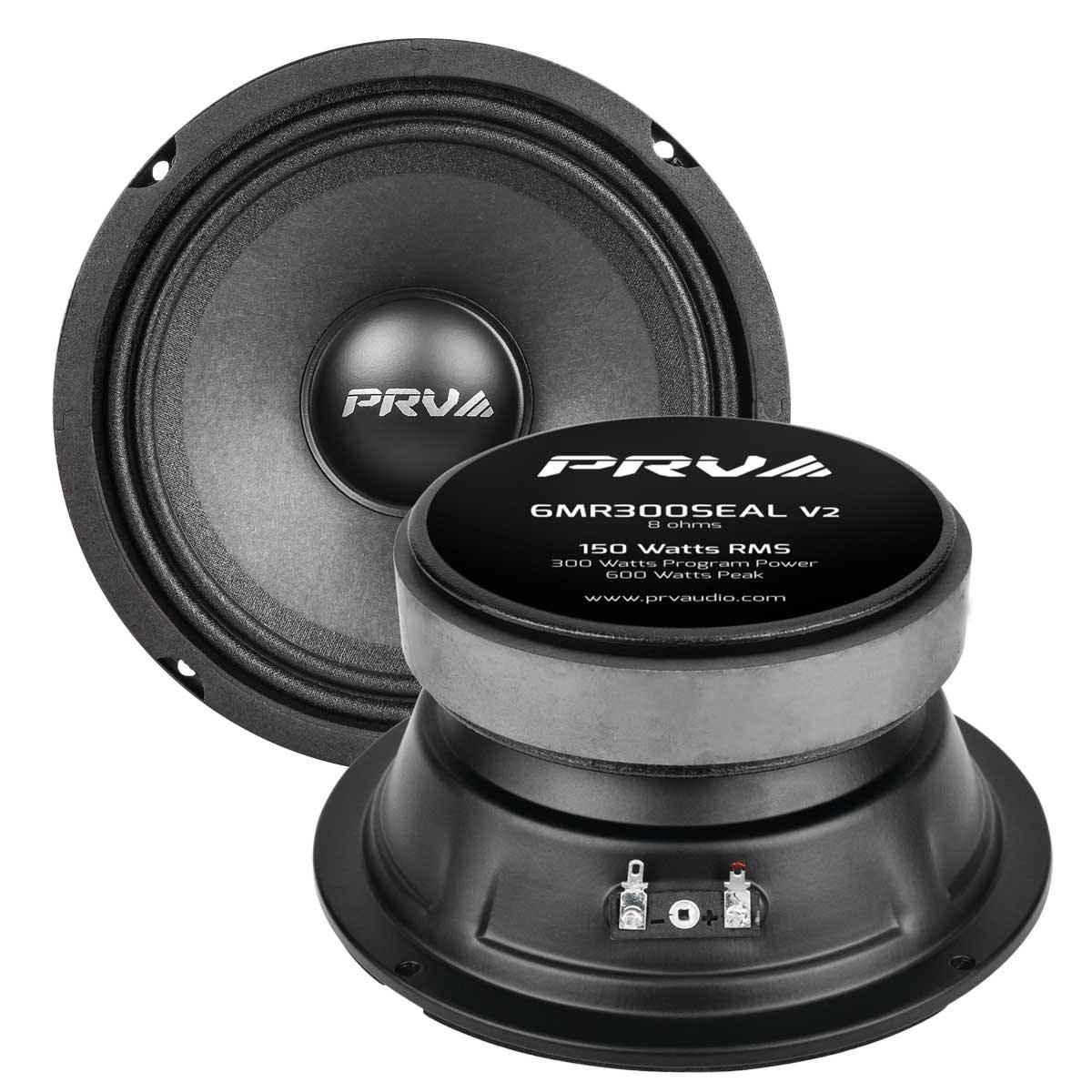

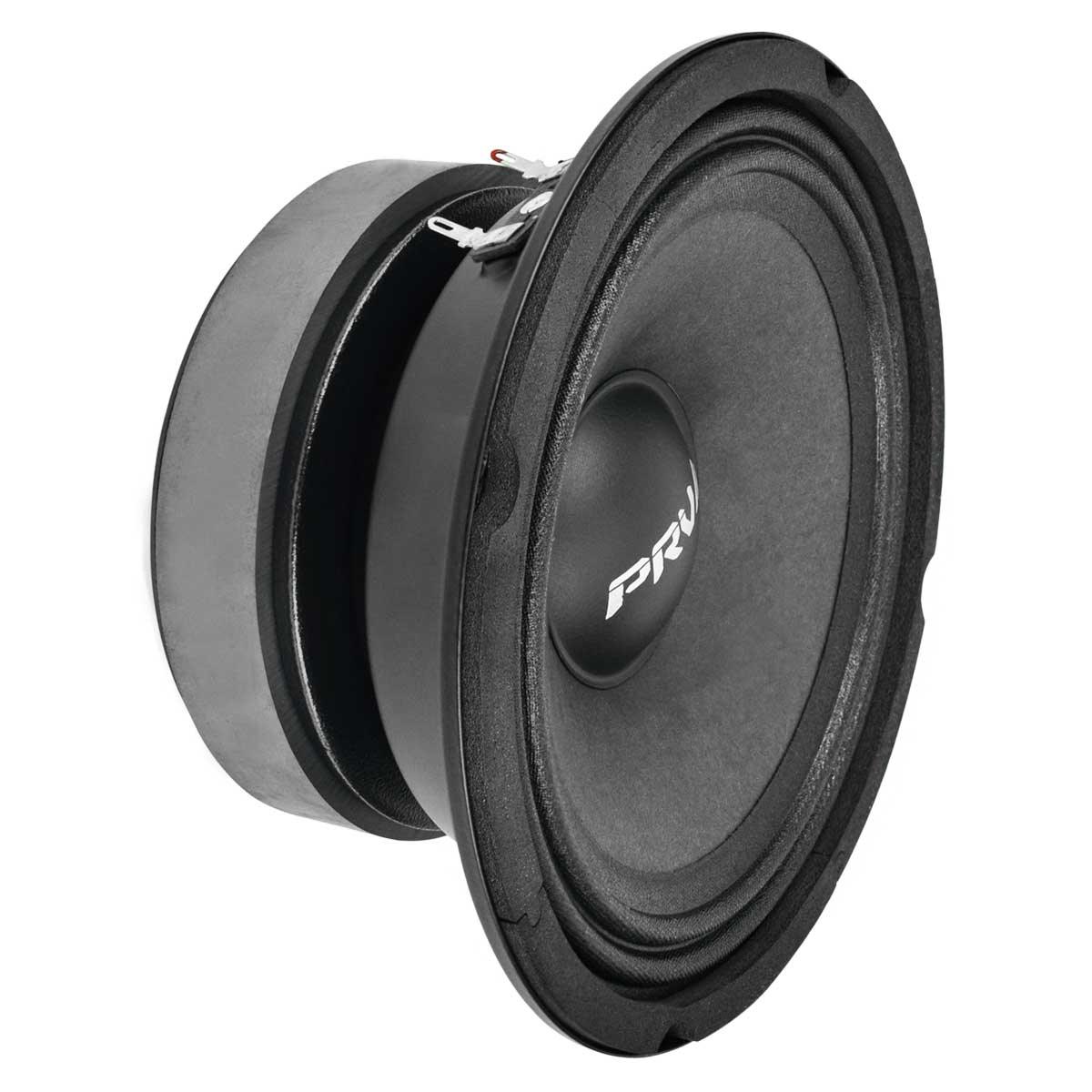

PRV Audio 6MR300SEAL v2 6.5" Sealed Basket Midrange Loudspeaker

Features The new and improved version of the 6MR300SEAL offers very smooth Midrange response to an upper...
Vendor: PRV Audio
SKU: 6MR300SEAL v2
Availability: Out Of Stock
$39.91
$39.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 6MR300SEAL v2 6.5" Sealed Basket Midrange Loudspeaker

PRV Audio 6MR300SEAL v2 6.5" Sealed Basket Midrange Loudspeaker

$39.91

PRV Audio 6MR300SEAL v2 6.5" Sealed Basket Midrange Loudspeaker

$39.91

Features

The new and improved version of the 6MR300SEAL offers very smooth Midrange response to an upper Midrange of 7 kHz and is a perfect option for driver replacements in three way cabinets. The design results in outstanding durability and a smooth punch of Midbass and Midrange for small Hi-Fi enclosures in home or pro audio.

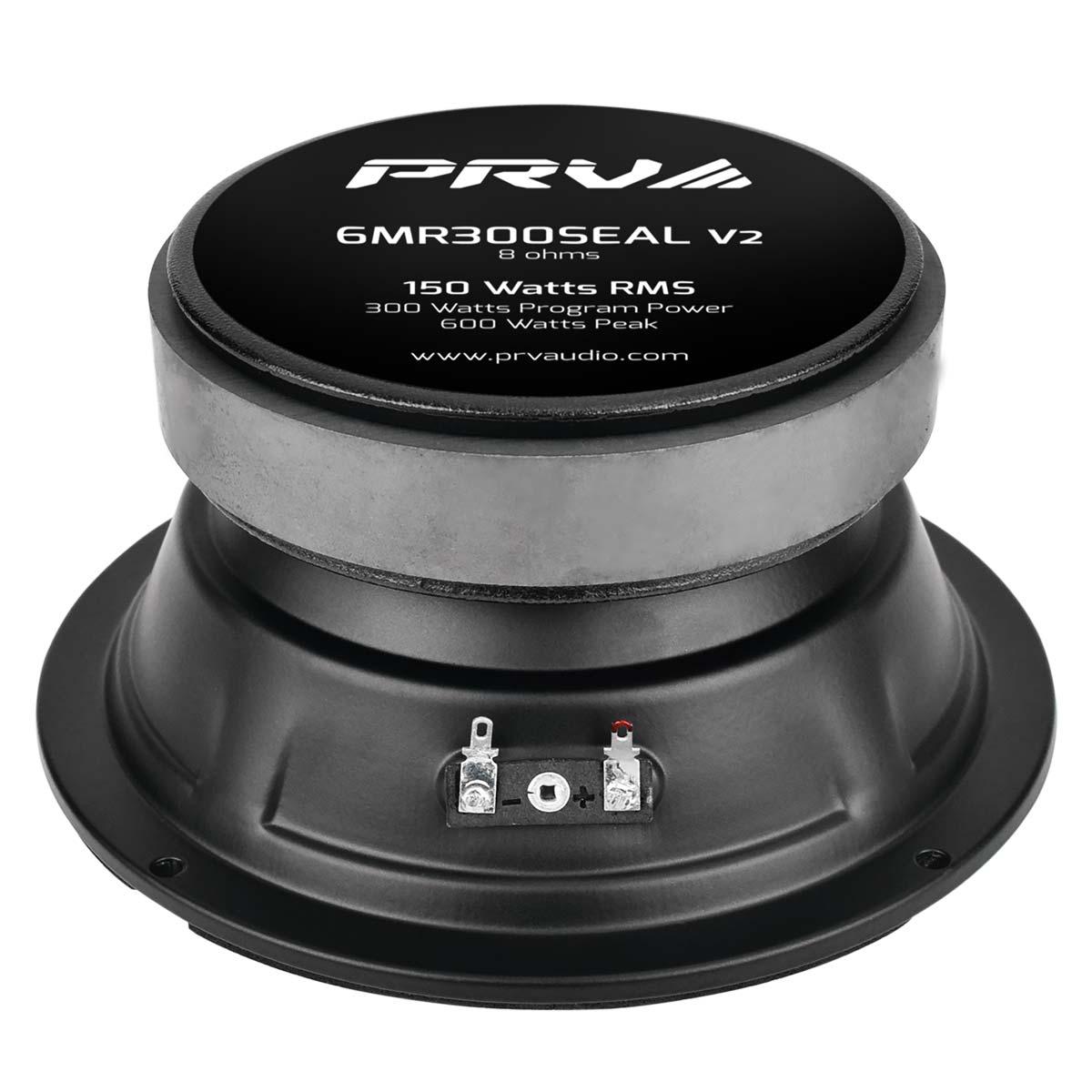

The 6MR300SEAL v2 has a sealed basket design, permitting it to reside in the same space as larger woofers without causing distortion to the Midbass driver. The large magnet assembly is attached to the sturdy reinforced steel enclosed frame completes the 6MR300SEAL v2 to ensure a solid support structure, for long lasting play in most any environment.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 150 Watts
  • Program Power: 300 Watts
  • Sensitivity (1W/1m): 96 dB
  • Voice Coil Diameter: 1.5?


GENERAL SPECIFICATIONS

Nominal Diameter 6? (152.4 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 150 Watts
Program Power 300 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
400 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 400 7,500 Hz
Voice Coil Diameter 1.5? (38.1 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 11.5 mm
Former Material Kapton
Magnetic Gap Depth 5.0 mm
Frame Material Stamped Steel


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 0.33 l
Excursion (mathematical)*** Xmax 4.50 mm
Free Air Resonance Fs 390.6 Hz
Mechanical Factor Qms 10.97
Electrical Factor Qes 2.97
Total Factor Qts 2.34
Cone Area Sd 143 cm
Mechanical Mass Mms 13.97 g
Bl Factor Bl 8.65 Tm
Dc Resistance Re 6.5 Ohms
Inductance Le 0.34 mH at 1 kHz
Mechanical Mass Without Air Mmd 13.06 g
Mechanical Compliance Cms 0.012 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.57? (167 mm)
Front Mount Baffle Cutout 5.82? (148 mm)
Mounting Depth 2.99? (76 mm)
...
