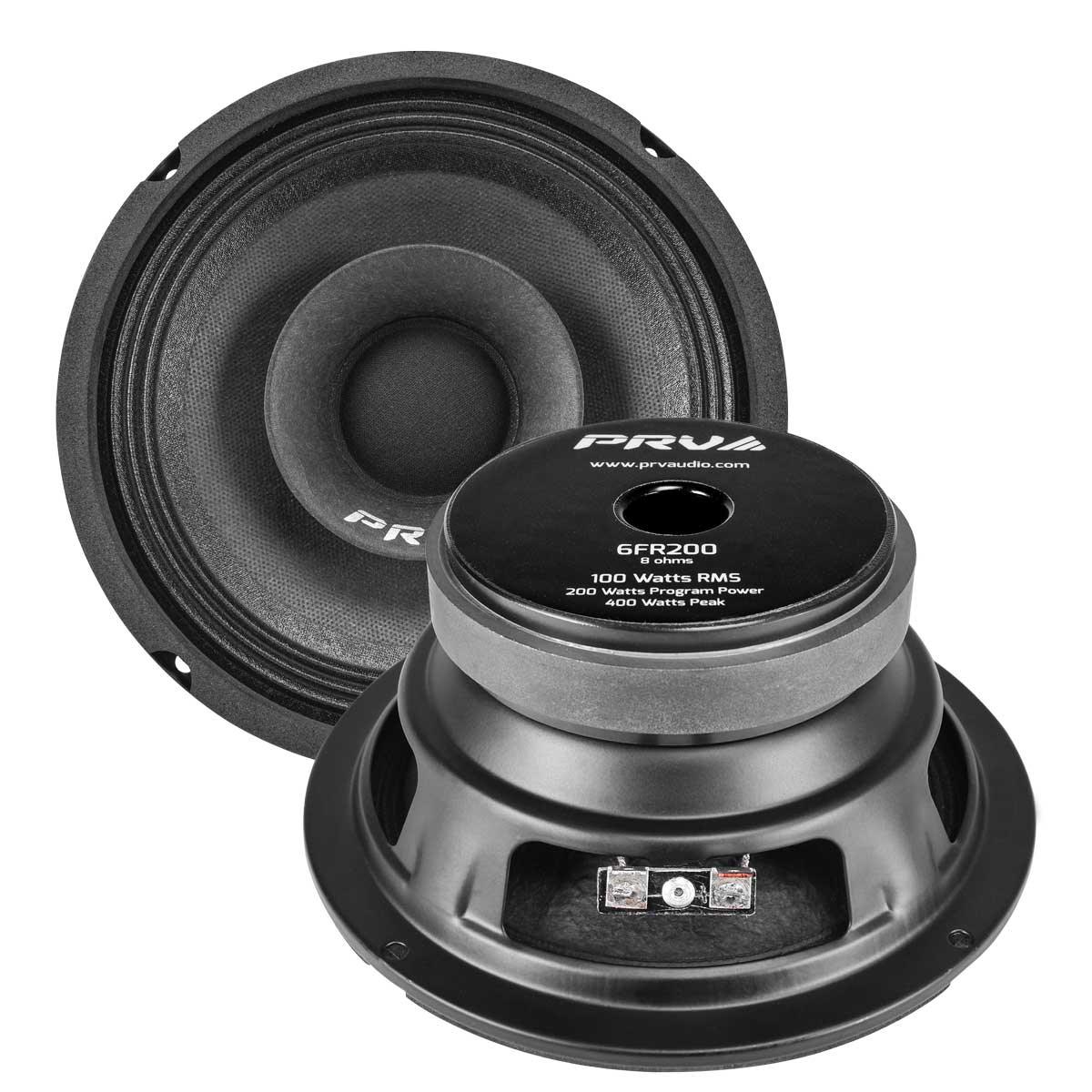

PRV Audio 6FR200 6.5" Fullrange Loudspeaker

Features The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers....
Vendor: PRV Audio
SKU: 6FR200
Availability: In Stock
$39.91
$39.91
Please hurry! Only 1 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 6FR200 6.5" Fullrange Loudspeaker

PRV Audio 6FR200 6.5" Fullrange Loudspeaker

$39.91

PRV Audio 6FR200 6.5" Fullrange Loudspeaker

$39.91

Features

The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers. The 6FR200 fullrange driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.

This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 80 Hz to 20,000 Hz.
The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 92.5 dB of sensitivity.

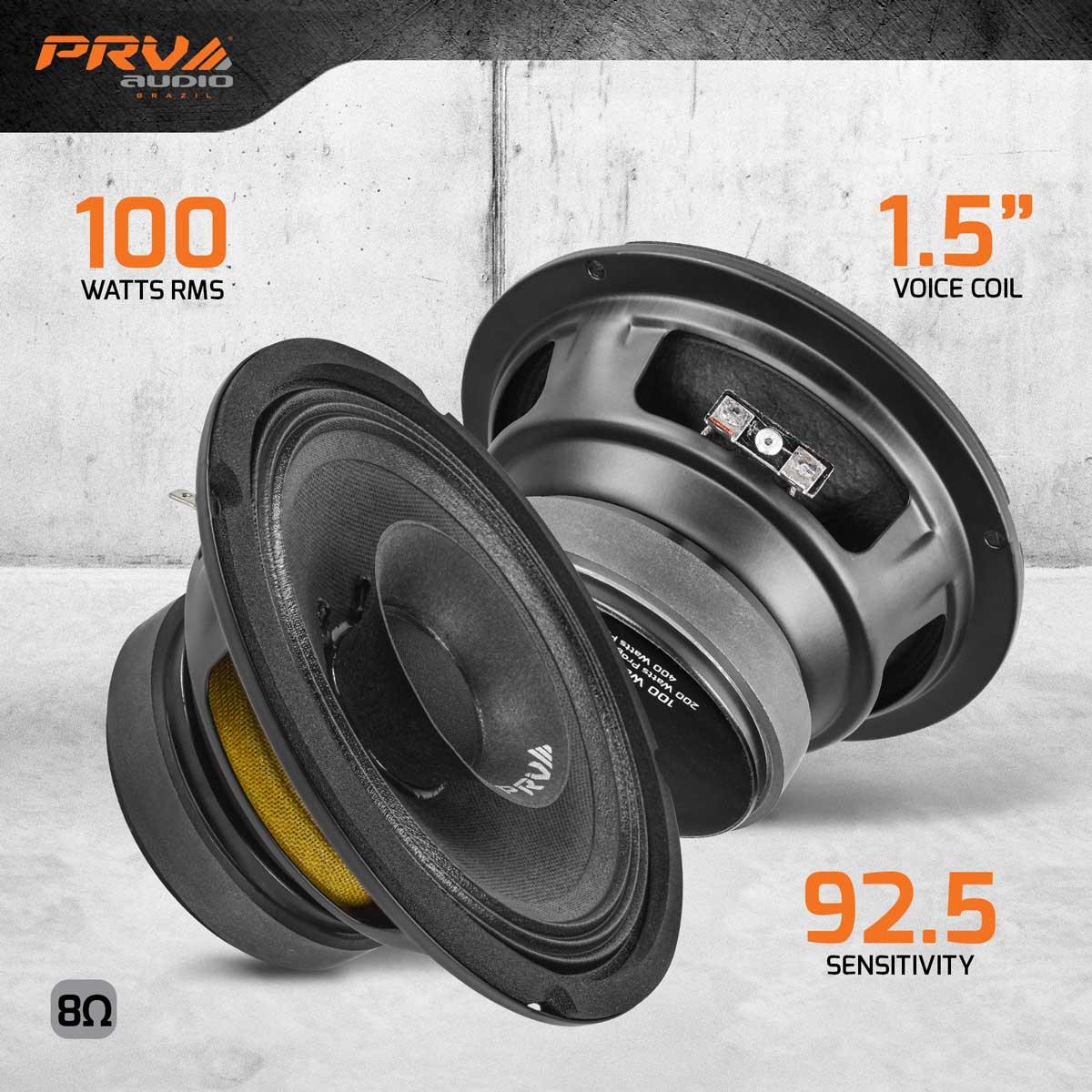

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 92.5 dB
  • Voice Coil Diameter: 1.5?


GENERAL SPECIFICATIONS

Nominal Diameter 6? (152 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 92.5 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
85 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 80 20,000 Hz
Voice Coil Diameter 1.5? (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 10.0 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 6.93 l
Excursion (mathematical)*** Xmax 3.50 mm
Free Air Resonance Fs 111.7 Hz
Mechanical Factor Qms 15.69
Electrical Factor Qes 1.40
Total Factor Qts 1.29
Cone Area Sd 143 cm
Mechanical Mass Mms 8.37 g
Bl Factor Bl 5.17 Tm
Dc Resistance Re 6.4 Ohms
Inductance Le 0.264 mH at 1 kHz
Mechanical Mass Without Air Mmd 7.40 g
Mechanical Compliance Cms 0.242 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

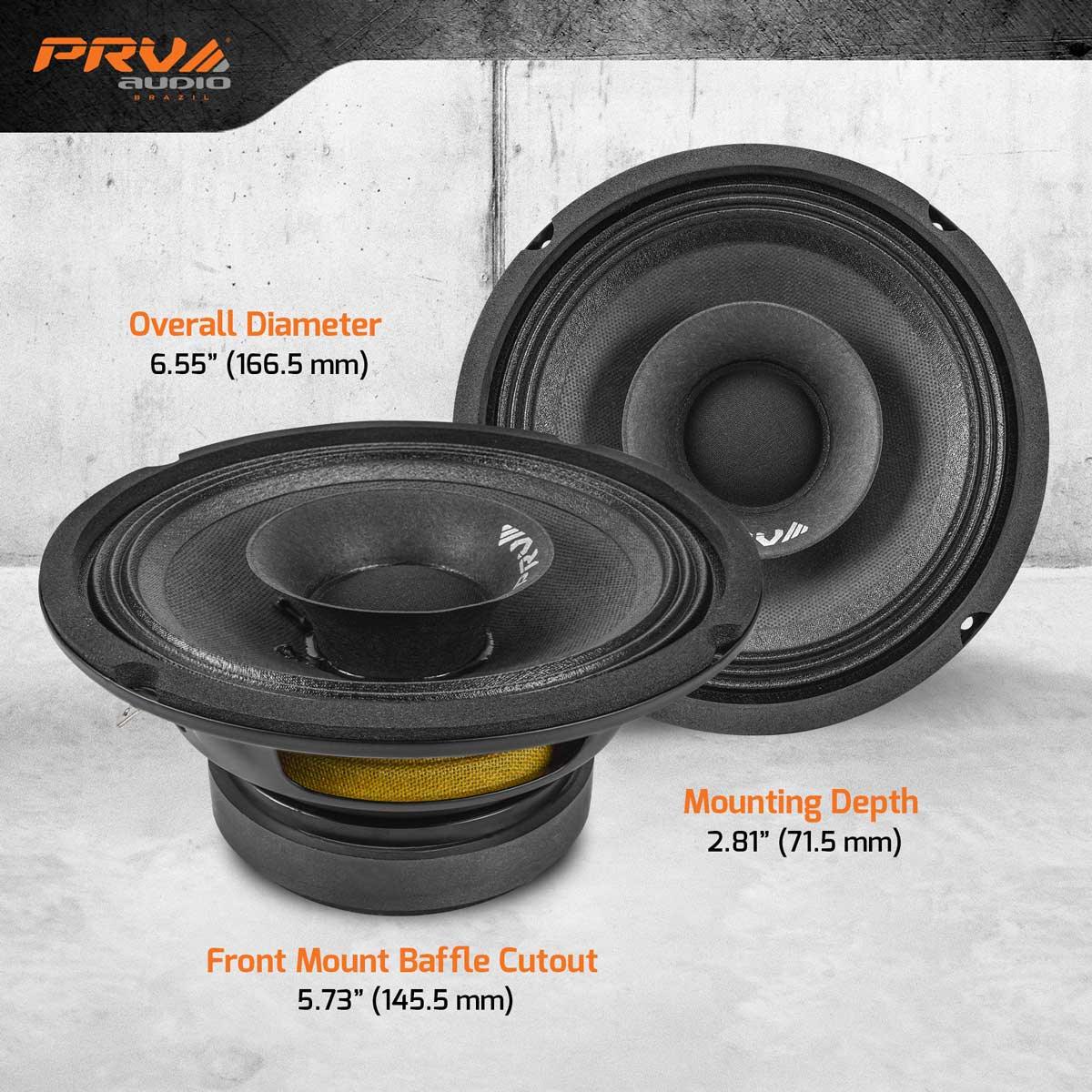

Overall Diameter 6.55 (166.5 mm)
Front Mount Baffle Cutout 5.73 (145.5 mm)
Mounting Depth 2.81 (71.5 mm)
Overall Depth 3.09 (78.5 mm)
Net Weight<...
