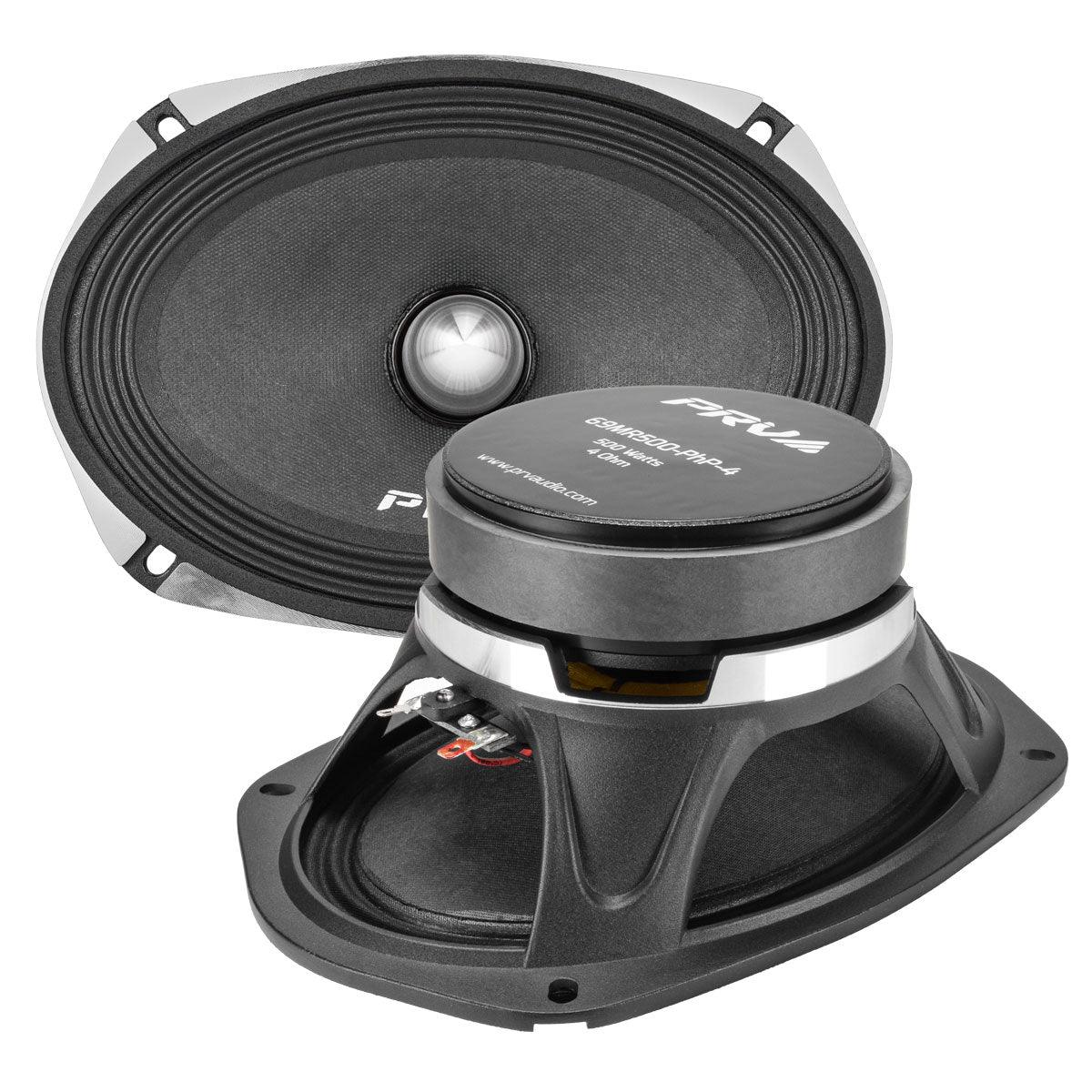

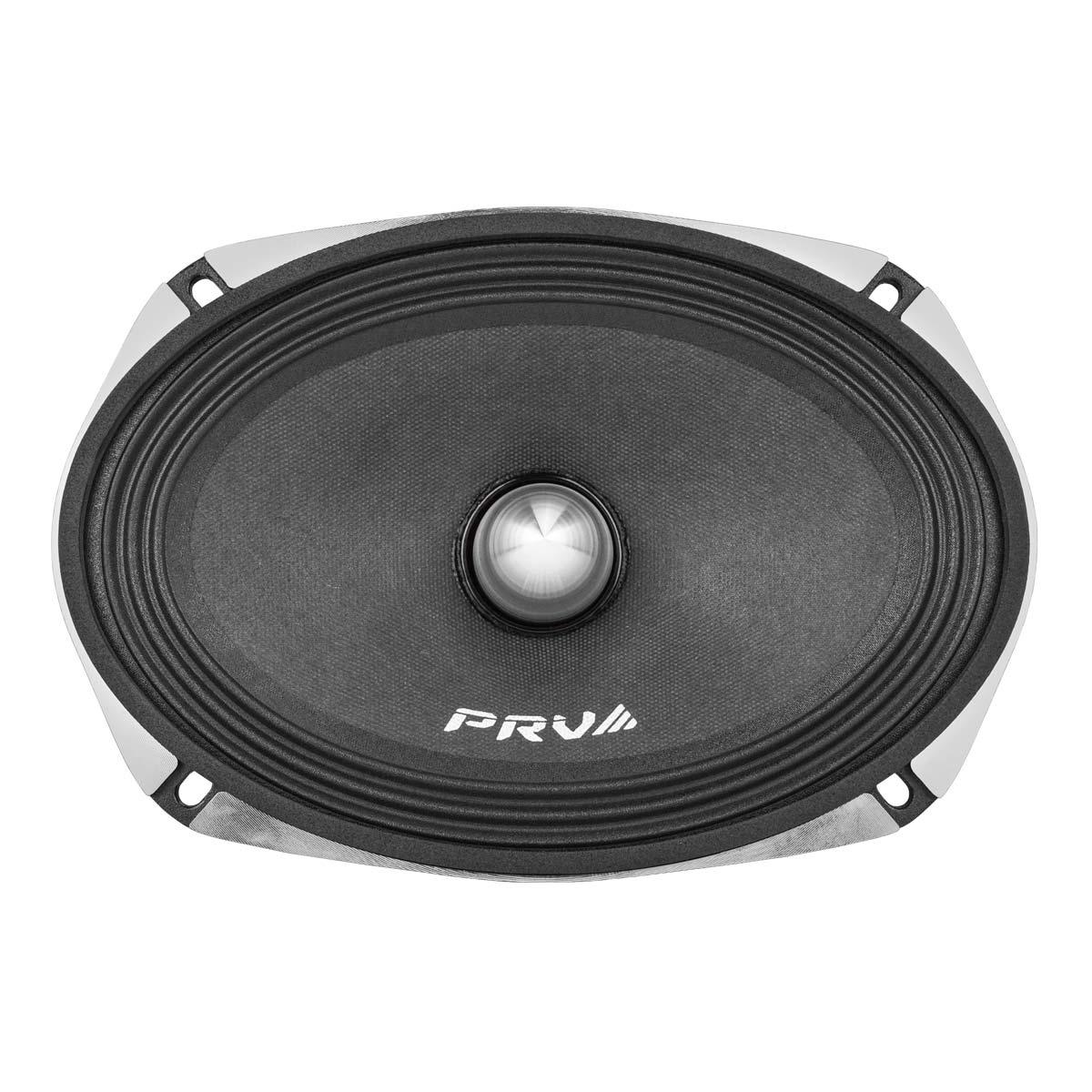

PRV Audio 69MR500-PhP-4 High Spl Midrange Loudspeaker

Features PRV Audios 69MR500-PhP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz....
Vendor: PRV Audio
SKU: 69MR500-PhP-4
Availability: Out Of Stock
$69.91
$69.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 69MR500-PhP-4 High Spl Midrange Loudspeaker

PRV Audio 69MR500-PhP-4 High Spl Midrange Loudspeaker

$69.91

PRV Audio 69MR500-PhP-4 High Spl Midrange Loudspeaker

$69.91

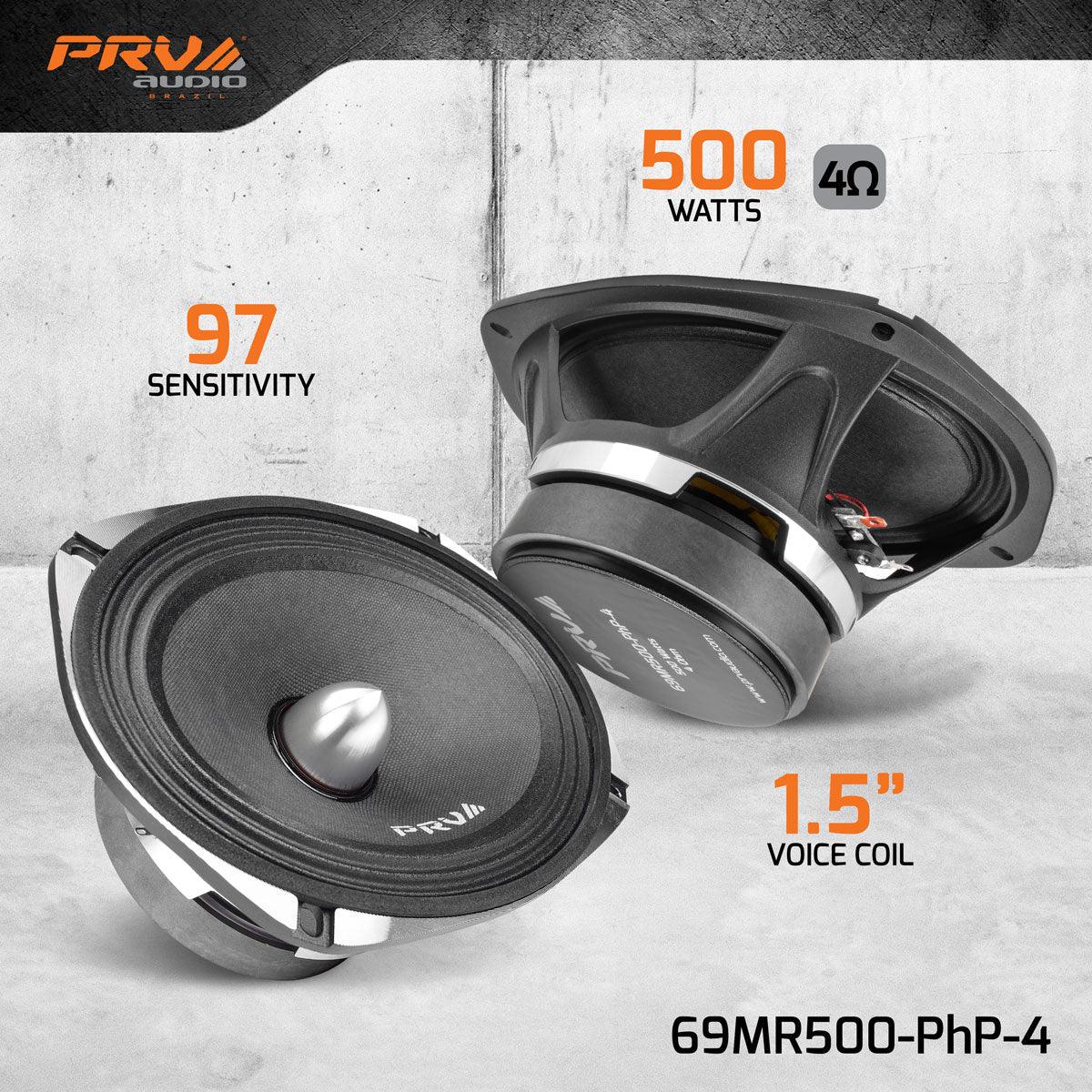

Features

PRV Audios 69MR500-PhP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way system requiring additional midrange support.

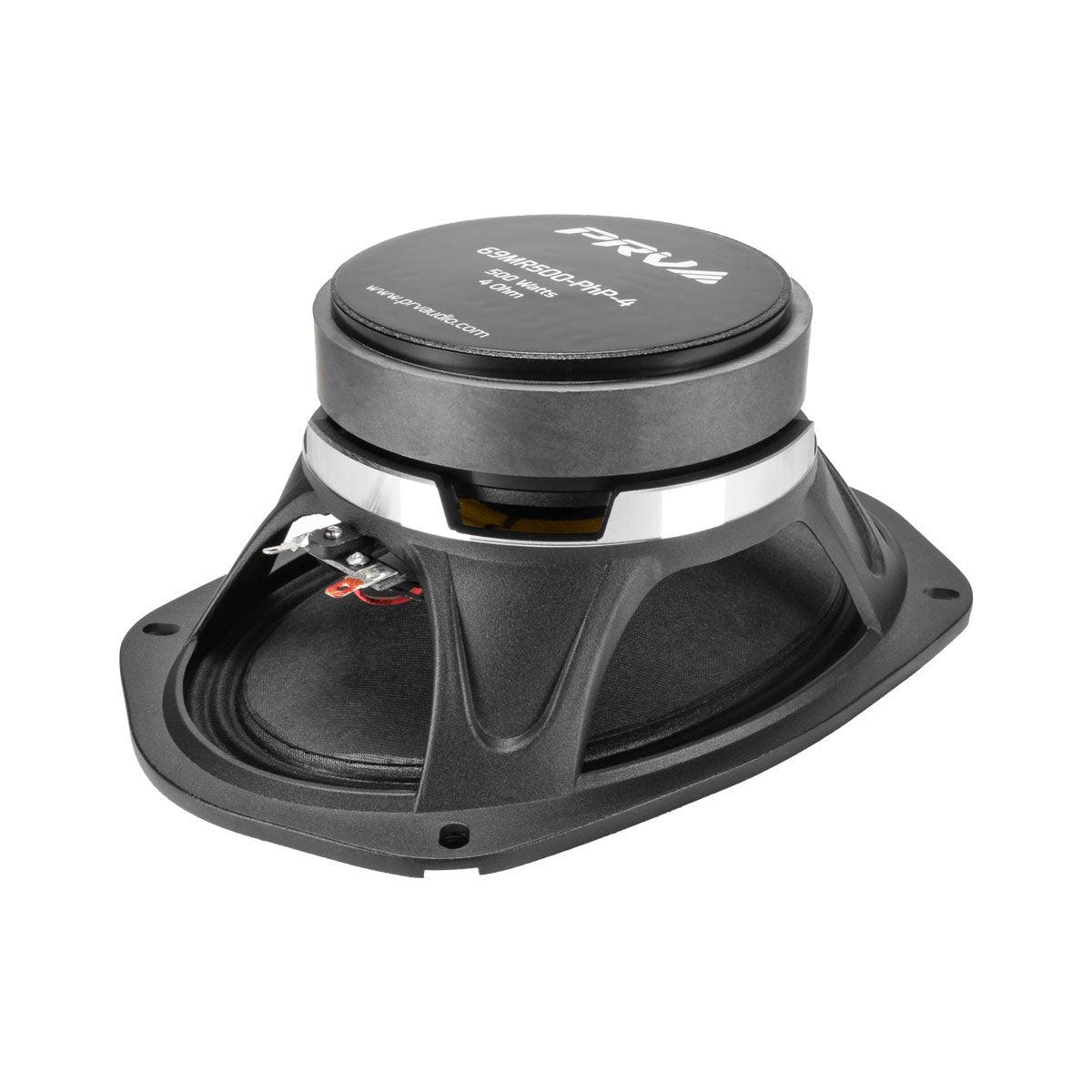

It includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth, high frequency response.


Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 250 Watts
  • Program Power: 500 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 1.5?


GENERAL SPECIFICATIONS

Nominal Diameter 6 x 9? (152 x 228 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 250 Watts
Program Power 500 Watts
Sensitivity 2.00V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
500 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 500 12,000 Hz
Voice Coil Diameter 1.5? (38 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 8.5 mm
Former Material Kapton
Magnetic Gap Depth 5.5 mm
Frame Material Die cast aluminum


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 15.16 l
Excursion (mathematical)*** Xmax 2.87 mm
Free Air Resonance Fs 91.74 Hz
Mechanical Factor Qms 14.20
Electrical Factor Qes 0.68
Total Factor Qts 0.65
Cone Area Sd 231 cm
Mechanical Mass Mms 14.76 g
Bl Factor Bl 6.8 Tm
Dc Resistance Re 3.7 Ohms
Inductance Le 0.14 mH at 1 kHz
Mechanical Mass Without Air Mmd 12.78 g
Mechanical Compliance Cms 0.204 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

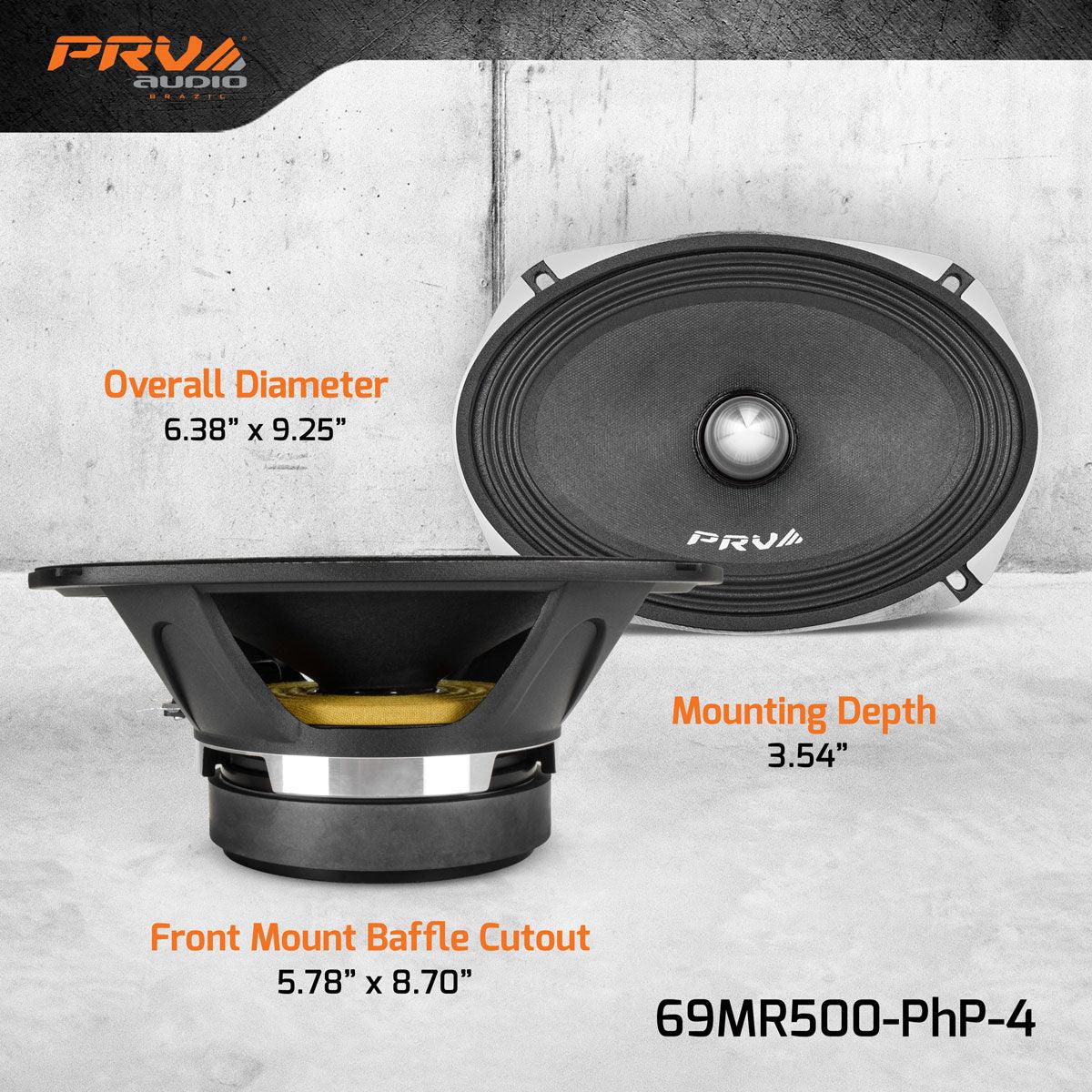

EXTRA INFO

Overall Diameter 6.38 x 9.25
(162 x 235 mm)
Front Mount Baffle Cutout 5.78 x 8.70
(147 x 221 mm)
Mounting Depth 3.54 (90 m...
