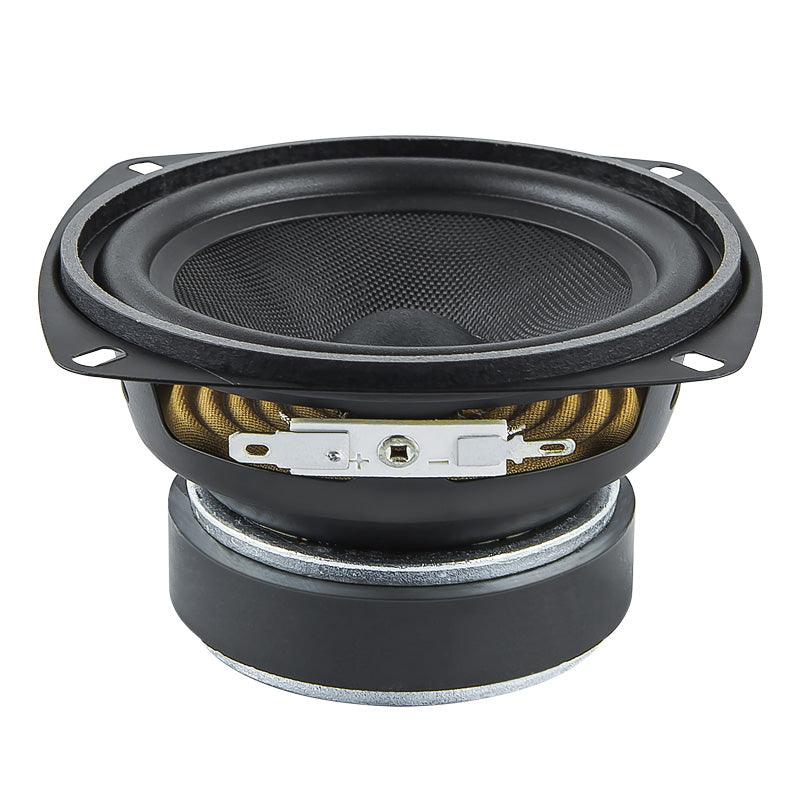

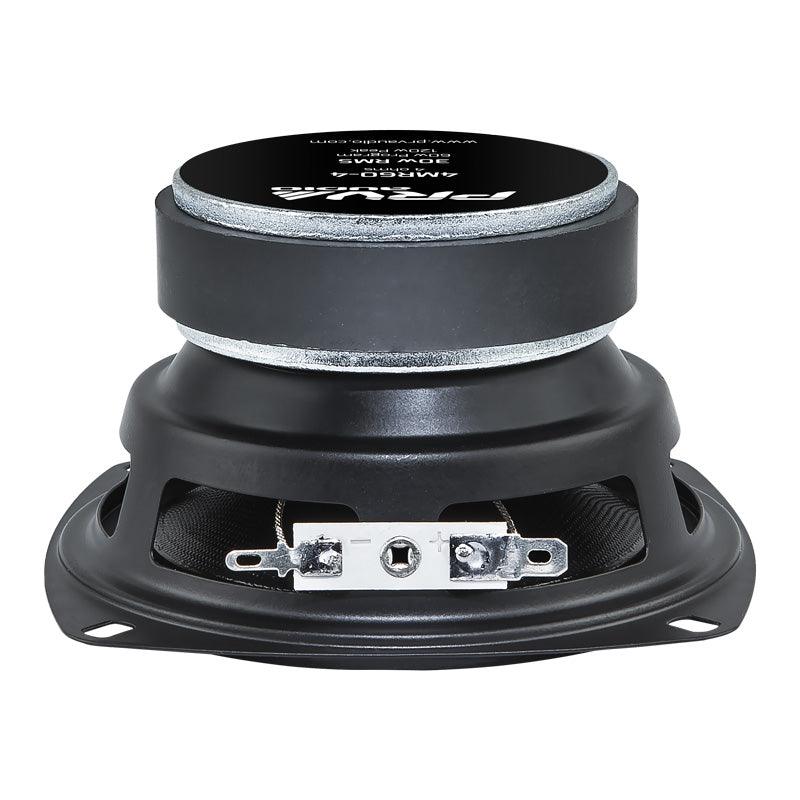

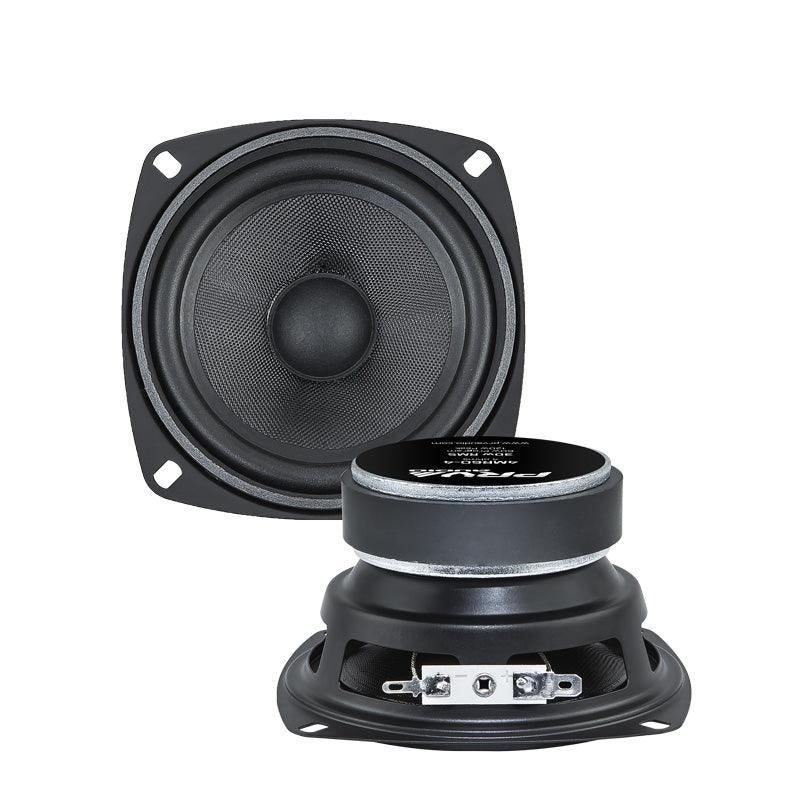

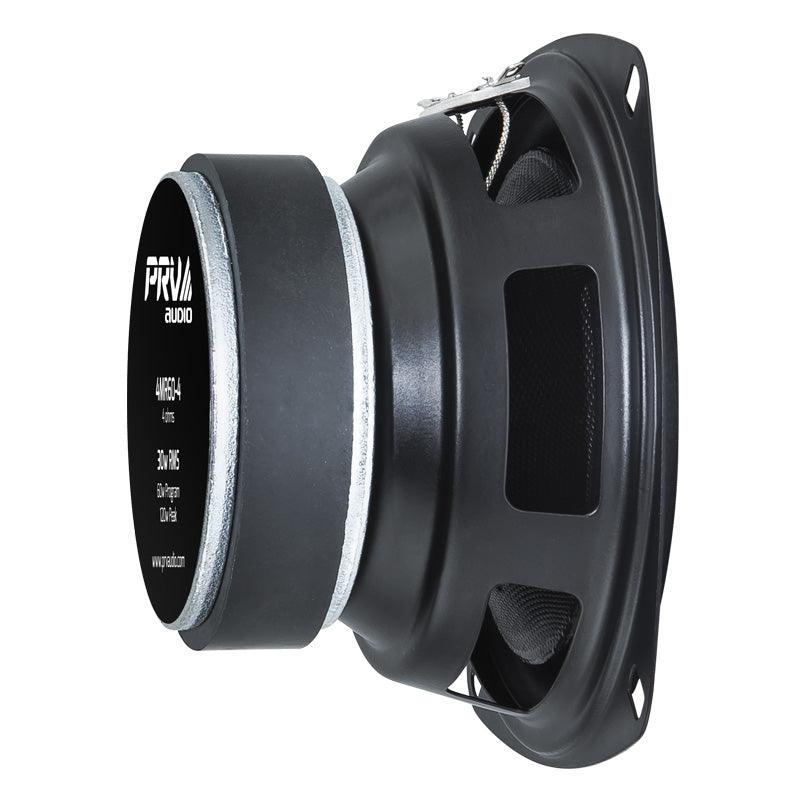

PRV Audio 4MR60-4 4" Midrange Loudspeaker

Features The 4MR60-4 full range speaker delivers broad frequency coverage and flat midrange response that ensures vocals...
Vendor: PRV Audio
SKU: 4MR60-4
Availability: In Stock
$19.99
$19.99
Please hurry! Only 2 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 4MR60-4 4" Midrange Loudspeaker

PRV Audio 4MR60-4 4" Midrange Loudspeaker

$19.99

PRV Audio 4MR60-4 4" Midrange Loudspeaker

$19.99

Features

The 4MR60-4 full range speaker delivers broad frequency coverage and flat midrange response that ensures vocals and instruments to deliver ideal sound. The 4? midrange speaker 4MR60-4 is a pro audio midrange with very high sensitivity and a smooth extended frequency response up to 8 kHz. The small dimensions and high output make it very useful to use in compact line array systems as a transition between the mid bass and high frequency way.

Each material and component such as the woven fiber glass cone, large spider, and rubber surround is carefully chosen to ensure a great sound quality and low distortion. The 4MR60-4 even operates at high power. It is also applicable in home theaters, satellites, and surround speakers as well as in car audio when you are limited in space and require extended frequency response. Each material and component such as the woven fiber glass cone, large spider, and rubber surround is carefully chosen to ensure a great sound quality and low distortion, it even operates at high power.

Check PRV Audio MIDRANGE speakers.


  • Nominal Impedance: 4 Ohm
  • 60 Watts RMS Music Power Handling, with a 90 dB Sensitivity, capable of generating alot sound with a small cone!
  • Voice Coil Diameter: 0.78?
  • Ideal solution for compact full-range applications


GENERAL SPECIFICATIONS

Nominal Diameter 4 (101.6 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 30 Watts
Program Power 60 Watts
Sensitivity 2.00V at 1m 90 dB
Recommended Hi Pass Crossover* *For Full Power Handling 190 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 90 15,000 Hz
Voice Coil Diameter 0.78 (20 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 7.5 mm
Former Material Kapton
Magnetic Gap Depth 3.5 mm
Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 3.26 l
Excursion (mathematical)*** Xmax 2.87 mm
Free Air Resonance Fs 89.88 Hz
Mechanical Factor Qms 7.34
Electrical Factor Qes 0.75
Total Factor Qts 0.68
Cone Area Sd 57 cm
Mechanical Mass Mms 4.32 g
Bl Factor Bl 3.42 Tm
Dc Resistance Re 3.6 Ohms
Inductance Le 0.20 mH at 1 kHz
Mechanical Mass Without Air Mmd 4.07 g
Mechanical Compliance Cms 0.725 mm/N

***Xmax=(Voice coil winding depth-Magn...
