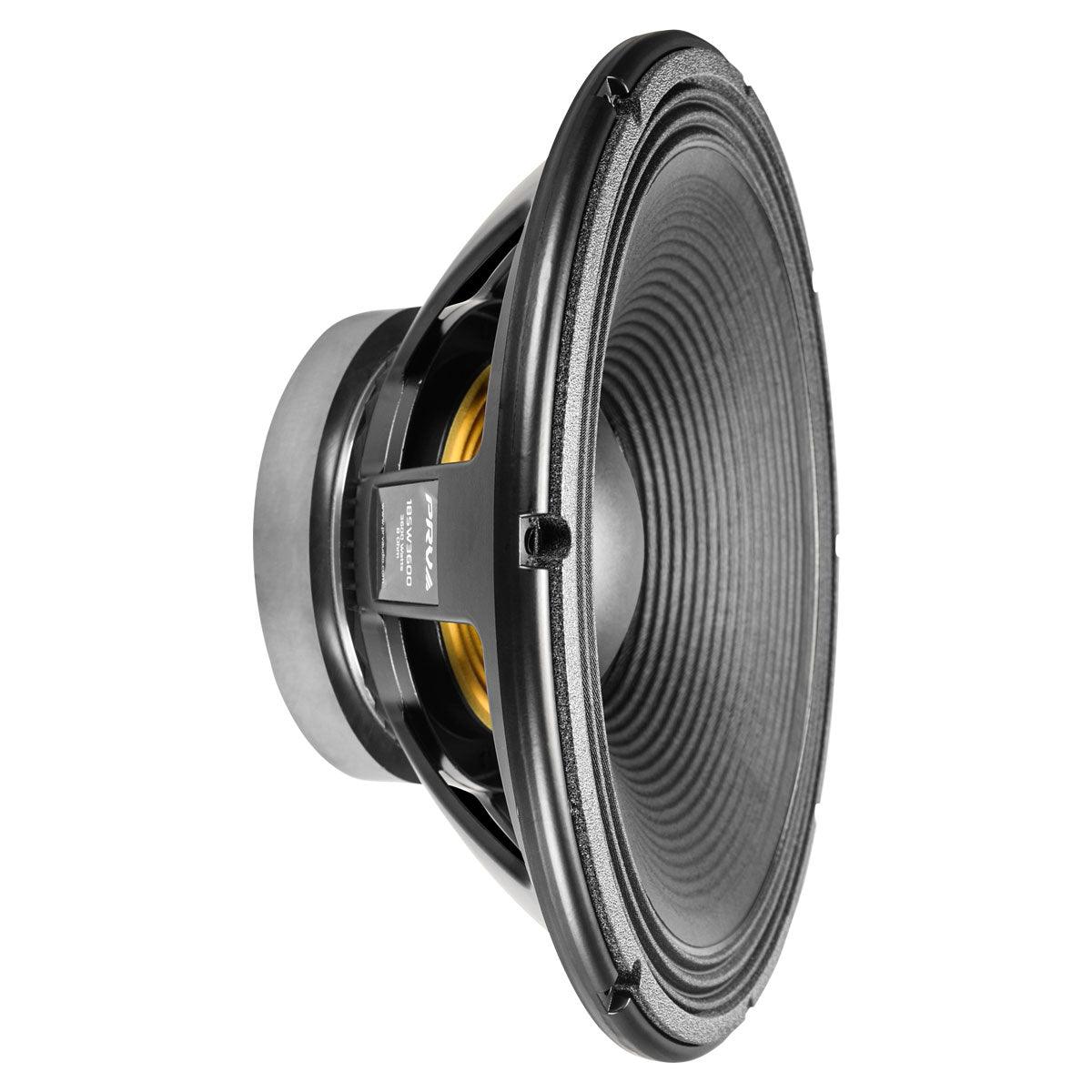

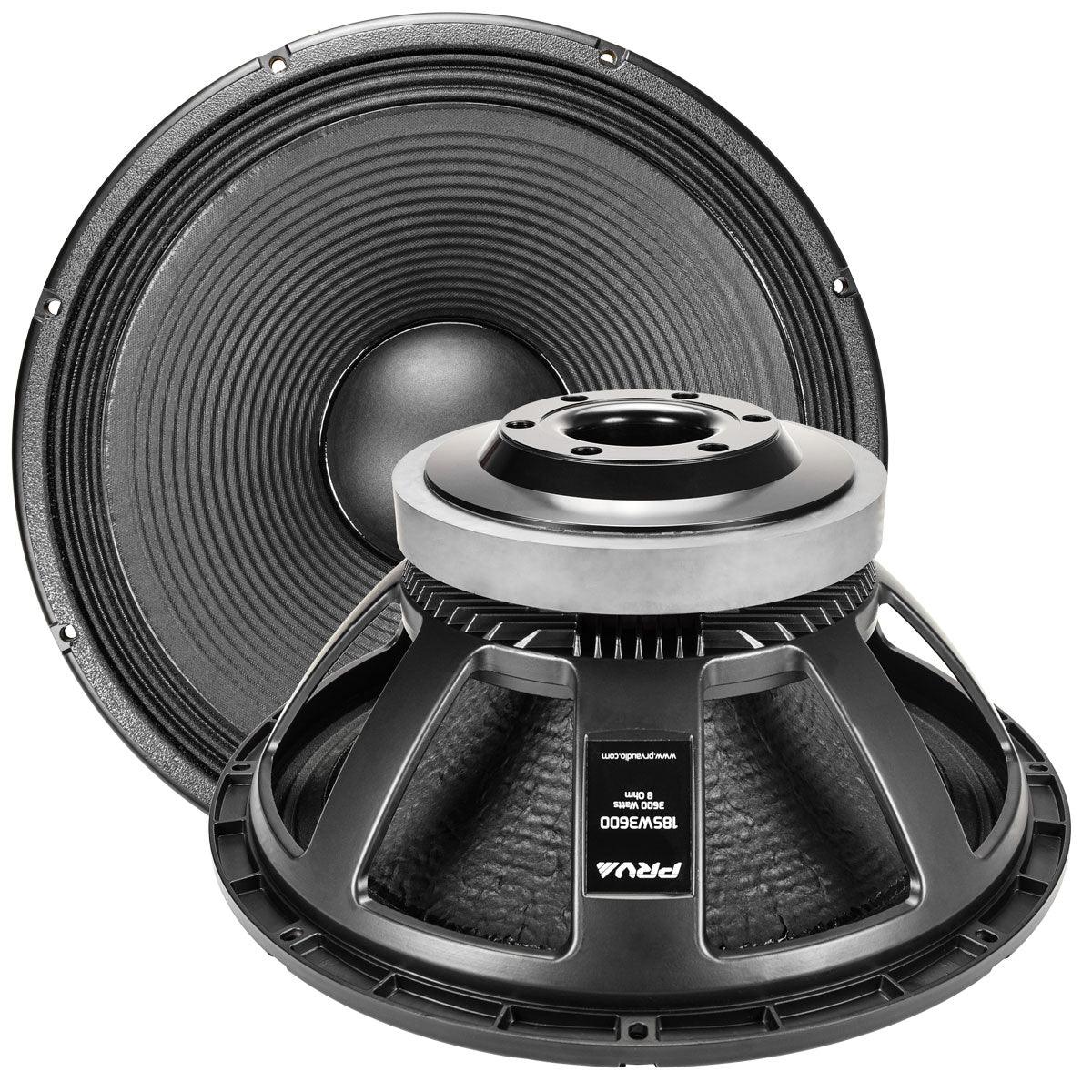

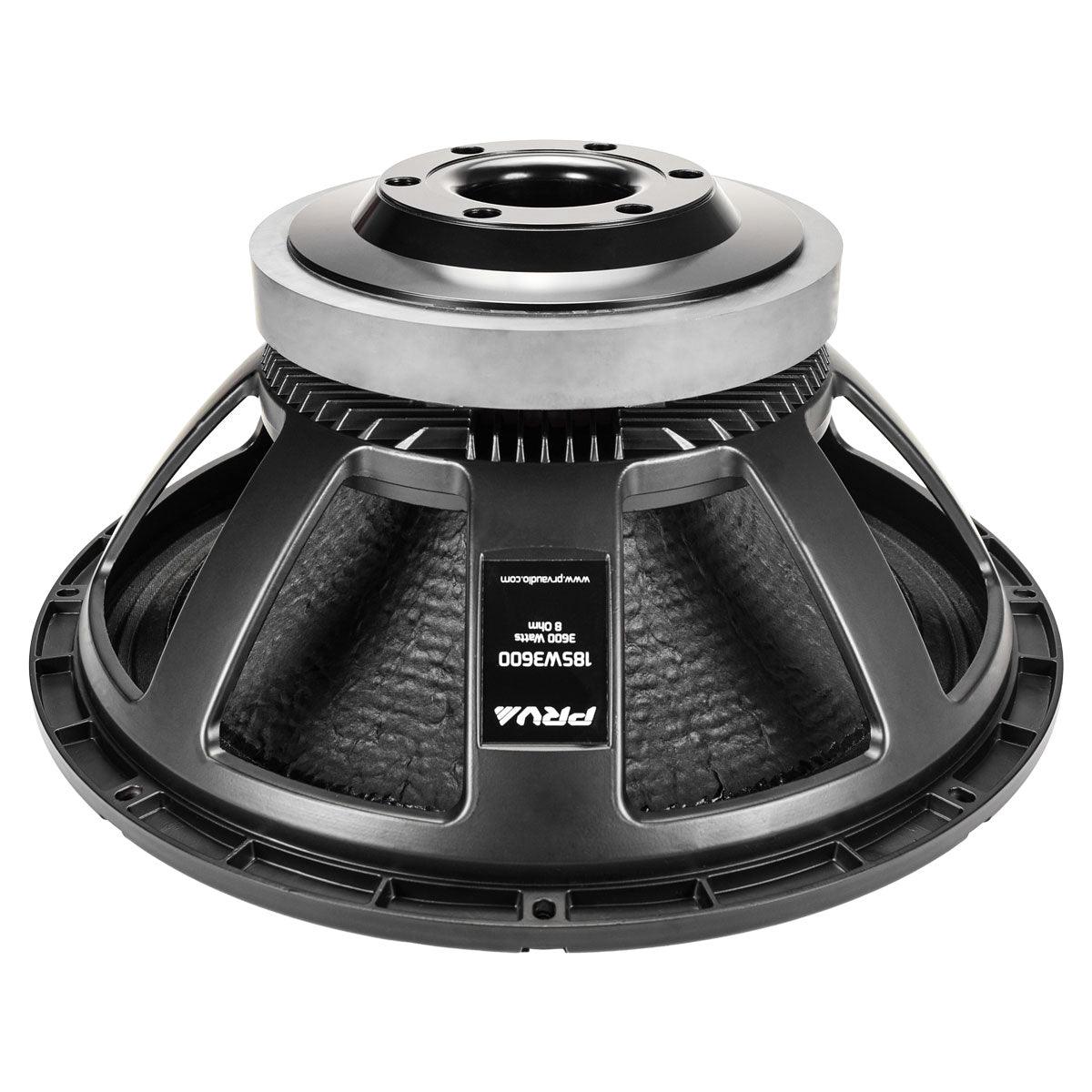

PRV Audio 18SW3600 18" Subwoofer Loudspeaker

Features PRV Audio left no boxes unchecked on the 18SW3600 subwoofer for serious professional audio applications where...
Vendor: PRV Audio
SKU: 18SW3600
Availability: In Stock
$349.91
$349.91
Please hurry! Only 2 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 18SW3600 18" Subwoofer Loudspeaker

PRV Audio 18SW3600 18" Subwoofer Loudspeaker

$349.91

PRV Audio 18SW3600 18" Subwoofer Loudspeaker

$349.91

Features

PRV Audio left no boxes unchecked on the 18SW3600 subwoofer for serious professional audio applications where extremely high power handling and low distortion are required.

Highlights

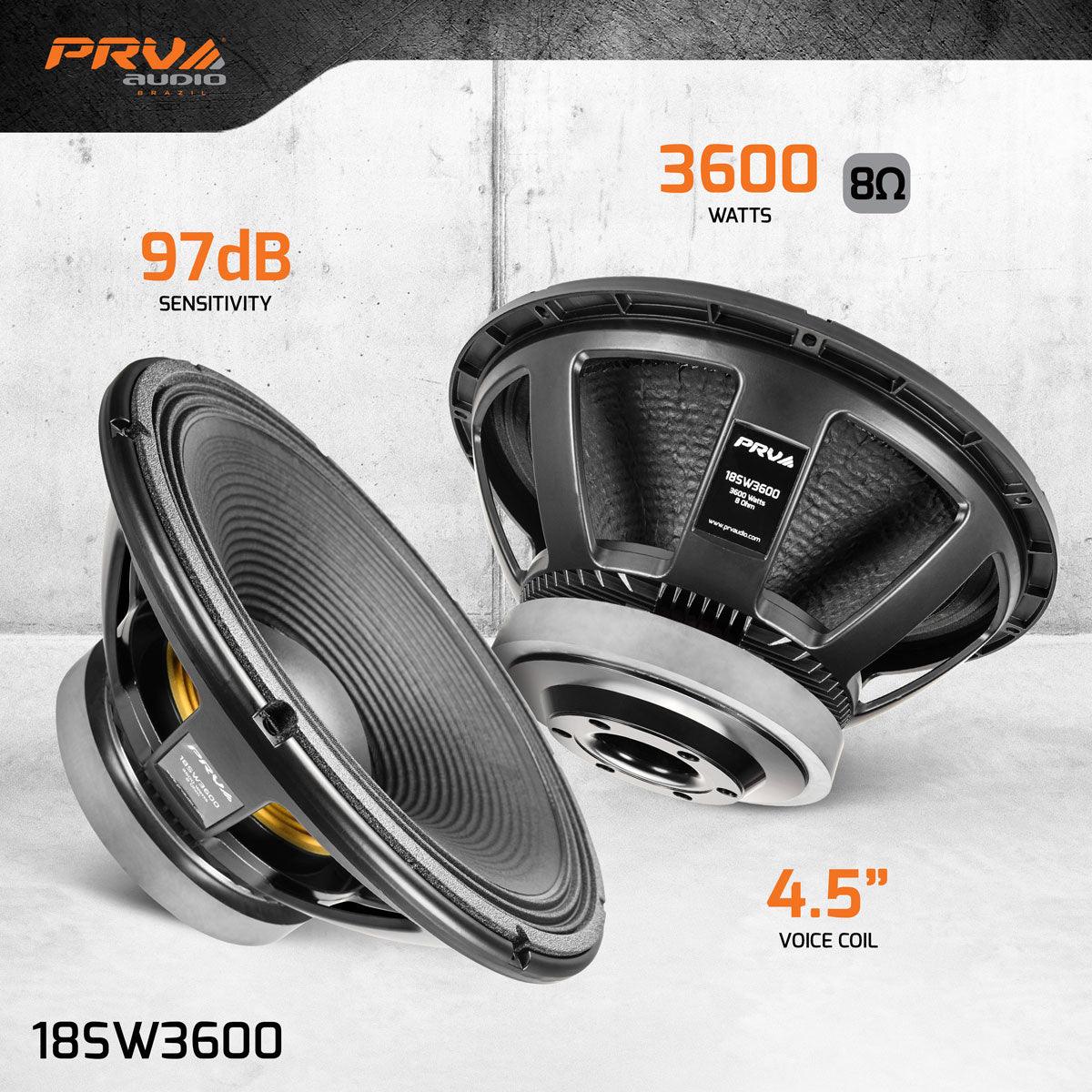

  • Tall 34 mm winding, 4.5? voice coil handles 3600 watts Program RMS
  • Over 13.5 mm of Xmax for deep bass reproduction
  • High BL motor for impressive control and massive output
  • Dual forced cooling system. Under the spider and at its pole piece venting allows cooling the voice coil faster.
  • Extremely high BL factor and Xmax for outstanding low frequency output

It features high power handling, 4.5? inner and outer wound voice coil, fiberglass fiber former, powerful optimized ferrite motor, ribbed paper cone and waterproof cone treatment all specially designed to provide powerful and accurate sub-bass frequencies with low distortion and low power compression.


The dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.

Thanks to the optimized ferrite motor assembly of 30 mm, the 18SW3600 is lighter than a comparable ferrite driver at this power handling, making it perfect for mobile DJs and portable PA systems where the highest power handling is wanted with minimum weight.


A double silicon spider system ensures excellent control during large excursions of 54 mm peak-to-peak excursion before damage. A fully optimized T-pole design generates the minimum amount of flux modulation.



GENERAL SPECIFICATIONS

Nominal Diameter 18? (457 mm)
Nominal impedance 8 Ohm
Nominal Power Handling 1800 Watts
Continuous Program Power (RMS) 3600 Watts
Max Peak Power 7200 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
45 Hz**
**12db Per Octave Crossover
Frequency Response 35 1,300 Hz
Voice Coil Diameter 4.5? (114 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 34.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 15 mm
Frame Material Die Cast Aluminum


THIELE-SMALL PARAMETERS

...
Equivalent Volume Vas 279.7 l
Excursion (mathematical)*** Xmax 13.25 mm
Free Air Resonance Fs 32.5 Hz
Mechanical Factor Qms 10.72
Electrical Factor Qes 0.38
Total Factor Qts 0.36
Cone Area Sd 1340 cm
Mechanical Mass Mms 215.1 g
Bl Factor Bl 25.53 Tm
Dc Resistance Re 5.6 Ohms
Inductance Le 2.75 mH at 1 kHz
Mechanical Mass Without Air Mmd
