PRV Audio 18SW2400 18" Subwoofer Loudspeaker

Features PRV Audios 18SW2400 subwoofer is designed for professional audio applications requiring high power handling and low...
Vendor: PRV Audio
SKU: 18SW2400
Availability: In Stock
$229.91
$229.91
Please hurry! Only 2 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 18SW2400 18" Subwoofer Loudspeaker

PRV Audio 18SW2400 18" Subwoofer Loudspeaker

$229.91

PRV Audio 18SW2400 18" Subwoofer Loudspeaker

$229.91

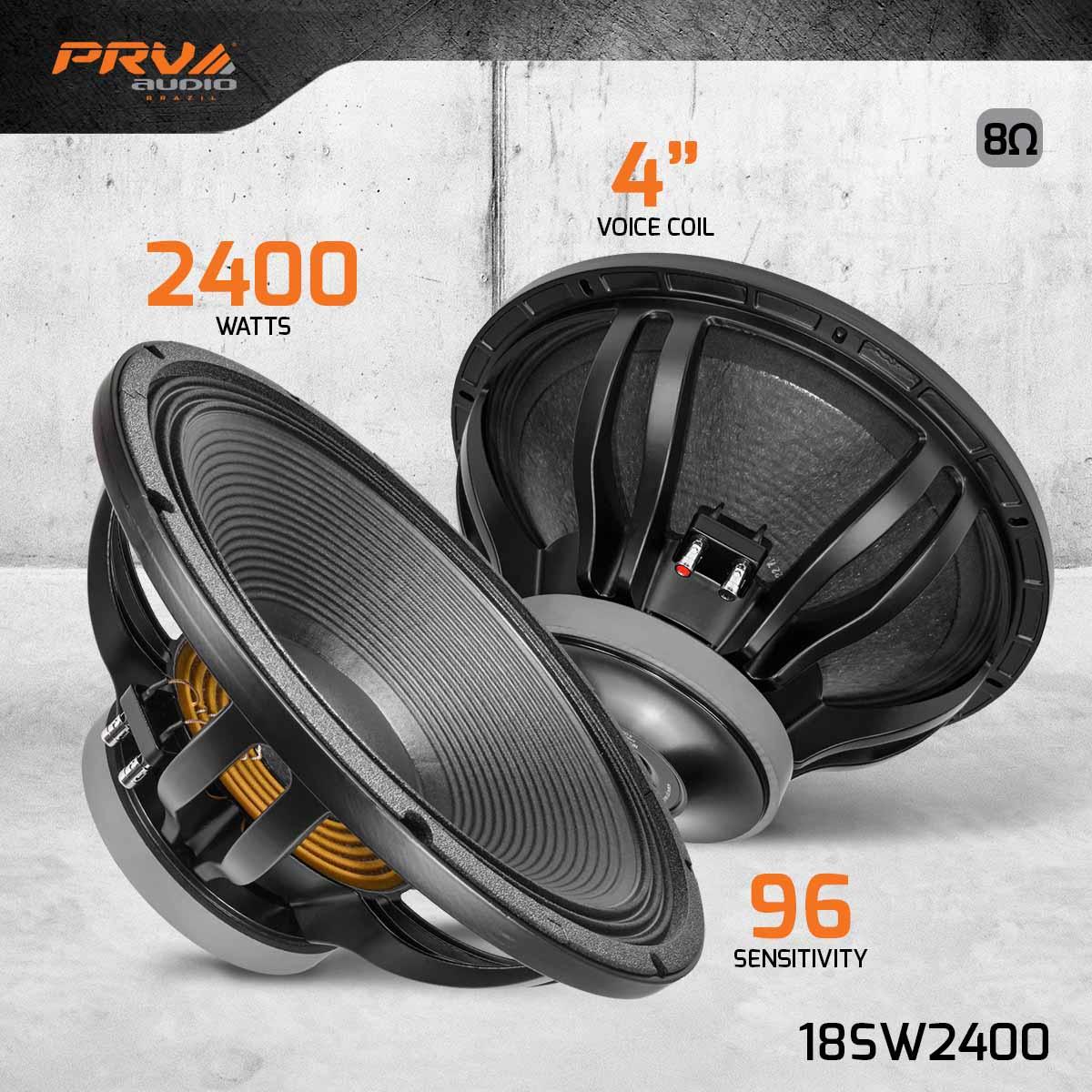

Features

PRV Audios 18SW2400 subwoofer is designed for professional audio applications requiring high power handling and low distortion.

  • 31 mm Height, 4? voice coil handles 2400 watts Program RMS

  • Over 12.5 mm of Xmax for deep bass reproduction

  • High BL motor for impressive control and massive output

  • For maximum power handling, there is under-spider venting

  • When loaded in small boxes, it produces big sound

With its extended low-end response, great performance is realized in vented boxes as small as 7 cu. ft. This makes it ideal for applications where space is limited but powerful, deep bass is needed.



GENERAL SPECIFICATIONS

Nominal Diameter 18? (457 mm)
Nominal impedance 8 Ohm
Rated AES Power Handling (RMS) 1200 Watts
Program Power 2400 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 50 Hz 12db Per Octave Crossover
Frequency Response 45 2,200 Hz
Voice Coil Diameter 4? (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 31.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 192.8 l
Excursion (mathematical)*** Xmax 12.5 mm
Free Air Resonance Fs 36.3 Hz
Mechanical Factor Qms 15.57
Electrical Factor Qes 0.58
Total Factor Qts 0.56
Cone Area Sd 1290 cm
Mechanical Mass Mms 231.2 g
Bl Factor Bl 22.5 Tm
Dc Resistance Re 5.6 Ohm
Inductance Le 1.54 mH at 1 kHz
Mechanical Mass Without Air Mmd 205 g
Mechanical Compliance Cms 0.083 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

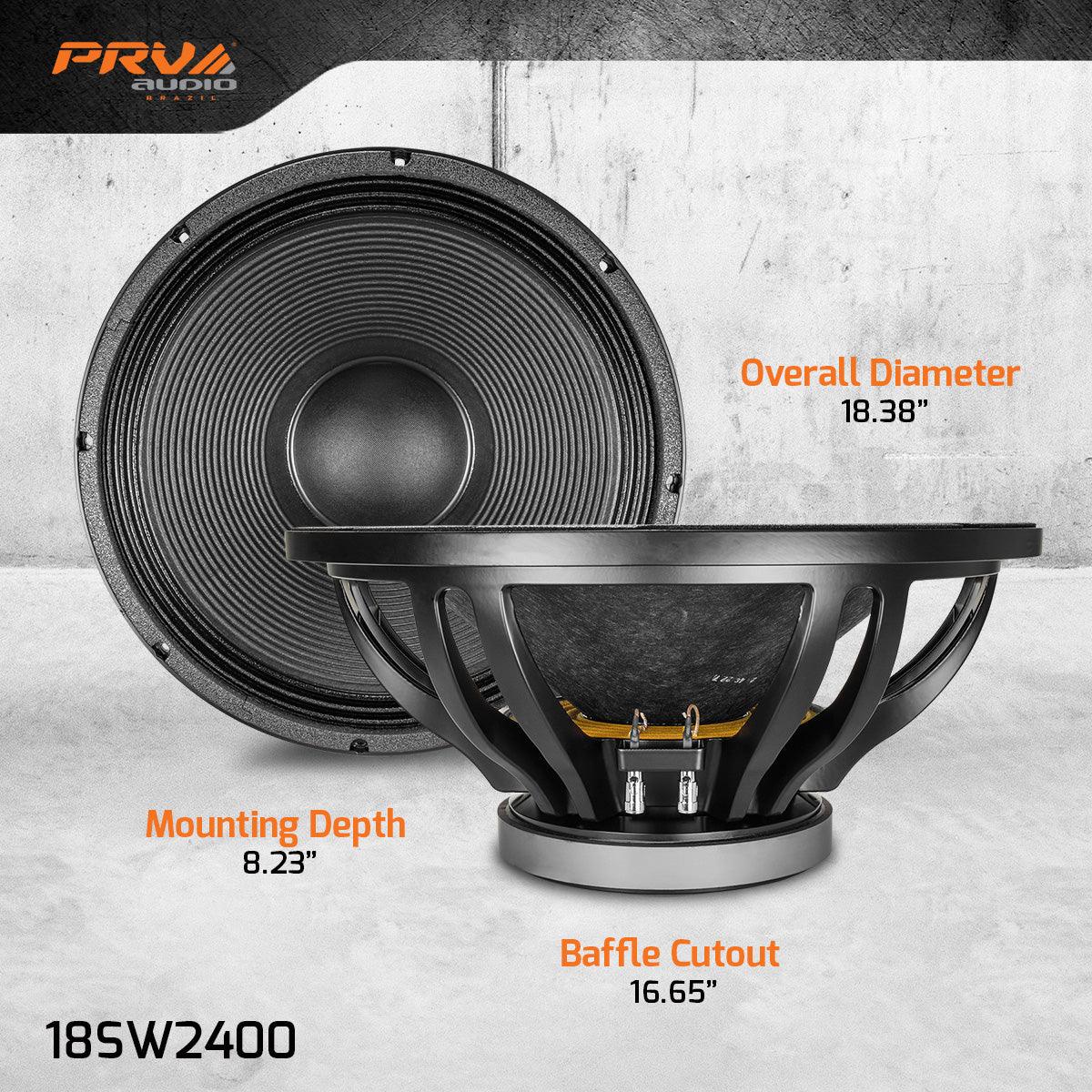

EXTRA INFO

Overall Diameter 18.38? (467 mm)
Front Mount Baffle Cutout 16.65 (423 mm)
Mounting Depth 8.23...
