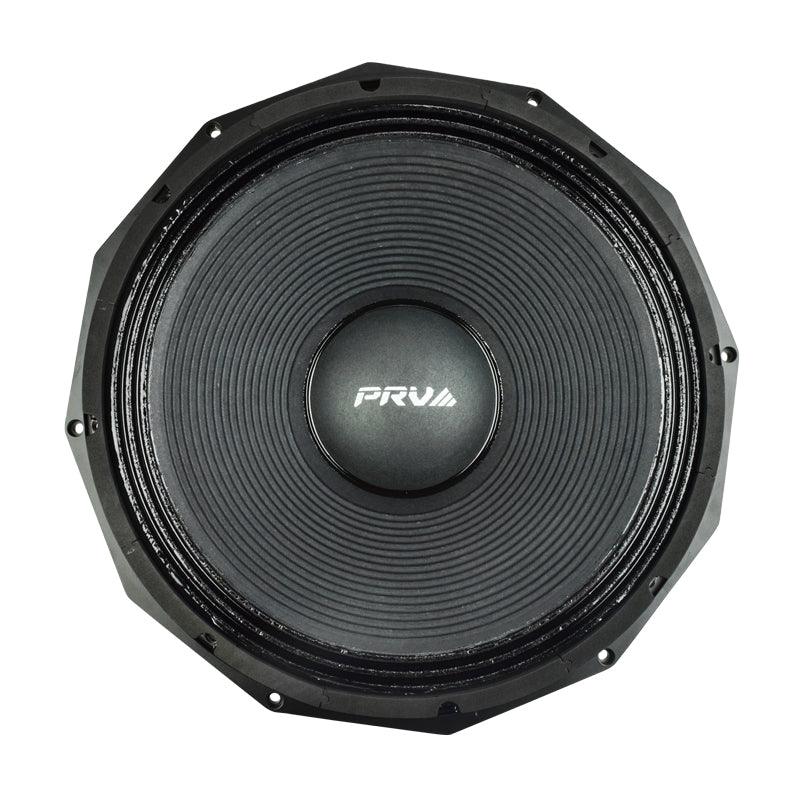

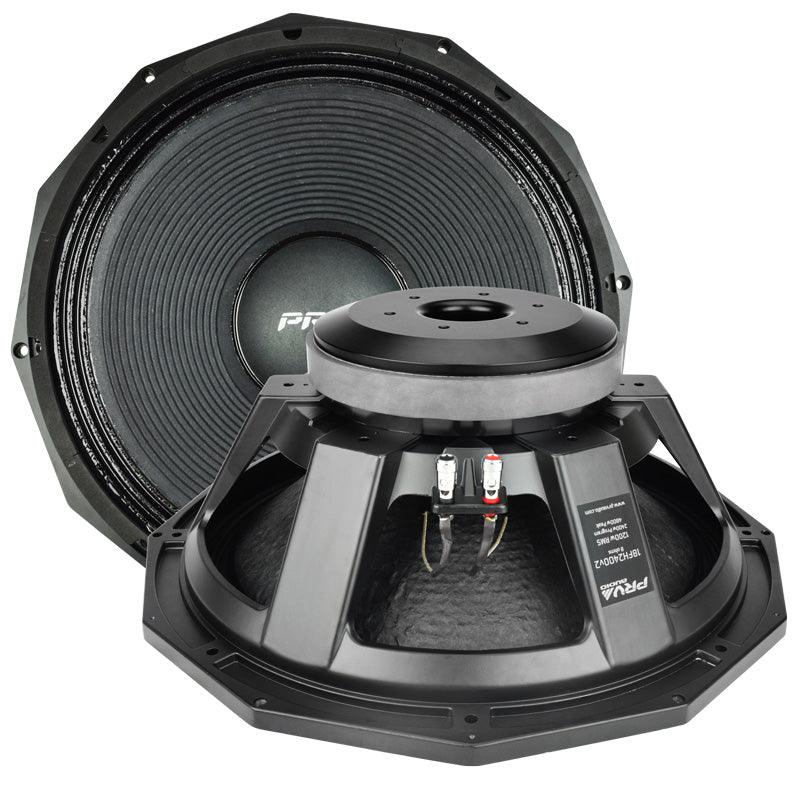

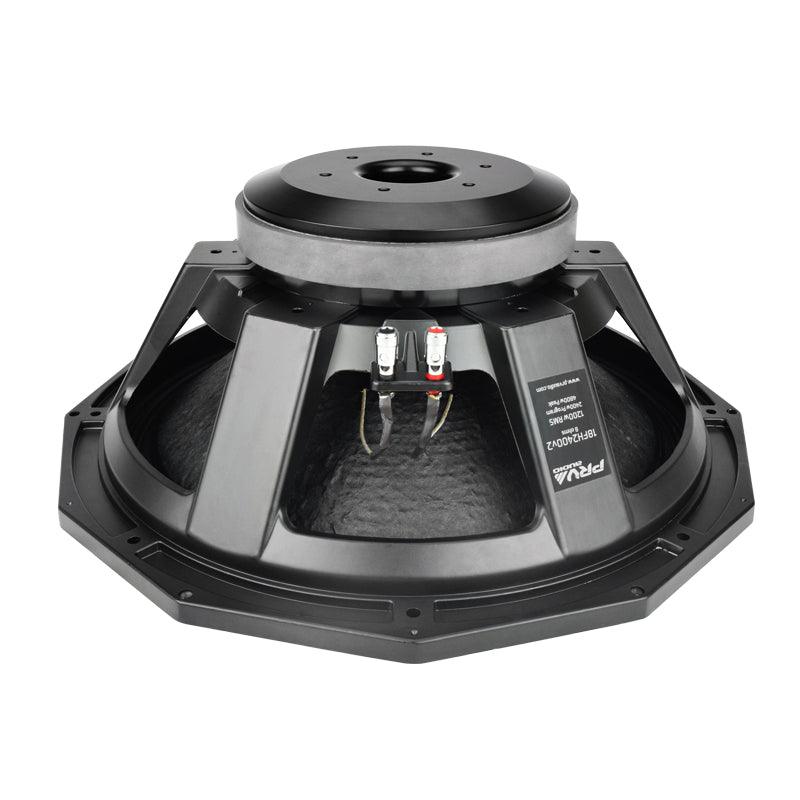

PRV Audio 18FH2400 v2 18" Subwoofer Loudspeaker

PRV Audio 18FH2400 v2 18" Subwoofer Loudspeaker

$249.91

PRV Audio 18FH2400 v2 18" Subwoofer Loudspeaker

$249.91

Features

The 18FH2400 v2 has two mounting options, 6 or 8 hole bolt patterns for use either as folded horn or front mount, make this speaker a perfect replacement for many popular cabinets.


Highlights

  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 1200 Watts
  • Program Power: 2400 Watts
  • Sensitivity (1W/1m): 98 dB
  • Voice Coil Diameter: 4?


GENERAL SPECIFICATIONS

Nominal Diameter 18? (457 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 1200 Watts
Program Power 2400 Watts
Sensitivity 2.83V at 1m 98 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
45 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 40 2,500 Hz
Voice Coil Diameter 4? (101 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 26.0 mm
Former Material Kapton
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 192.4 l
Excursion (mathematical)*** Xmax 10.00 mm
Free Air Resonance Fs 40.8 Hz
Mechanical Factor Qms 9.59
Electrical Factor Qes 0.51
Total Factor Qts 0.48
Cone Area Sd 1353 cm
Mechanical Mass Mms 201.33 g
Bl Factor Bl 23.38 Tm
Dc Resistance Re 5.4 Ohms
Inductance Le 2.66 mH at 1 kHz
Mechanical Mass Without Air Mmd 173.2 g
Mechanical Compliance Cms 0.075 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 19.17 (487 mm)
Front Mount Baffle Cutout 16.26 (413 mm)
Mounting Depth 6.53 (166 mm)
Overall Depth 7.24 (184 mm)
Net Weight 30.42 Lbs (13.80 kg)
Shipping Weight 33.95 Lbs (15.40 kg)
Carton Dimensions W x L x H 19.3 x 19.3 x 8.9
(490 x 490 x 225 mm)

PRV AUDIO 18FH2400v2 DATASHEETDownload
