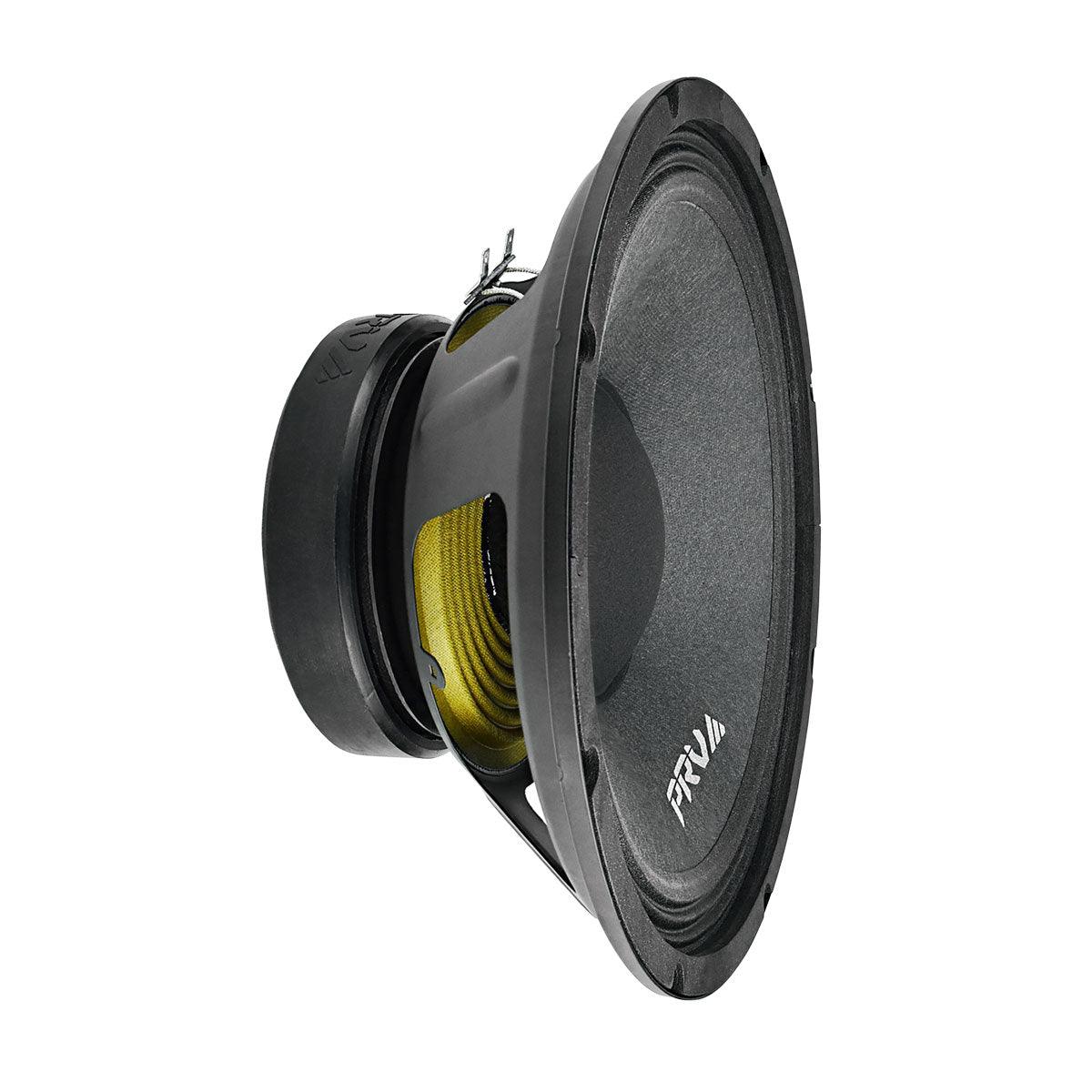

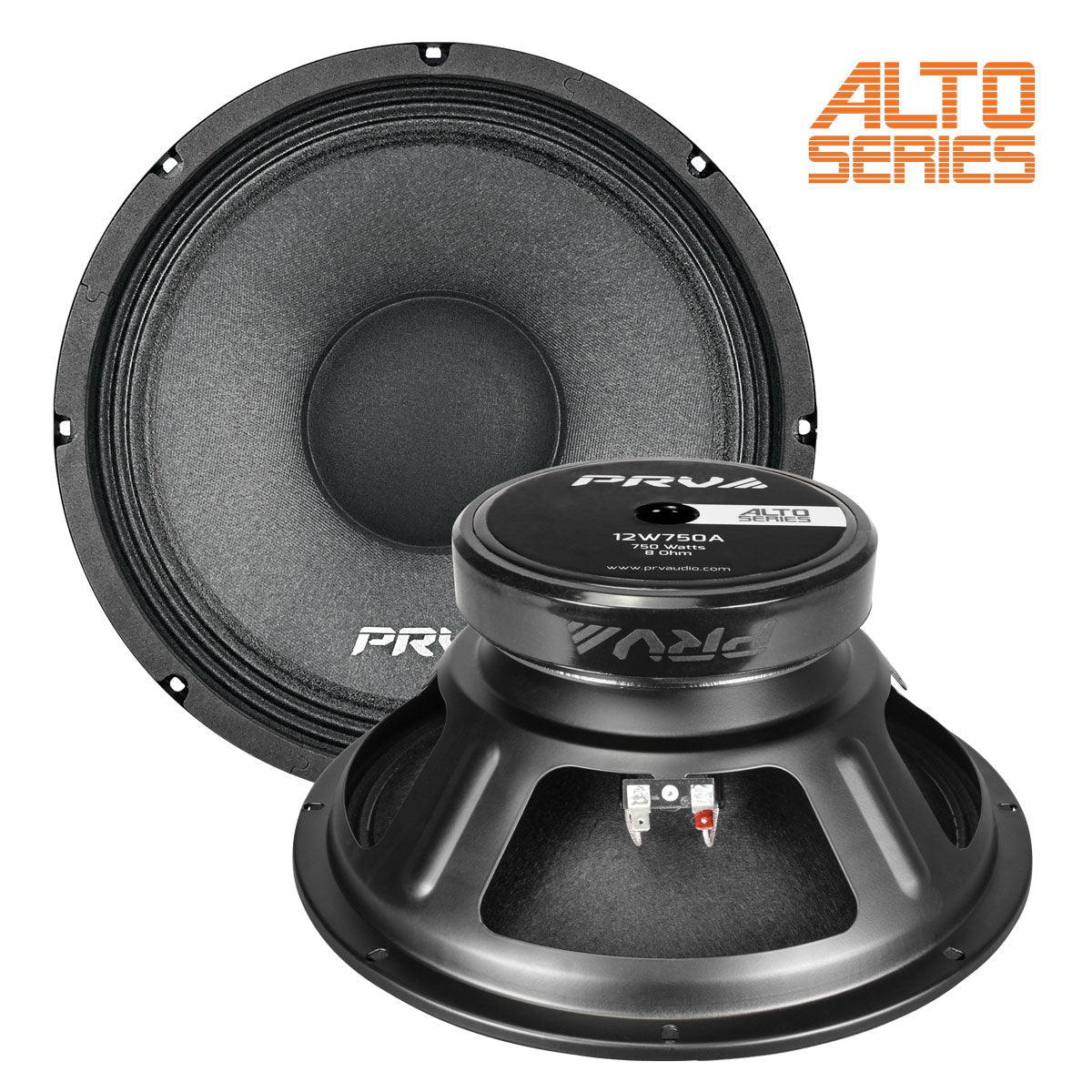

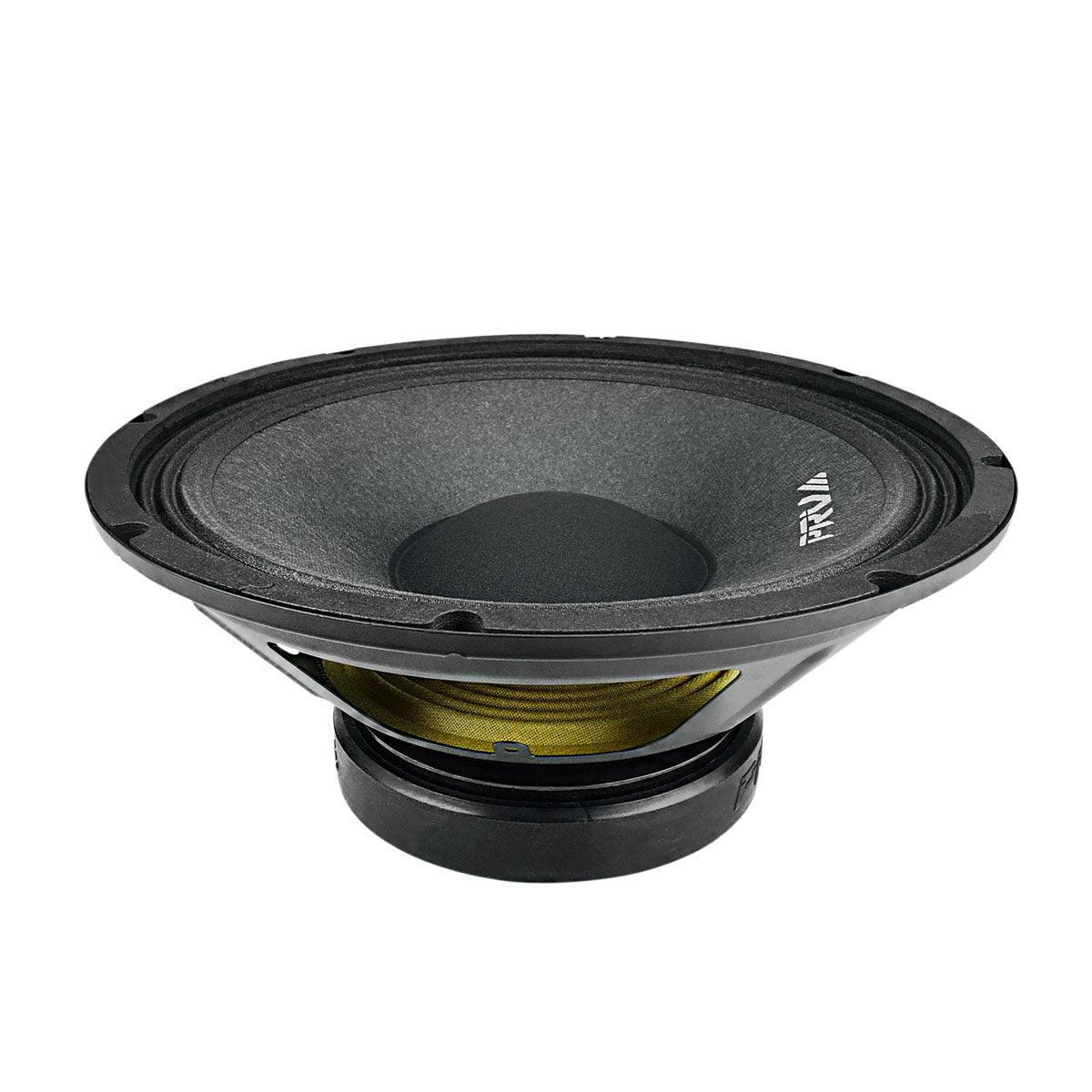

PRV Audio 12W750A 12" Pro Audio Woofer

Features Audio experts and professional musicians know that tone can make or break a performance, in the...
Vendor: PRV Audio
SKU: 12W750A
Availability: In Stock
$69.91
$79.99
$69.91
Please hurry! Only 2 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 12W750A 12" Pro Audio Woofer

PRV Audio 12W750A 12" Pro Audio Woofer

$79.99 $69.91

PRV Audio 12W750A 12" Pro Audio Woofer

$79.99 $69.91

Features

Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. Thats why PRV Audios Alto Series 12? 12W750A was painstakingly voiced to create a natural, smooth sound while remaining dynamic.

Youll find that the 12W750A works remarkably well in vented and sealed cabinet, as a woofer in two-way speakers or midrange in three-way systems, and even shines when used as a bass guitar speaker. Upgrade your speakers to the Alto Series today and find out why PRV Audio is one of the fastest growing speaker brands today!

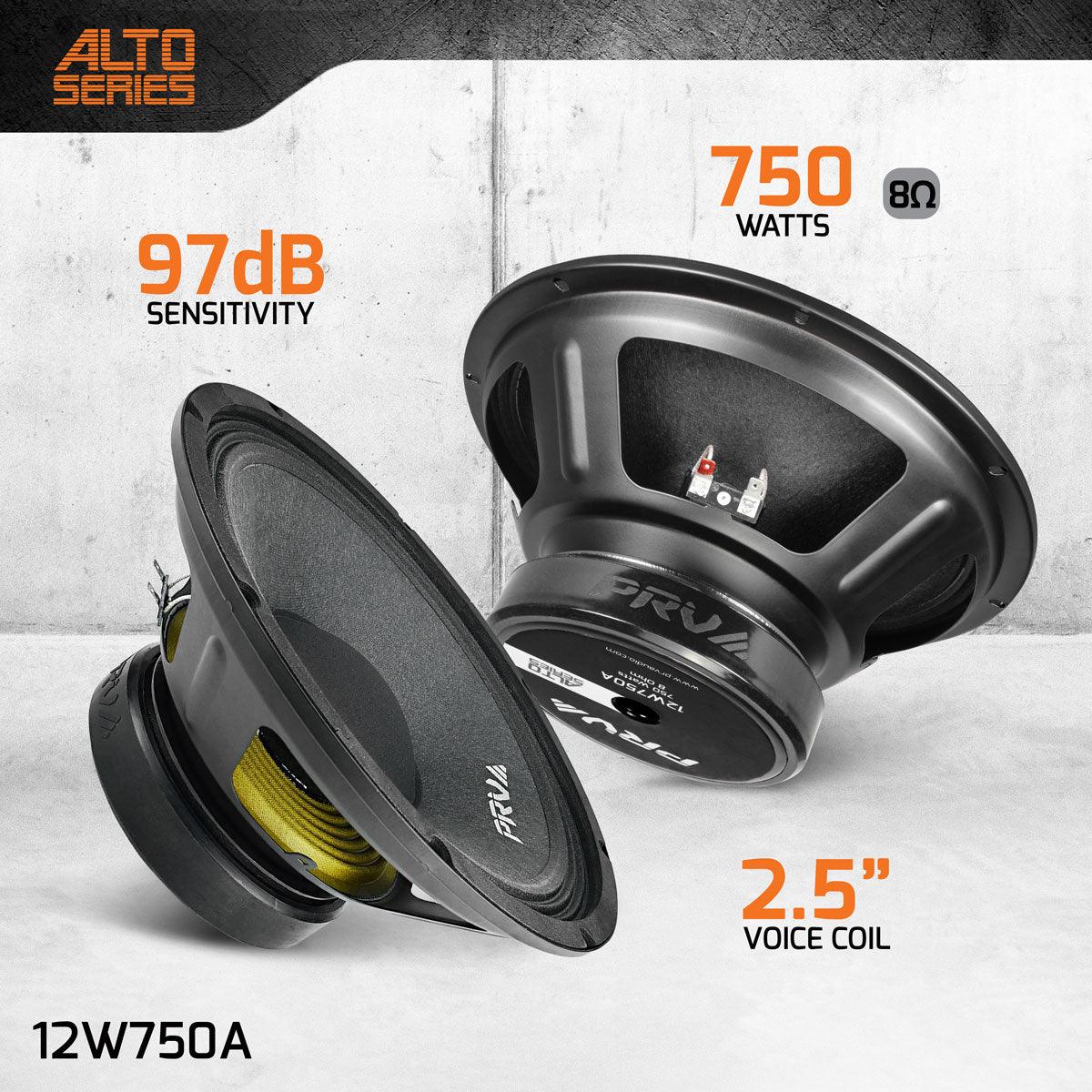

Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 375 Watts
  • Program Power: 750 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 2.5?


GENERAL SPECIFICATIONS

Nominal Diameter 12? (305 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 375 Watts
Program Power 750 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
200 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 60 5,500 Hz
Voice Coil Diameter 2.5? (65.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 11.5 mm
Former Material Kapton
Magnetic Gap Depth 8.5 mm
Frame Material Stamped Steel


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 81.00 l
Excursion (mathematical)*** Xmax 3.62 mm
Free Air Resonance Fs 59.87 Hz
Mechanical Factor Qms 17.45
Electrical Factor Qes 0.44
Total Factor Qts 0.43
Cone Area Sd 585 cm
Mechanical Mass Mms 41.72 g
Bl Factor Bl 14.29 Tm
Dc Resistance Re 5.8 Ohms
Inductance Le 0.71 mH at 1 kHz
Mechanical Mass Without Air Mmd 33.71 g
Mechanical Compliance Cms 0.169 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

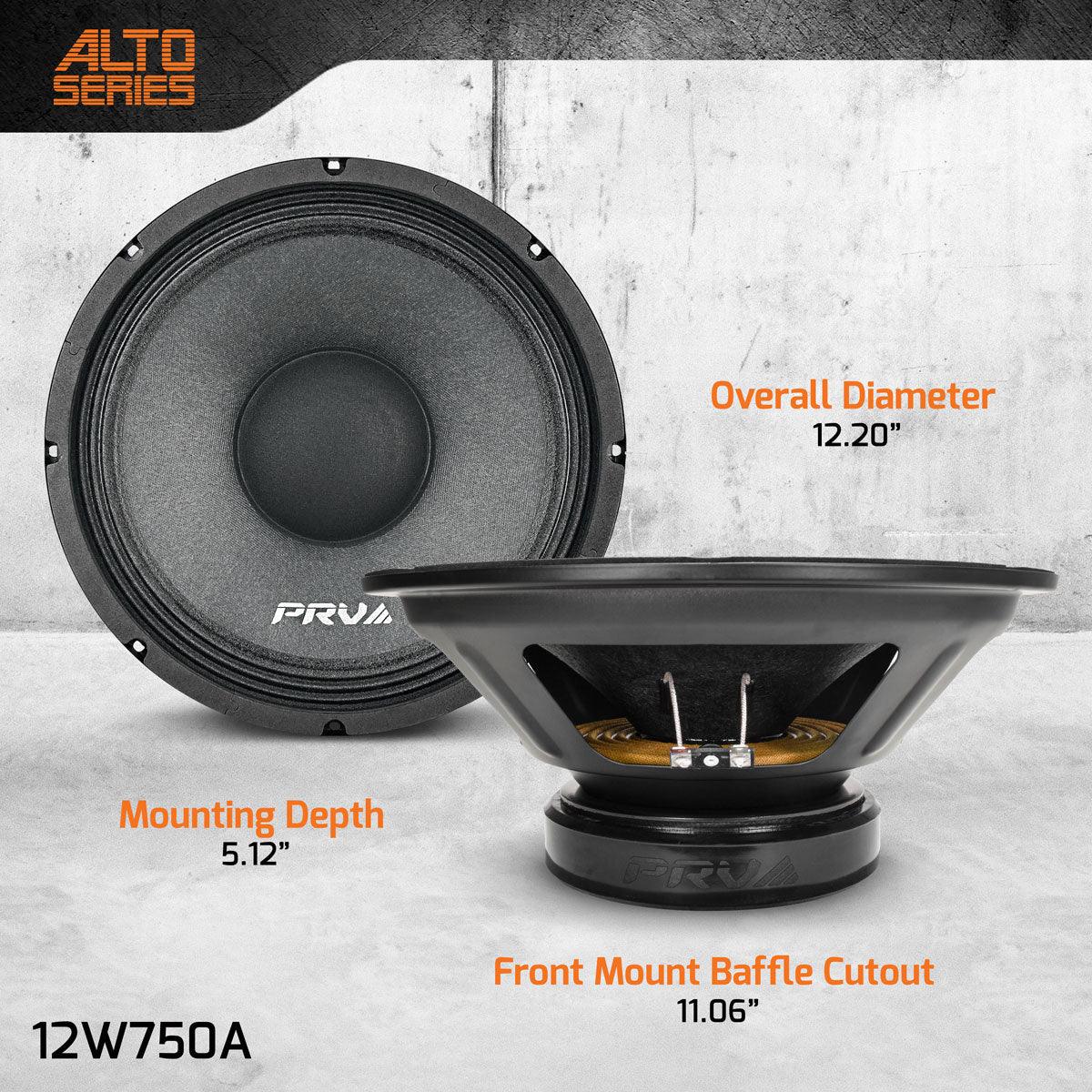

EXTRA INFO

Overall Diameter 12.20 (310 mm)
Front Mount Baffle Cutout 11.06 ( 281 mm)
Mounting Depth 5.12 (130 mm)
Overall Depth 5.47 (139 mm)
Net Weight 10....
