PRV Audio 12W1600 12" Woofer Loudspeaker

Features The 12W1600 woofer features a special 4? split copper wire voice coil wound on a fiberglass...
Vendor: PRV Audio
SKU: 12W1600
Availability: Out Of Stock
$199.91
$199.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 12W1600 12" Woofer Loudspeaker

PRV Audio 12W1600 12" Woofer Loudspeaker

$199.91

PRV Audio 12W1600 12" Woofer Loudspeaker

$199.91

Features

The 12W1600 woofer features a special 4? split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee very good Low dynamic range with a very low distortion figure.

This professional low frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.

  • 4? split copper voice coil wound on fiberglass former for hi-temp performance, 8 ohms
  • Ventilated voice coil gap reduces power compression
  • 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
  • 1600 watts continuous program power rating makes high acoustical output
  • High BL factor and Xmax for outstanding Low output
  • Weather-resistant paper cone and dust cap

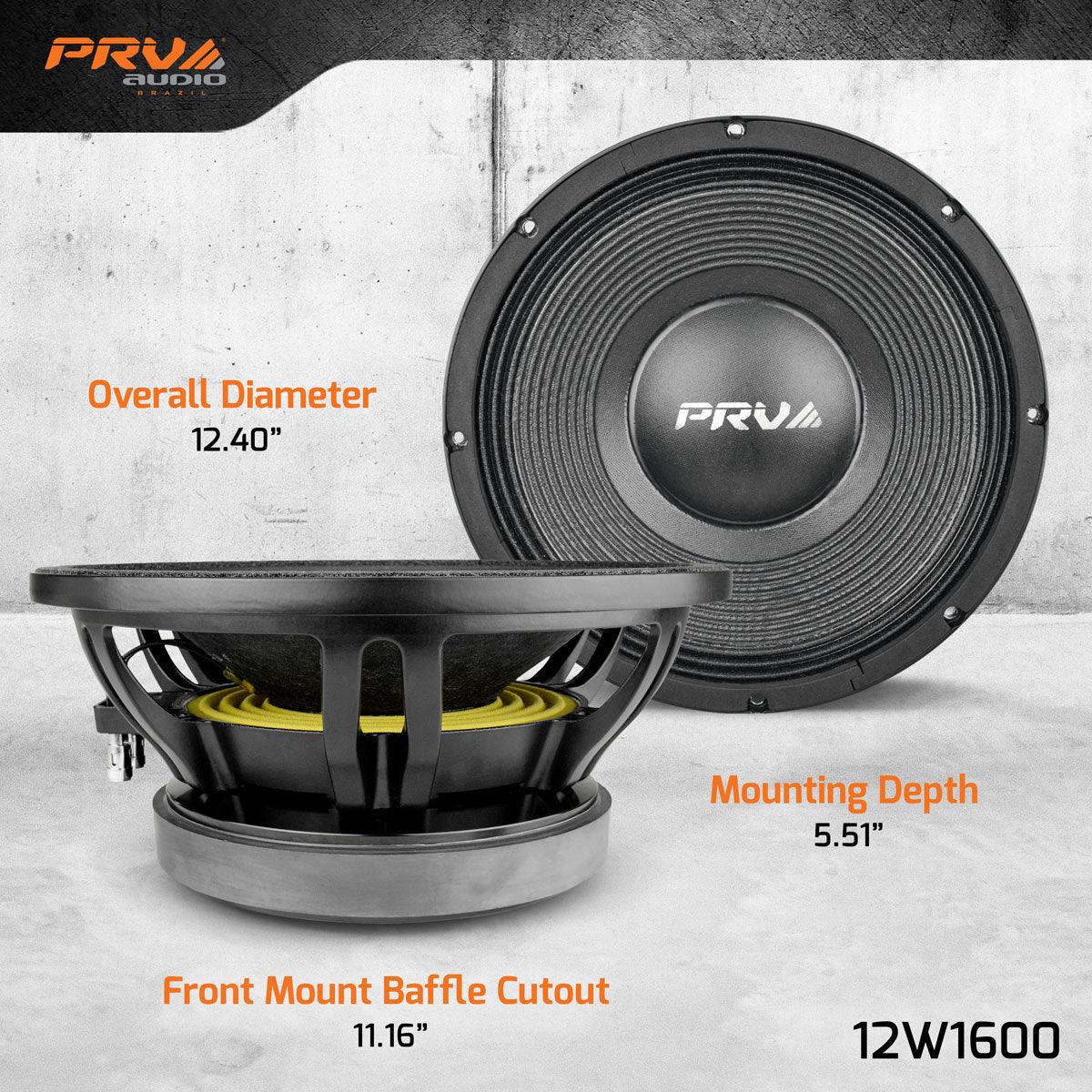

Designed to make tremendous amounts of bass, the 12W1600 12? woofer can be used in small vented or sealed cabinet. The shallow 5.51? mounting depth and high EBP makes it ideal for compact folded horn enclosures.

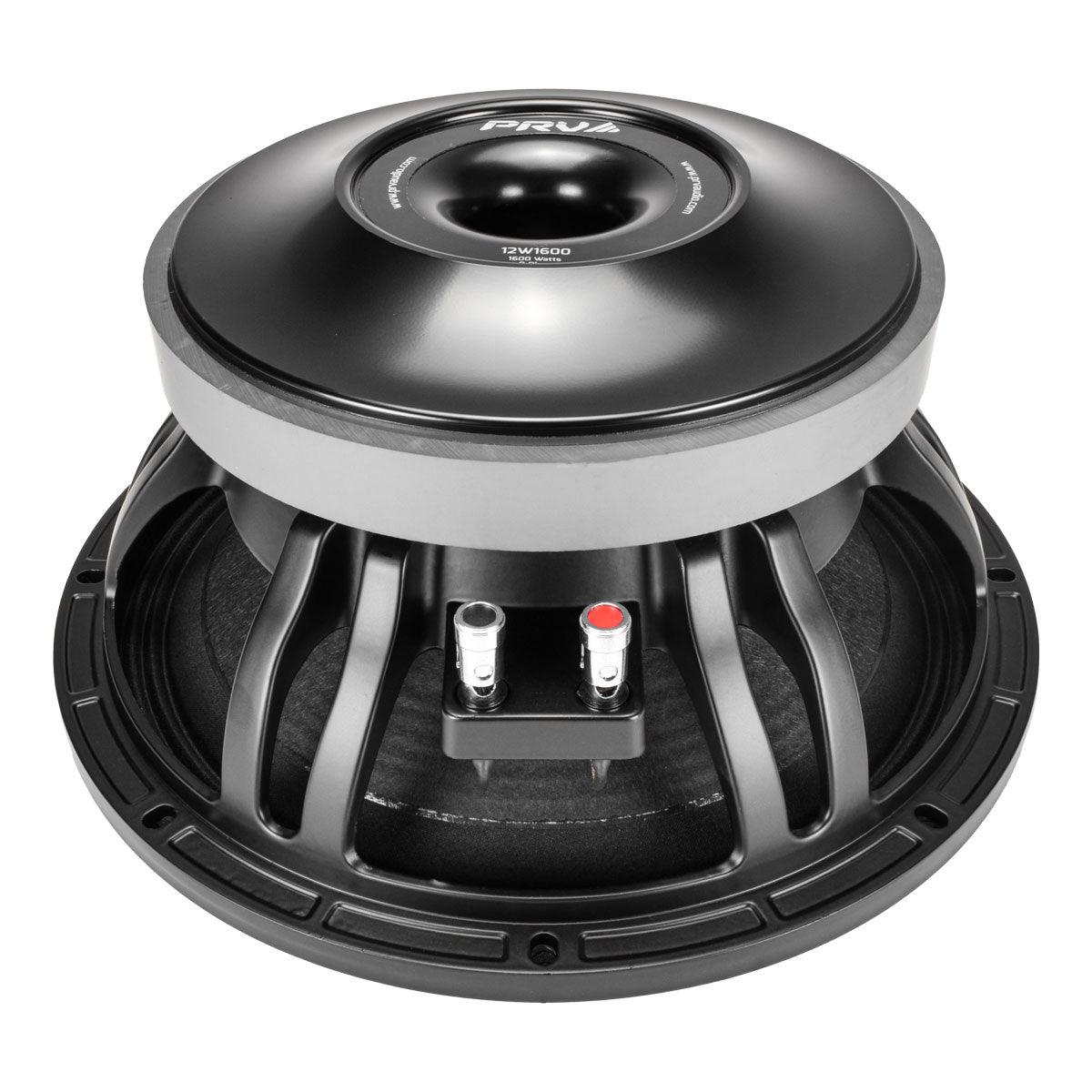

Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 1600 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.


To stand up to the use and abuse of the professional sound environment we designed a 4? spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax and less distortion.


The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support.

Supporting the cone is a double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.

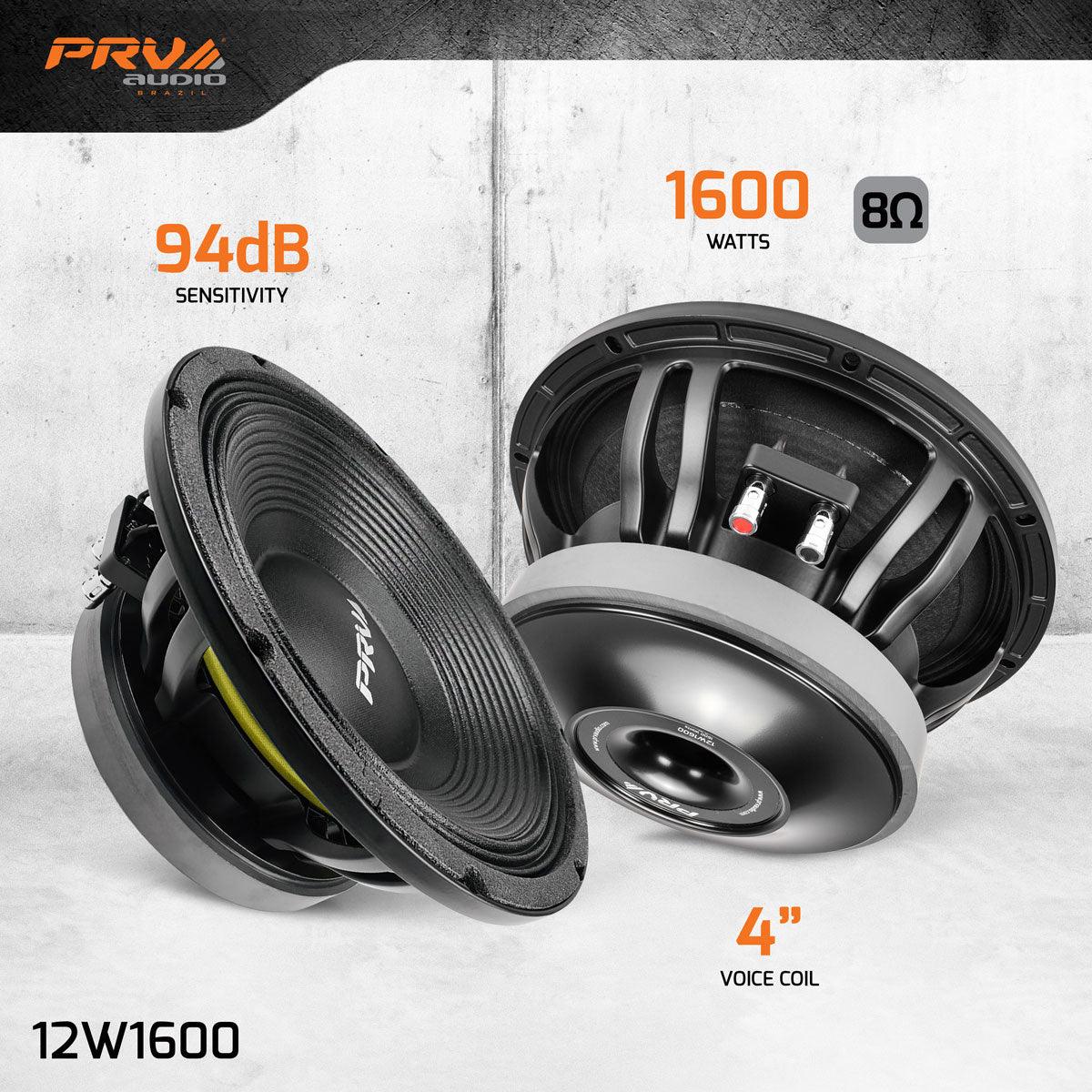

GENERAL SPECIFICATIONS

Nominal Diameter 12? (305 mm)
Nominal impedance 8 Ohm
Nominal Power Handling 800 Watts
Continuous Program Power (RMS) 1600 Watts
Max Peak Power 3200 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
60 Hz**
**12db Per Octave Crossover
Frequency Response 55 2,500 Hz
Voice Coil Diameter 4? (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 27.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in...
