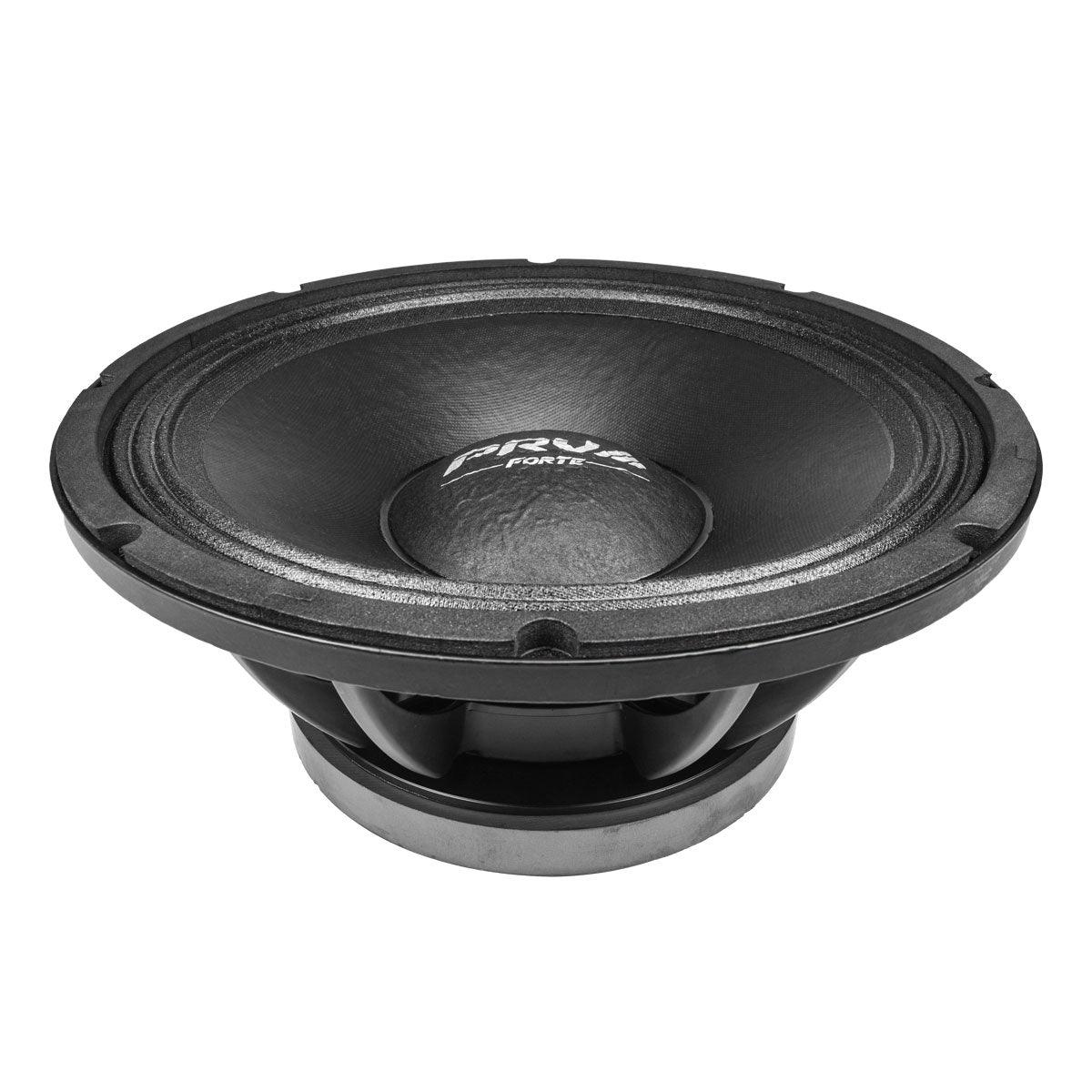

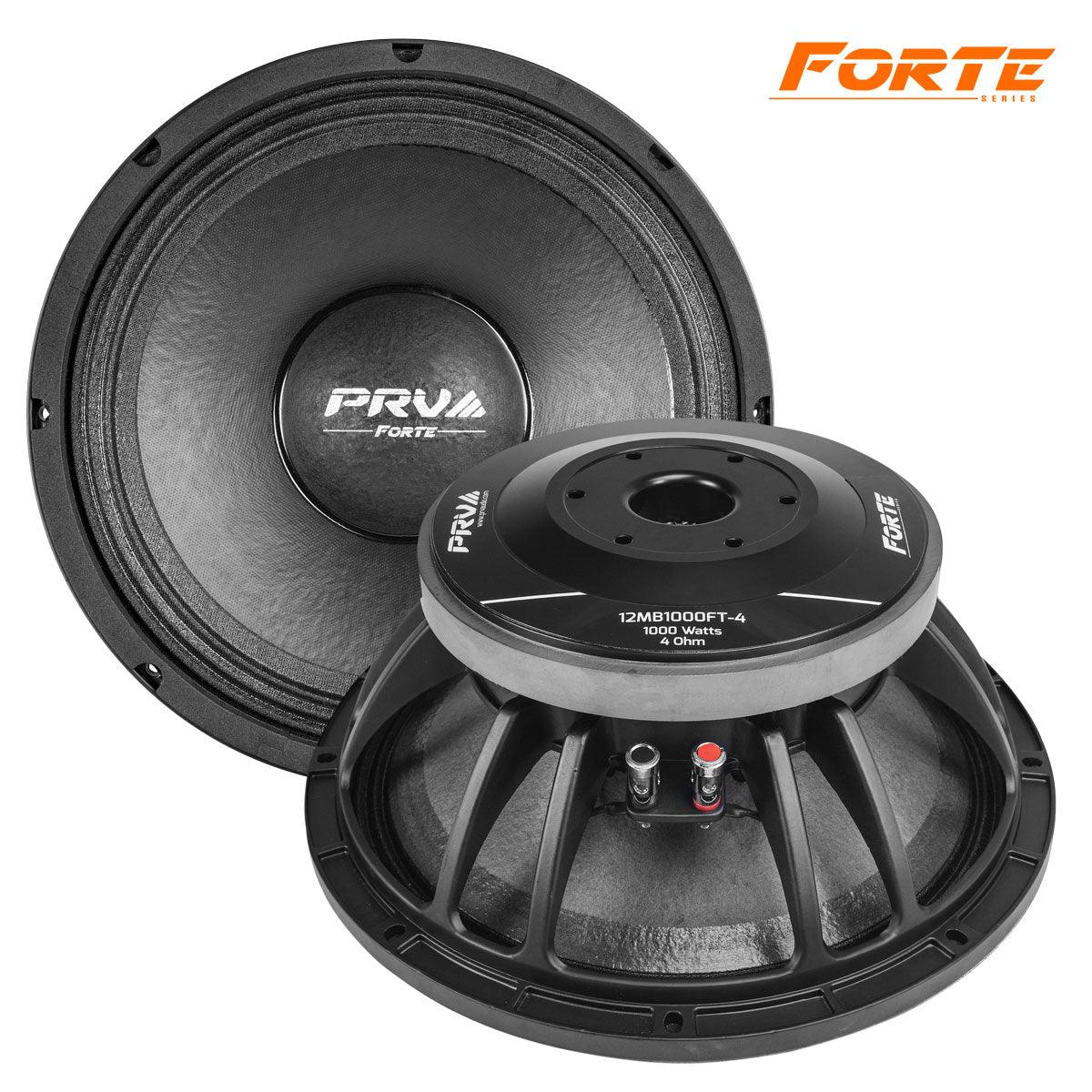

PRV Audio 12MB1000FT-4 12" Midbass Loudspeaker

Features For high output speaker systems, PRV Audios 12MB1000FT-4 midbass is an excellent option capable of amazing...
Vendor: PRV Audio
SKU: 12MB1000FT-4
Availability: Out Of Stock
$159.91
$362.50
$159.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 12MB1000FT-4 12" Midbass Loudspeaker

PRV Audio 12MB1000FT-4 12" Midbass Loudspeaker

$362.50 $159.91

PRV Audio 12MB1000FT-4 12" Midbass Loudspeaker

$362.50 $159.91

Features

For high output speaker systems, PRV Audios 12MB1000FT-4 midbass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

All this attention to detail in the 12MB1000FT-4 makes it one impressive driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this mid bass is ideally suited for car audio systems, making it easier to match a car audio amplifier to only 2 or 4 speakers wired in parallel. Also, its smooth response from 70 to 3,200 Hz makes it perfect for 2 or 3-way designs.

Installation tips:

  • 2x 12MB1000FT-4 wired in parallel to a SQ3500X at 2 Ohm
  • 4x 12MB1000FT-4 wired in parallel to a SQ6000X at 1 Ohm
  • Tuned with PRV DSP at HPF 100Hz at BT18 / LPF 3000Hz at BT18

Highlights

  • 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 4 Ohm
  • Ventilated voice coil gap reduces power compression
  • High Xmax for more Midbass output
  • 1,000 watts continuous program power rating makes high acoustical output
  • Excellent performance in 2-way or 3-way systems
  • Weather-resistant paper cone and dust cap
  • Also Available at 8 Ohm

A rigid cast aluminum frame with narrow spokes to minimize reflections back into the cone. In addition, the frame includes force cooling system openings which allows airflow to cool the voice coil.

To drive the voice coil, a large ferrite magnet with a very precise machined top and bottom plate has been used. The additional dual forced vent in the back plate of the coil allows this driver to handle up to 1000 watts RMS without issue.


Features a special high strength pulp composition paper cone designed to achieve the best possible linearity within the middle frequency range, which, together with a protective cone treatment dedicated to enhancing the dampening properties of the moving assembly, considerably improves its smooth frequency response.


The voice coil is wound on a 3? glass fiber with aluminum wire, keeping weight to a minimum for an incredibly quick transient response. Engineered with 17.5 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.



GENERAL SPECIFICATIONS

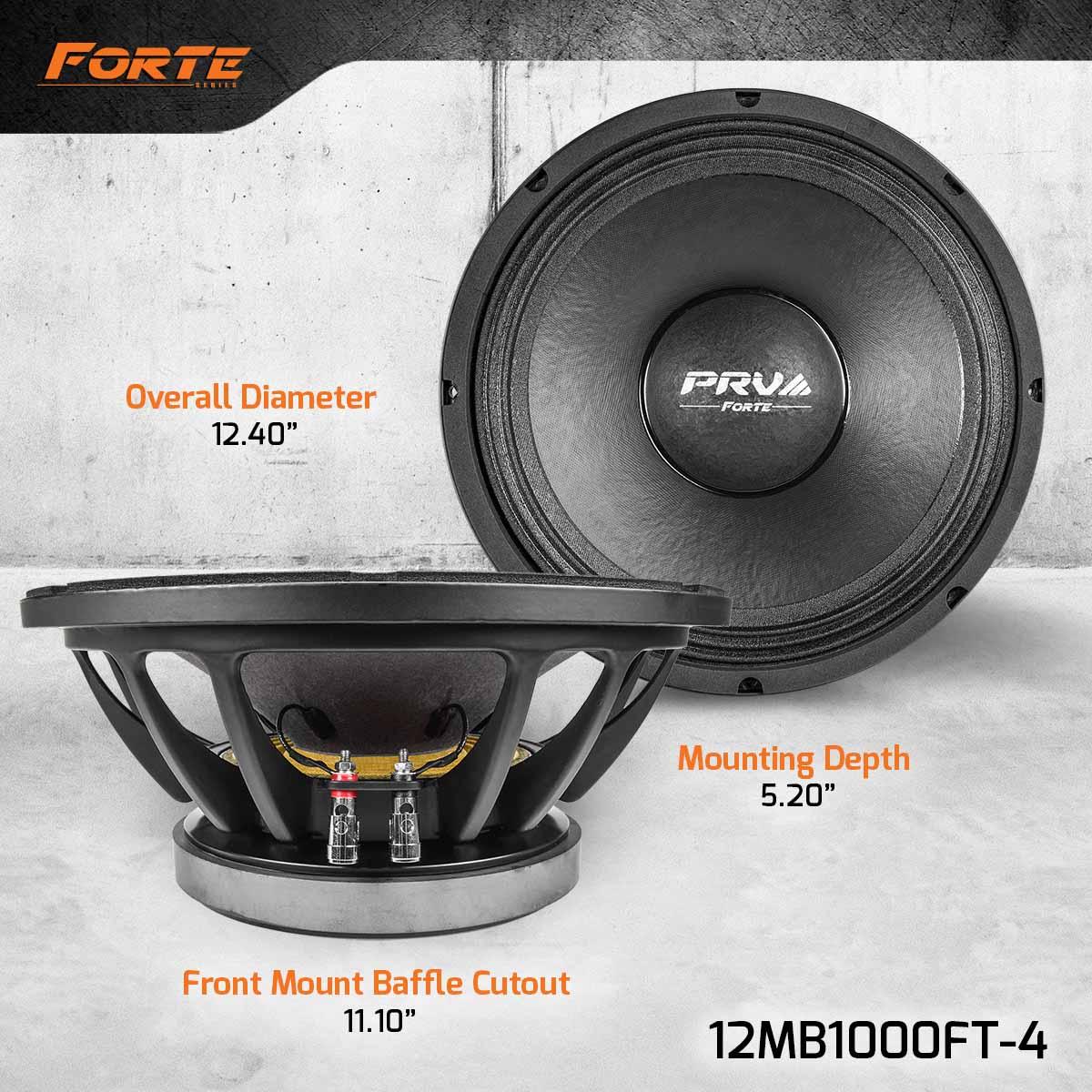

Nominal Diameter 12? (310 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 500 Watts
Continuous Program Power (RMS)** 1000 Watts
Max Peak Power*** 2000 Watts

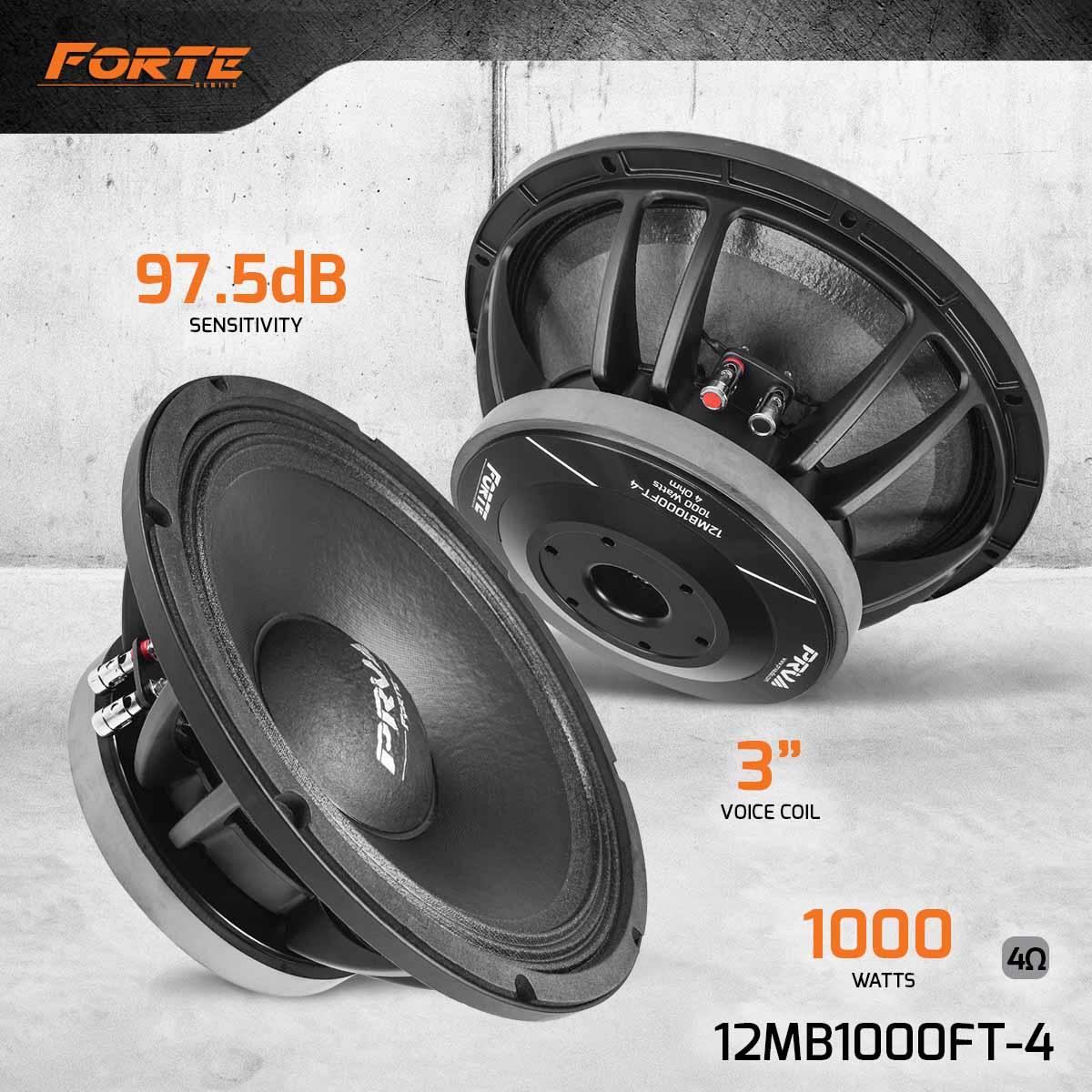

Sensitivity 2.83V at 1m 97.5 dB
Recommended Hi Pass Crossover
For Full Power Handling
110 Hz
12db Per Octave Crossover
Frequency Response 70 3,200 Hz
Voice Coil Diameter 3? (76 mm)
Voice Coil Wire Aluminum
Voice Coil Winding Depth 17.5 mm
Former Material Glass Fiber
Magnetic Gap Depth 10.5 mm
Frame Material Die Ca...
