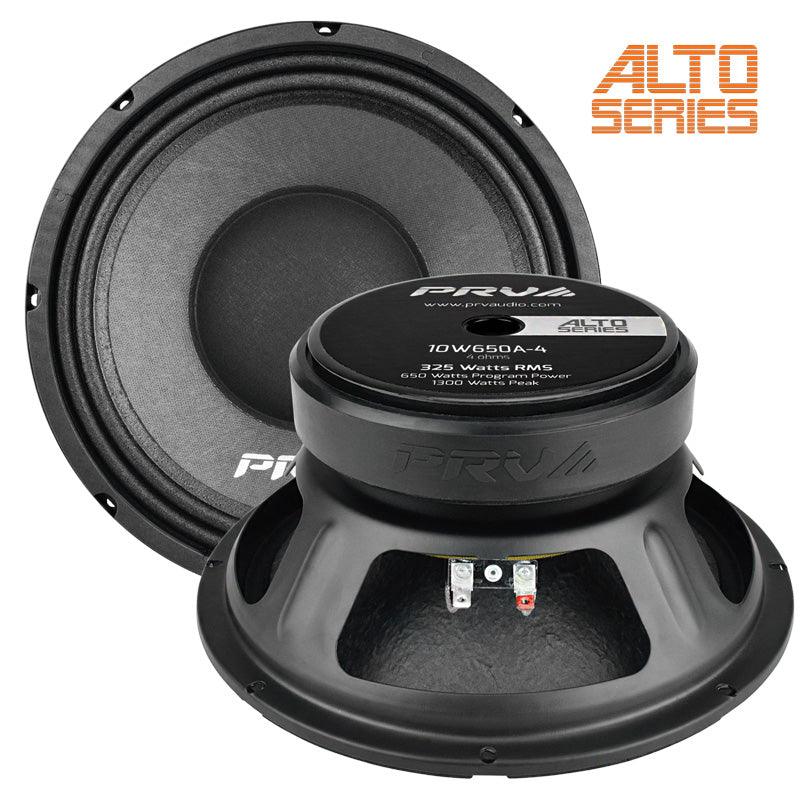

PRV Audio 10W650A-4 10" Pro Audio Woofer

Features High fidelity meets high output PRV Audio ALTO Series Woofers. Audio experts and professional musicians know...
Vendor: PRV Audio
SKU: 10W650A-4
Availability: In Stock
$62.91
$82.48
$62.91
Please hurry! Only 1 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 10W650A-4 10" Pro Audio Woofer

PRV Audio 10W650A-4 10" Pro Audio Woofer

$82.48 $62.91

PRV Audio 10W650A-4 10" Pro Audio Woofer

$82.48 $62.91

Features

High fidelity meets high output PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. Thats why PRV Audios Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.

To get the right sound, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound. A unique, woven-cloth dustcap helps to achieve high sensitivity by reducing moving mass, while helping to cool the voice coil.

Youll find that Alto Series woofers work remarkably well in vented and sealed cabinets, as woofers in two-way speakers or midrange speakers in three-way systems, and even shine when used as bass guitar and guitar speakers. Upgrade to the PRV Audio ALTO Series Youll thank us later!


Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 325 Watts
  • Program Power: 650 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 2.5?


GENERAL SPECIFICATIONS

Nominal Diameter 10? (254 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 325 Watts
Program Power 650 Watts
Sensitivity 2.00V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 75 5,500 Hz
Voice Coil Diameter 2.5? (65.5 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.0 mm
Former Material Kapton
Magnetic Gap Depth 10.00 mm
Frame Material Stamped Steel


THIELE-SMALL PARAMETERS

Equivalent Volume Vas 41.23 l
Excursion (mathematical)*** Xmax 4.00 mm
Free Air Resonance Fs 66.88 Hz
Mechanical Factor Qms 16.07
Electrical Factor Qes 0.40
Total Factor Qts 0.39
Cone Area Sd 415 cm
Mechanical Mass Mms 33.09 g
Bl Factor Bl 11.23 Tm
Dc Resistance Re 3.7 Ohms
Inductance Le 0.57 mH at 1 kHz
Mechanical Mass Without Air Mmd 28.30 g
Mechanical Compliance Cms 0.171 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter
