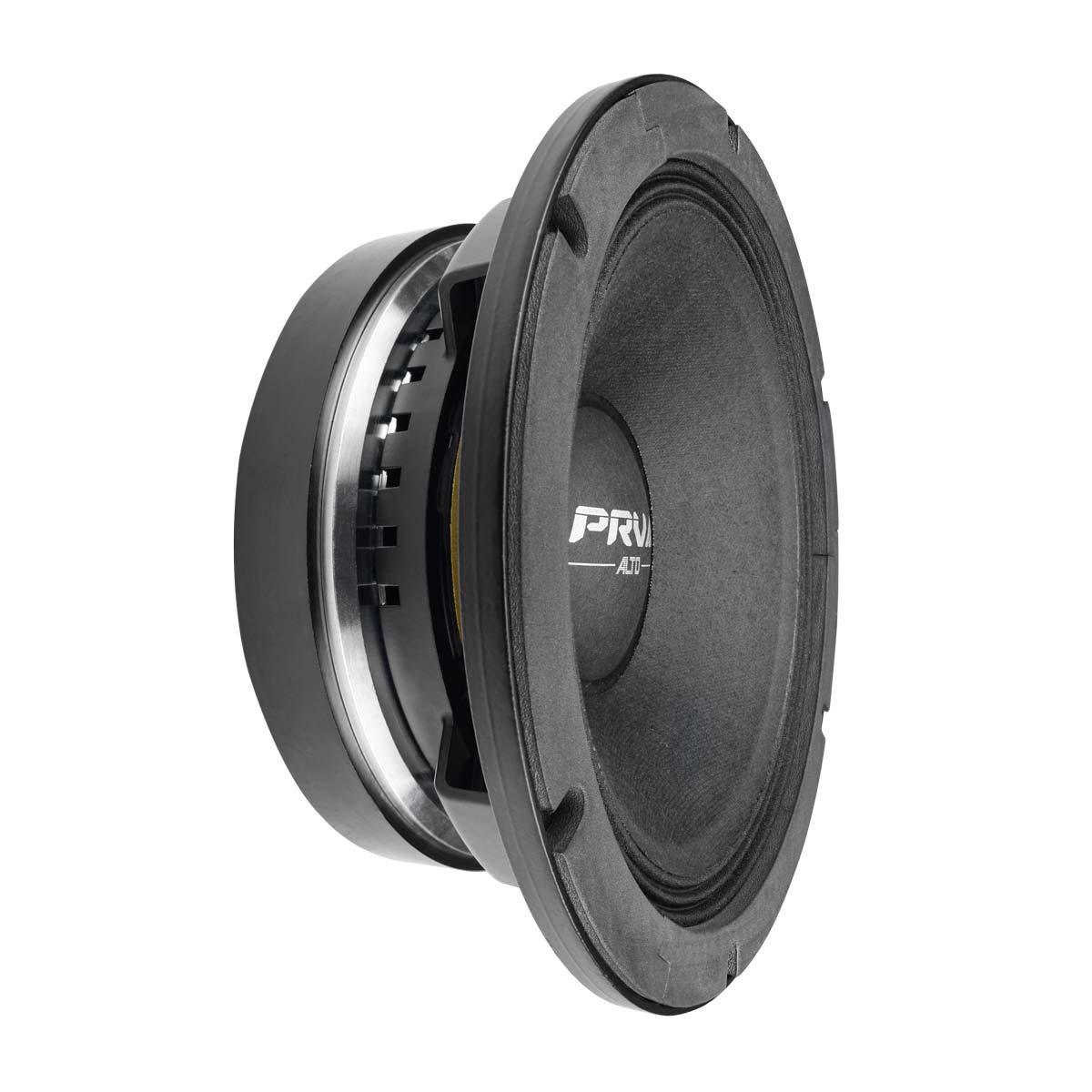

PRV Audio 10MR1000A 10" Midrange Loudspeaker

Features The PRV Audio 10MR1000A is the evolution of our midrange loudspeakers. Our R&D department pushed the...
Vendor: PRV Audio
SKU: 10MR1000A
Availability: Out Of Stock
$199.91
$199.91
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

PRV Audio 10MR1000A 10" Midrange Loudspeaker

PRV Audio 10MR1000A 10" Midrange Loudspeaker

$199.91

PRV Audio 10MR1000A 10" Midrange Loudspeaker

$199.91

Features

The PRV Audio 10MR1000A is the evolution of our midrange loudspeakers. Our R&D department pushed the output limits on a midrange driver, creating a unique sound reproduction and easy to fit on custom systems due to its shallow mounting depth, making it our top of the line midrange PRO audio speaker for custom doors.

PRV Audios Alto Series loudspeakers were carefully crafted to reproduce a natural, smooth sound while remaining dynamic.

Highlights

  • 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance 8 ohms.
  • 1000 watts continuous program power rating makes a high acoustical output.
  • Excellent performance in compact enclosures and custom door panels.
  • 101 dB sensitivity, making it capable of generating a lot of output!
  • Detailed vocal reproduction on a wide frequency band response (Frequency Response 75 6500 Hz)


GENERAL SPECIFICATIONS

Nominal Diameter 10? (254 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 500 Watts
Program Power 1000 Watts
Sensitivity 2.83V at 1m 101 dB
Recommended High Pass Crossover* *For Full Power Handling 150 Hz* BT12 *12db Per Octave Crossover
Frequency Response at -10dB 75 6500 Hz
Voice Coil Diameter 3? (75 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 13.8 mm
Former Material Kapton
Magnetic Gap Depth 8.60 mm
Frame Material Die Cast Aluminum

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 33.6 l
Excursion (mathematical)*** Xmax 4.75 mm
Free Air Resonance Fs 66.1 Hz
Mechanical Factor Qms 6.77
Electrical Factor Qes 0.18
Total Factor Qts 0.17
Cone Area Sd 330 cm
Mechanical Mass Mms 26.24 g
Bl Factor Bl 17.88 Tm
Dc Resistance Re 5.3 Ohms
Inductance Le 0.12 mH at 1 kHz
Mechanical Mass Without Air Mmd 22.85 g
Mechanical Compliance Cms 0.221 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

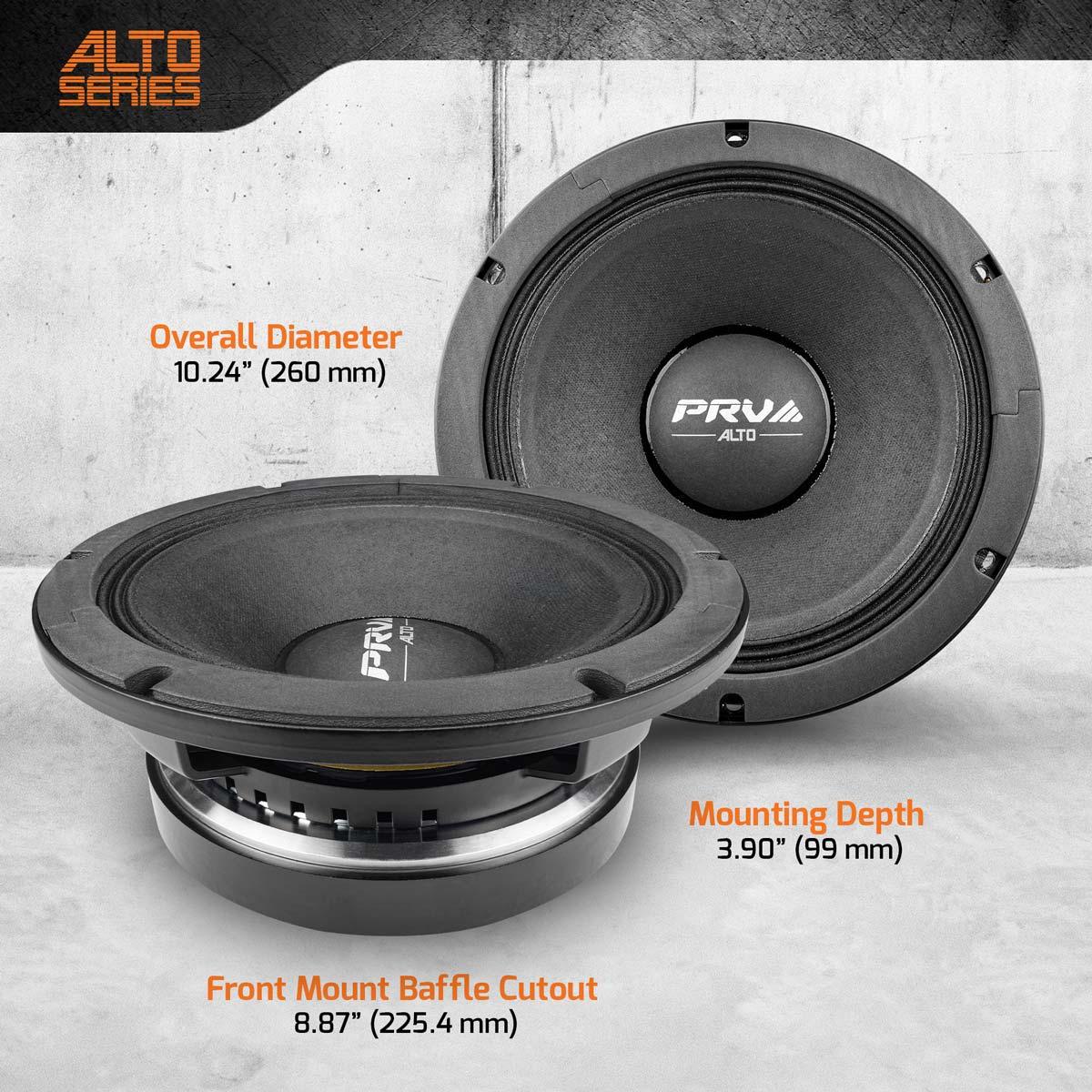

Overall Diameter 10.24 (260 mm)
Front Mount Baffle Cutout 8.87 (225.4 mm)
Mounting Depth 3.90 (99 mm)
Overall Depth...
