Pioneer SPH-10BT Smart Sync Mechless Radio SDIN

Pioneer SPH-10BT Smart Sync Mechless Radio SDIN

The SPH-10BT is designed to accommodate the Smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa it opens a new world for this Digital Media Receiver. Mount your smartphone into the built-in cradle, then connect to Pioneer Smart Sync to enjoy a smarter connected driving experience. Using this application, you broaden your access may it be wired or wireless. The receiver has a built-in amplifier and is equipped with two RCA pre-outs at 2V each. It has a 13-band customizable graphic equalizer and when utilizing Pioneer Smart Sync increases to 31 bands. Pioneer Smart Sync coupled with the installation of the ND-PS1 Rear Parking Sensors (sold separately, requires professional installation) provides obstacle detection on your smartphone display. Features include built-in Bluetooth, Pioneer Smart Sync App with Amazon Alexa, Pandora and Spotify via Bluetooth, USB direct control for iPhone and much more.

General Features:

• digital media receiver with AM/FM tuner (does not play CDs)

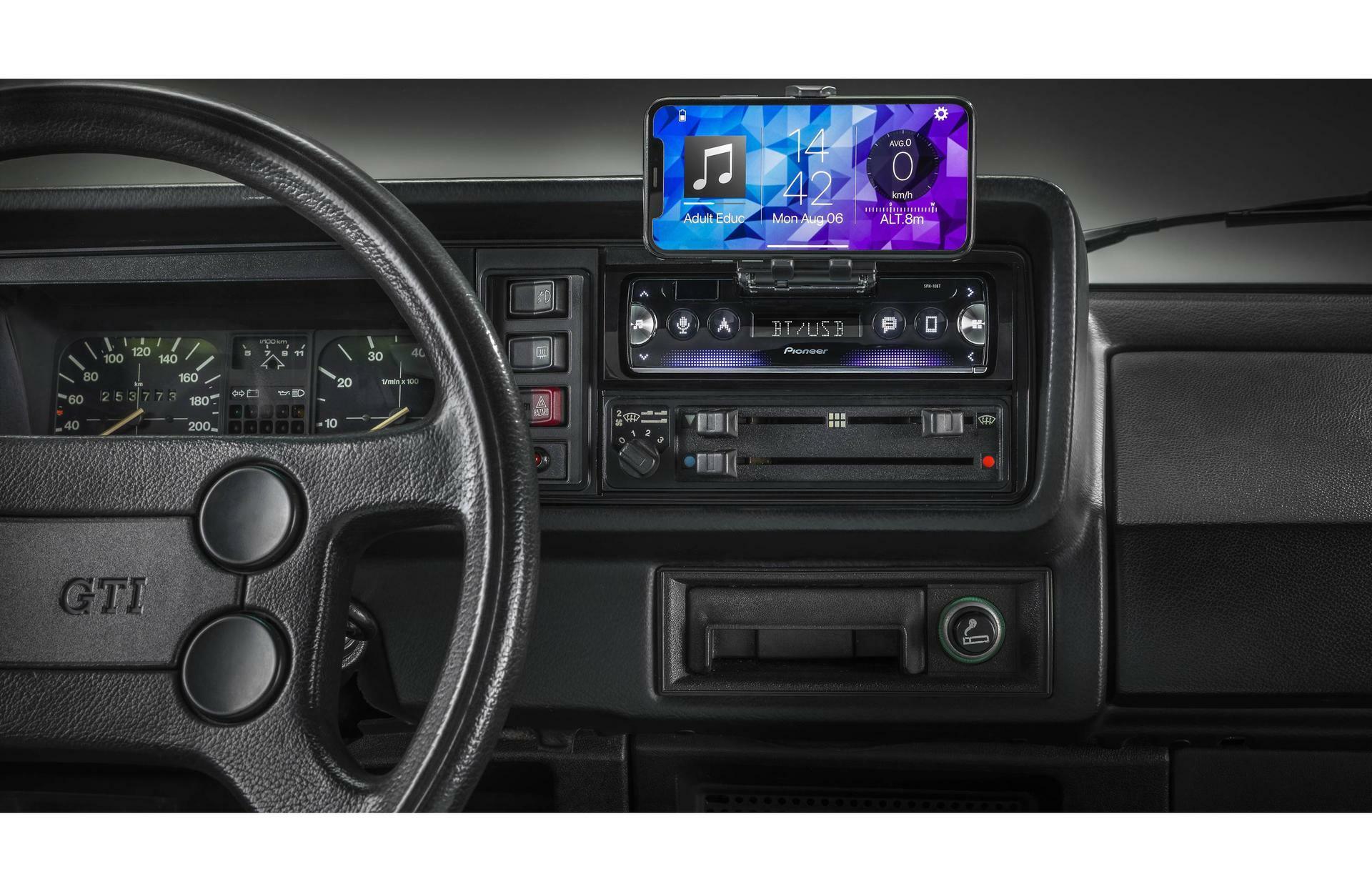

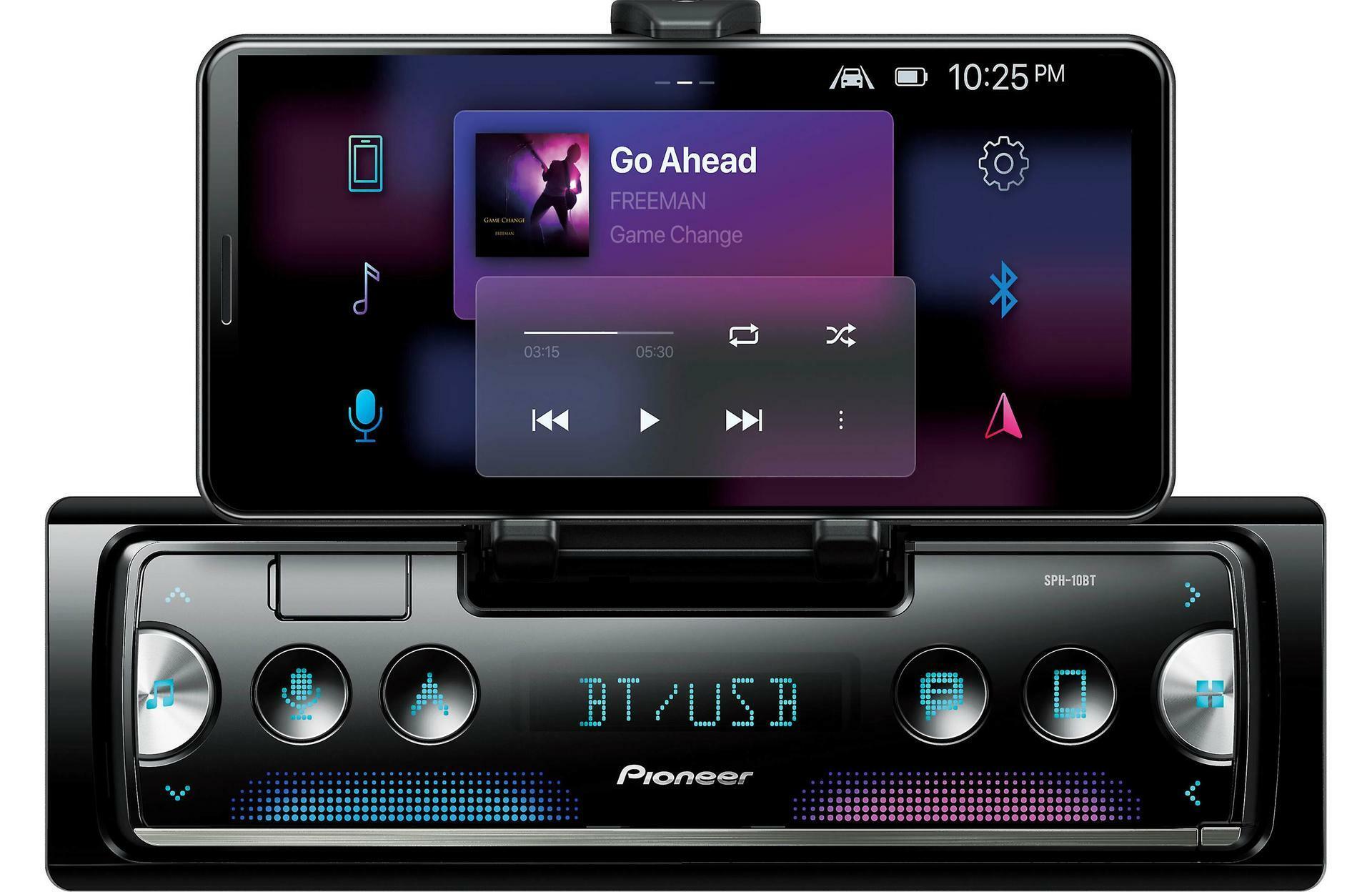

• pop-out smartphone cradle for touchscreen control via Pioneer Smart Sync app
• built-in Bluetooth for hands-free calls and music streaming
• quick charge for Android devices
• plays FLAC, MP3, WMA, and WAV music files
• variable-color display
• wide-angle 1-line LCD display

Smartphone Features (see Details for info on compatibility):

• use Pioneer's Smart Sync app for two-way control between your receiver and smartphone
• built-in Amazon Alexa via Pioneer Smart Sync
• built-in iPhone and Android control through USB

Audio Features:

• 13-band graphic equalizer (31 band EQ using Smart Sync)
• low-pass/high-pass filters

Expandability:

• inputs: front USB port; rear parking sensor input
• outputs: 4-channel preamp outputs (front, rear/sub)

Other Info:

• compatible with most factory steering wheel audio controls (adapter required)
• built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
• warranty: 1 year
• MFR # SPH-10BT

What's in the box:

• Digital media receiver (10A fuse)
• Face (attached)
• Trim-ring (installed)
• Sleeve (installed)
• Wiring harness
• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
• Two-sided tape
• 4 Pan head ISO-mount screws (M5 x 8mm)
• 4 Flat-head ISO-mount screws (M5 x 9mm)
• 2 Removal tools
• Face-fixing screw
• Face-fixing bracket
• Hard-plastic face-case
• Quick Start Guide
• Installation Manual
• Warranty Sheet
