Pioneer MVH-S322BT In-dash - Audio Digital Media Receiver Pioneer Smart Sync

Pioneer MVH-S322BT In-dash - Audio Digital Media Receiver Pioneer Smart Sync

The MVH-S322BT is designed to accommodate the Smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa it opens a new world for this Digital Media Receiver. Using this application, you broaden your access may it be wired or wireless. The receiver had a built-in amplifier and is equipped with three RCA pre-outs at 4V each. It has a 13-band customizable graphic equalizer and when utilizing Pioneer Smart Sync increases to 31 bands. The crossover network for this receiver is Standard Mode only. Features include Pioneer Smart Sync App with Amazon Alexa, wired Android Auto and Apple CarPlay, Pandora, and Spotify via Bluetooth, USB direct control for iPhone and much more.

General Features:

• digital media receiver with AM/FM tuner (does not play CDs)
• built-in Bluetooth for hands-free calls and music streaming
• 1.5-amp quick-charging for Android devices
• plays FLAC (96kHz/24bit), MP3, WMA, and WAV music files

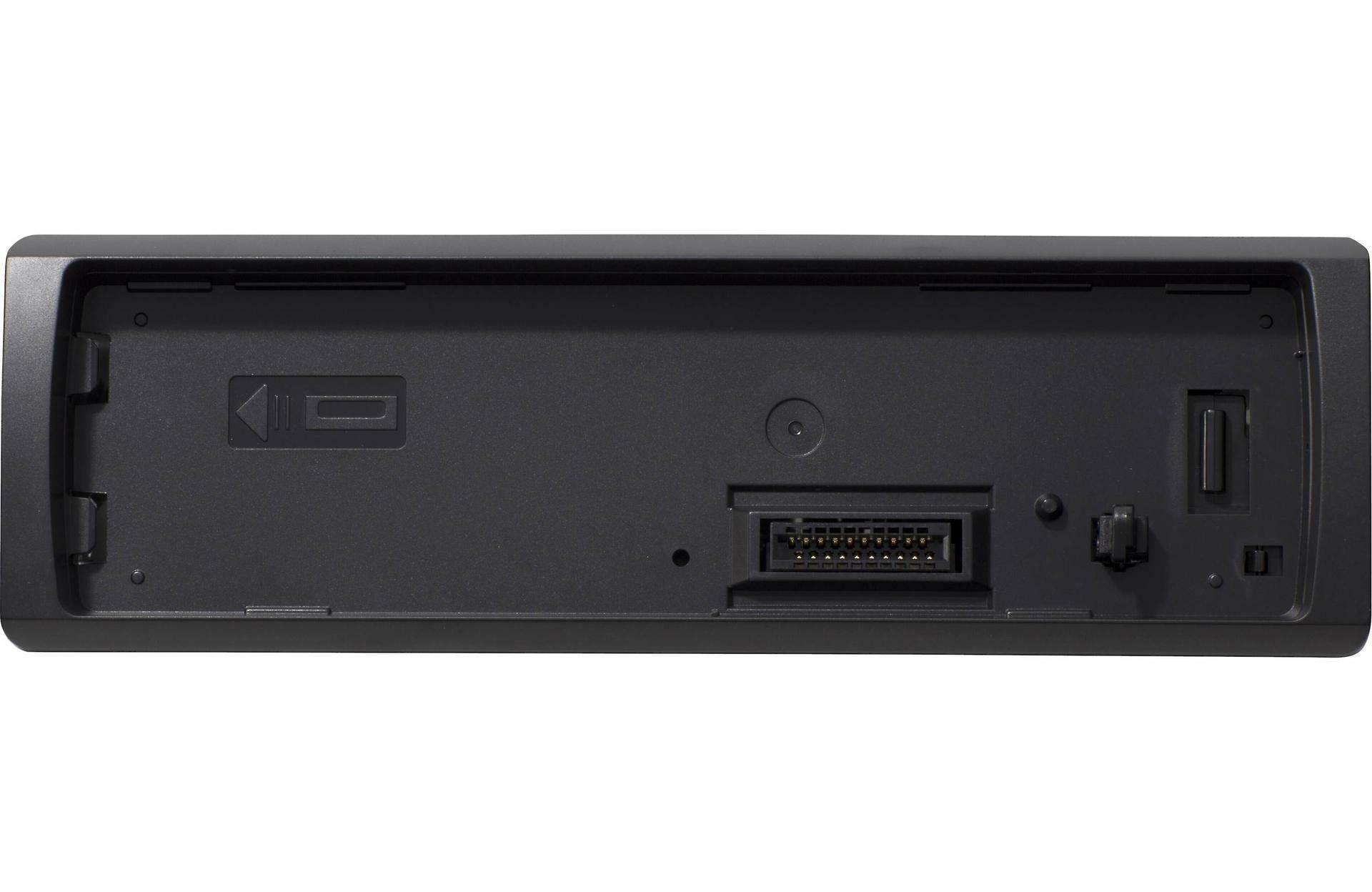

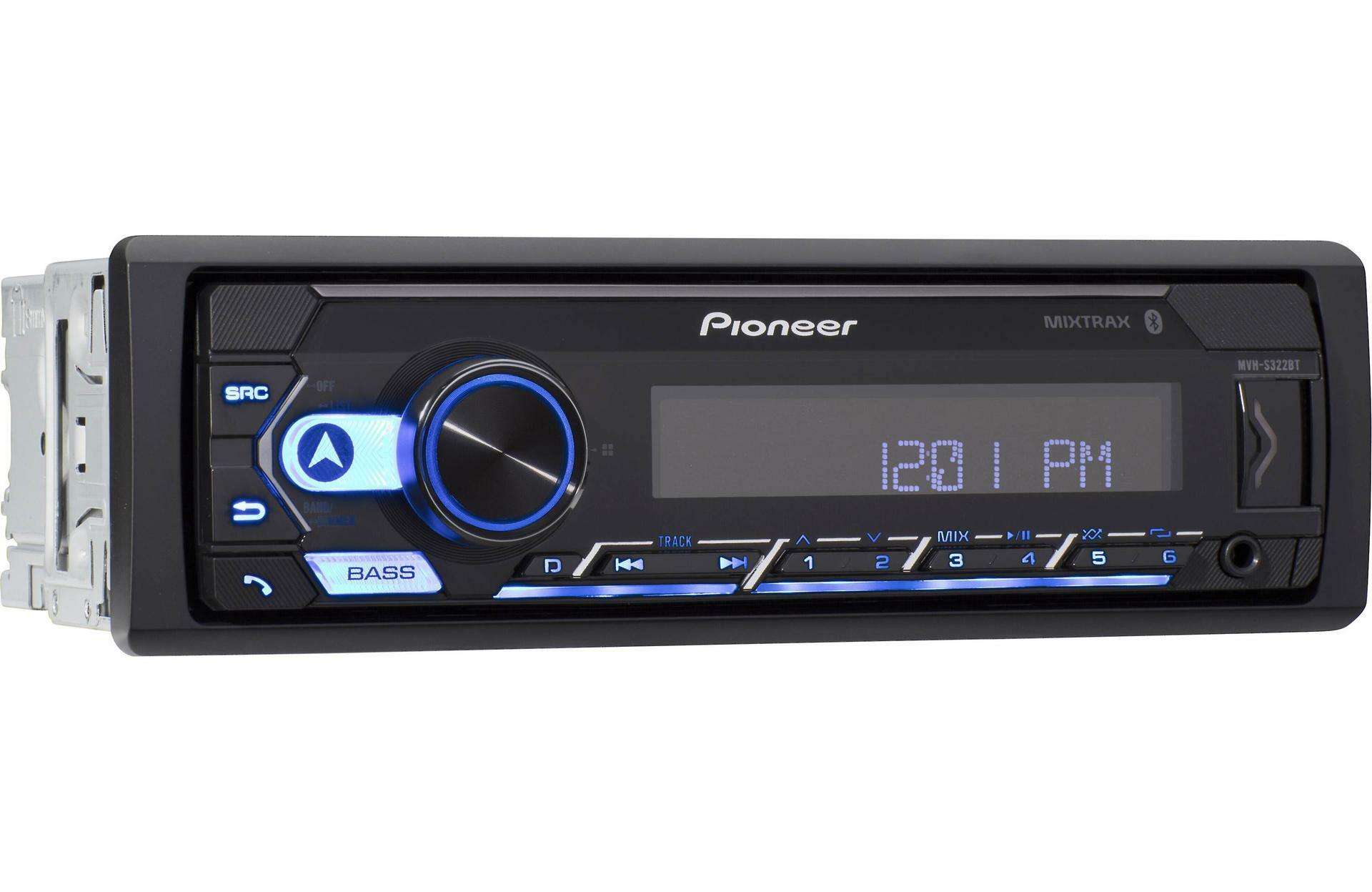

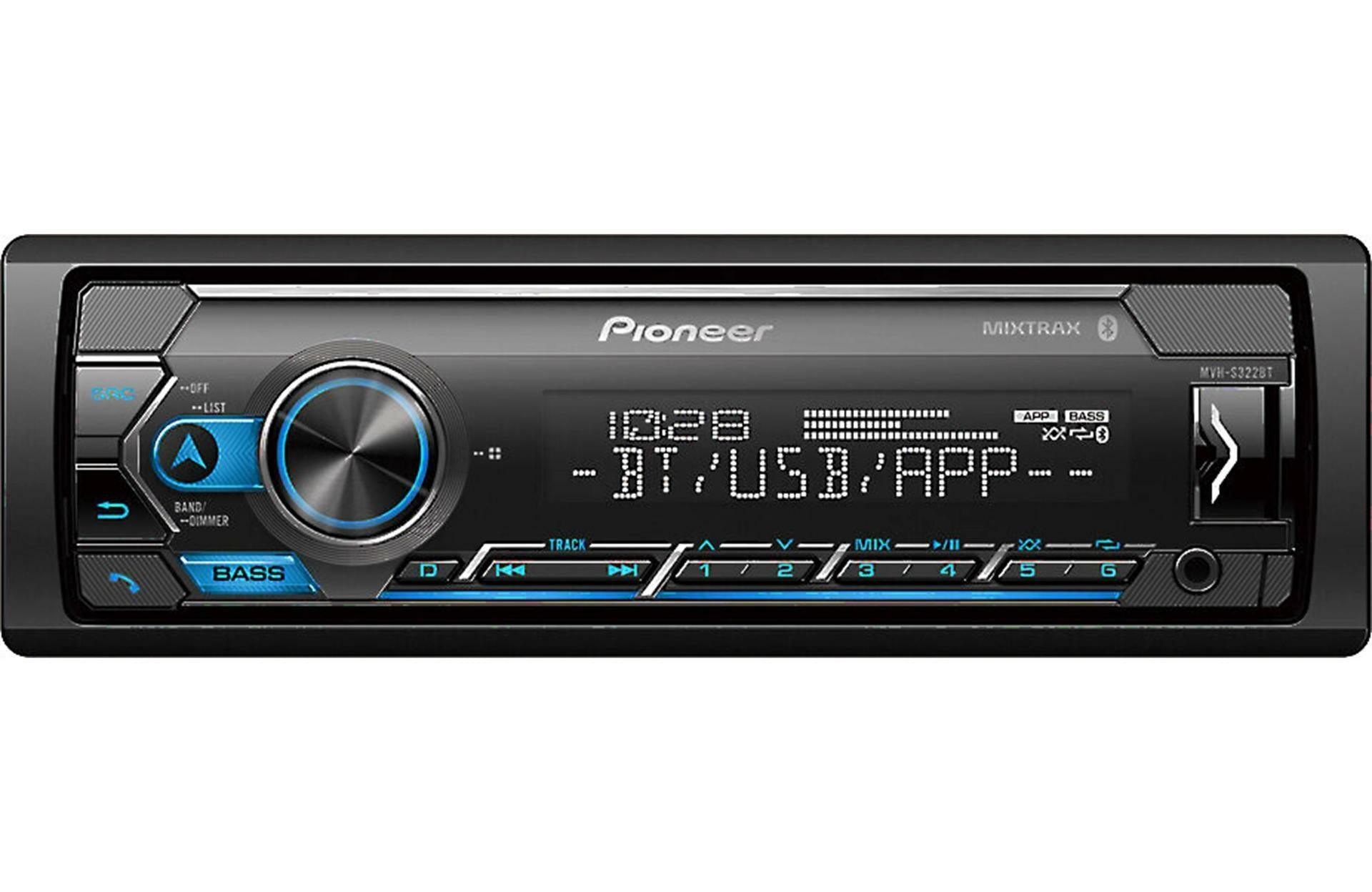

• detachable face with 2-line display

Smartphone Features (see Details for info on compatibility):

• use Pioneer's Smart Sync app for two-way control between your receiver and smartphone
• built-in Android and iPhone control through USB
• control Pandora from select smartphones
• Siri voice control

Audio Features:

• 13-band graphic equalizer (31 band EQ using Smart Sync)
• time alignment
• low-pass/high-pass filters
• inputs: front USB port, front auxiliary input

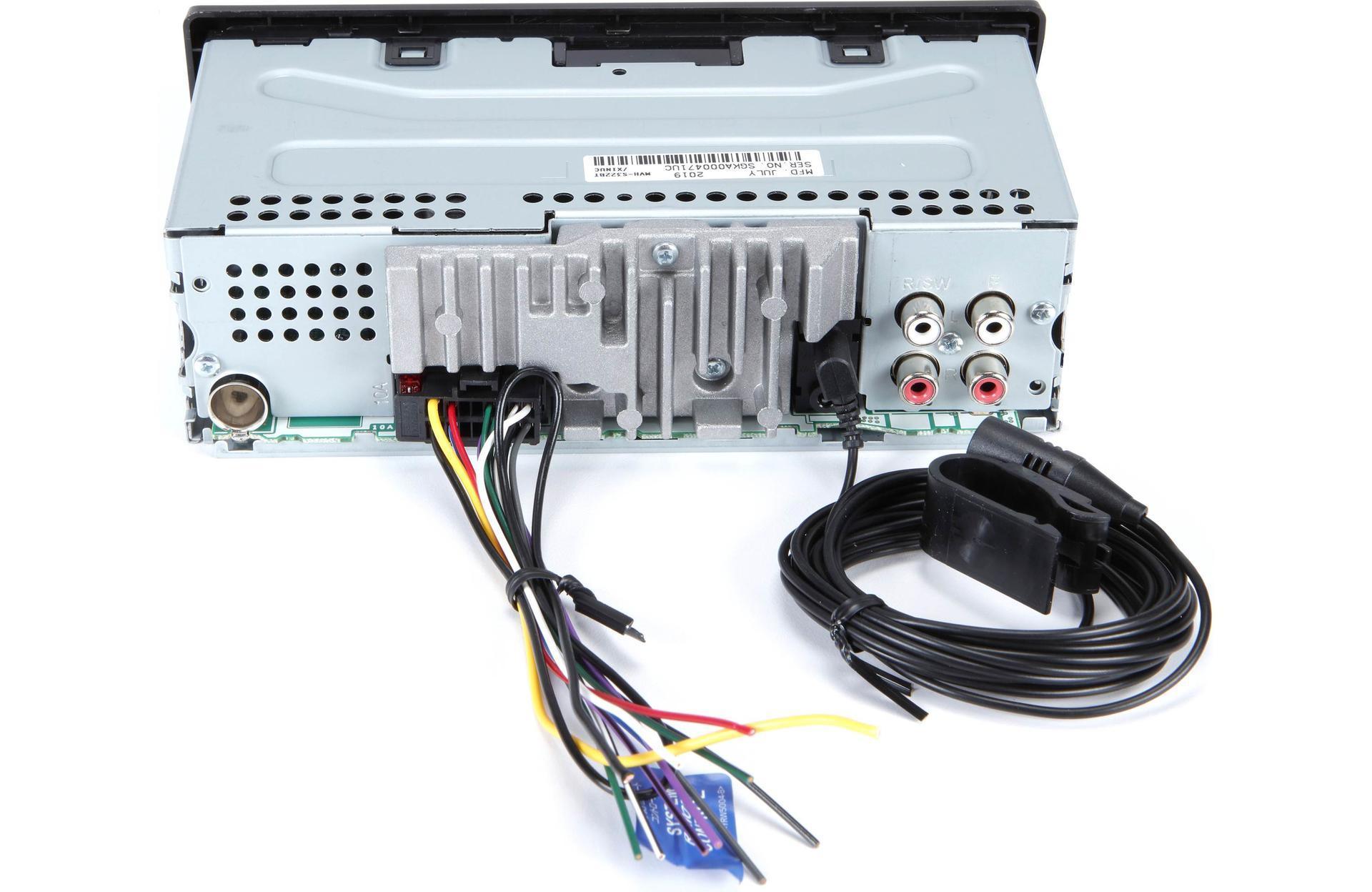

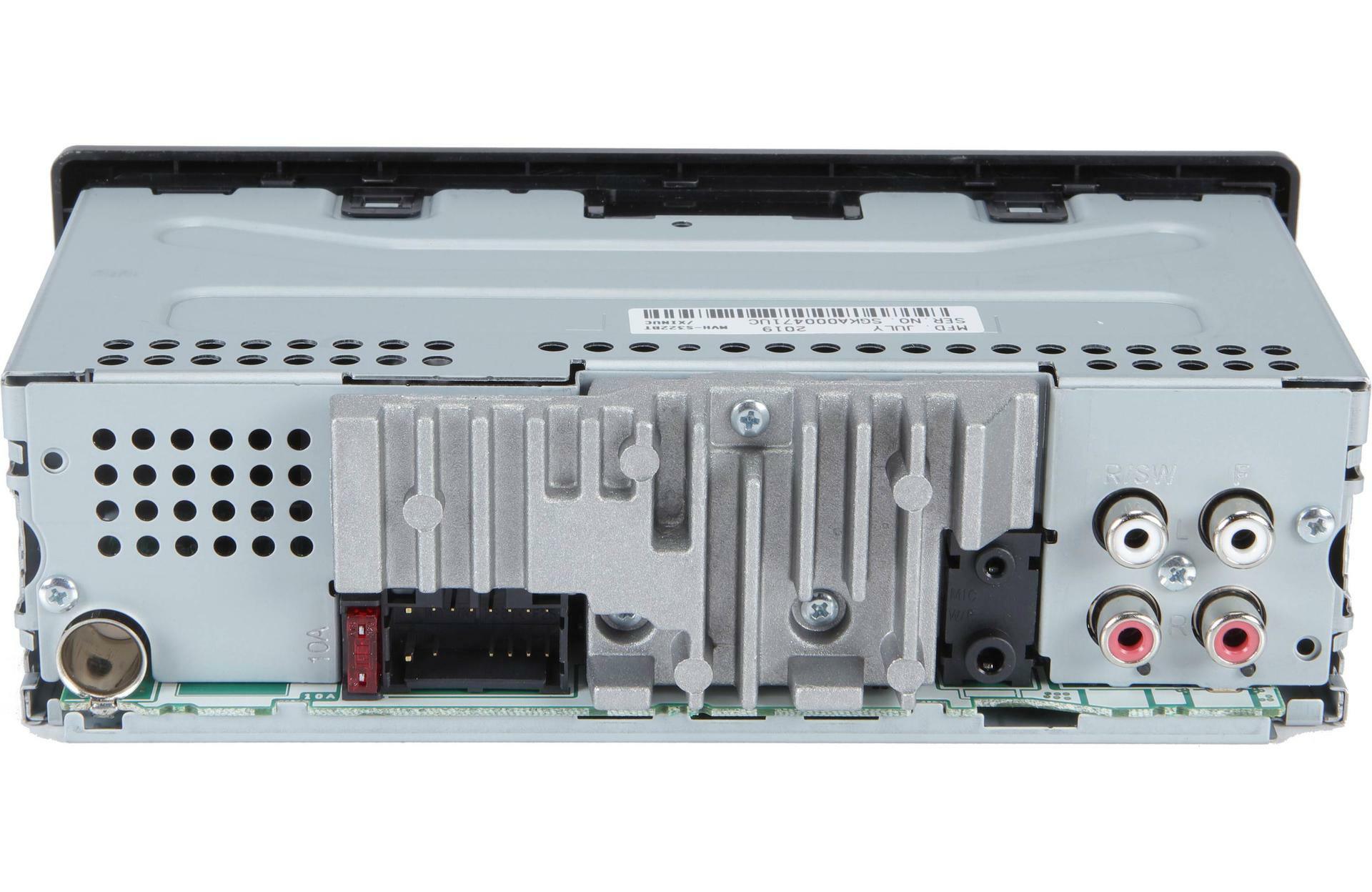

• outputs: 4-channel preamp outputs (4-volt front, rear/sub)

Other Info:

• compatible with most factory steering wheel audio controls (adapter required)
• built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
• MIXTRAX virtual DJ technology
• menus can be displayed in English, French, and Spanish
• warranty: 1 year
• MFR # MVH-S322BT

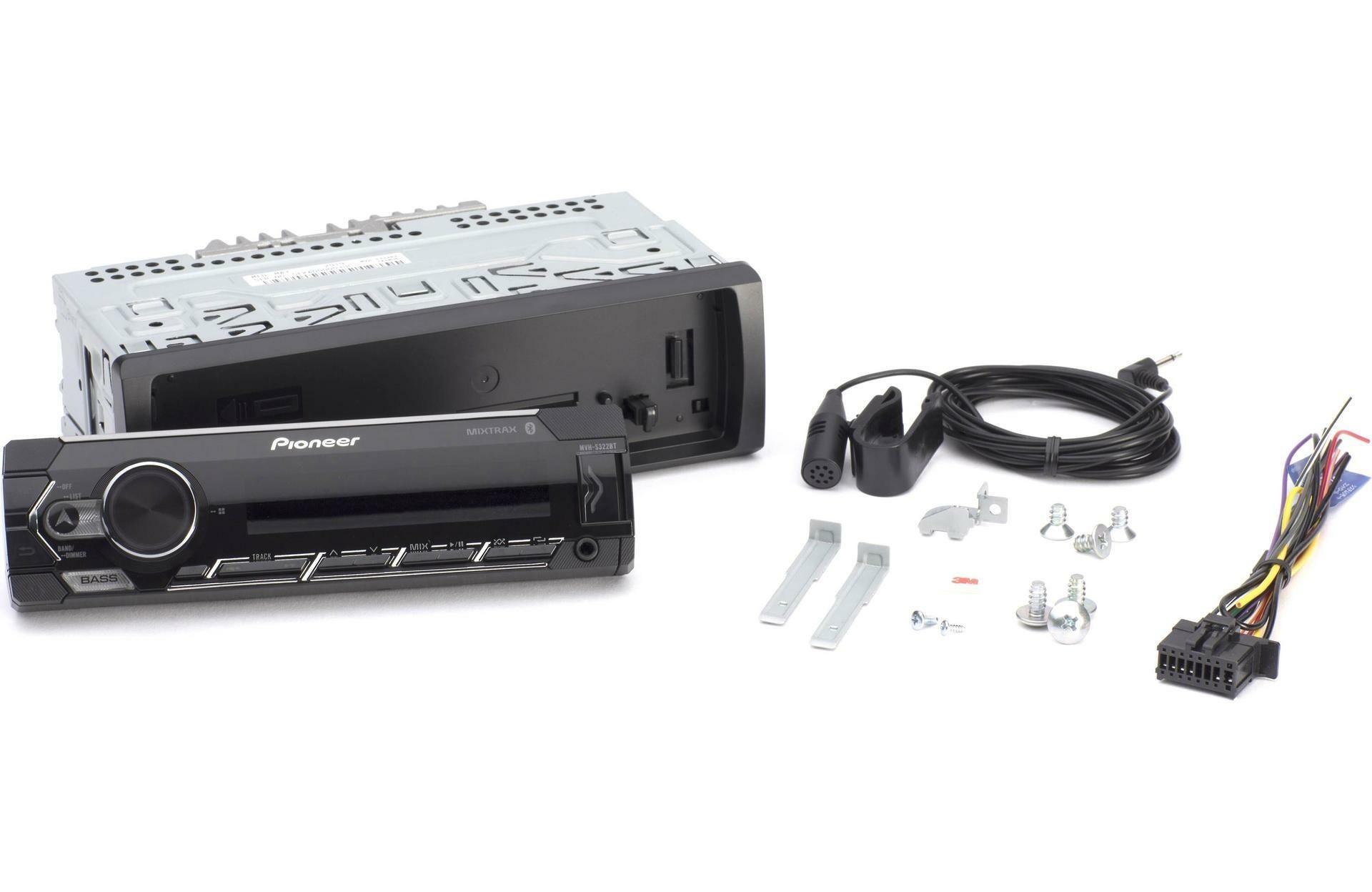

What's in the box:

• Digital media receiver (10A fuse)
• Face (attached)
• Trim-ring (installed)
• Sleeve (installed)

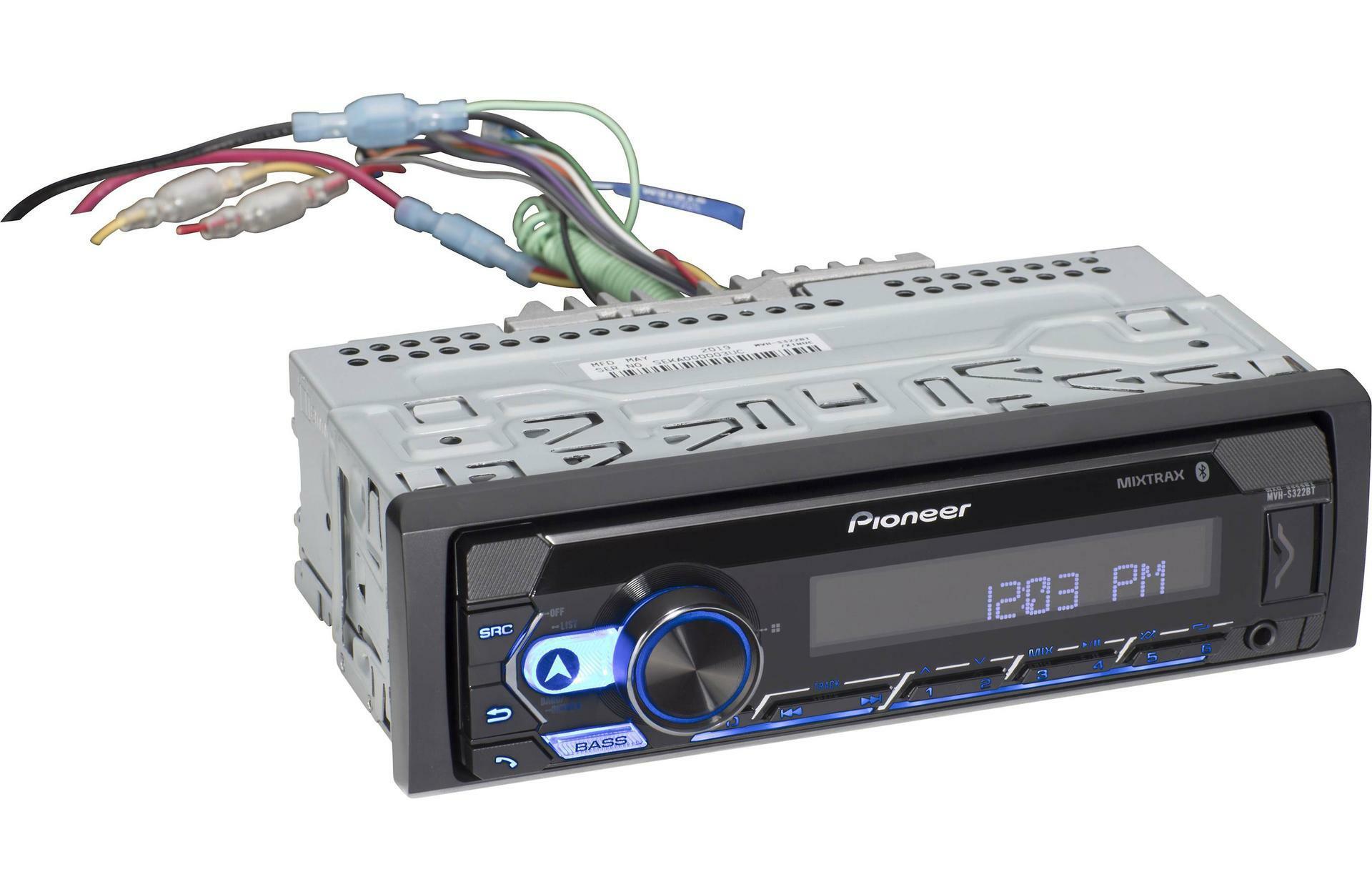

• Wiring harness
• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
• Two-sided tape
• 4 Pan head ISO-mount screws (M5 x 8mm)
• 4 Flat-head ISO-mount screws (M5 x 9mm)
• 2 Removal tools
• Face-fixing screw
• Bracket
• Owner's Manual (En/Fr/Sp)
• Limited Warranty Information (US/CA)
