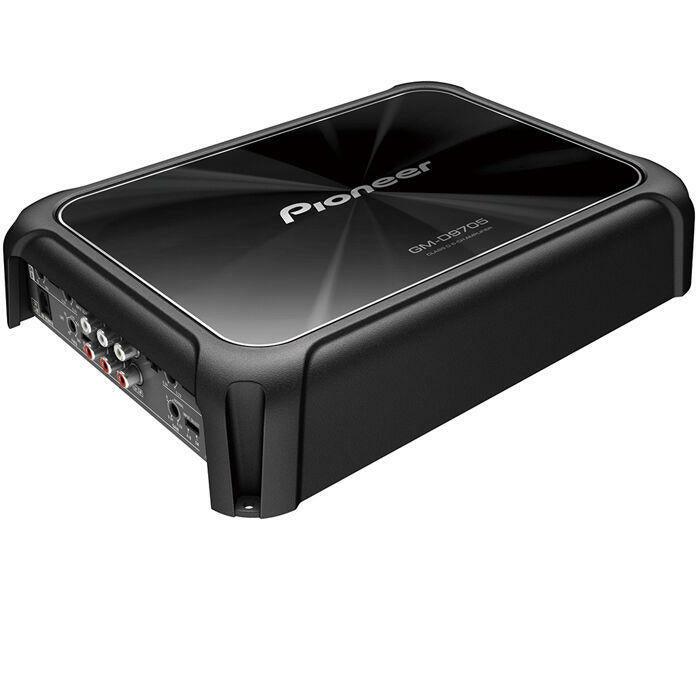

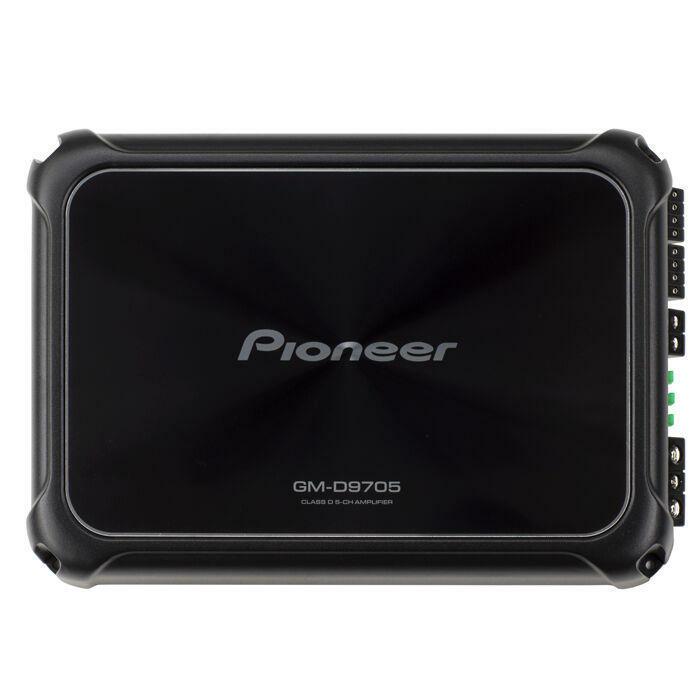

Pioneer GM-D9705 5 Channel Class D Amplifier (75x4 + 350@4ohm)(100x4 + 600@2ohm)

Pioneer GM-D9705 5 Channel Class D Amplifier (75x4 + 350@4ohm)(100x4 + 600@2ohm)

The GM-9705 is excellent for speaker line output connection and expanding a factory equipped sub-woofer less car audio system in to 5-channel output system. Dedicated output for sub-woofer is provided. Unlike conventional 5-Channel Amplifier, Pioneer GM-9705 has dedicated large block terminals to drive sub-woofer with plenty of power. Variable low pass filter has two types of slopes, selectable according to sub-woofer characteristics and personal listening preference. It is equipped with A/B-SW input select.

General Features:

• 5 Channel Champion Series Class D Amplifier w/ Wired Bass Boost Remote
• Max Power Rating:
• 4 ohms: 150 watts x 4 chan. + 700 watts x 1 chan.
• 2 ohms: 200 watts x 4 chan. + 1200 watts x 1 chan.
• Bridged, 4 ohms: 400 watts x 2 chan.
• RMS Power Rating:
• 4 ohms: 75 watts x 4 chan. + 350 watts x 1 chan.
• 2 ohms: 100 watts x 4 chan. + 600 watts x 1 chan.
• Bridged, 4 ohms: 200 watts x 2 chan.
• Total power output: 2000 watts Max
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply

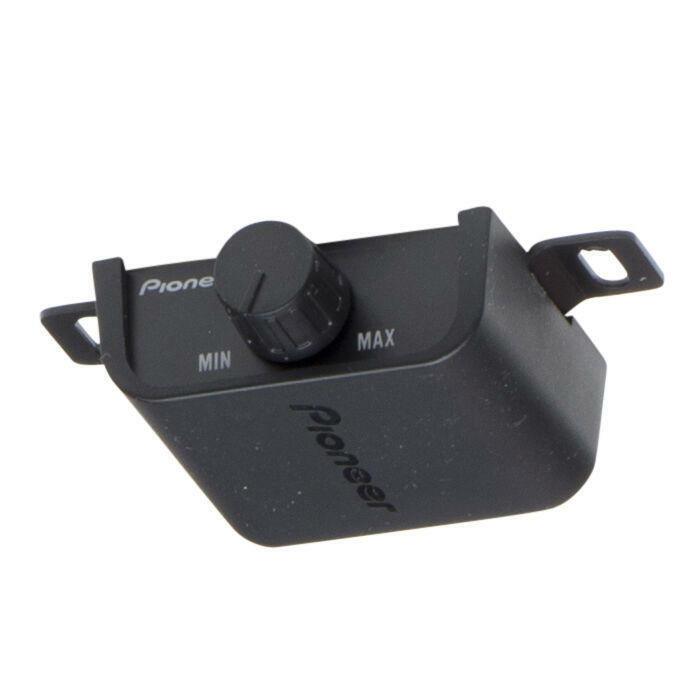

• Wired remote bass boost level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Speaker-level (high-level) inputs
• 5, 4 or 3 channel operation

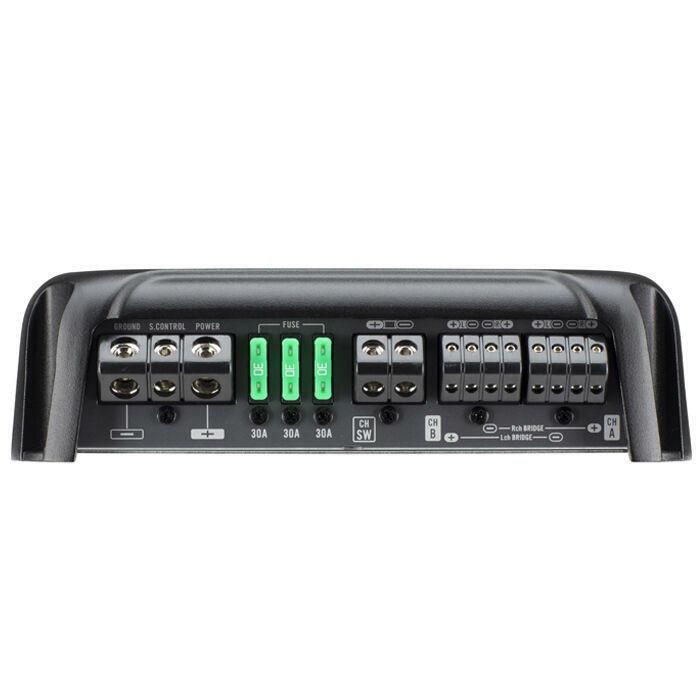

• Dedicated, large-block subwoofer terminal output
• Nickle-plated RCA, Speaker and Power/Ground Terminals

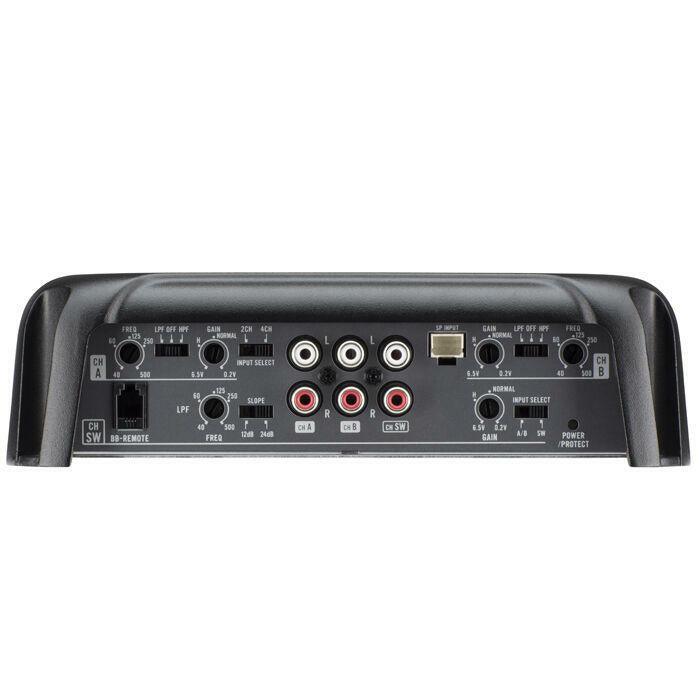

• Selectable input modes:
• Front two channels (RCA Only) can provide signal to remaining channels
• Four channel High-Level connection can provide signal to Subwoofer channel
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 200mV - 6.5V
• High level: 800mV - 16V
• A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
• Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ration: 94 dB
• Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
• Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
• Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
• Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz
• Fuse Rating: 30A x 3
• 8 - 16 Gauge speaker terminal outputs
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 7-7/8"W x 12"L x 2-3/8"H
