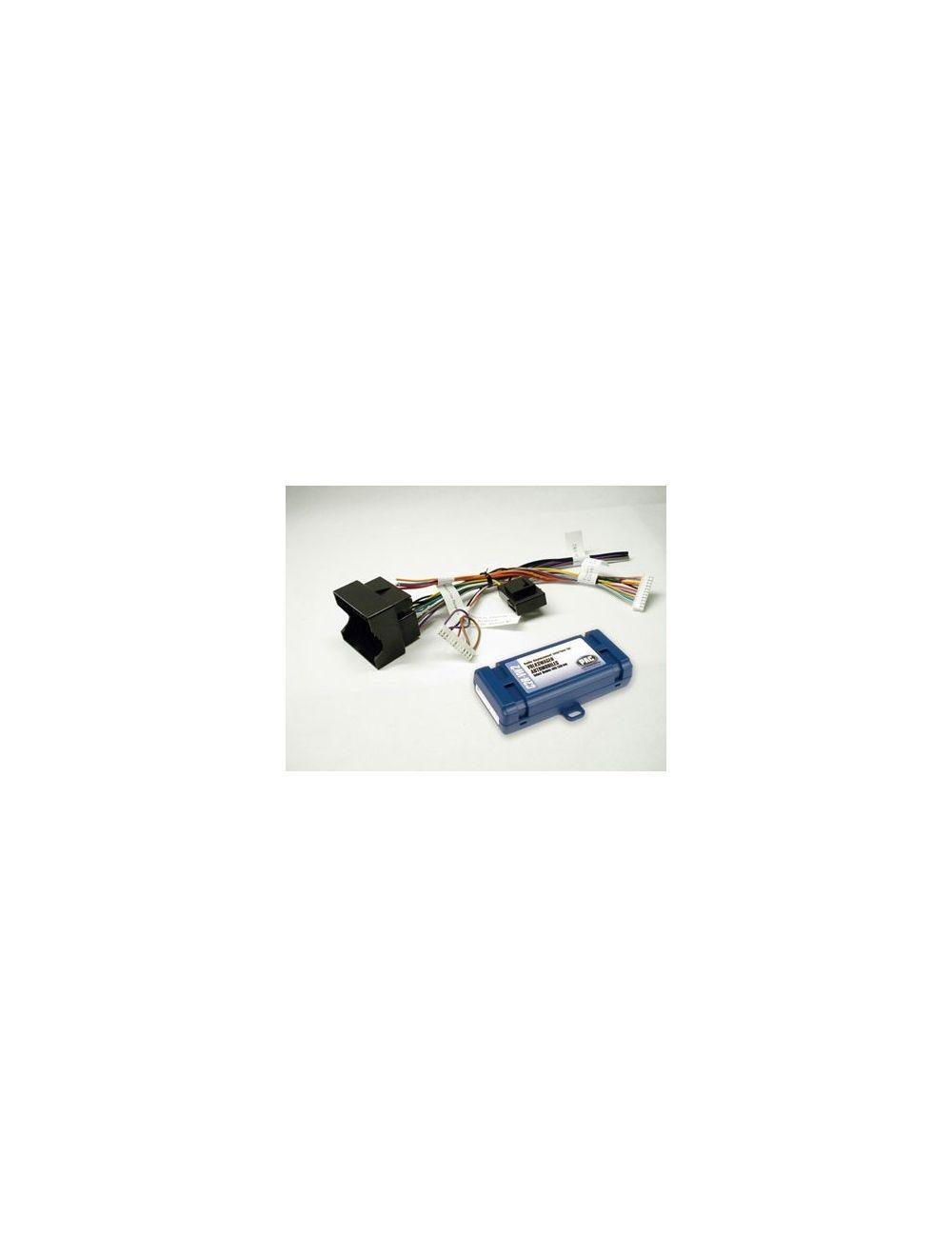

PAC C2R-VW2 Factory Integration Adapter For Select 2002-Up Volkswagen Vehicles

Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory installed amplified audio system. Use with a steering wheel interface module to retain function of select factory controls (Please see the compatibility notes section for further details). Provides CAN-based navigation outputs Retains safety warning chimes Retains factory-installed amplifier Direct plug-in for SWI module to retain steering wheel controls 12V ACC and illumination outputs Compatibility Notes: 2011 Jetta: Does not currently provide a reverse output trigger 2010+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Dynaudio systems 2012+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Fender systems 2002-2005 Vehicles: In these year vehicles the C2R-VW2 does not provide a Reverse output trigger. This signal is unavailable on the data bus. You must be replacing a factory Double-DIN radio. If the vehicle came equipped with a Single-DIN radio, the C2R-VW2 is not compatible. 2004-2007 Touareg: Does not retain digital audio amplified system seen when the vehicles is equipped with factory navigation radio Steering Wheel Control Notes We strongly recommend that vehicles equipped with SWC use the RP4-VW11 2002-2005 vehicles (excludes Touareg): Can only program volume up & down. 2006-2010 vehicles with Eight button SWC (excludes Touareg) Can program volume up & down, phone button and star button without effecting Multi-Function Display (MFD). Arrow up & down can be programmed but will control MFD. 2009-2010 vehicles with 12 button SWC (excludes Touareg) Can program left hand side of steering wheel volume up & down, track left & right, phone and mute buttons without effecting MFD. Arrow up & down on right side can be programmed but will control MFD. 2004-2010 Touareg: Can only program volume up & down
