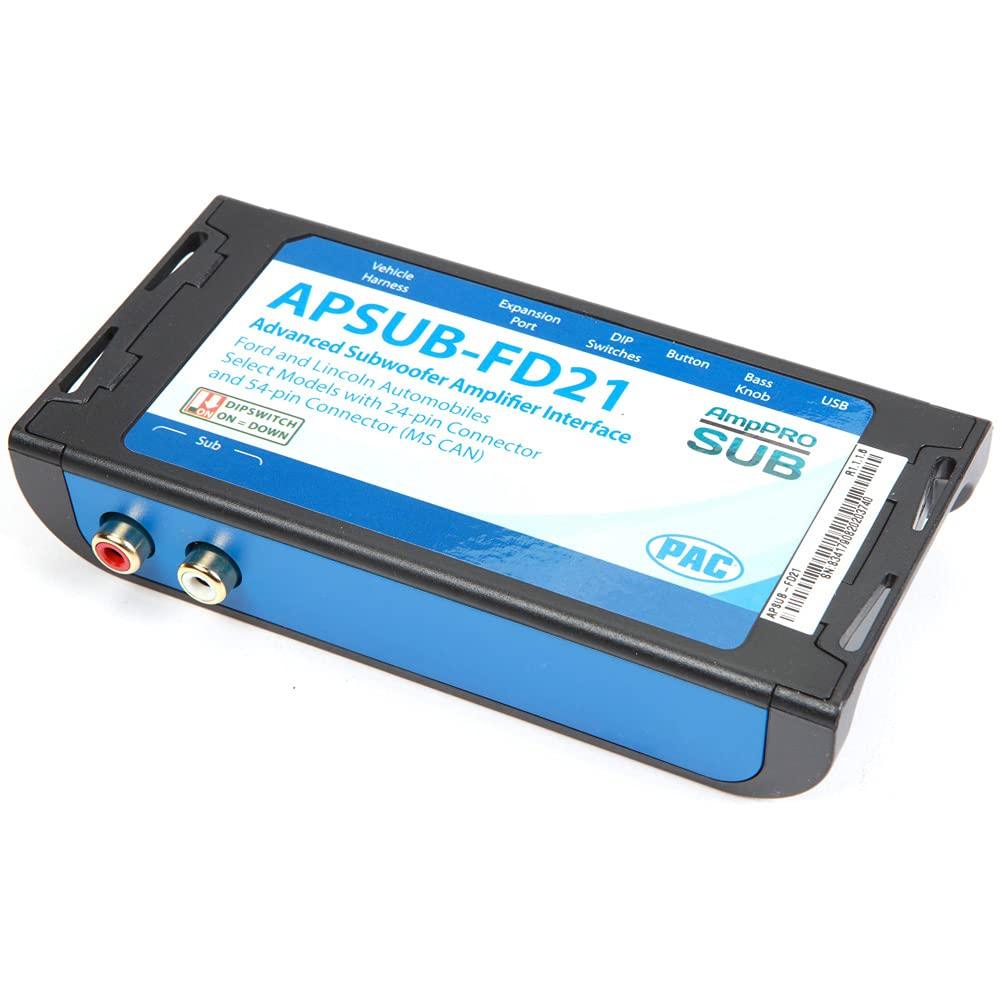

PAC APSUB-FD21 AmpPRO SUB Wiring Interface
Add an aftermarket amp and sub to the factory system in select 2011-20 Ford vehicles with premium sound systems
PAC APSUB-FD21
Modern cars often make it tough to add a subwoofer to your audio system. PAC's APSUB-FD21 interface allows you to add an amp and sub to the factory premium system in your Ford vehicle. The package includes an amp installation module, a Ford-specific harness, and a wired remote. The vehicle-specific wiring harness connects the amp module to the factory databus and supplies an unequalized 5-volt preamp signal for your sub amp. The factory amp needs to be left connected. The interface also allows you to select a center frequency to boost or cut to tailor bass response to your personal preference.
This package also includes a wired remote control for adjusting your sub's level. You'll be able to upgrade your bass response with a minimum of fuss while retaining the functions, controls, and familiarity of your Ford radio. If you're looking for a simple way to add some bass to your Ford vehicle, the APSUB-FD21 gives everything you need to get the job done.
This interface is designed for select 2011-20 Ford cars and trucks with premium sound systems.
Product highlights:
connect an aftermarket amp and subwoofer to your Ford vehicle's premium sound system
factory amp needs to be left connected
package includes amp installation module, Ford-specific harness, and wired remote
amplifier module supplies 5-volt preamp signal for subwoofer amp
options include flat frequency response or user-selectable center boost/cut frequency
Ford-specific harness simplifies installation
wired remote control included
MFR # APSUB-FD21

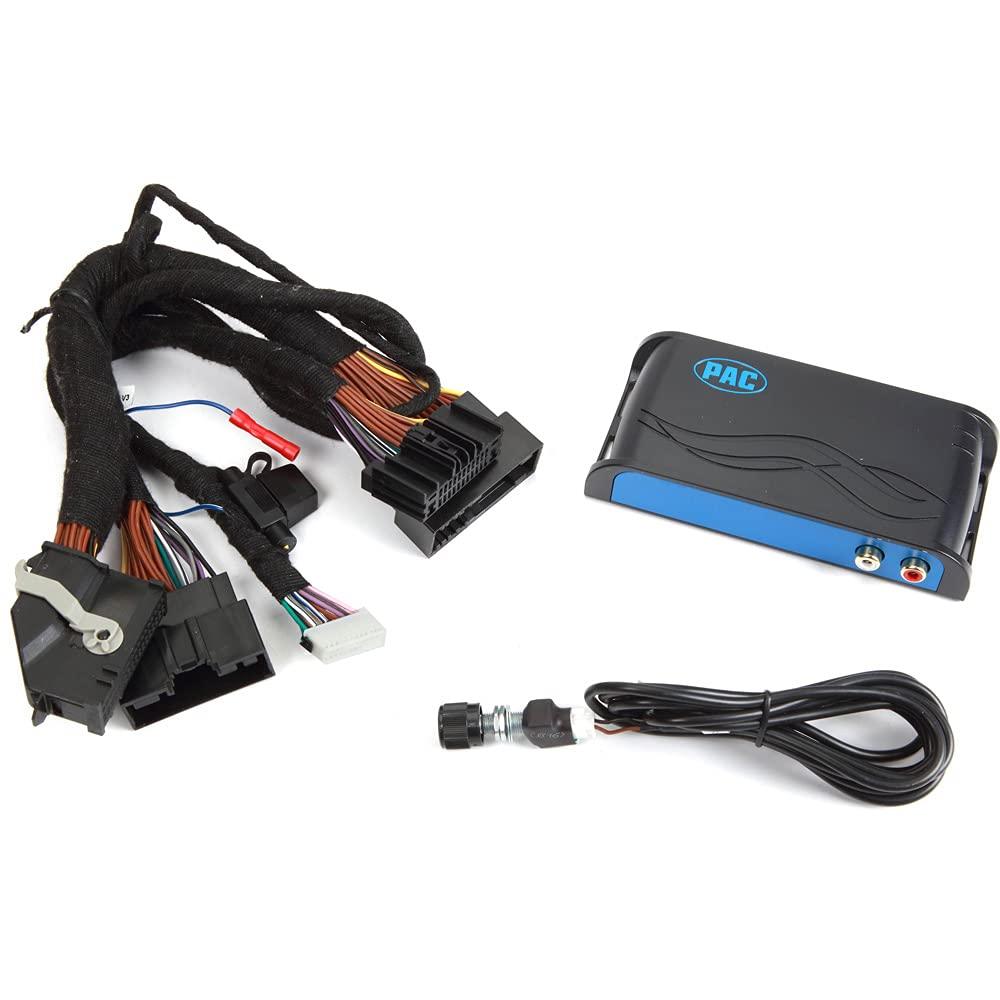

What's in the box:
34" T-Harness (24- & 54-pin plugs) w/inline 3A mini-ATO fuse

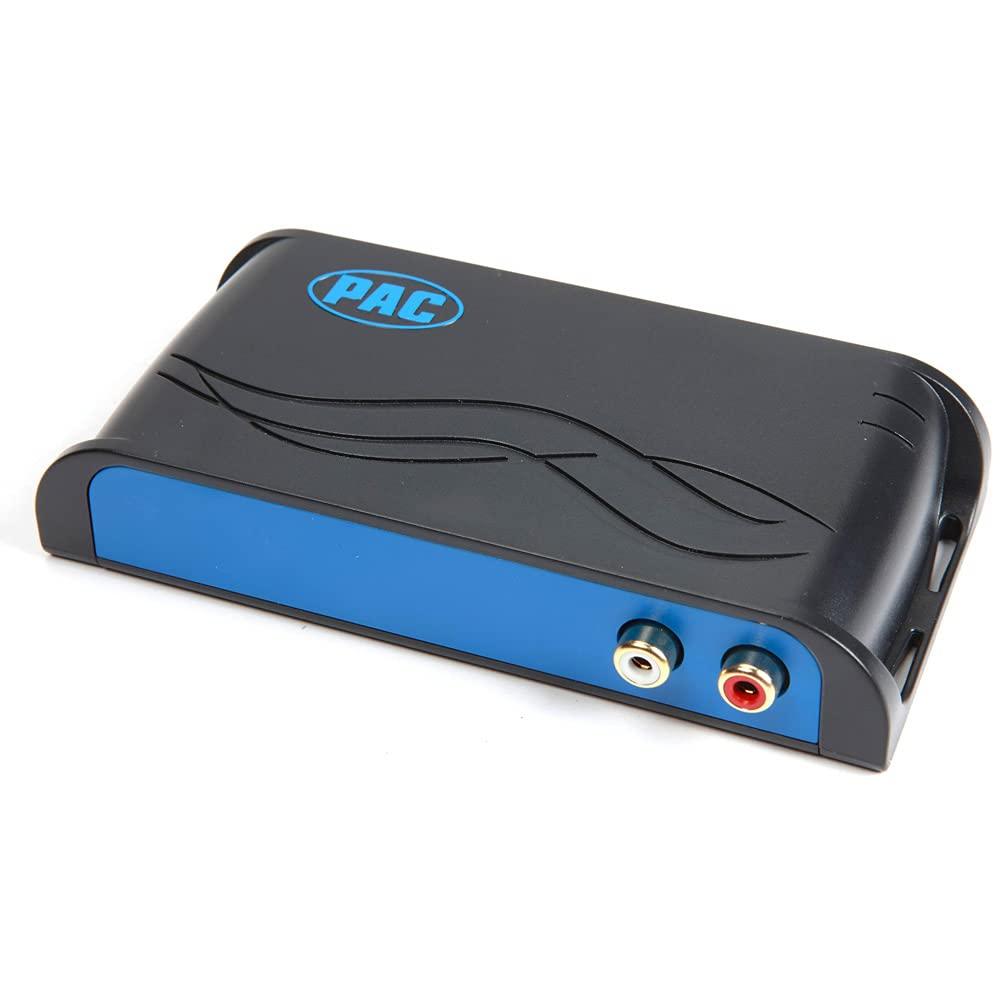

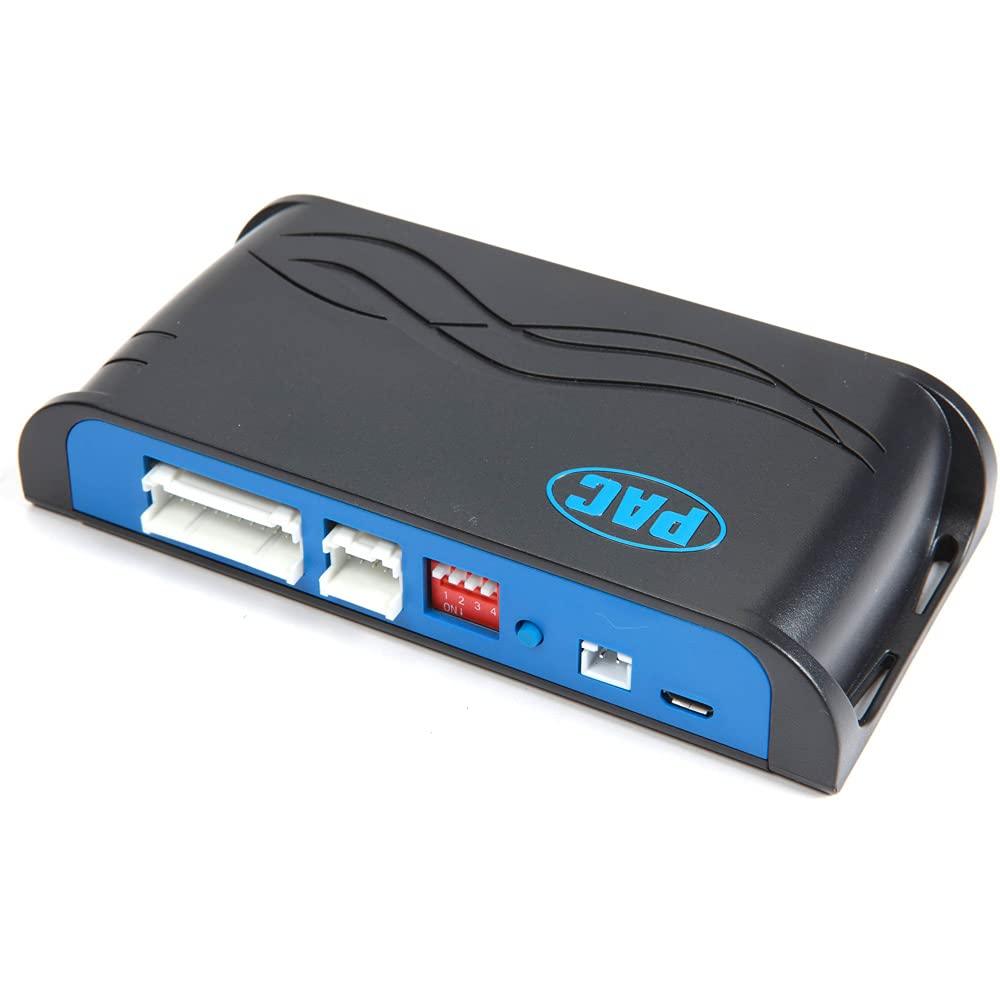

AmpPRO module
Remote level-control (attached 6' cable w/ 2-pin Molex plug)
Instruction manual
FEATURES
- Compatible with Ford Edge 2015 to 2017, Escape 20q6, Expedition 2015 to 2017, and Explorer 2011 to 2018
- Compatible with Ford F-150 2013 to 2017 and F-250/350/450/550 2013 to 2019,
- Compatible with Ford Focus 2012 to 2017, Fusion 2013 to 2016, Mustang 2019 to 2020, and Taurus 2013 to 2015
- Upgrade solution for factory, fixed-level, databus-controlled sound systems
- Allows for addition and control of an aftermarket subwoofer amplifier
